Bitfunx OSSC V1.8 Open Source Scan Converter HDMI Adapter
Bitfunx OSSC V1.8 Open Source Scan Converter HDMI Adapter
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 4 – Nov 13
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Excellent product. Exceptional image quality. I updated to version 1.21 and the 6x image quality improved significantly. I recommend it to everyone!
Comes in great packaging and it's easy to install. was shipped and delivered fast

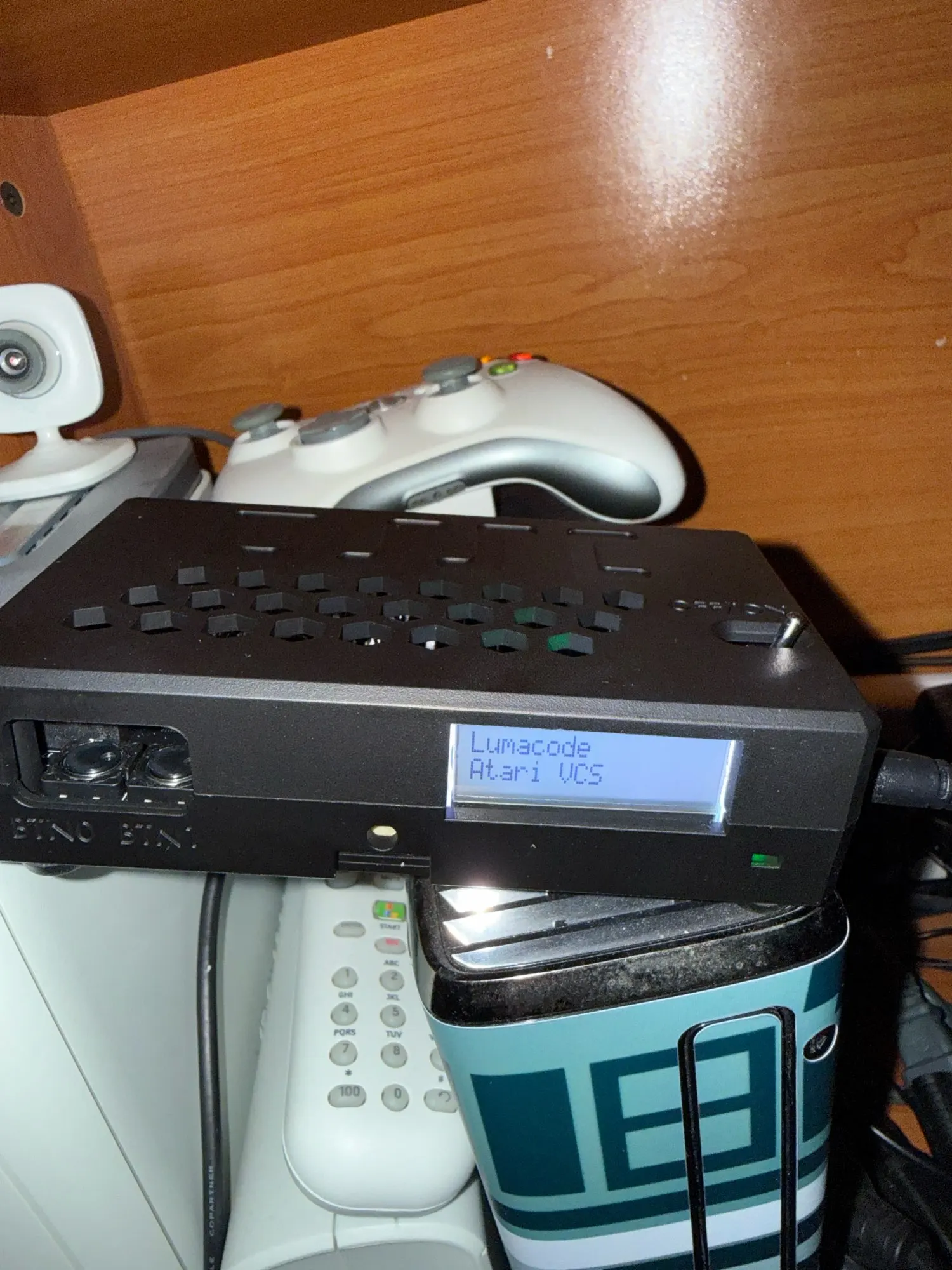

This bitfunx ossc worked out perfectly for me. i used it for lumacode, and it was absolutely perfect. $104 shipped to me in the us. and it arrived in 5 days. can’t be happier with this purchase from aliexpress.
Excellent seller, delivery on time and product very well packaged. Includes all power adapters and remote control. Has many functions, each console requires a different configuration that you can save in the OSSC memory and load later. Very good PVM filter, simulates a CRT TV perfectly. Highly recommended!
Bitfunx OSSC V1.8 Open Source Scan Converter HDMI Adapter
Great
It works. got it for like 50$ less than other sites, but you need two other parts for some systems. i had to buy a component ps2 cable and then after it got here i realized i still needed a rca to 3.5mm adapter for audio. box was a little scrunched up, but the item inside was brand new. this isn’t as simple as a retrotink either, you need to adjust settings or you’ll get stuttering sometimes. clear picture now that i turned off the line2x!
Impeccable, the package arrived quickly and it is indeed version 1.8, and I was able to upgrade it to version 1.21. The packaging and everything else are impeccable, I recommend it.
Good build quality. easily updated firmware. works great on ps1 and ps2
Exactly as described. Works great!
Fast and on point
Dont work with my tcl tv
So far, works exactly as described. Note that if youre using component cables you will need to get a separate audio jack for the white and red audio cables. Ossc comes equipped with in and out audio ports so no issue. Make sure you use quality cables, retrovision on amazon is good. Cheap cables and expensive scaler = poopy image. Note that, as they clearly state, not all scaling options are available for all tvs. I have a cheap budget firetv and can only use the 2x mode, so it might be worth researching tv compatibility. That said, 2x mode with the crt scanlines on look amazing. Great solution and quality product.
This made my ps1 and snes look amazing with the right scart cables!
There’s a learning curve for sure with this one but it’s a nice pic for sure
Product details & specifications
A low-latency scan converter that brings retro consoles to modern HDMI displays.
- Hardware version 1.8 with remote control and power supply
- Inputs: VGA, component and Scart; output: HDMI
- Works with PS2, SEGA Saturn, Nintendo 64, GameCube and Mega Drive
- Firmware updates via MicroSD card
SPECIFICATIONS
AC/DC Adapter: 5V/1.5A
Accessories Type: HDMI Converter
Brand Name: BitFunx
Choice: yes
Compatible Brand/Model: SEGA
Compatible Console: Retro game consoles that can output VGA, component or Scart signals.
Compatible Sega Model: MEGA DRIVE,SATURN,DREAMCAST,Mega Genesis
Electric: No
Equipment: Remote Control / Power supply
Firmware: Can be updated use MicroSD card
HW version: 1.8
High-concerned chemical: None
Item: Bitfunx OSSC Converter
Model Number: XLL-OSSC
Origin: Mainland China
Product: Open Source Scan Converter
Support Signal Input: VGA / Component / Scart
Support Signal output: HDMI
Support TV: TV with HDMI port
With USB: No
Bitfunx OSSC HW V1.8 Open Source Scan Converter HDMI Adapter for PS2 SEGA Saturn Nintendo64 Gamecube MD Retro Game Consoles
Introduction
The Open Source Scan Converter is a low-latency video digitizer and scan converter designed primarily for connecting retro video game consoles and home computers to modern displays. It converts analog RGB or component video signals into a digital format, and doubles (or triples) the scanlines of a single frame if necessary to generate a valid mode for digital TVs or monitors.
New Features of V1.8 OSSC:
1. Improved Hardware Compatibility:
Version 1.8 includes revisions to the hardware to improve compatibility, especially in terms of sync/mode detection.
2. Shadow Mask CRT Simulation:
This feature emulates the shadow mask effect found behind traditional CRT screens, offering users a more authentic retro gaming experience.
3. HDR Mode:
The addition of HDR (High Dynamic Range) mode provides a wider color range and contrast, making the images look more vivid and lifelike.
4. 1440p Pixel Repetition Mode:
This feature allows the OSSC to enhance image quality when outputting at 1440p resolution by repeating pixels, which is useful for users who want better image quality on high-resolution displays.
5.Improved Power/Ground Supply Distribution:
With a new 4-layer PCB design, version 1.8 improves the distribution of power and ground, contributing to overall performance and stability.
6. Inherited Features from Version 1.7:
This includes over-voltage protection, an improved audio switching switch, and reduced temperature and power consumption. These improvements have been carried over to version 1.8.

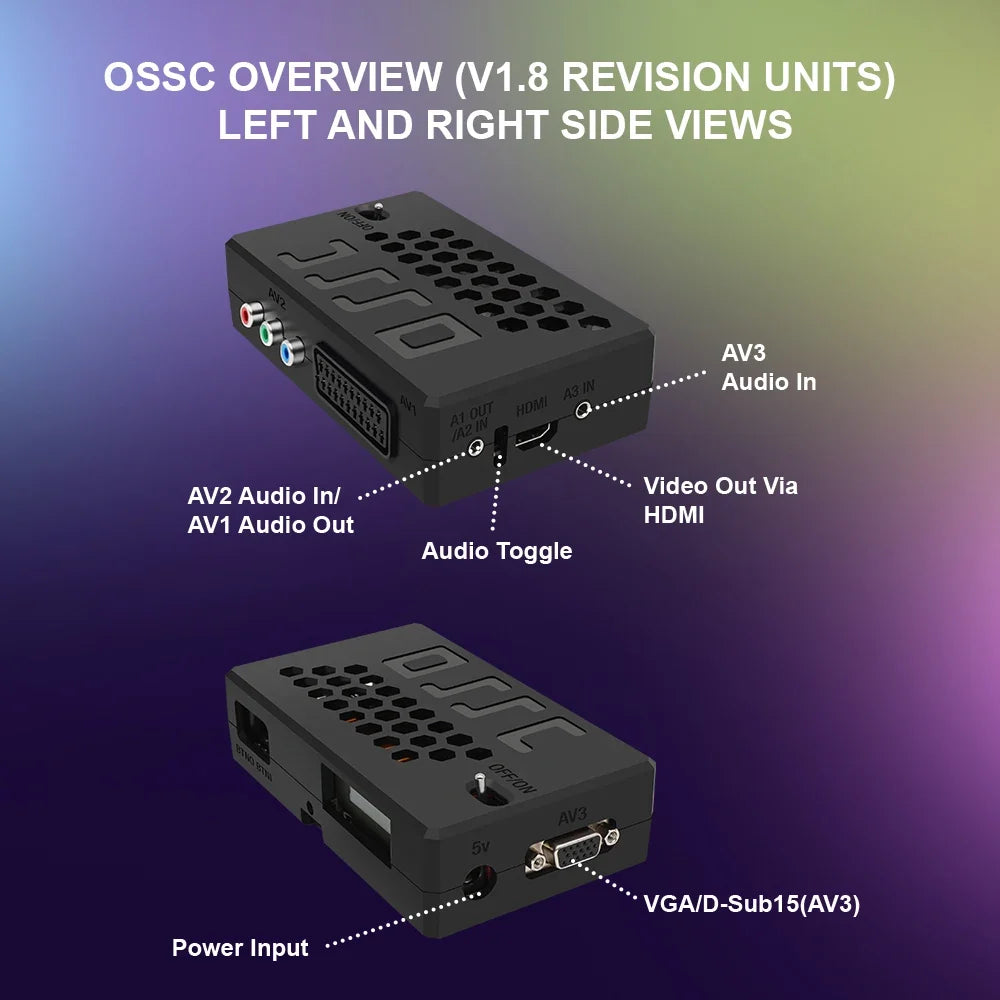

OSSC OVERVIEW
LED's Status
Green LED indicates that power is on. This green LED will go out briefly when an lR remote code is detected.The red LED indicates unstable sync when lit.
LCD
Displays the 0SSC's menus and information about the current source.
MicroSD Card Slot
For updating the devices firmware.
IR Sensor
Receives commands from the remotecontrol unit. Line of sight is required.
JTAG Connector
For software development purposes and firmware updates.
BTNO and BTN1
Perform various functions without the need of a remote control.
Video out
On V1.5 and earlier models, an industry standard DVl-Dconnector outputs digital video at chosen resolution to your display. Does not support/output analogue DVl. On V1.6 andlater revision units only OSSC models this is replaced by a standard HDMl connector.
Audio out (V1.5 and earlier revisions only)
Standard 3.5mm stereo headphone plug type connector.Audio fed in through AV1 (RGB SCART) will be output here.If an audio upgrade board is installed, you can also feed in analogue audio through this connection, but please notethe SCART cable should be disconnected from AV1 first.
AV2 audio in/AV1 audio out(V1.6 and later revision units only)
Standard 3.5mm stereo headphone plug type connector.Use this connector to output audio from AV1/SCARTor to input audio for AV2/Component video sources.
Audio toggle (V1.6 and later revision unitsonly)
Toggle between outputting audio from AV1or inputting and digitizing audio on AV2.
AV3 audio in (V1.6 and later revision units only)
Standard 3.5mm stereo headphone plug type connector.Use this connector to input and digitize audio for AV3/D-Sub15 (VGA) sources.
AV1 In
Connect an RGB SCART source to this input.
Important:
The input must be an RGB or YPbPr signal. S-Video and Composite SCART sources are NOT supported and require transcoding into RGB first, Only European specification RGB SCART cables are supported. The less common Japanese JP21 cable must be used with a converter.
AV2 In
Connect component video or RGB with sync on green sources to this input.
AV3 In
Standard D-Sub15 (VGA) connector. You can connect sources such as the Sega Dreamcast or a retro gaming PC.This input does NOT have a sync low pass filter as this isnormally not required for VGA connections. Signals up to amaximum resolution of 720p are supported on all inputs.
Power Switch
Toggles the power off and on.
Power input
Connect a suitable 5 volt, 2.1 x 5.5mm positivetip PSU supplying at least 1 amp of current.
OSSC Remote
If your remote control is unresponsive:
1) Power cycle the OSSC while holding BTN1 on the OSSC's PCB.
2) A target function name (e.g. "MENU") will then be displayed on the OSCC's LCD screen. Press the corresponding key on the remote control (the key you want to use for the displayed function). If the OSSC receives the code correctly you will be prompted to confirm the new code. Press the same key again to confirm.
3) Continue to do #3 for every function that displays on the screen. Assign a unique button to each function.
Firmware Update
New features are periodically added to the OSSC in the form of firmware updates. The devices firmware can be updated using an MicroSD card. The MicroSD card should first be formatted with the new firmware. Once this is done, insert the card into the OSSC, enter the menu and choose “FW. update”.
The firmware files are named usingthe following conventions:
-jp-Japanese language version
-aud- Digital audio enabled version suitable for 0SSC
-aud -jp-As above with Japanese language translation
