Modify a compatible N64 for HDMI output with this PCB and flex cable kit.
- Designed for N64 consoles; the console is not included
- PCB and flex cable require soldering
- Built-in OSD menu and eight color modes
- Three TV aspect ratios are described
- Variants list four model options
SPECIFICATIONS
Accessories Type: Chip/Modchip
Compatible Brand/Model: Nintendo
Compatible Nintendo Model: Nintendo64
Electric: No
High-concerned chemical: none
Origin: Mainland China
With USB: No
Please note that: It requires good soldering skills.
The console is not included.
This N64-HDMI Mod kit is compatible with all N64 models/regions; with the exception of 'Pi_ka_chu' models.
This N64-HDMI kit is a digital to digital HDMI output upgrade for the Nintendo 64.

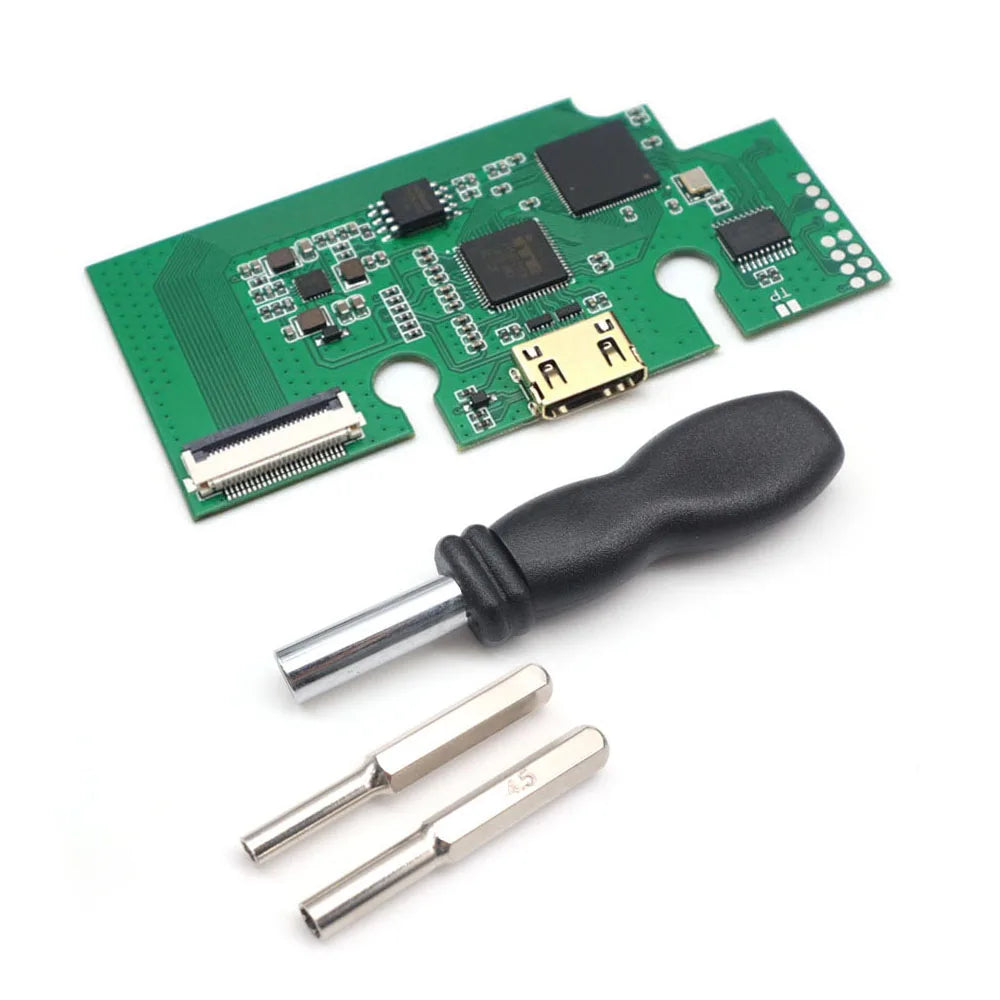

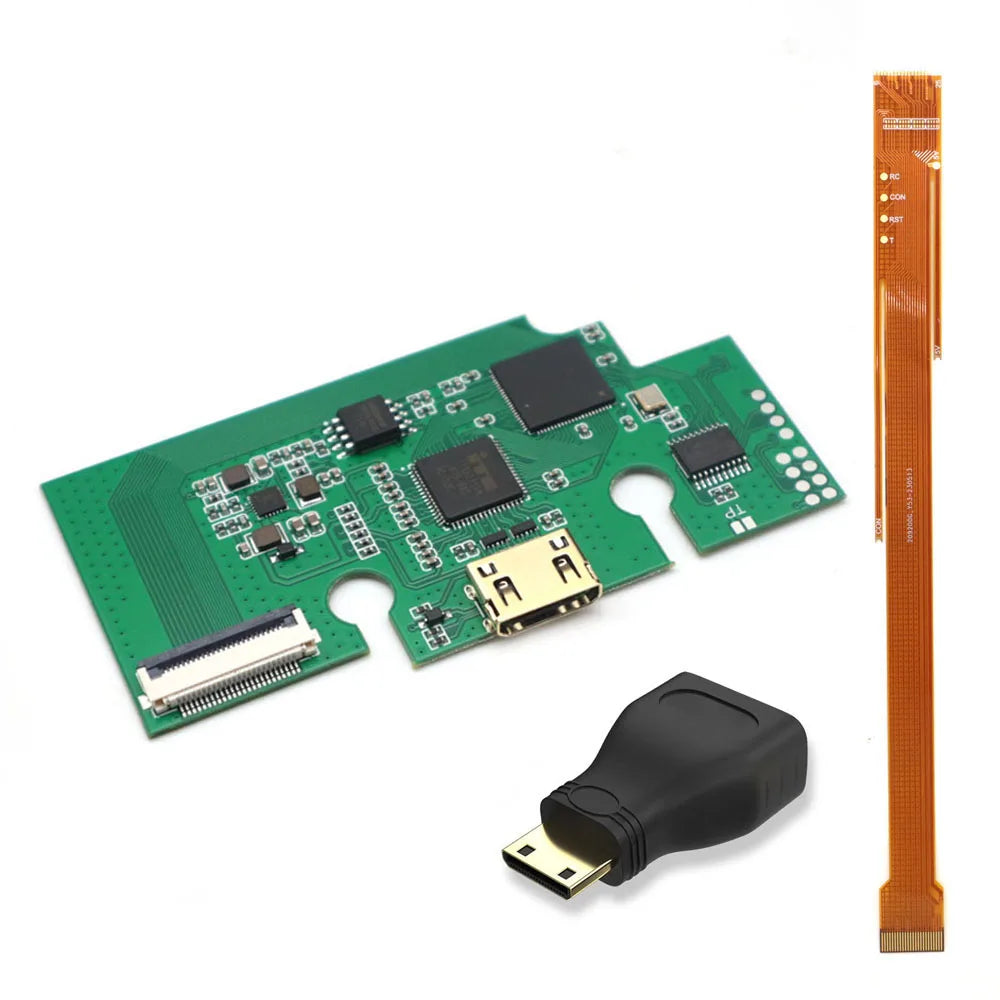

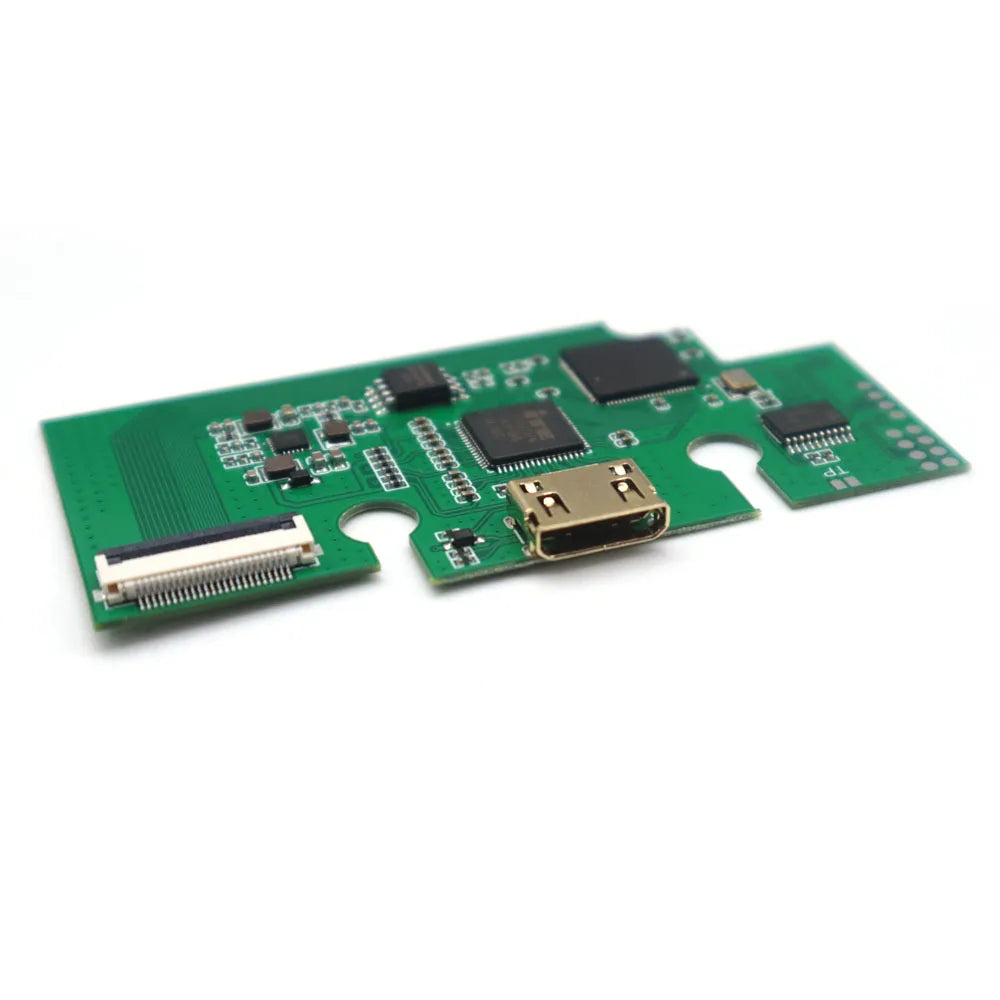

The kit includes a PCB and Flex that must be soldered into the N64.
Make your N64 console output HDMI image.
1.HDMI-Compatible Output.

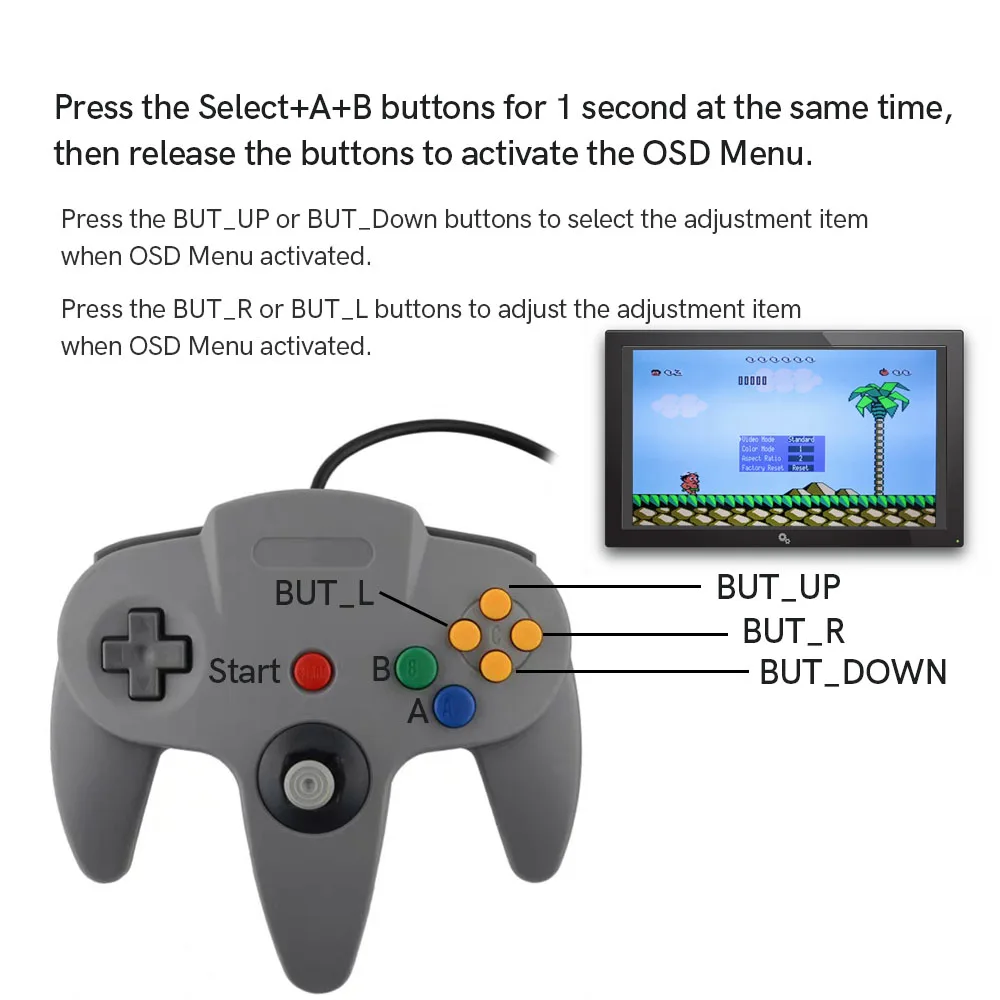

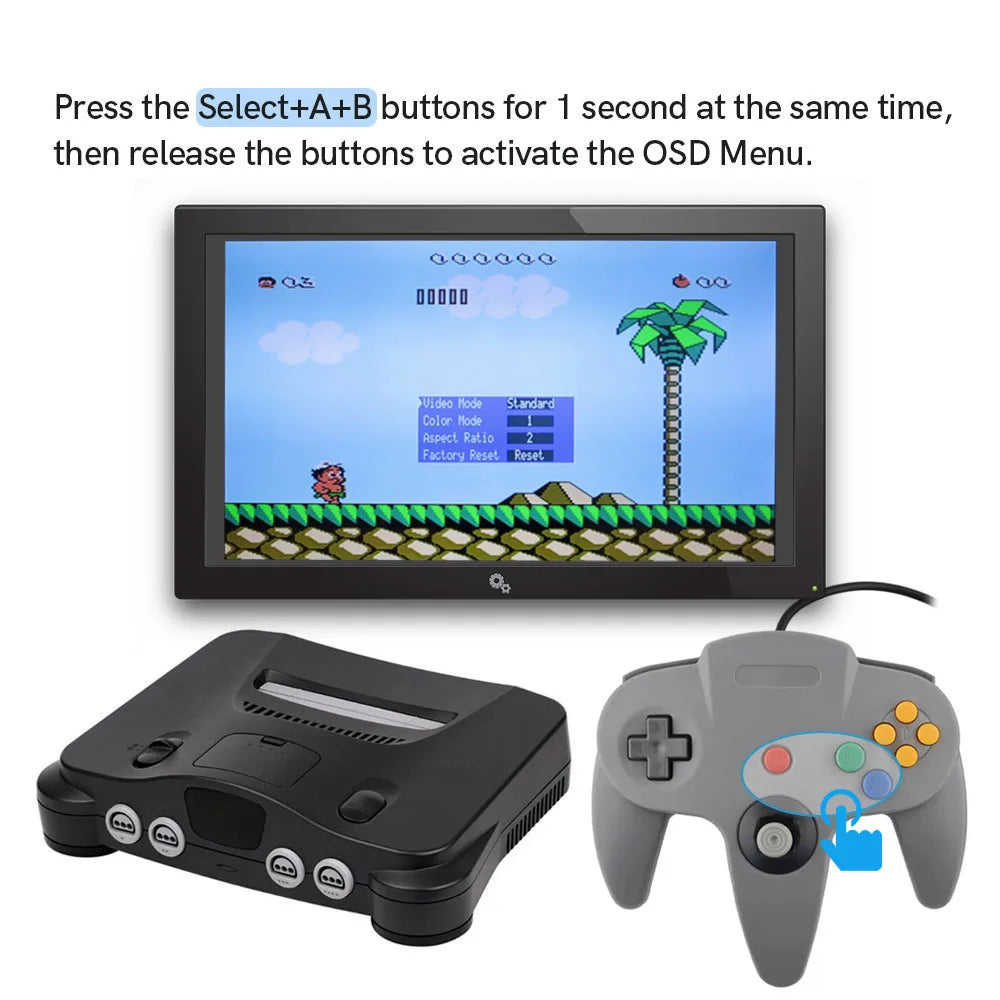

2. Built-in OSD Menu!

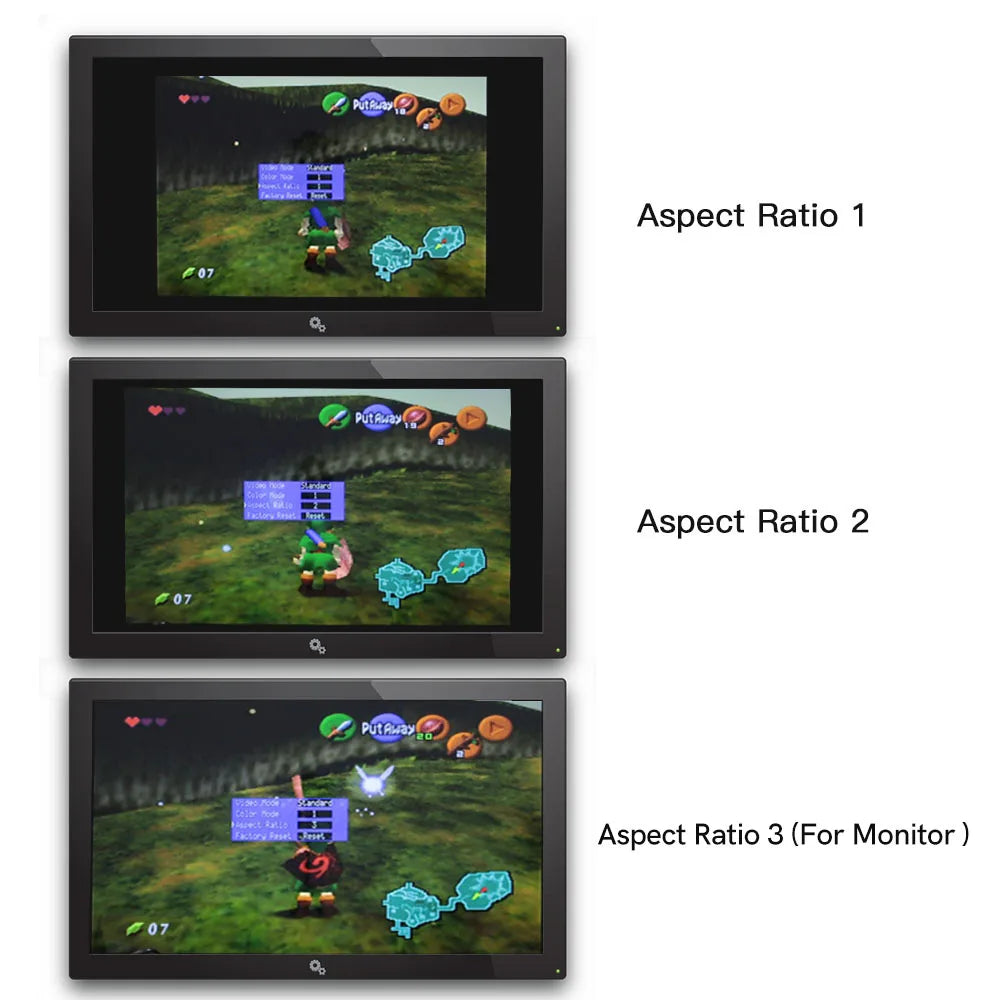

3. Built in 3 TV Aspect Ratio.
4. 8 color modes.
===============
The N64 original image resolution is 256x224 to 640x480. So, 720P HDMI
The 720P resolution is 1280x720.
1080P is 1920X1080
==========================
1.Align the flex on the RCP to pin 6.
2.Solder the flex cable.
3.Use a multimeter to confirm there is no continuity between adjacent pins. If a direct short is found, clear the bridge and check again.
==========================
The resolution of the N64 console is at most 640*480.
Whether the signal output is 720P (1280*720) or 1080P (1920*1080), they are all zoomed in based on the original signal (at most 640*480). The qualities of the output pictures are the same.
The Input signal resoulation limits the output quality.
In one word the qualities for 720P and 1080P are the same for N64 console.
---Instruction manual---
