PS1 Digital HDMI Mod Kit for PU-8/18/20/22/23 Boards
PS1 Digital HDMI Mod Kit for PU-8/18/20/22/23 Boards
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 4 – Nov 13
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications
Convert a compatible PS1 console to digital HDMI output with an internal mod kit.
- Supports 480P and 1080P HDMI output
- Built-in OSD menu, three video modes, and six aspect ratios
- PU-18 and PU-20 options fit matching motherboards
- Other options require the specified PU board and GPU chip; soldering required
SPECIFICATIONS
Accessories Type: Chip/Modchip
Compatible Brand/Model: Sony
Compatible Sony Model: playstation
Electric: No
High-concerned chemical: none
Origin: Mainland China
With USB: No
This HDMI kit is a digital to digital HDMI output upgrade for PS1.

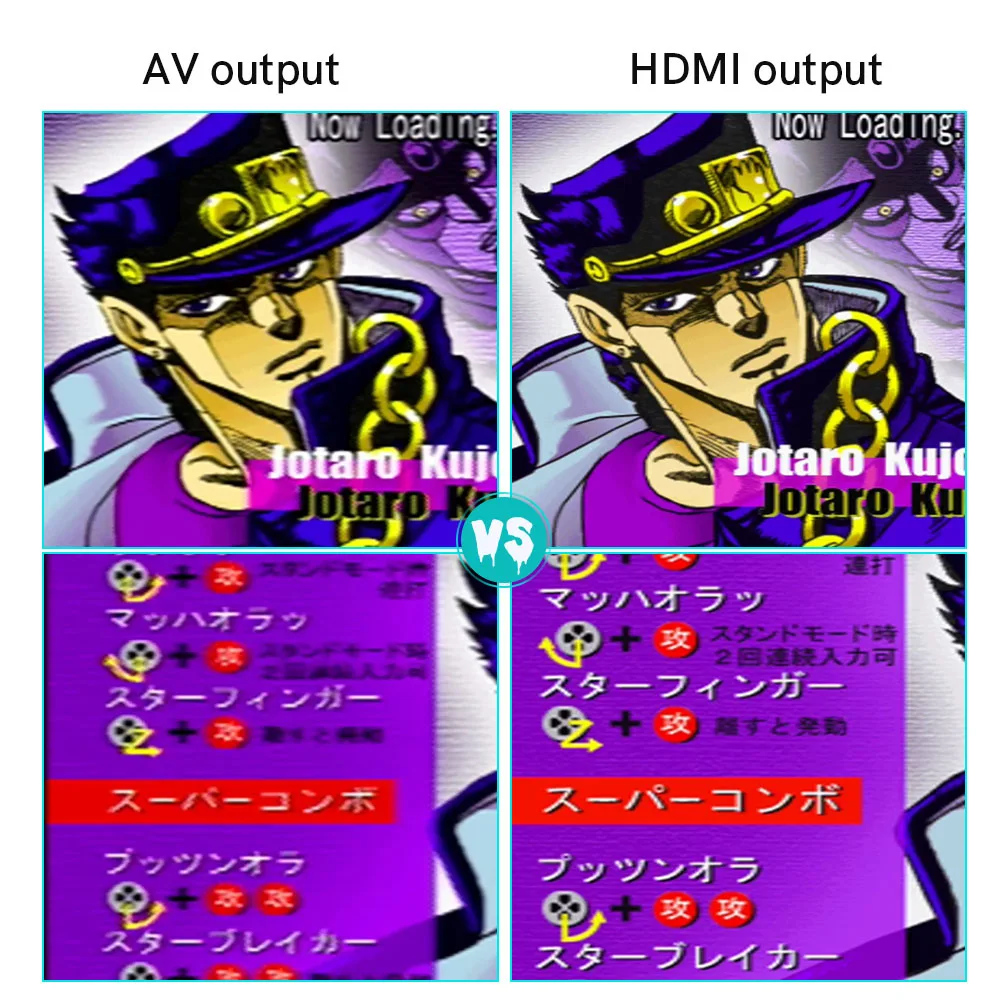

This digital to digital HDMI image are much better than other external HDMI converter.
Make your PS1 console output HDMI image.
The kit includes a PCB and Flex that must be soldered into the PS1 console.
Note: Good Welding skills required!
Due to environmental protection, we do not send paper installation manual.

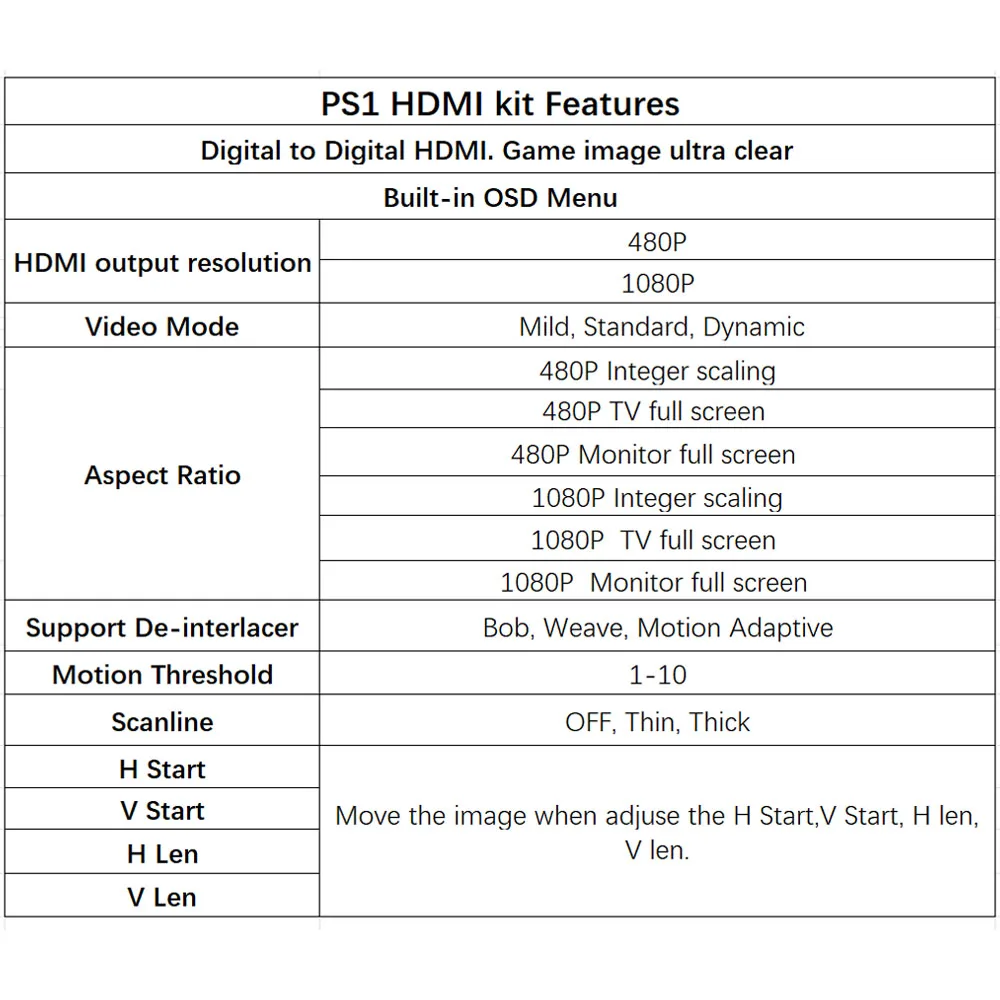

Description:
1. Support 480P, 1080P HDMI Output.

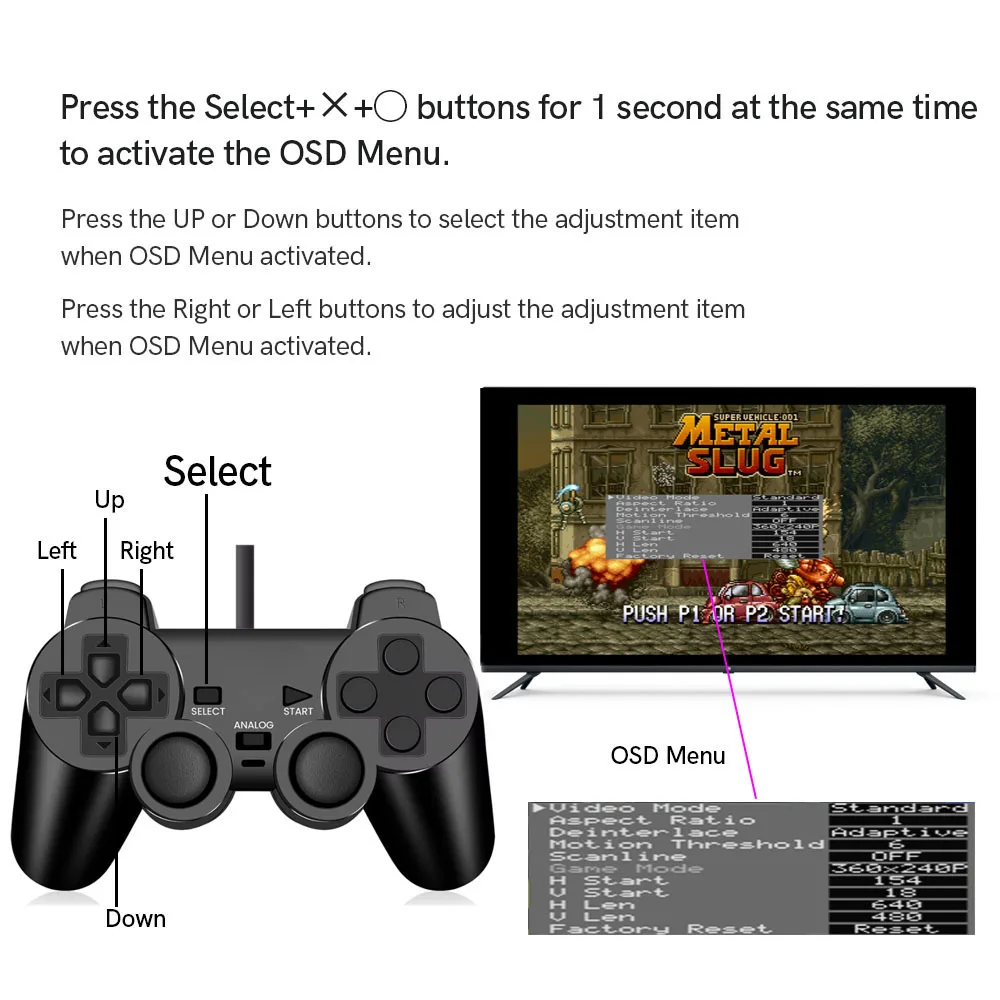

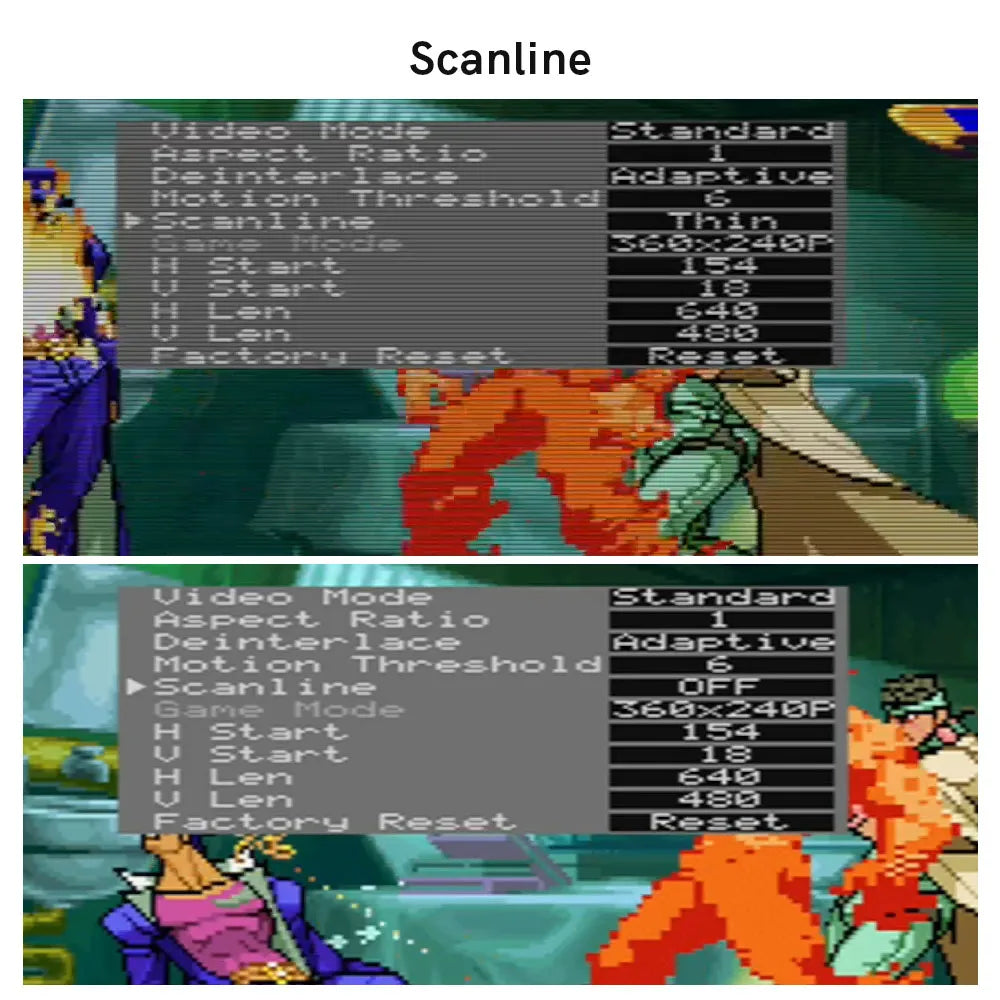

2. Built-in OSD Menu!
3. Built in 3 Video Mode. Mild, Standard, Dynamic,

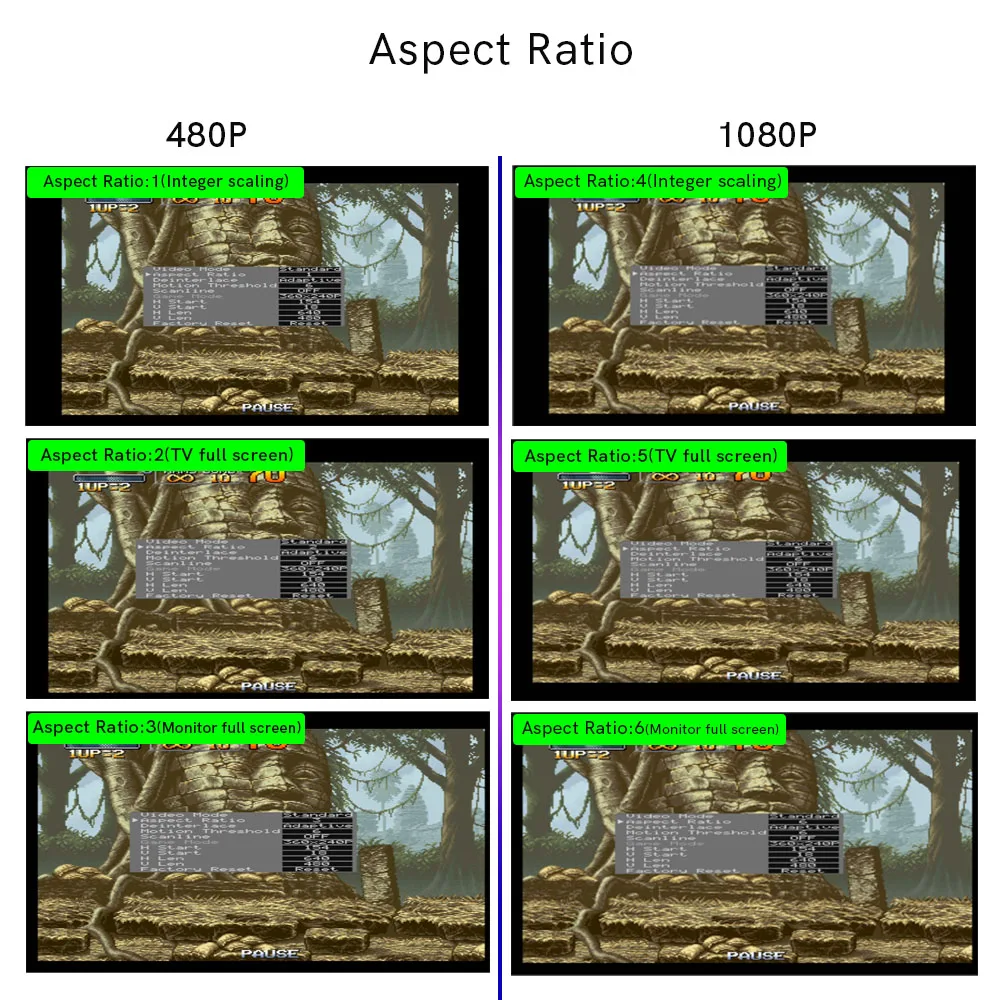

4. Built in 6 Aspect Ratio. Aspect Ratio 1 to Aspect Ratio 3 are 480P. Aspect Ratio 4 to Aspect Ratio 6 are 1080P.
5. Deinterlace adjustable. Bob, Weave,Adaptive.
6. Motion Thereshold adjustable.
7. Image position adjustable. Move the image when adjuse the H Start,V Start, H len, V len.
Compatibility:
The 'PU-18' is compatible with all PU-18 motherboards.
The 'PU-20' is compatible with all PU-20 motherboards.
The 'PU-8 CXD8561Q' is only compatible with PU-8 motherboards and the GPU must be CXD8561Q.
The 'PU-22 CXD8561Q' is only compatible with PU-22 motherboards and the GPU must be CXD8561Q.
The 'PU-22 CXD8561CQ' is only compatible with PU-22 motherboards and the GPU must be CXD8561CQ.
The 'PU-23 CXD8561CQ' is only compatible with PU-23 motherboards and the GPU must be CXD8561CQ.
---

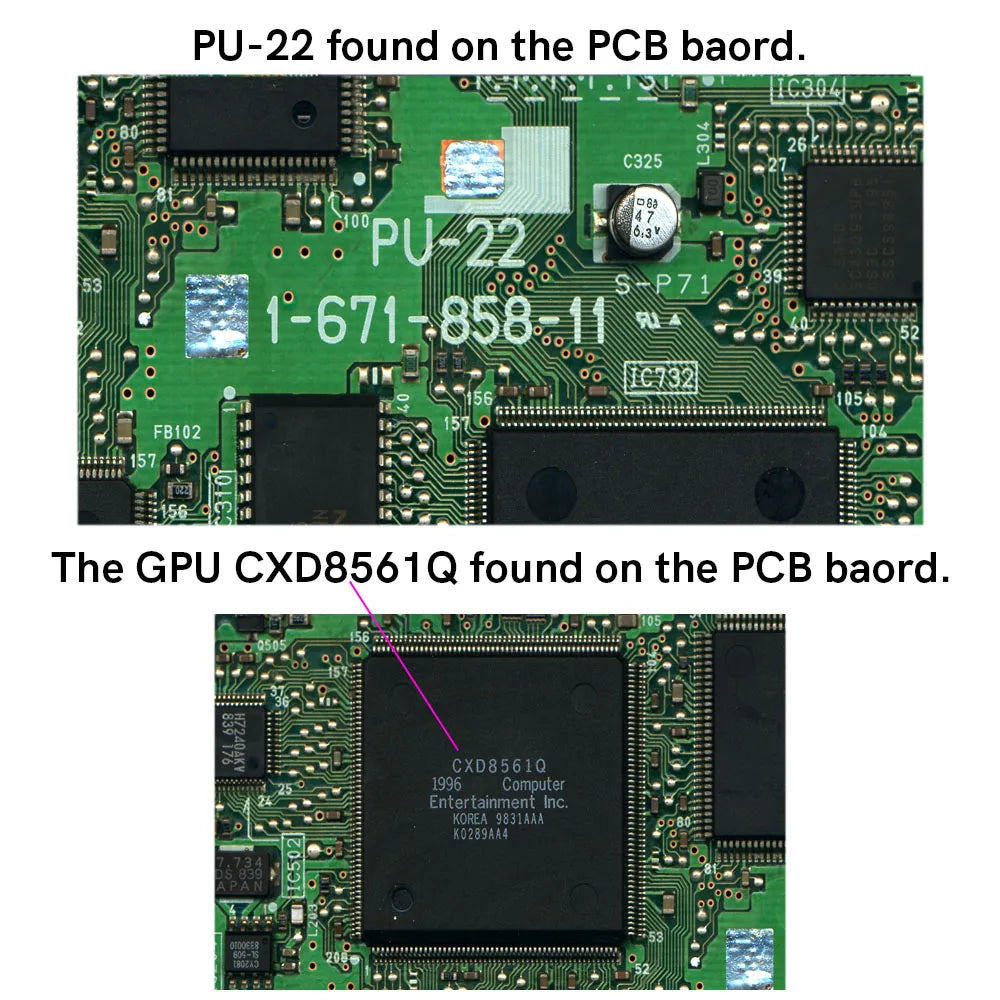

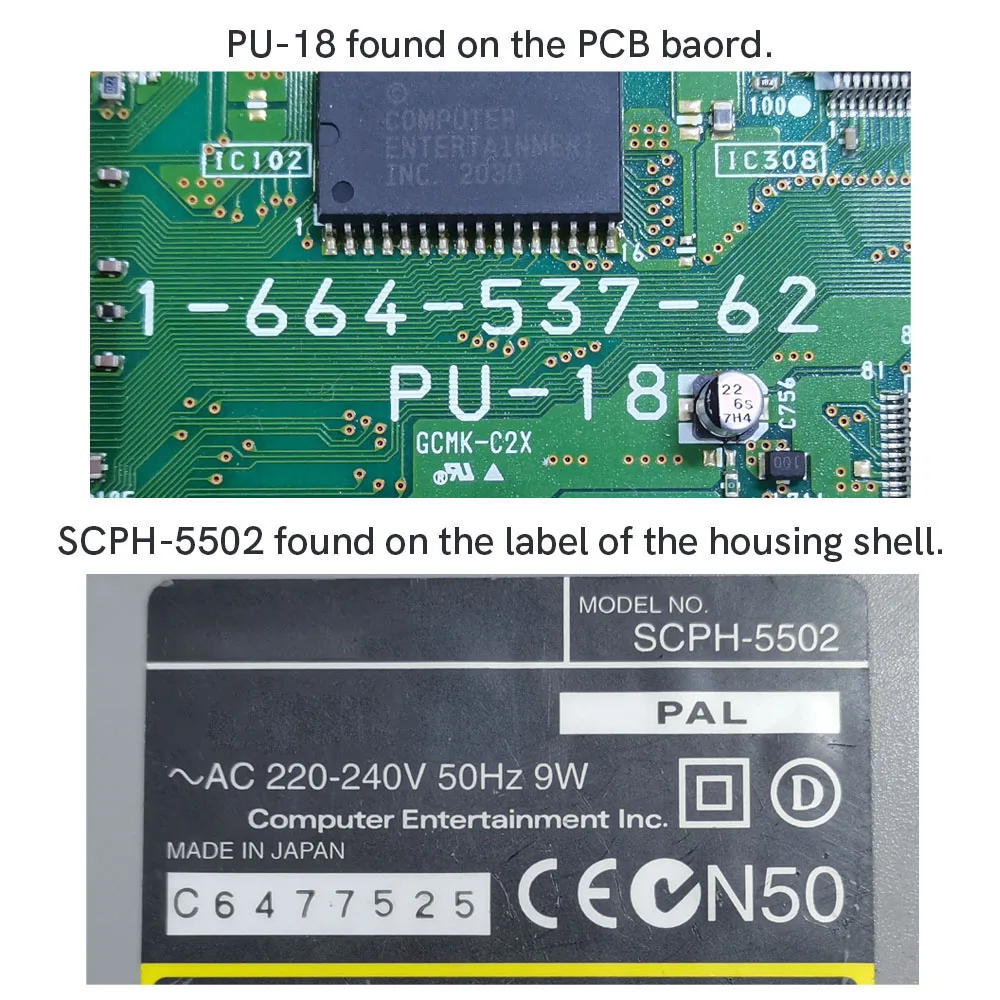

PU-XX is the motherboards model number.
The CXDxxxxx is the GPU model number.
Include:
1x PCB board
1x Plastic holder
1x Flex cable
Several wires
Or,
1x PCB board
1x Plastic holder
2x Flex cable(one for backup)
Several wires

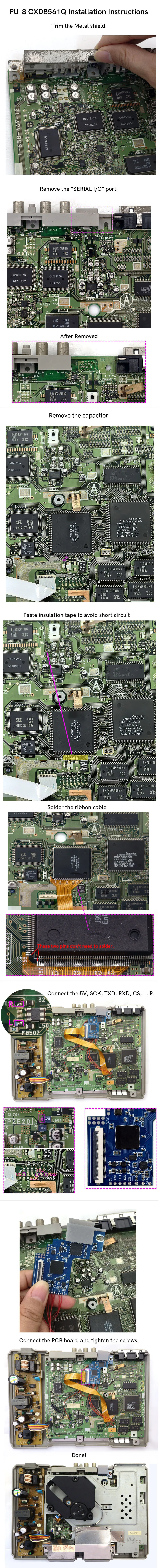

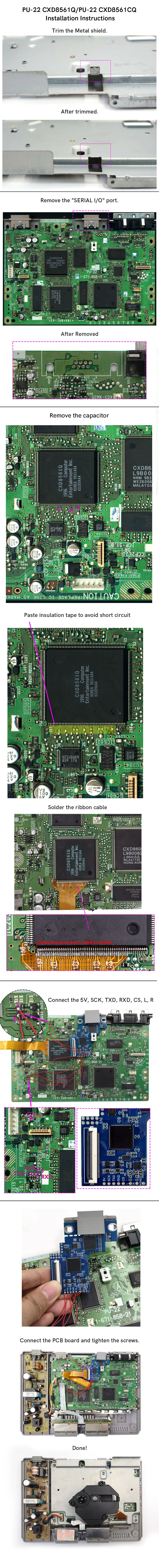

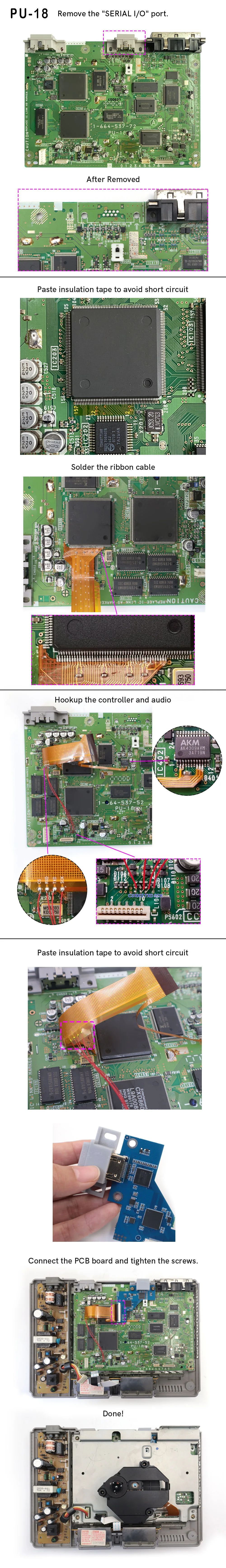

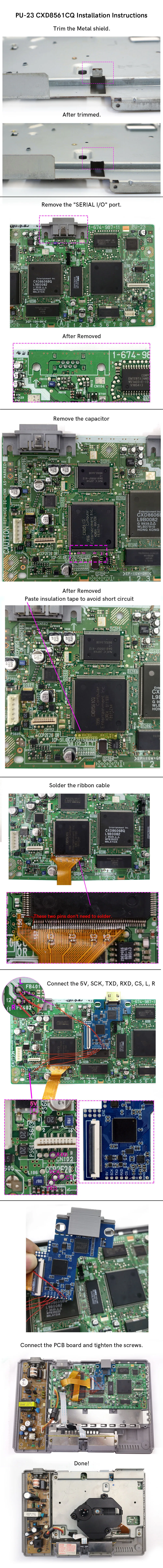

---Instruction manual---
