GBA V5 Laminated IPS LCD Kit, 720x480 HD, OSD, 8 Color Modes
GBA V5 Laminated IPS LCD Kit, 720x480 HD, OSD, 8 Color Modes
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 4 – Nov 13
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications

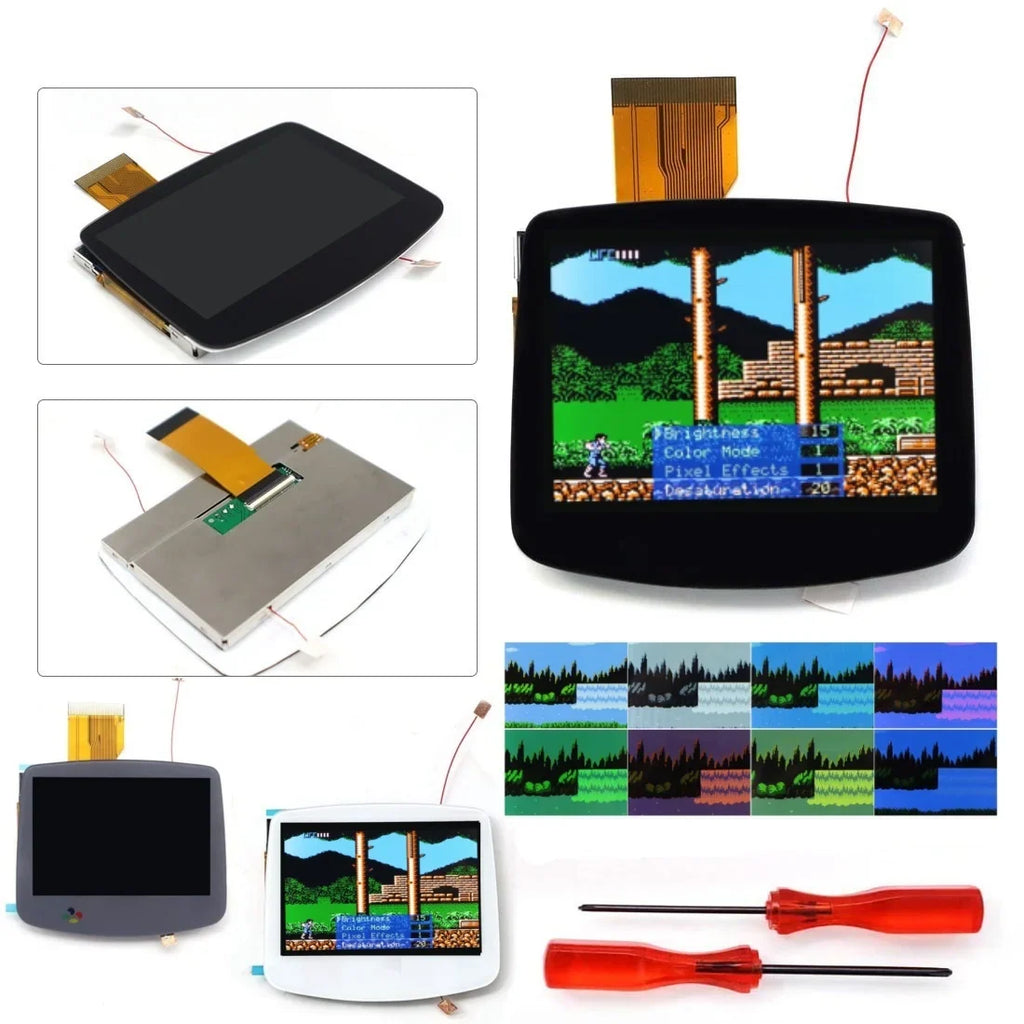

A V5 pre-laminated HD IPS LCD kit for GBA with integer scaling and a built-in OSD menu.
- 720x480 HD LCD, 9 pixels to 1 pixel integer scaling
- 178 degree wide viewing angle, pre-laminated glass screen
- Built-in OSD menu: 8 color modes, 15 brightness levels, FRM on/off
- Retro pixel effects including Scanline 1 and Scanline 2
- LCD kit only: you need to cut the shell yourself (see manual)
SPECIFICATIONS
Accessories Type: Accessory Kits
Bluetooth range: N
Cable features: Retractable
Compatible Brand/Model: Nintendo
Compatible Nintendo Model: GameBoy Advance
Control Method: Push button
Controls Type: Push button
Electric: No
Enclosure material: Plastic
Fastening type: Screw,Others
Harness Feature: Others
High-concerned chemical: none
Model Number: For GBA
Occasion: Others
Origin: Mainland China
Platform: Other
Portable: Yes
Reusability: Reusable
Sensor Technology: Others
With USB: no
Features：
Integer Scaling. No any distortions.

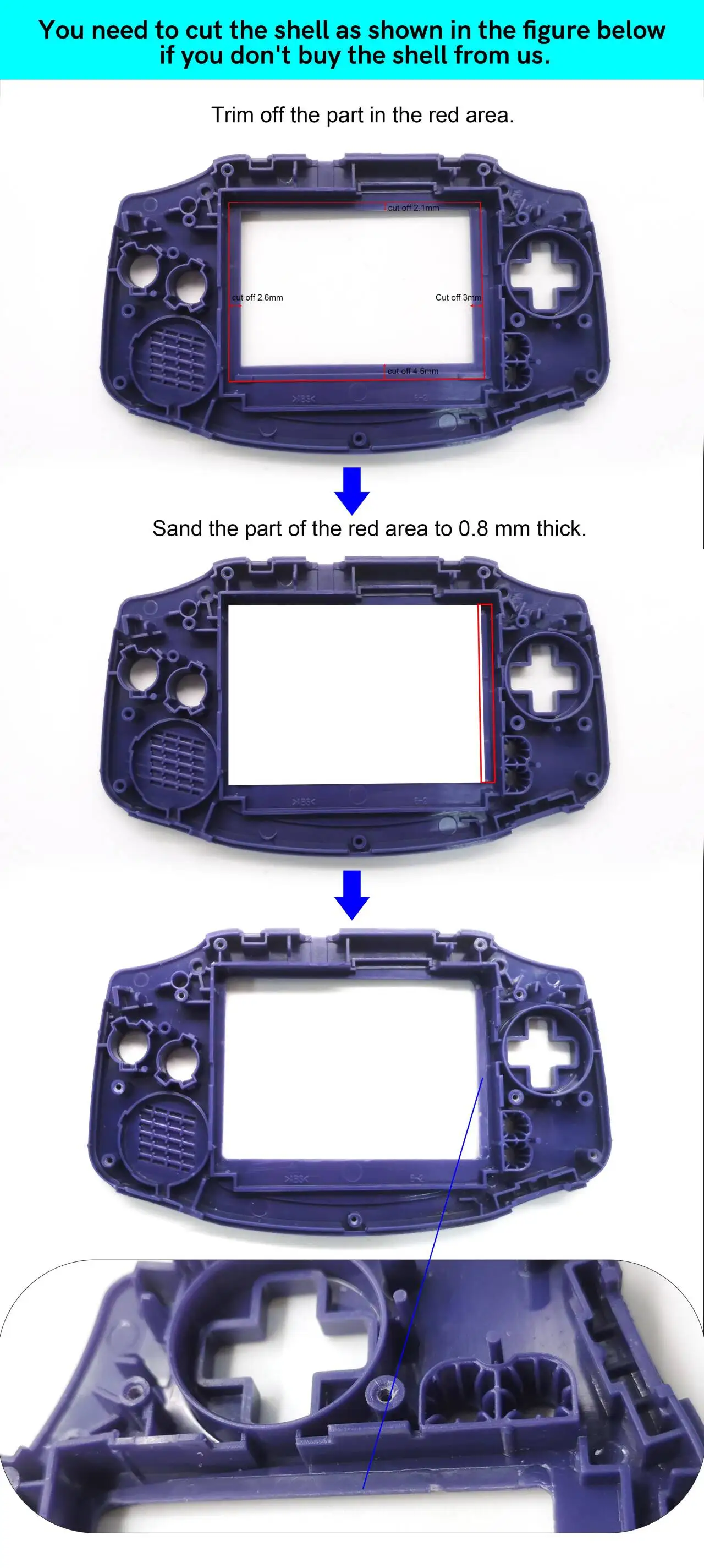

Note: This item only include the LCD kit, you need to cut the shell by yourself. Please check the manual.
Add FRM On/OFF function(Frame blending On/OFF).
Description:

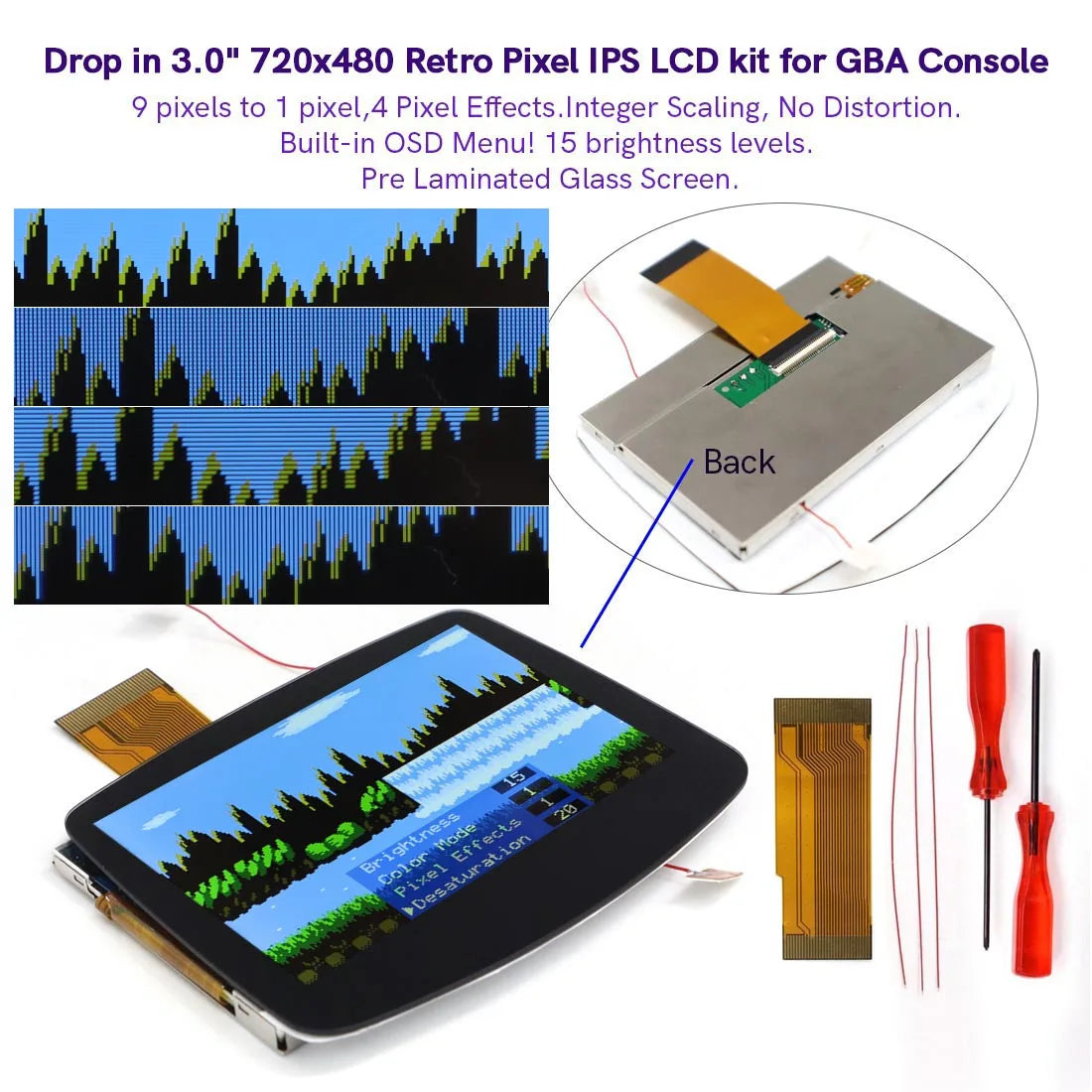

1. 720x480 display resolution. HD LCD. 9 pixels to 1 pixel. Integer scaling. No any distortions.
2. Wide View angle up to 178 degree.
3. Pre Laminated Glass Screen.
4. The PCB has been embedded in the LCD metal shell.
5. Built-in OSD Menu!
6. Retro pixel Effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1 and Scanline 2.
7. 15 brightness levels.

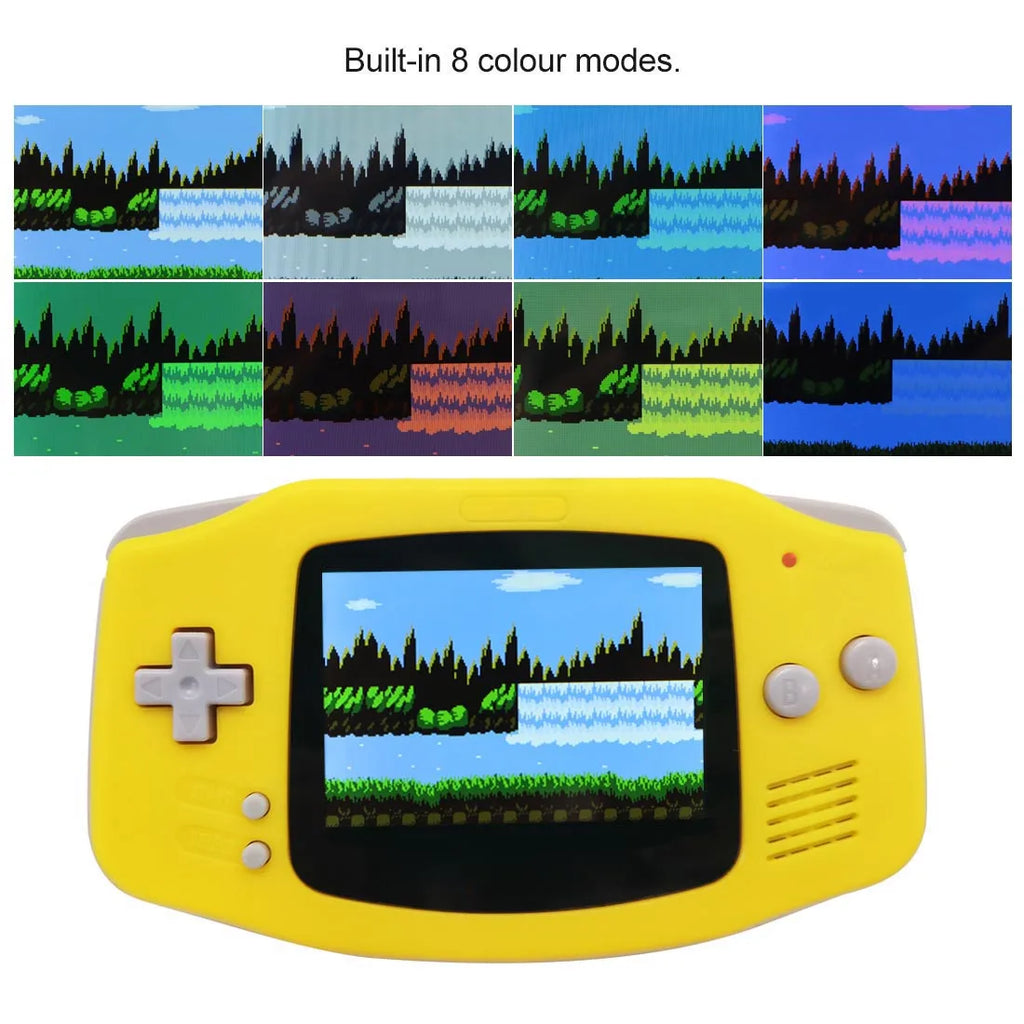

8. 8 color modes.
9. FRM On/OFF function(Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.

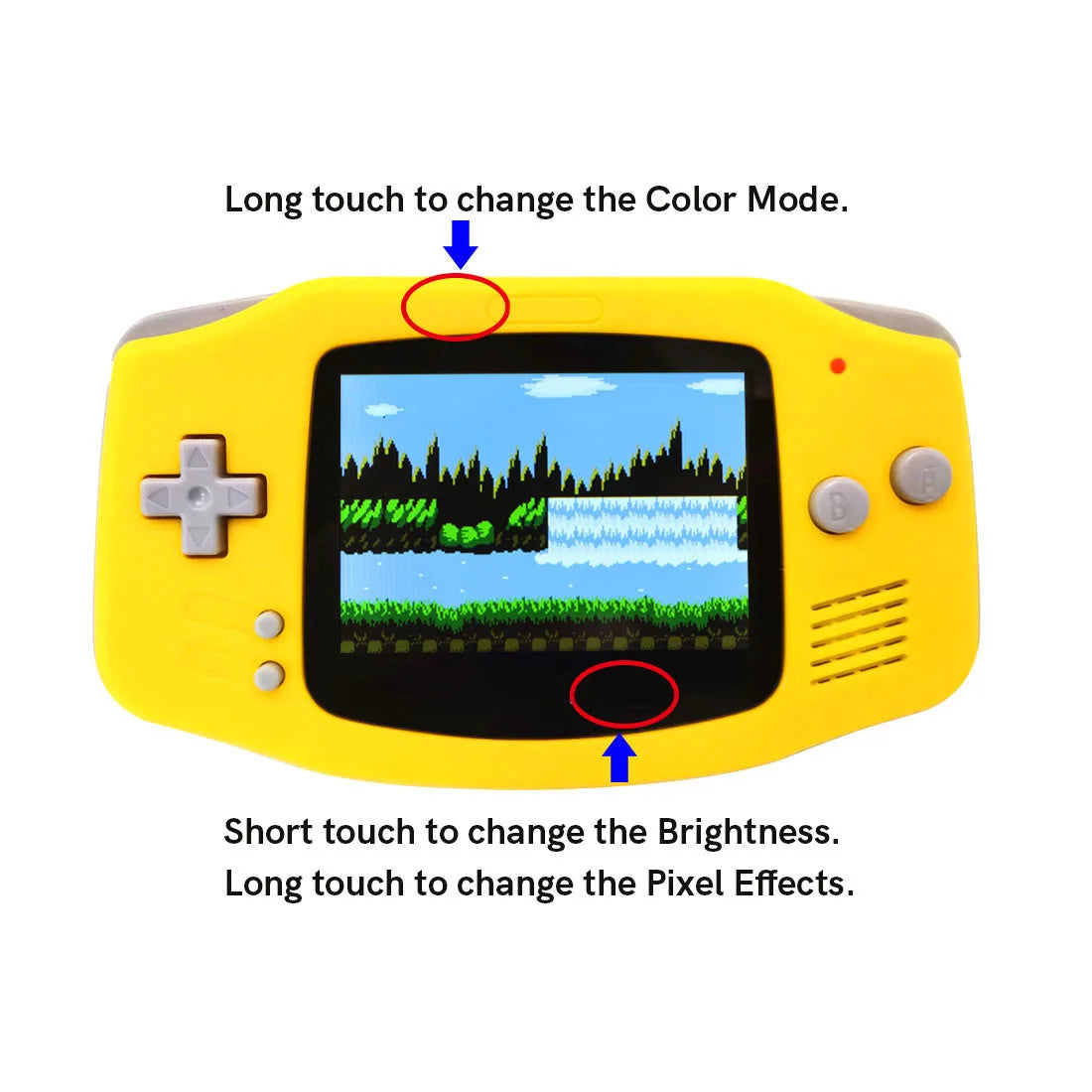

10. Touch Screen to change the brightness and the color modes.
11. Compatible 32pin and 40pin motherboard.
*You need to welding 3 wires to control the OSD Menu*
New firmware has added the following function:
1. Add Desaturation function!
Adjust the desaturation to make the picture more like the original GBA. Desaturation from 0 to 20. Desaturation=20 is normal color. Desaturation=0 is black & white.
2. Add 'Touch Shourtcut ON/OFF' function!
Set 'Touch Shourtcut' OFF to avoid auto cycling colour modes.

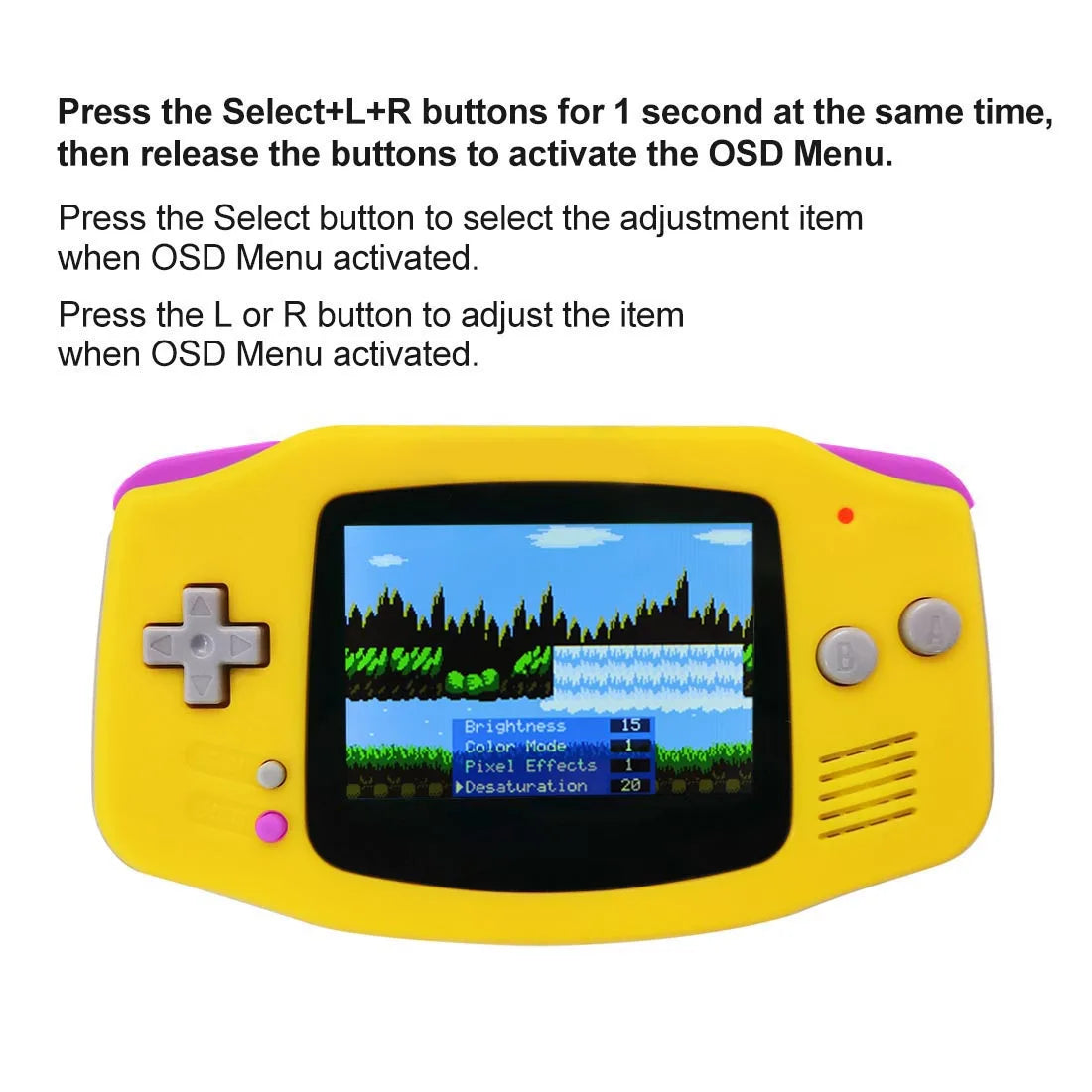

OSD Menu Operation:
-Press the Select+L+R buttons for 1 second at the same time, then release the buttons to activate the OSD Menu.
-Press the Select button to select the adjustment item when OSD Menu activated.
-Press the L or R button to adjust the item when OSD Menu activated.
You don't need to do any welding if you don't want the OSD menu!
