SNES SFC EU Scart Splitter 10 In 3 Out Auto RGBS Switcher
SNES SFC EU Scart Splitter 10 In 3 Out Auto RGBS Switcher
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 4 – Nov 13
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications

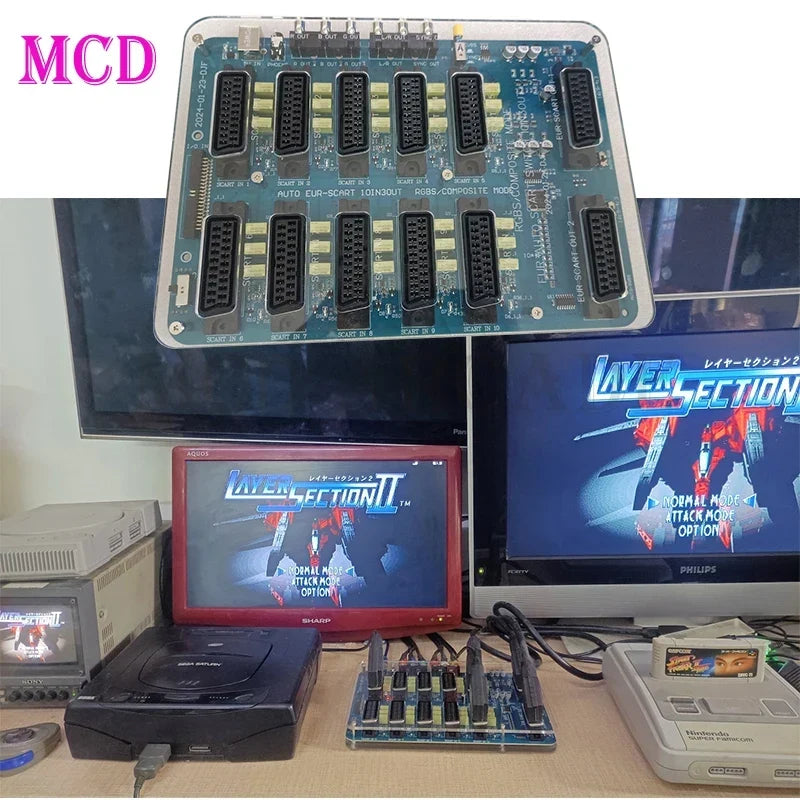

A SCART switcher board that connects up to 10 retro devices to your display.
- 10 EU SCART inputs; outputs 2 EU SCART and 1 set of RGBS at once
- 3.5mm headphone jack audio output
- Works with MD, Saturn, PS to PS3, Dreamcast, FC, SFC, N64, GameCube and DVD players
- Supports RGBS and composite video; mechanical straight-through design
- Choose the board alone or with a Scart cable
SPECIFICATIONS
Age: >6 Years
Origin: Mainland China
Type: Coin Pusher
Instructions for use:
1. It can input 10 EUR SCART devices at the same time, and output 2 EUR SCART and 1 set of RGBS at the same time, with a headphone jack 3.5 audio output.
2. Suitable for European SCART equipment, MD/MD2/SS/PS/PS2/PS3/DC/NEW FC/SFC/N64/NGC/VCR/DVD… and other game consoles or players. SCART input/output supports RGBS and composite video modes, and devices without RGB can also be used.
3. Mechanical straight-through working principle, very strong compatibility, multiple machines can work at the same time without any interference, solving the trouble of plugging and unplugging multiple machines!
4. Automatic mode: Turn on the power switch of the game console to automatically output. Multiple machines can work at the same time, and the last machine is powered on as the output. In addition to the power LED light display, each group of SCART inputs has a corresponding LED light work display.
5. When using the power supply, you can use a general mobile phone charger or other USB power supply device, and the input voltage is 5V.
6. It can be connected with other devices with IO interface in our store to expand more functions.
7. It has 16:9 or 4:3 screen conversion function and requires monitor support.
8. It can automatically select the output composite or RGB mode, or the RGB output mode can be fixed, making it more flexible to use.
Precautions:
※SCART specifications are European specifications and Japanese specifications cannot be used.
※When the SCART input device is powered on, there will be a corresponding LED light display. If the LED does not light up, it means that the SCART cable is not standard. Please replace the cable.
※When the picture quality is very poor, please check whether the SCART input and output cables are in RGB mode.
※SCART cable requirements are relatively high. If there is serious noise or interference patterns in the picture, please replace it with a shielded cable.
※If the IO interface is connected to other devices, only one device needs to be powered and there is no need for multiple devices to be powered at the same time. When both devices need to be connected to the display device at the same time, the 75R switch must be turned to the OFF position. The IO interface must be connected in OUT→IN mode.
