Haute42 Arcade Joystick Hitbox Leverless Controller Arcade Fighting Game Hitbox For PC /PS3/Ps4 /Switch Mini Arcade FightStick
Haute42 Arcade Joystick Hitbox Leverless Controller Arcade Fighting Game Hitbox For PC /PS3/Ps4 /Switch Mini Arcade FightStick
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 4 – Nov 13
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications
SPECIFICATIONS
Accessories Type: Gaming Keyboards
Bluetooth range: Without Bluetooth
Brand Name: haute42
Cable features: Retractable
Compatible Brand/Model: PC
Control Method: Push button
Controls Type: Push button
Electric: No
Enclosure material: Plastic
Fastening type: Others
Feature: 16 button with RGB mode
Fight Sticks PC: Mini Arcade Hitbox
Function: Arcade Fight Stick For PC,Hitbox Fightstick For PS4/PS3,hitbox for Android
Harness Feature: Others
High-concerned chemical: none
Hitbox Keyboard: Joystick Hitbox
Item: hitbox style controller
Model Number: Hautepad T
Occasion: Others
Origin: Mainland China
PC System: Windows 10
Platform: Nintendo Switch 2
Portable: Yes
Product Name: Game Keyboards,Arcade game controller
Reusability: Reusable
Sensor Technology: Others
With USB: YES
arcade fight sticks: gamerfinger hitbox
arcade hitbox controller: fight sticks pc
hitbox fightstick: mini arcade hitbox
is_customized: no
mini hitbox controller: mini hitbox keyboard

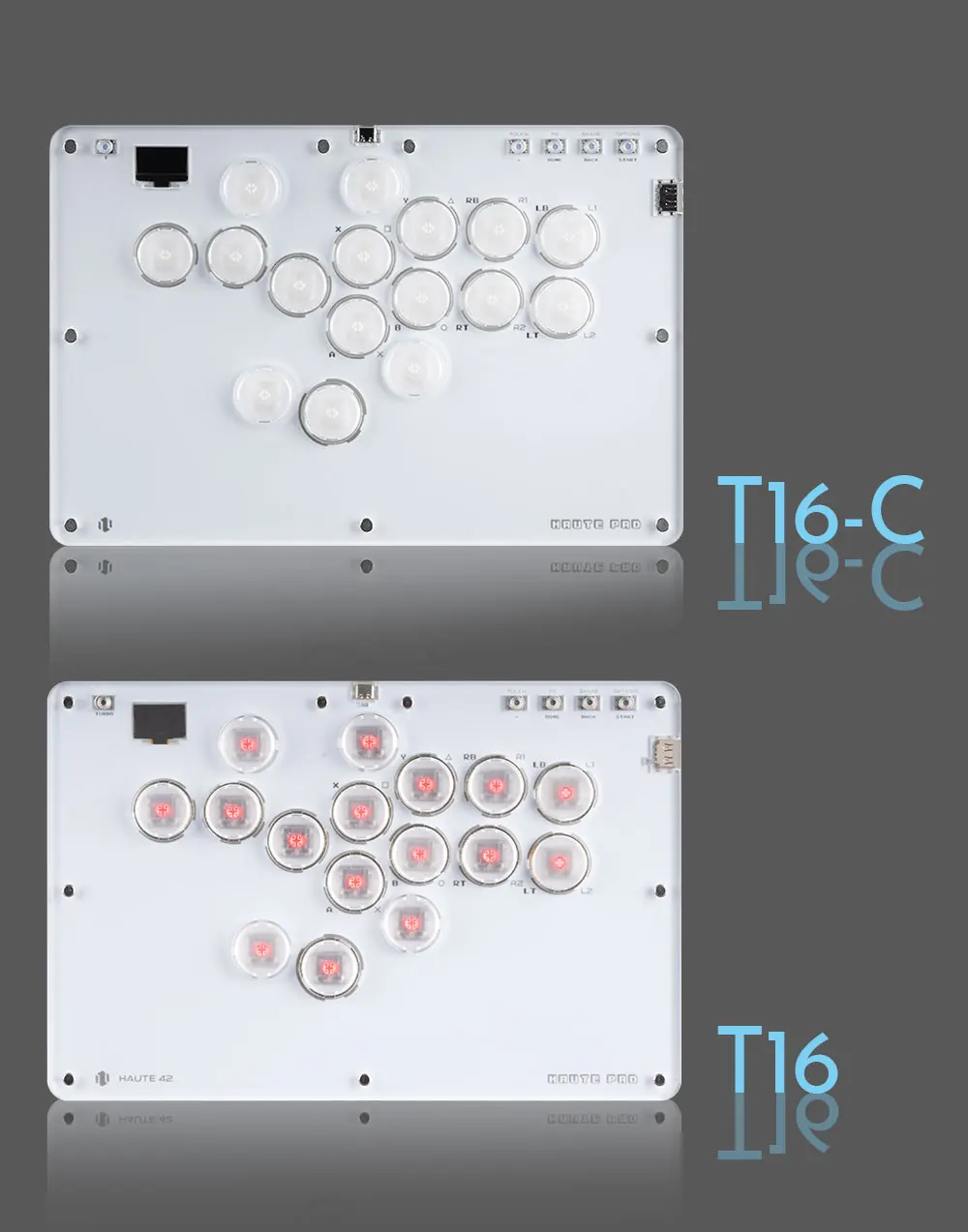

Celebrating Our T16 Series Winning EVO -The winner of Best Custom Hardware !
Haute42 Arcade Joystick Hitbox Controller Arcade Fighting Game keyboard Fight Stick for PC /PS3/Ps4 /Switch Mini arcade hit box
Product Description
Working voltage: 5V
Link method: USB Type-C

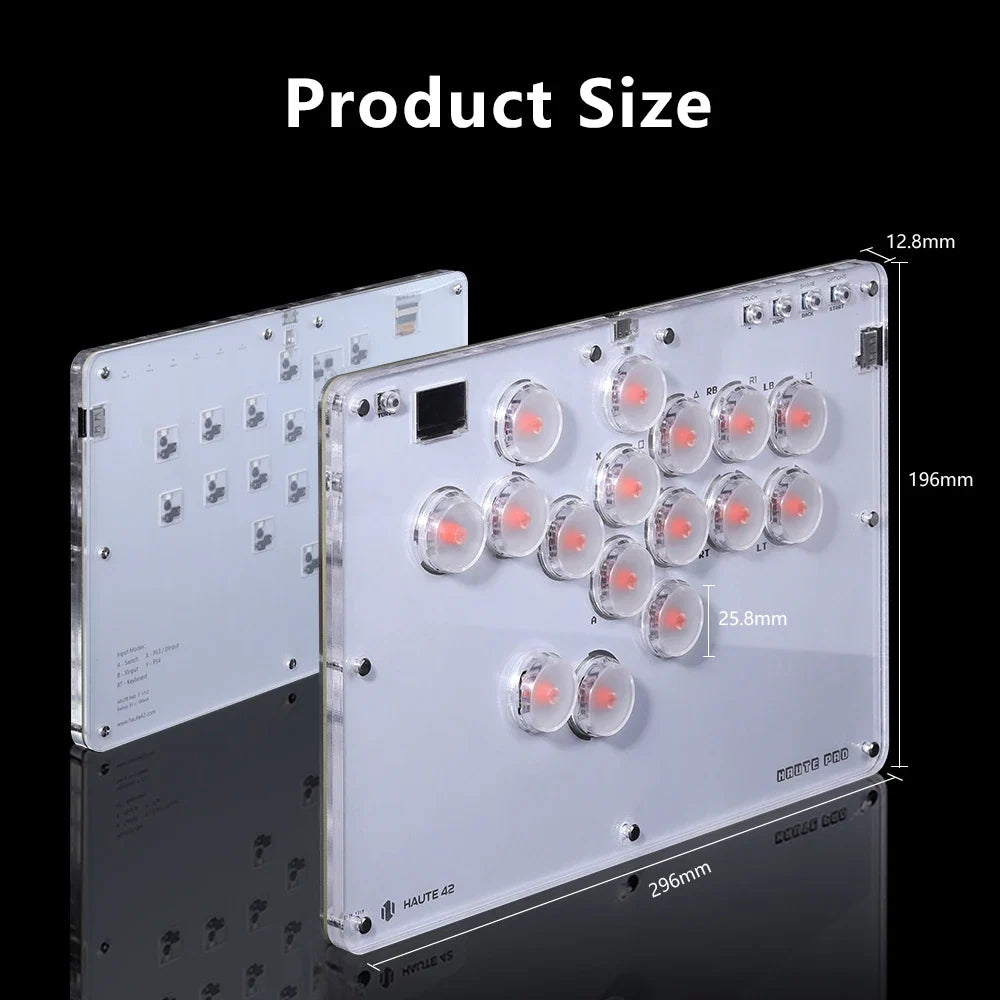

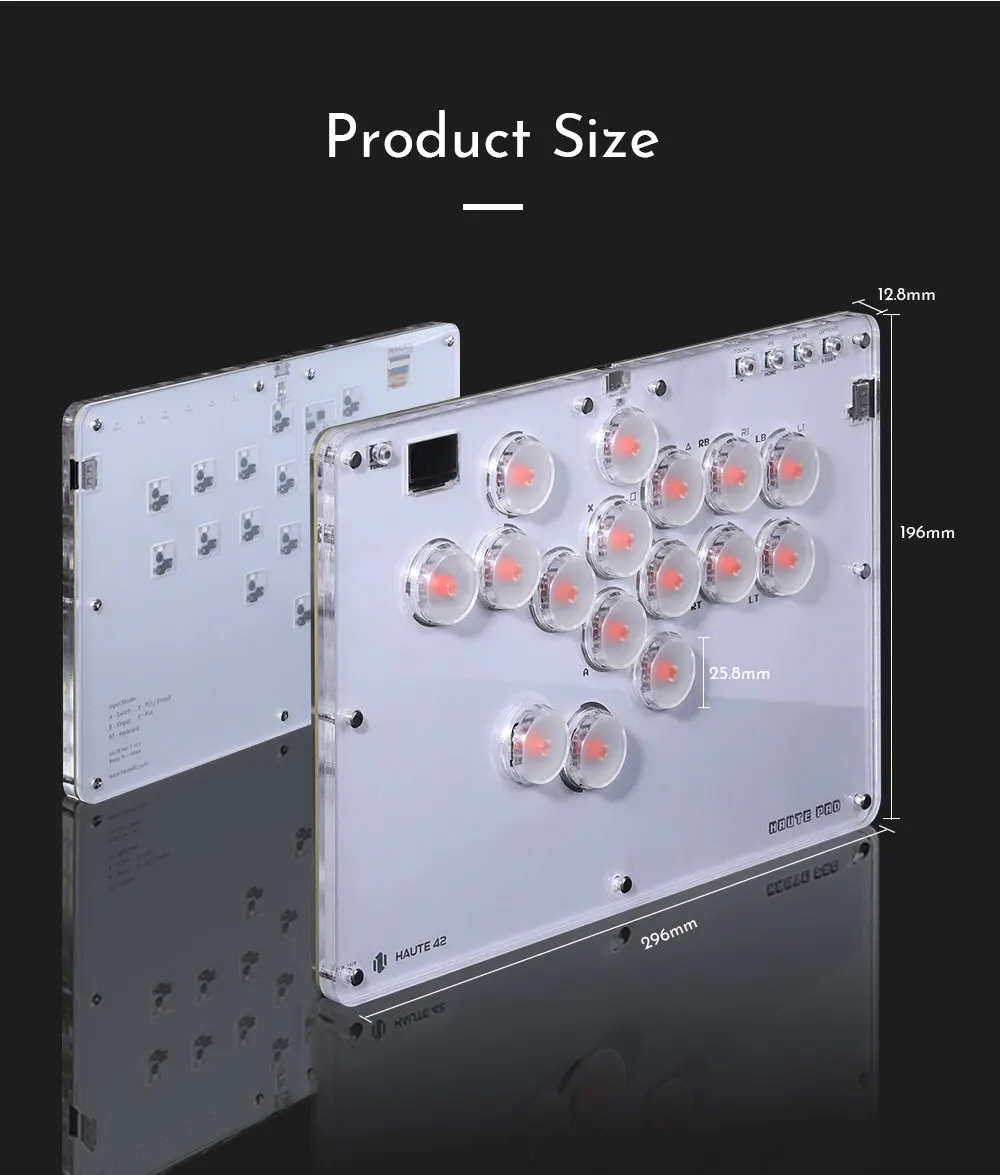

Product size: 296mm * 196mm * 128mm
Supported Platforms : pc /ps3/ps4/switch/ Android/Steam

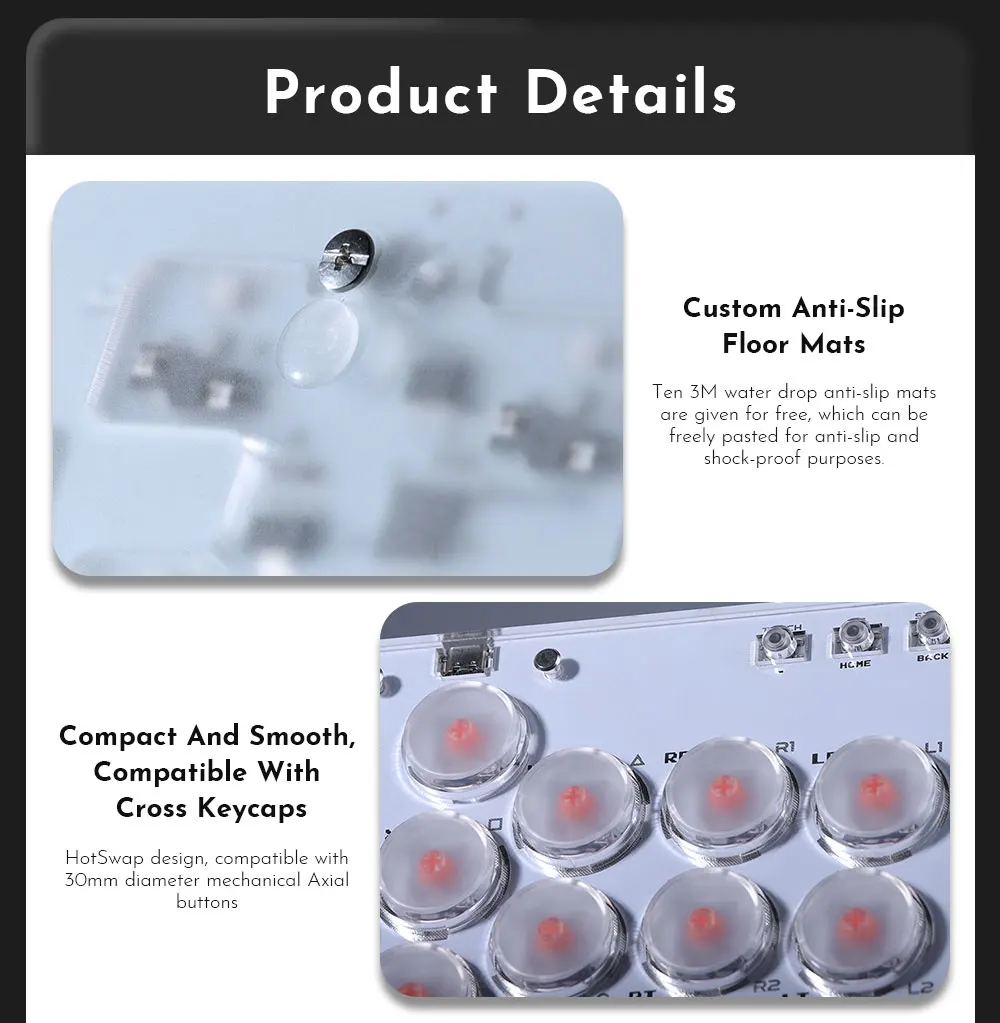

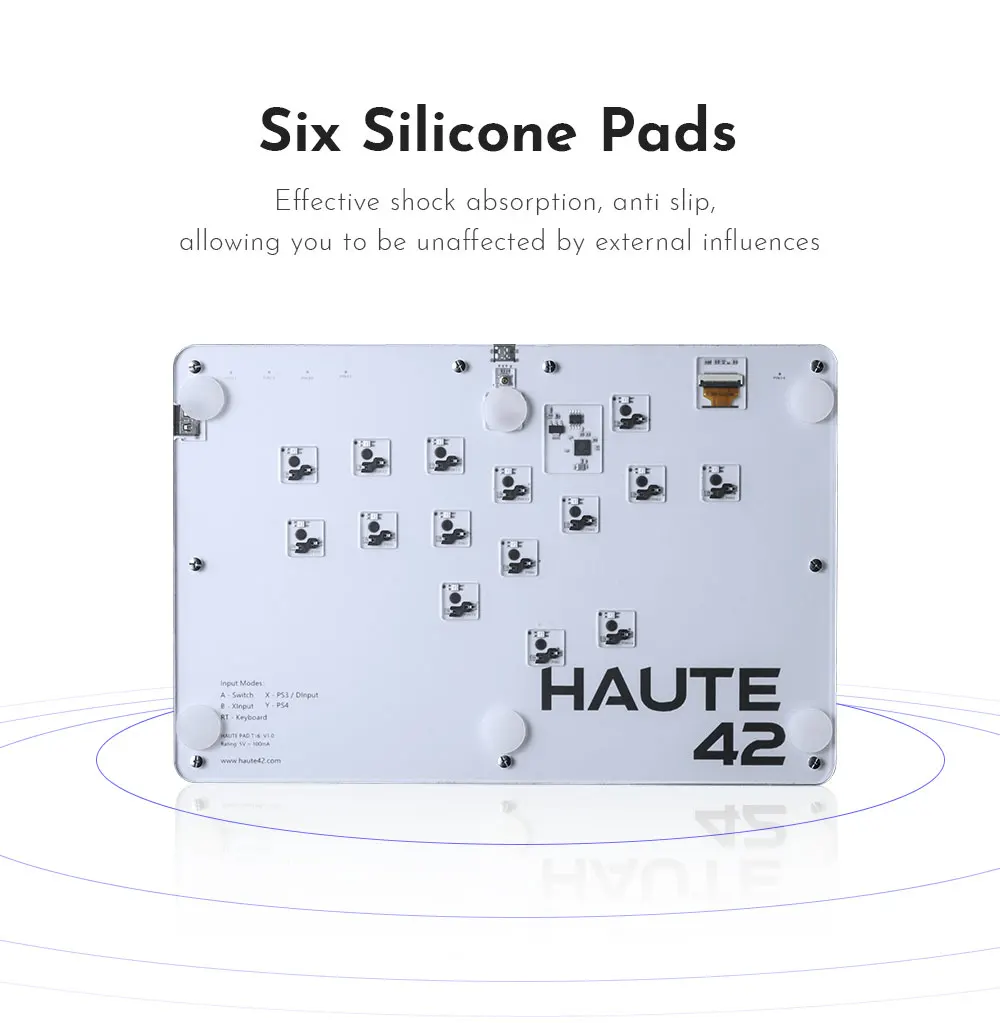

Product Specifications:1Mini Keyboard,1Data Cable Type-C,1Keycap Puller,6 anti slip pads

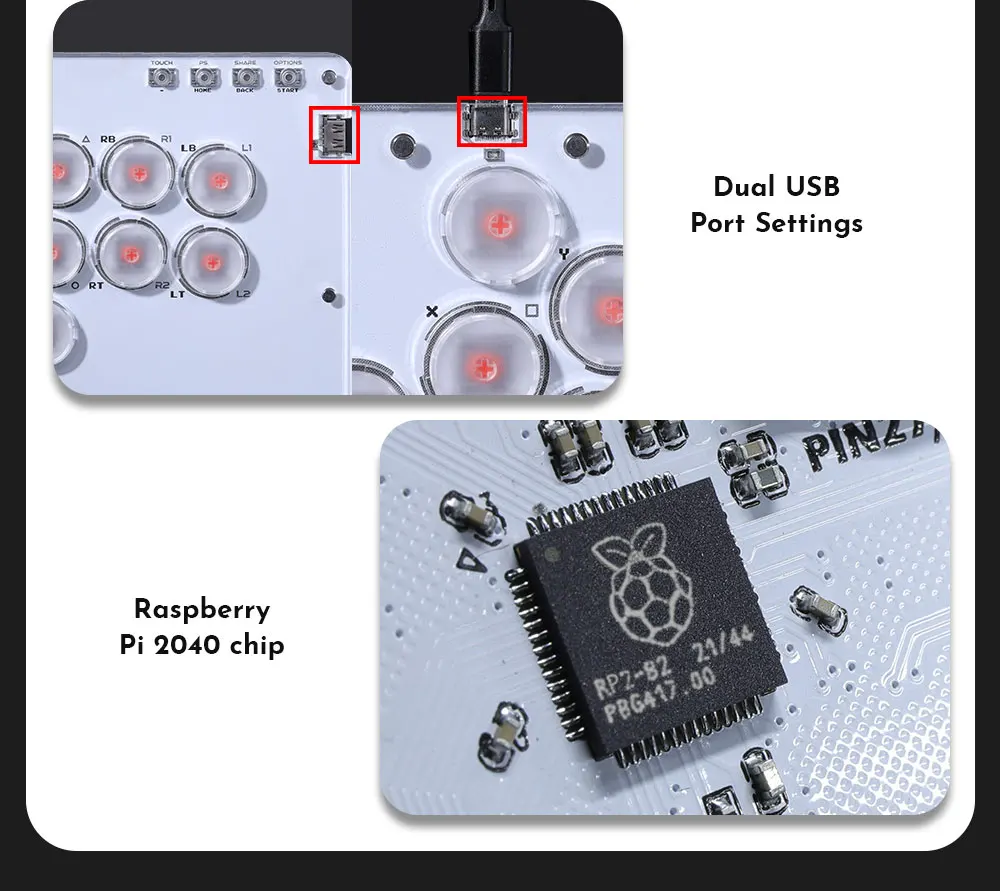

Adopting a cost-effective combat chip, the Raspberry Pi RP2024 main control chip
This is a micro keyboard fightbox, a revolutionary game controller designed for precision and versatility.

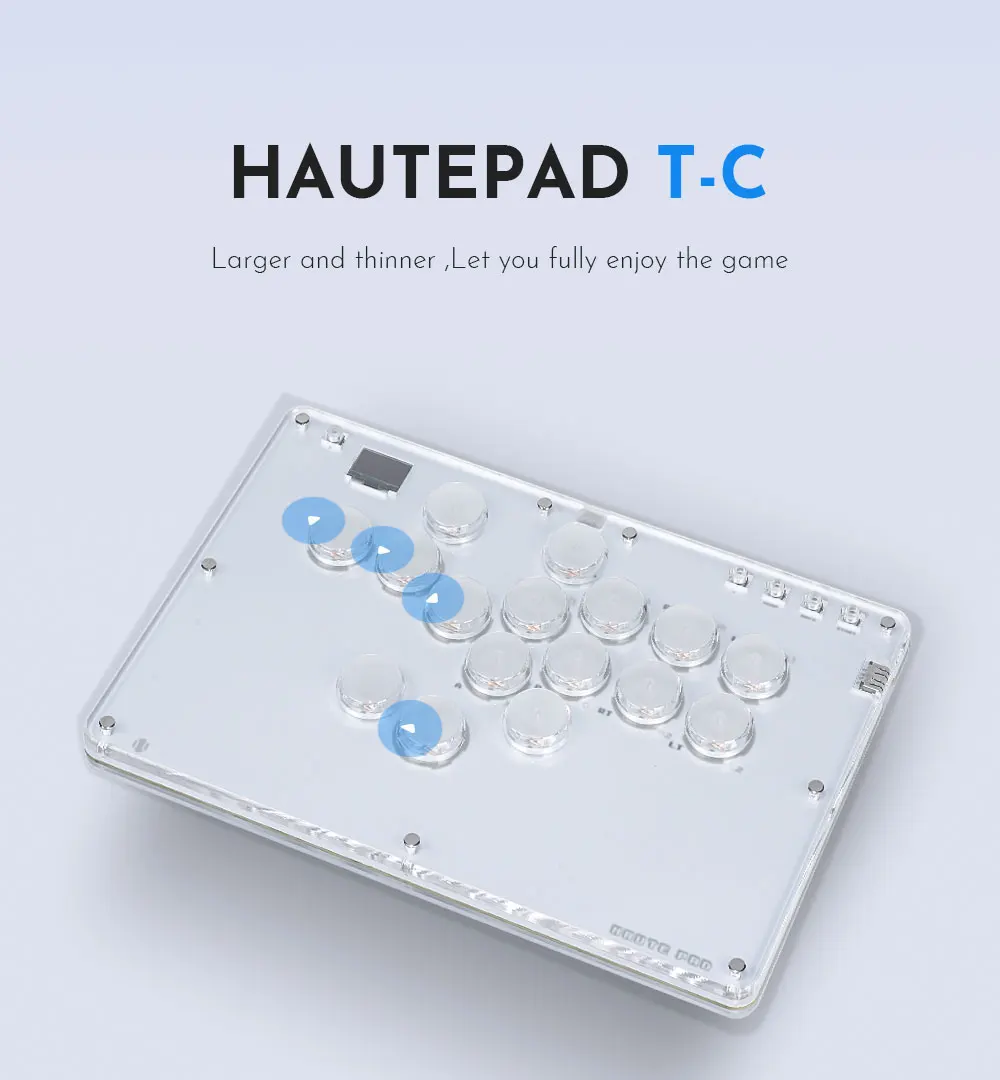

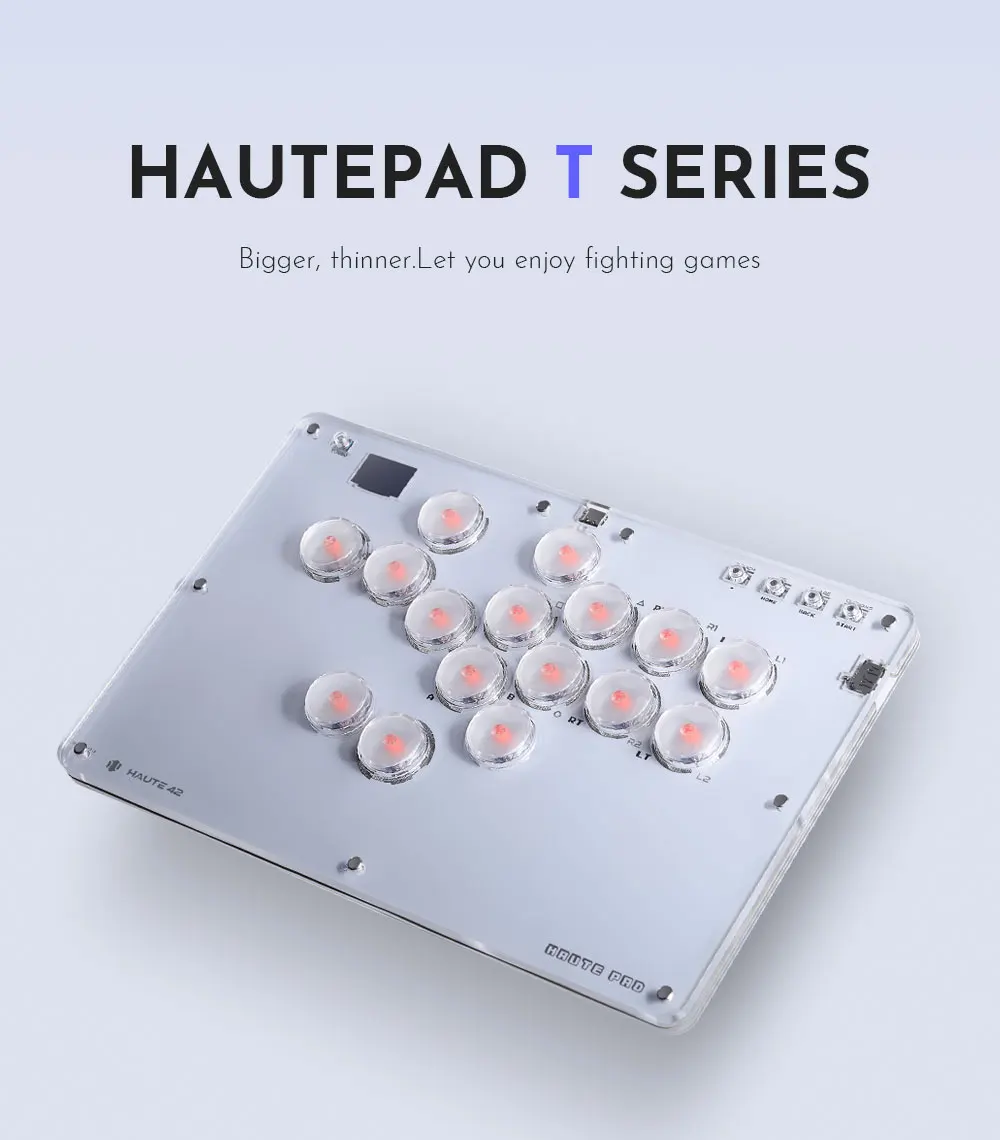

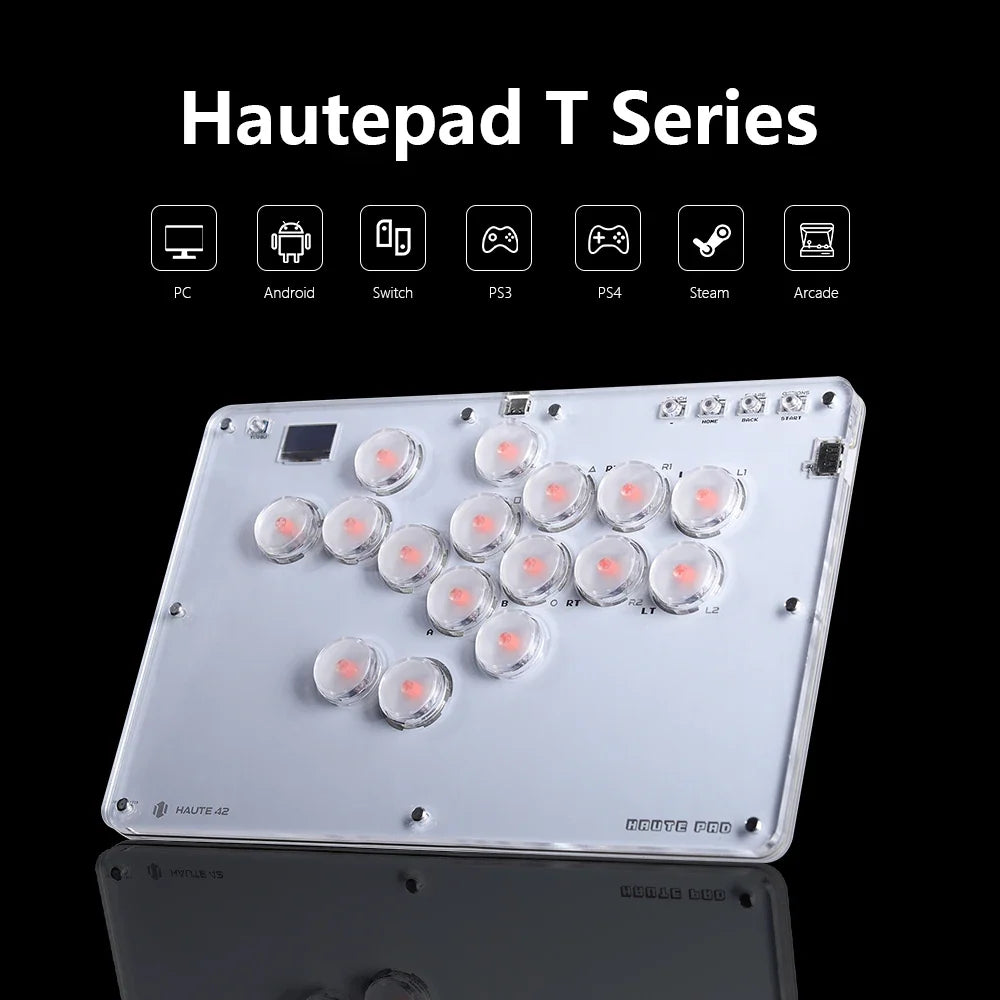

HautePad T series
Ten years of gaming peripheral experience

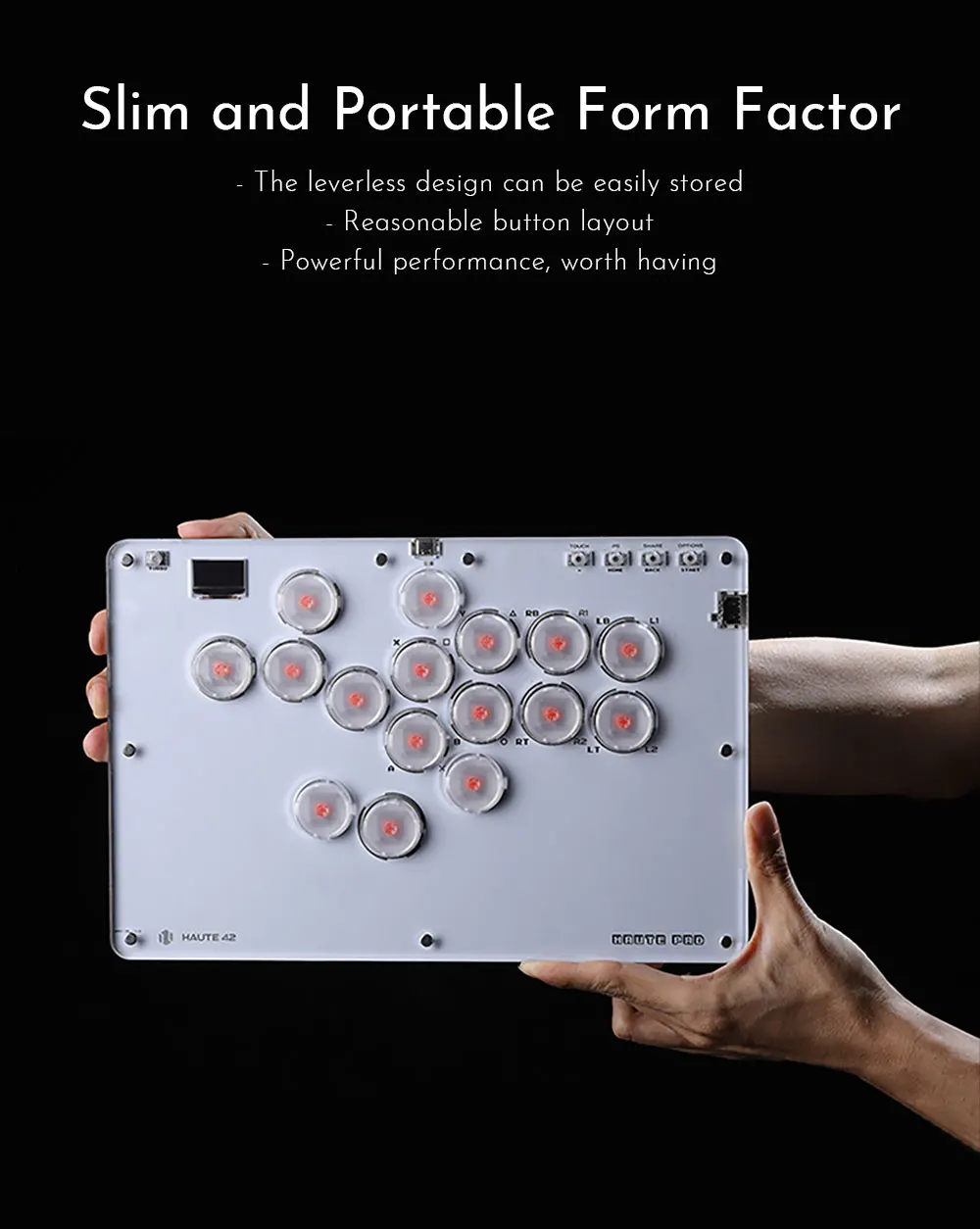

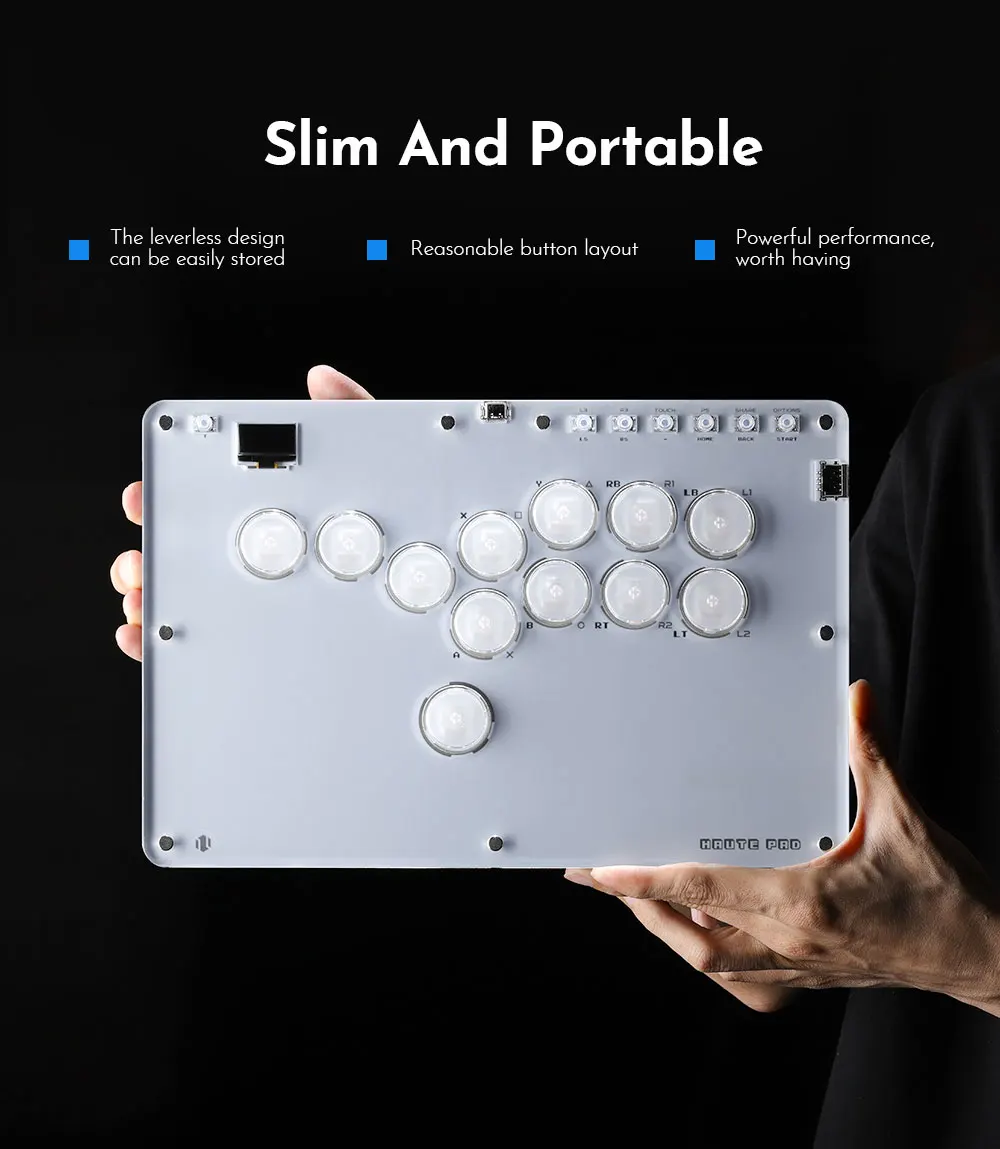

Carefully crafted portable Hitbox
Take you back to the arcade er
The heart of combat never stops!
Dual core ARM Cortex-M0+@ 133MHZ
Supported by dedicated QSPI bus, up to 16MB off chip flash memory
Fully connected AHB crossover switch
Integrated 264kB on-chip SRAM in six independent groups
40nm process node manufacturing, low dynamic power consumption, and low leakage
1ms delay, no frame leakage rate above 95%
Supports firmware updates
more functions and compatibility coming soon

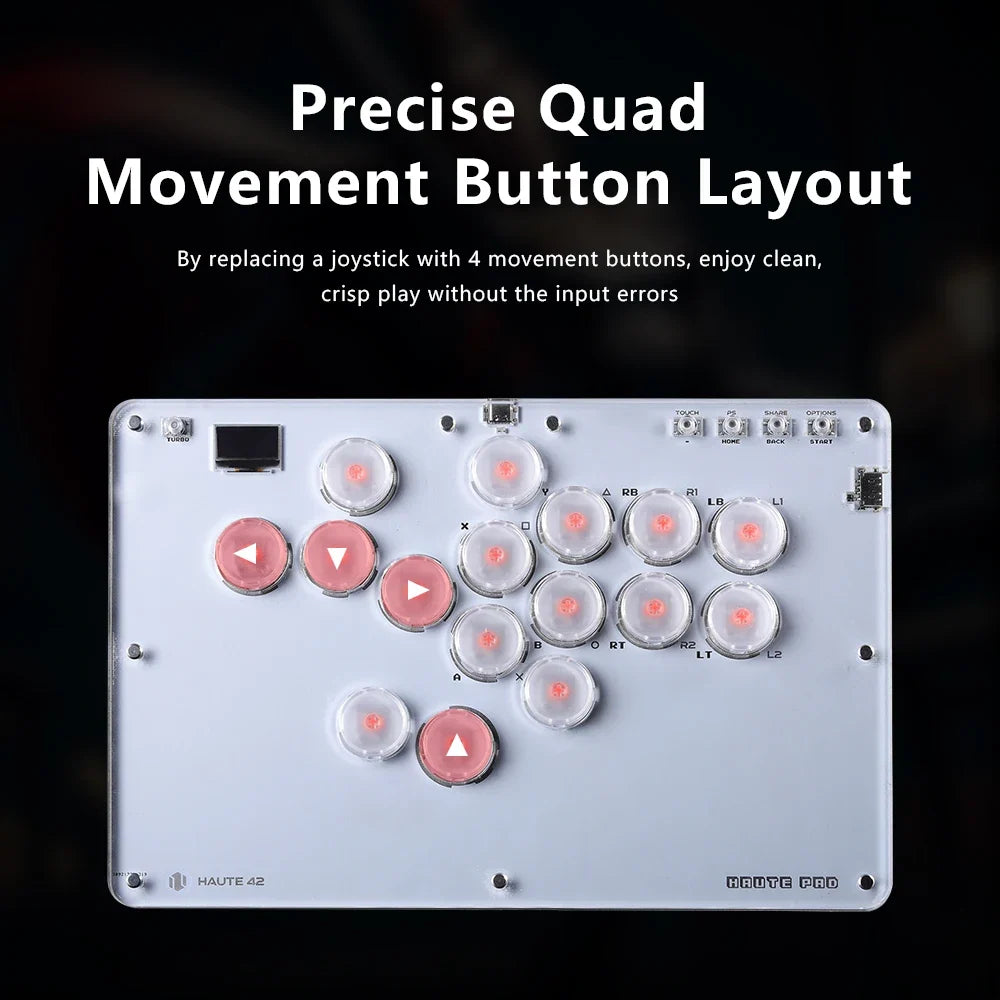

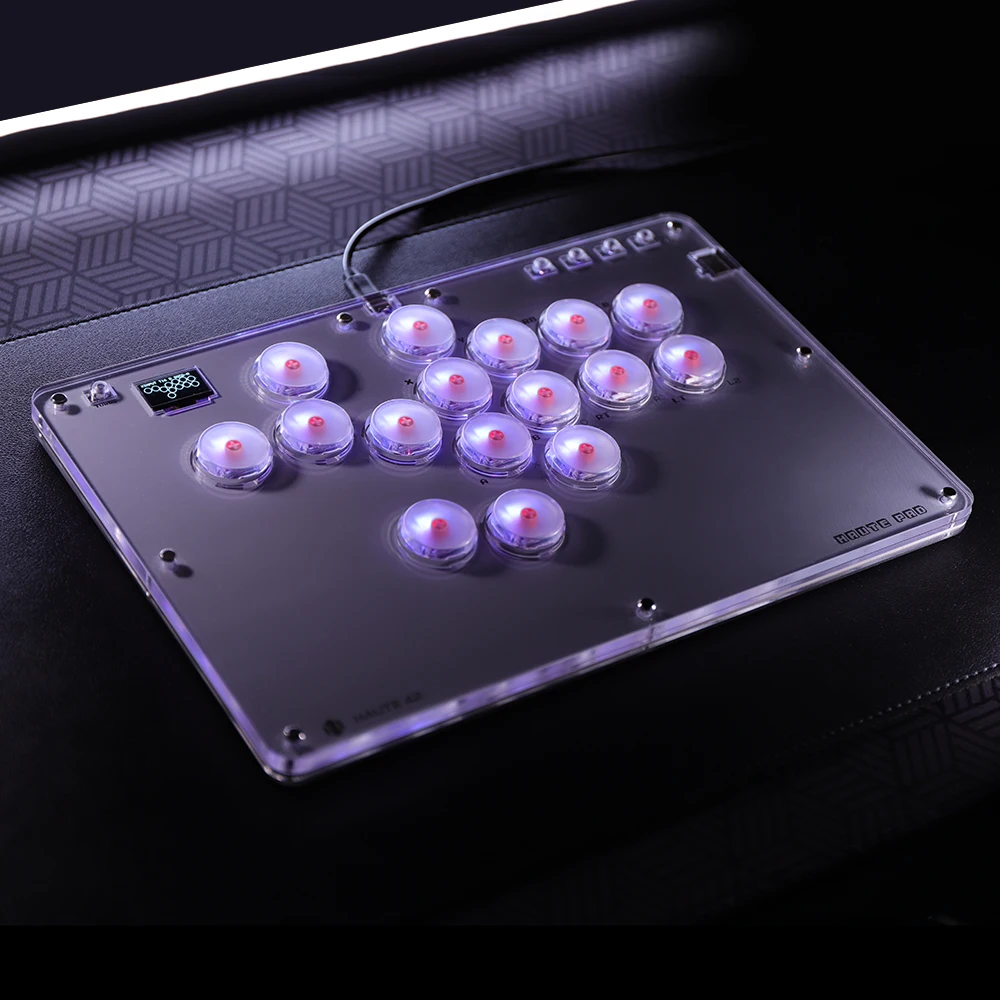

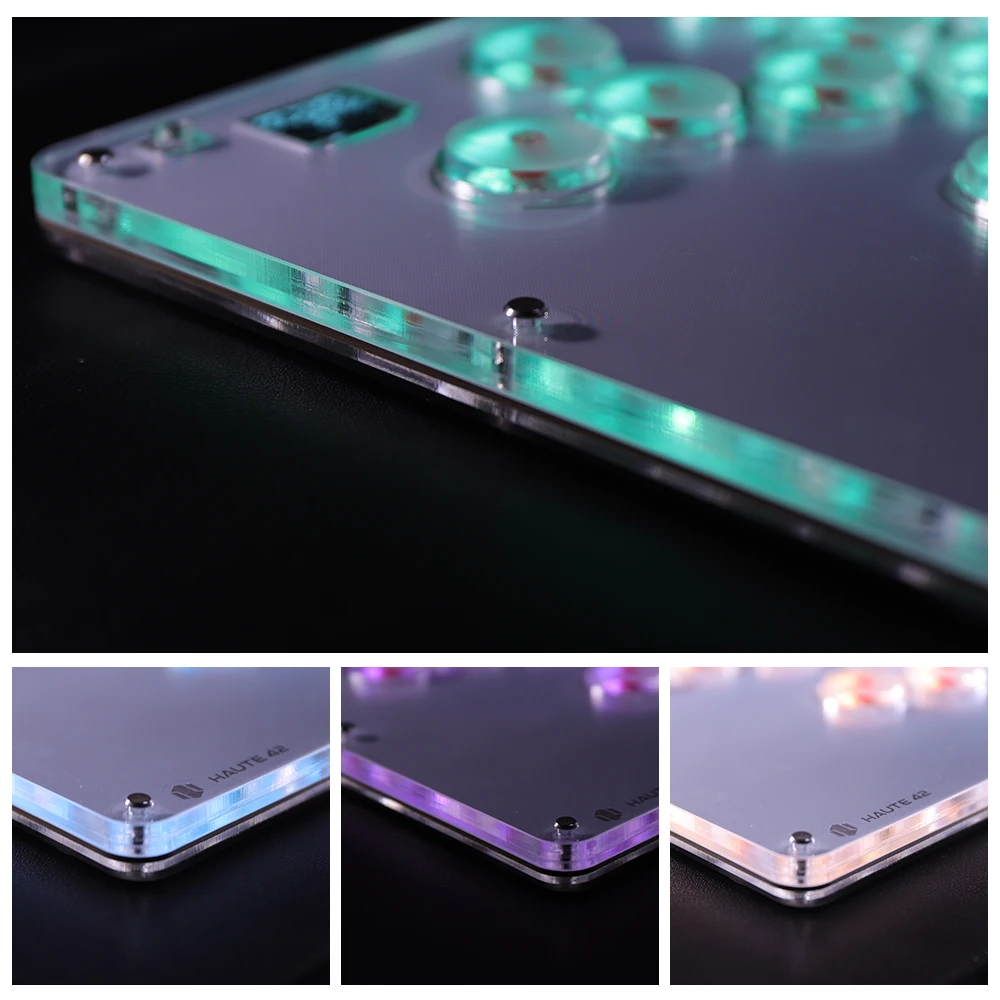

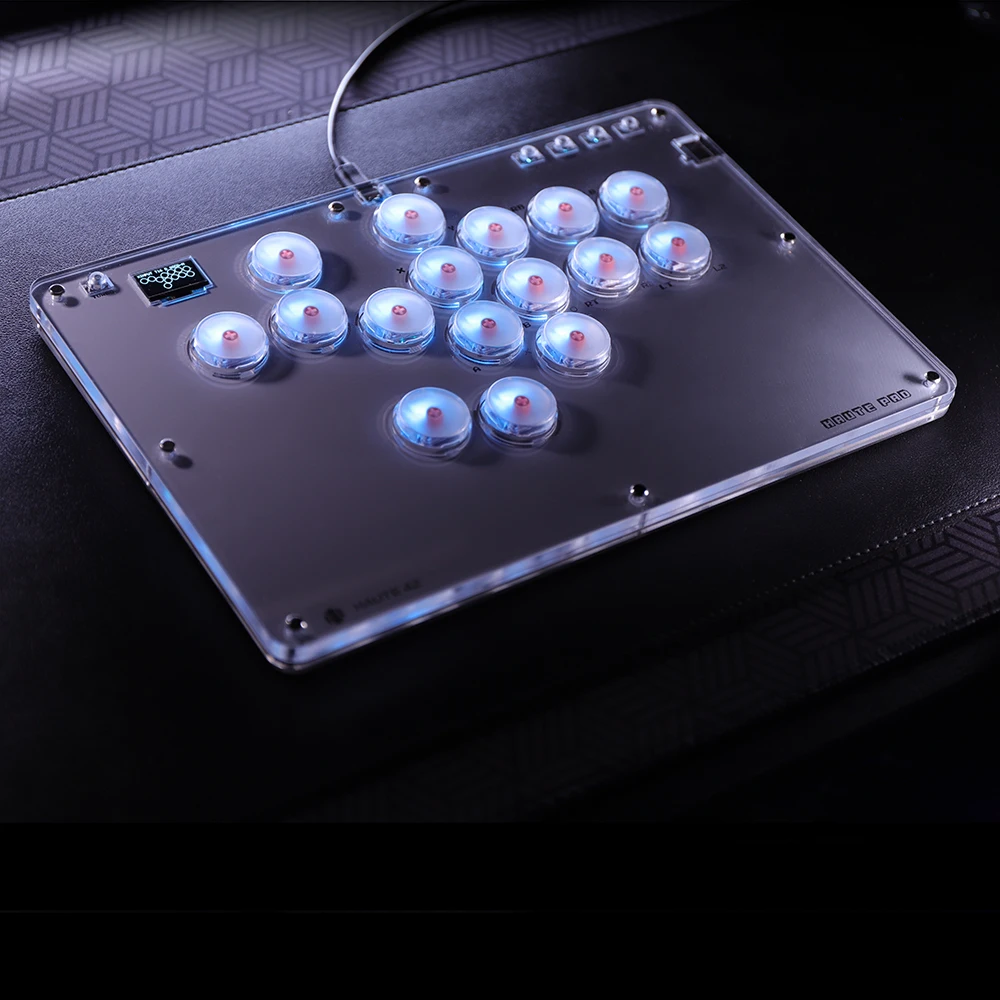

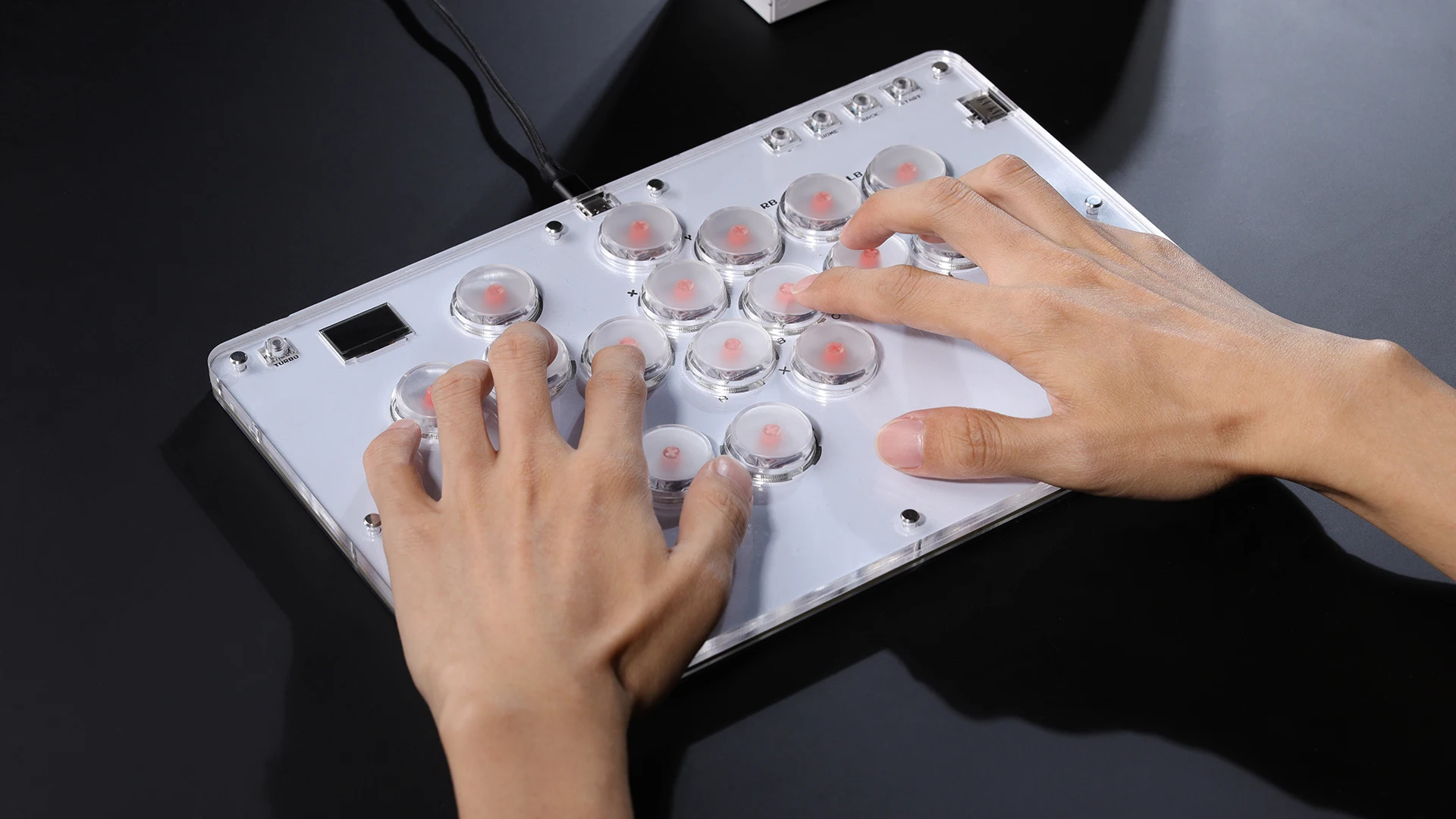

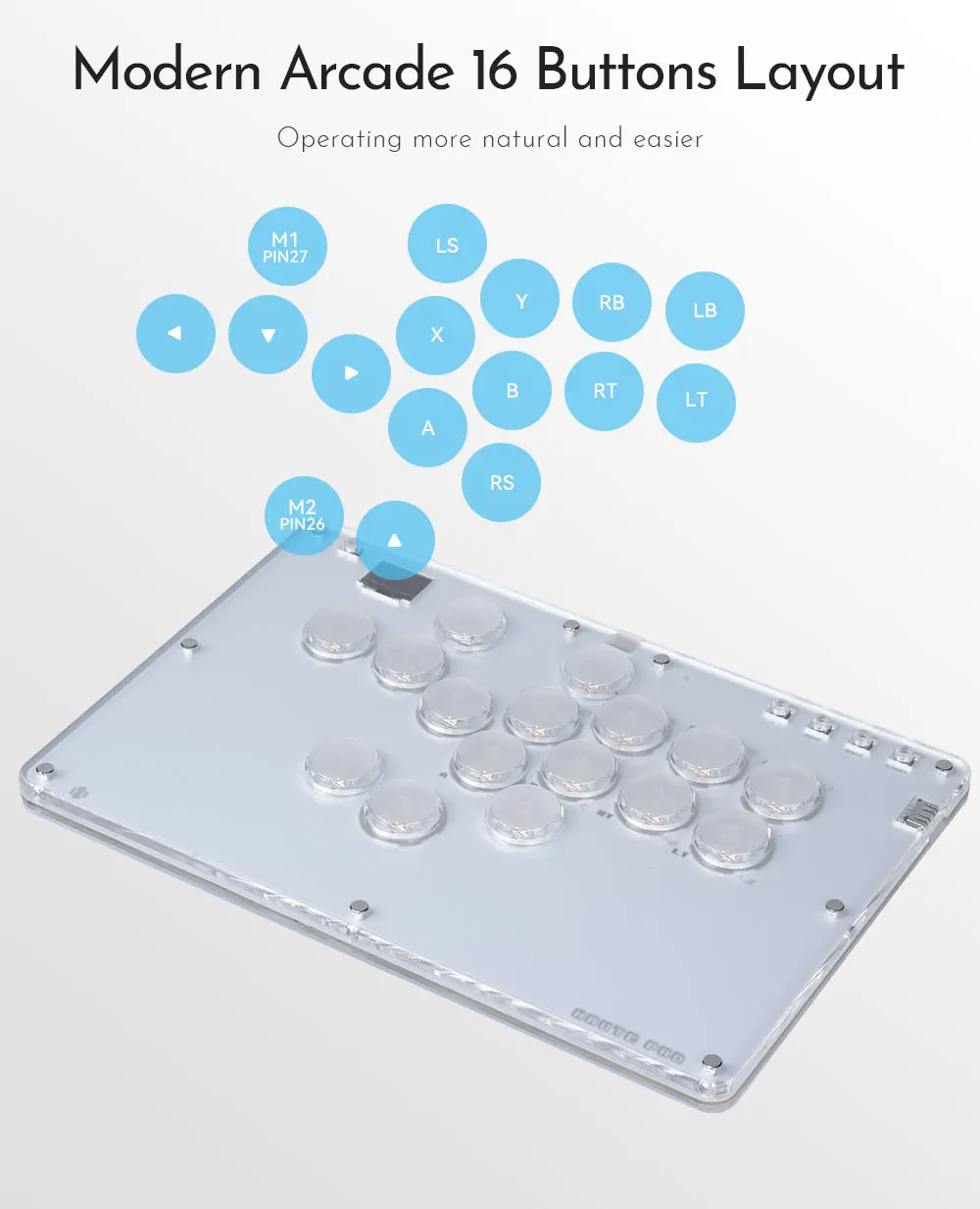

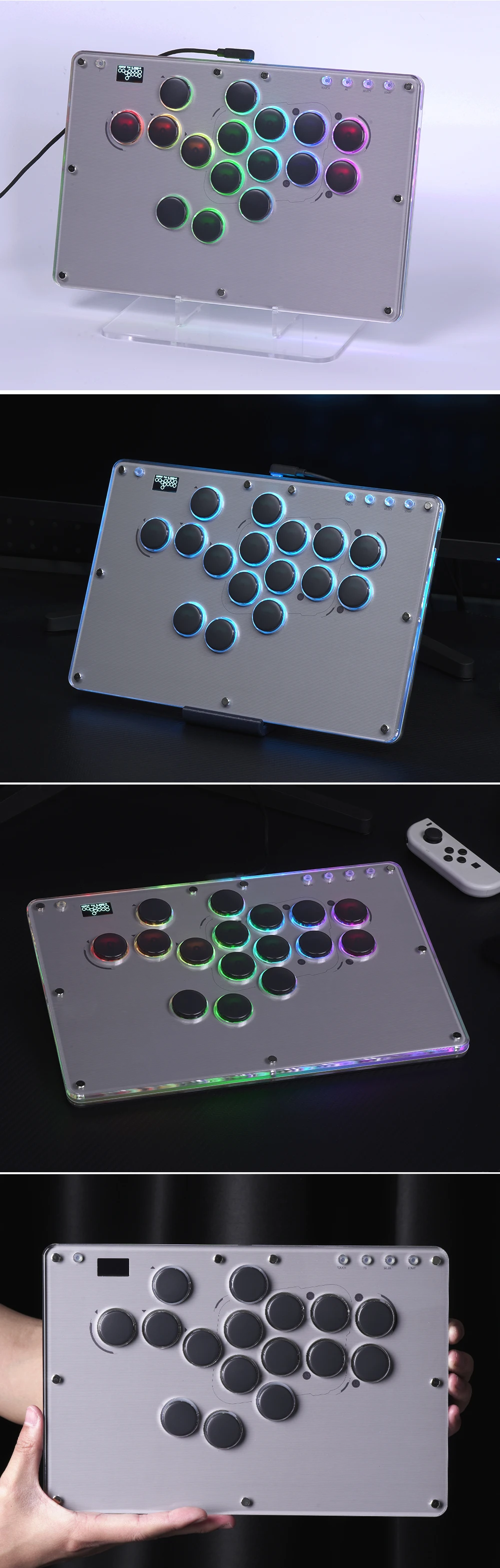

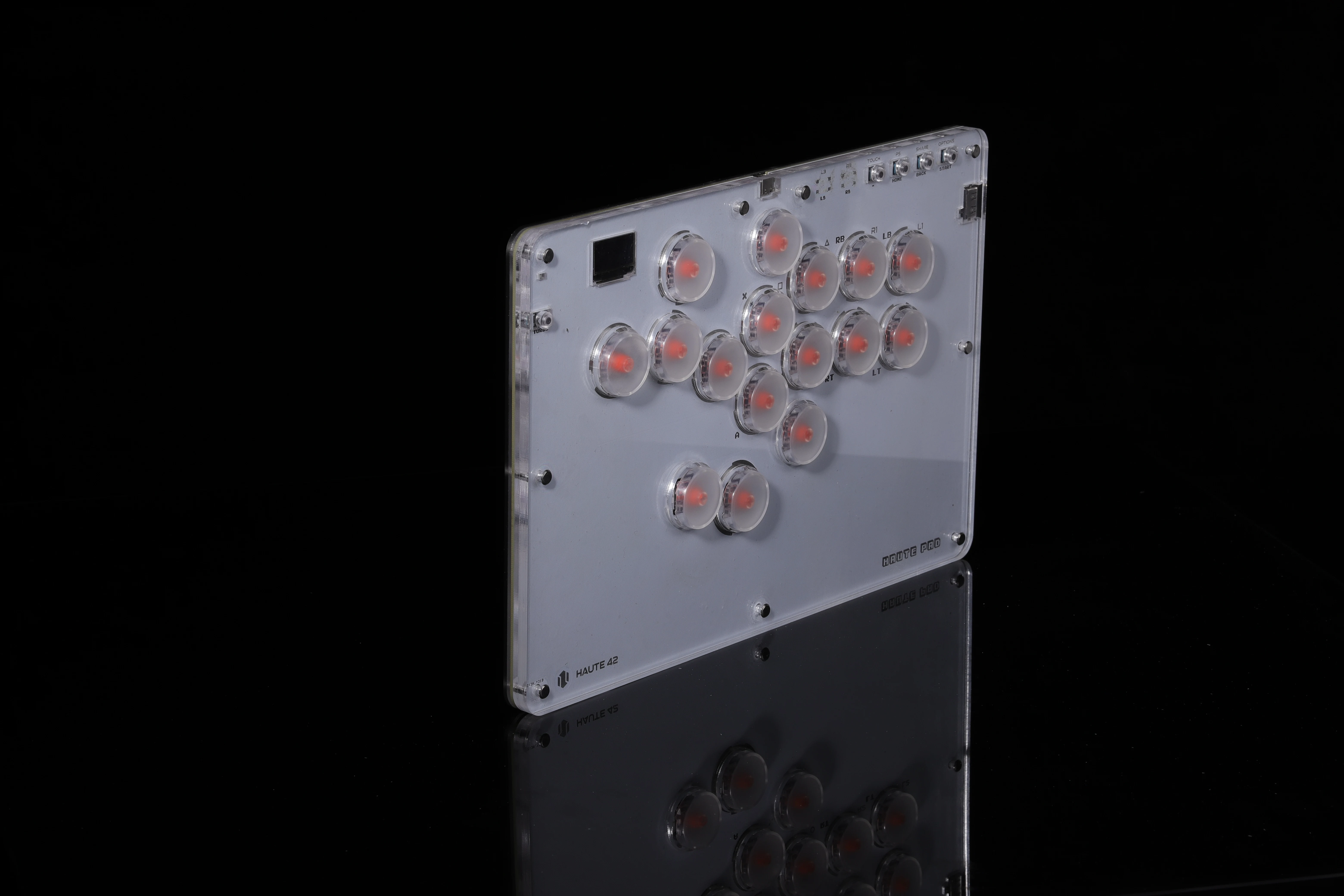

This is a transparent acrylic material with RGB lighting effect, an enlarged hitbox style arcade keyboard with 16 buttons, providing a comfortable feeling and allowing you to enjoy fighting games. Buyers can create their own hitbox skins to make the controller look cooler and more personalized

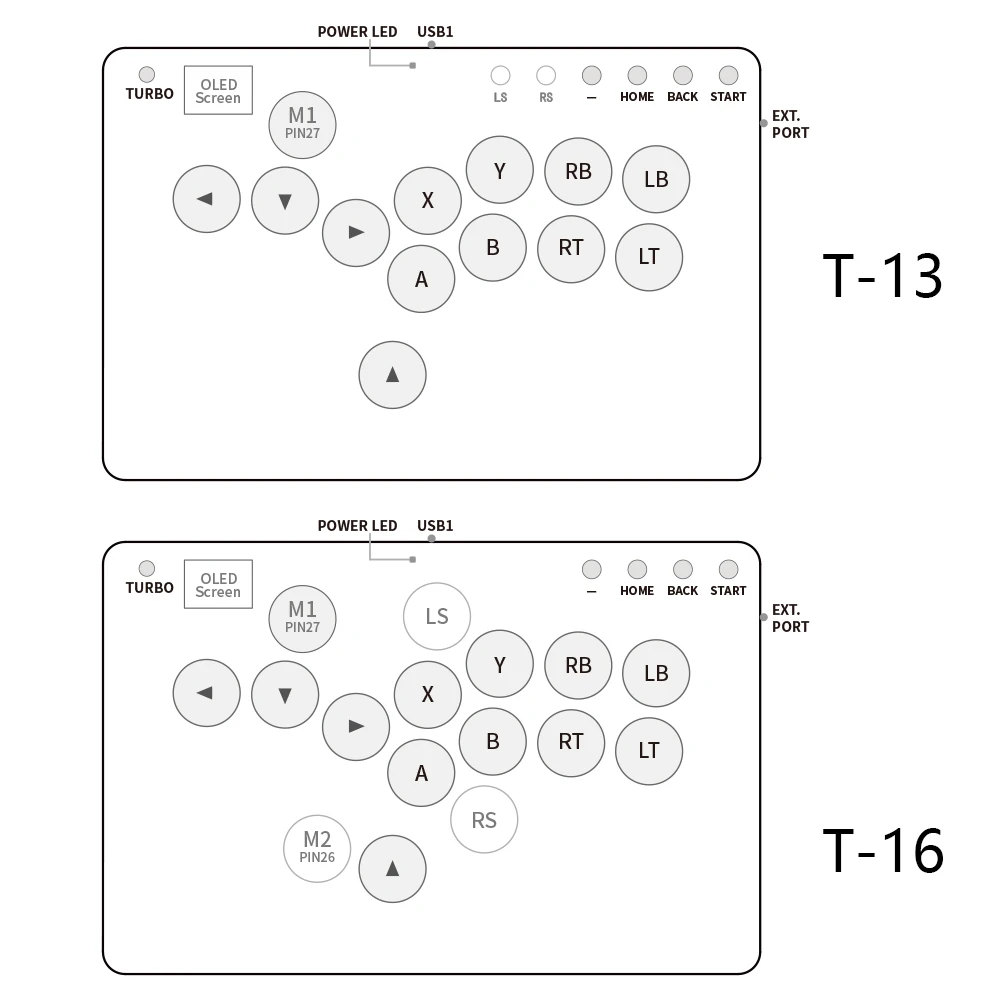

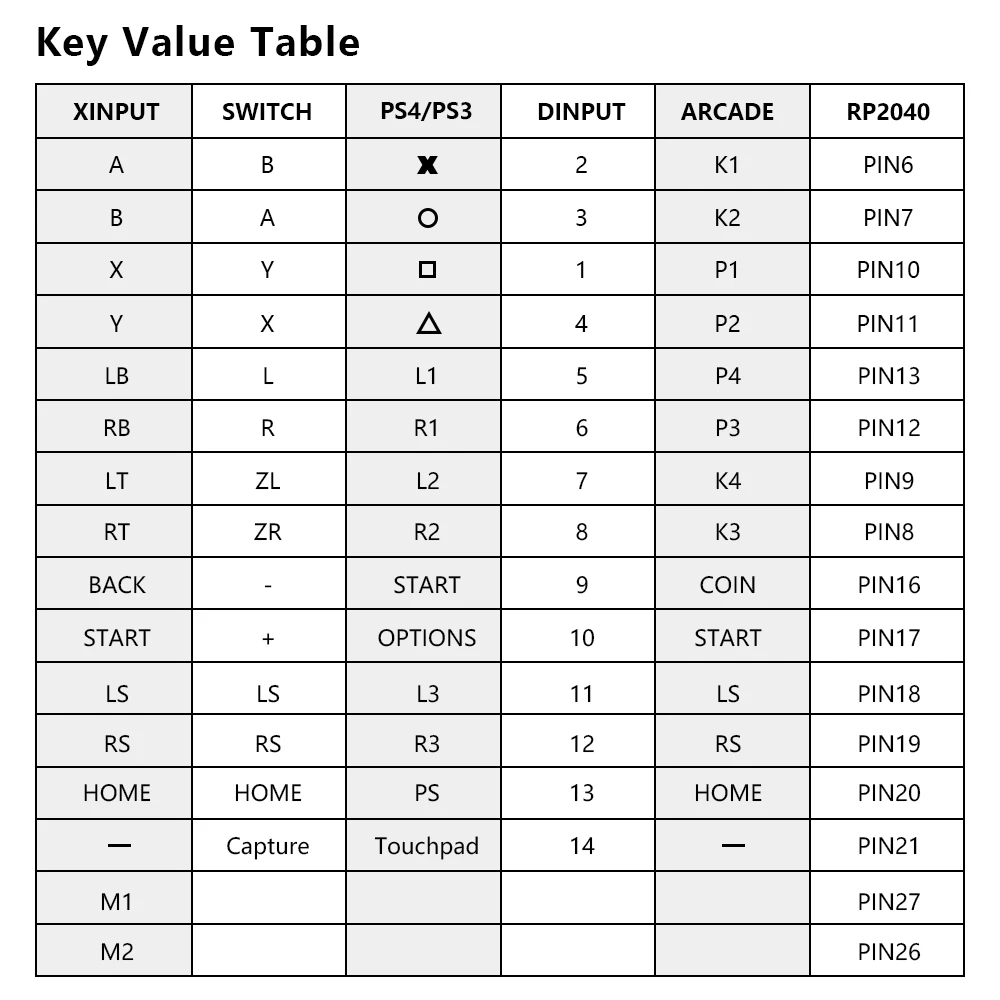

01 Compatibility
B — Xinput mode (Windows/Steam)
A — SWITCH mode
X — PS3 / Dinput mode (Raspberry Pi / Android)
Y — PS4 mode (Compatible with PS4 games on PS5 console）
RT — KEYBOARD mode
Input Mode
To change the input mode, hold one of the buttons(as shown above) as the controller is plugged in.
Tips：
This product defaults to Xinput mode，Input mode is saved across power cycles.
If there are games that do not compatible the above input modes , you can enter the Web Configurator to modify them for normal use.
PS4 Mode
This product will be disconnected at 8 minutes after connecting to the PS4/PS5 console.
You can avoid this 8-Minute Timeout by uploading the verification files which required for PS4 mode. More details, please check on the official website：www.haute42.com
Web Configurator
This product contains a built-in web-based configuration application which can be started up by holding START when plugging your controller into a PC. Then access http://192.168.7.1 in a web browser to begin configuration.
TURBO
Hold TURBO，then press the button which you need to be set for turbo function，then this button will be continuous sending while you press it,to cancel this turbo key，just repeat the privious step.
The turbo key that set will be cleard when power off.
These keys can be set as a Turbo key: A / B / X / Y / LB / RB / LT / RT
04 RGB LED Setting
●BACK + START + X Next Animation
●BACK + START + A Previous Animation
●BACK + START + Y Brightness Up
●BACK + START + B Brightness Down
●BACK + START + RB LED Parameter Up
●BACK + START + RT LED Parameter Down
●BACK + START + LB Pressed Parameter Up
●BACK + START + LT Pressed Parameter Down
D-Pad Modes
You can switch between the 3 modes for the D-Pad while the controller is in use by pressing one of the following default combinations:
● BACK + START + DOWN = D-Pad
● BACK + START + LEFT= Emulate Left Analog stick
● BACK + START + RIGHT= Emulate Right Analog stick
D-Pad mode is saved across power cycles.
Invert D-Pad Y-axis
A toggle is available to invert the Y-axis input of the D-pad, allowing some additional input flexibility. The default hotkey to toggle is to press
● HOME + START + RIGHT = Y-axis inversion
This is a temporary hotkey mapping for this feature, so keep an eye on updated releases for this to change.
SOCD Modes
Simultaneous Opposite Cardinal Direction (SOCD) cleaning will ensure the controller obeys certain directional input rules when sending inputs to the computer/console. Users can choose 1 of the 3 SOCD Modes while the controller is in use by pressing one of the following button default combinations:
● HOME + START + UP = Up Priority mode
Up + Down = Up, Left + Right = Neutral (Standard stickless behavior).
● HOME + START + DOWN = Neutral mode
Up + Down = Neutral, Left + Right = Neutral
● HOME + START +LEFT =Last Input Priority (Last Win)
Hold Up then hold Down = Down, then release and re-press Up = Up. Applies to both axes.
The selected SOCD mode is saved across power cycles.
RGB LED settings
Back+START+X Next Animation
Back+START+A Previous animation
● BACK+START+Y brightness increase
● BACK+START+B brightness decrease
Back+START+RB LED parameter up
● BACK+START+RT LED parameters down
Back+START+LB color light effect parameters up
Back+START+LT color light effect parameters downward
