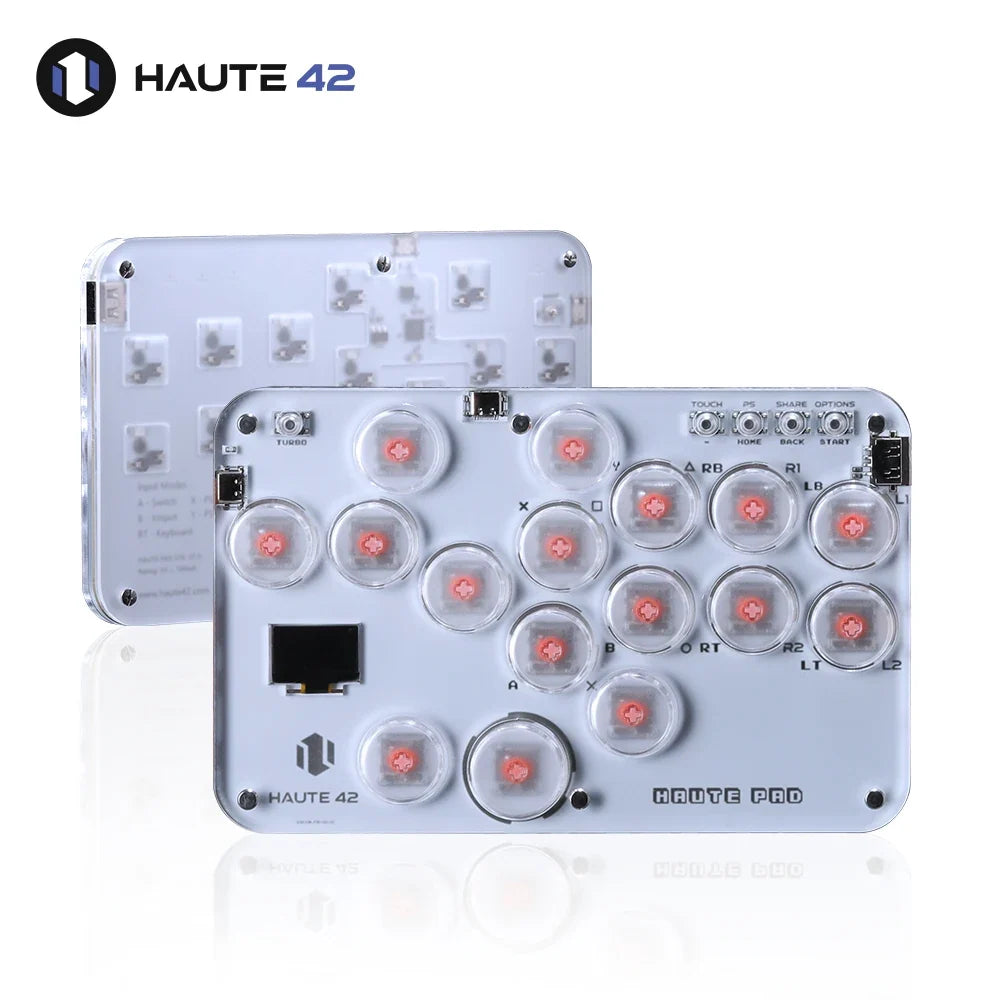

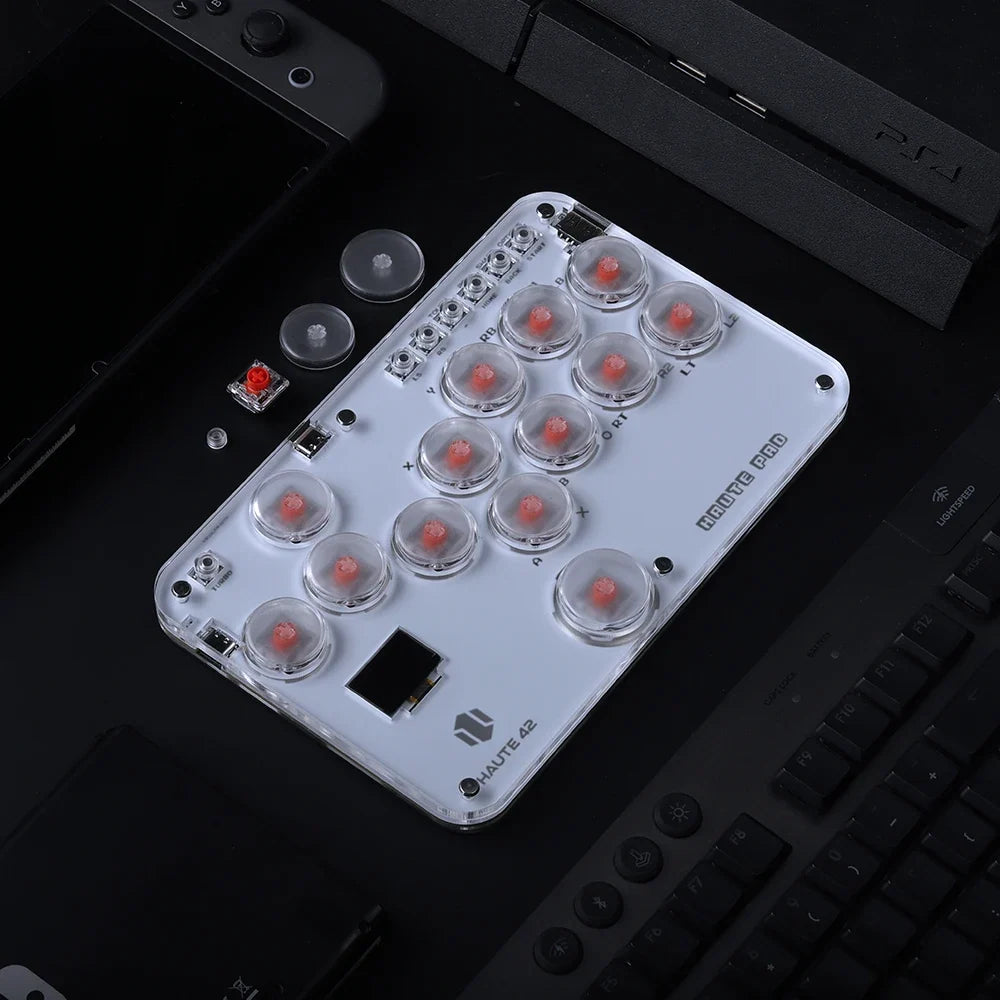

The Haute42 S Series is a mini hitbox controller for fighting games, light enough to carry to any tournament.
- Choose S16, S13 or S16-C
- Mini size 196 × 125 × 12.5 mm, acrylic build, USB Type-C
- Works with PC, PS3, PS4, Switch, Android and Steam
- Includes keyboard, Type-C cable, keycap puller and 6 anti-slip pads
SPECIFICATIONS
Accessories Type: Gaming Keyboards,Game Keyboards
Arcade Joystick: Arcade Fight Stick
Arcade Stick Controller: joystick hitbox
Battery Charge Time: No need to charge
Bluetooth range: Without Bluetooth
Brand Name: haute42
Cable features: Retractable
Compatible Brand/Model: PC
Control Method: Push button
Controls Type: Push button
Electric: No
Enclosure material: Acrylic
Fastening type: Others
Feature: 16 button with RGB mode
Fight Stick PC: Joystick Hitbox Controller
Function: Arcade Fight Stick For PC,Hitbox Fightstick For PS4/PS3
Harness Feature: Others
High-concerned chemical: none
Item: hitbox style controller
Model Number: Haute42 S Series Hitbox Controller
Occasion: Others
Origin: Mainland China
PC System: Windows 10
Platform: Nintendo Switch 2
Portable: Yes
Reusability: Reusable
Sensor Technology: Others
With USB: YES
haute42 Controller: haute42 hitbox
hitbox fightstick: mini arcade hitbox
hitbox pc: Arcade Fighting PC
is_customized: NO
joystick hitbox keyboard: Hitbox Controller
joystick hitbox ps4: Arcade controller
Haute42 Joystick Hitbox Controller Arcade Stick Controller For
PS4/PS3//Switch/Steam Mini Hitbox Arcade Game Keyboard Fighting
Product Description
Working voltage: 5V

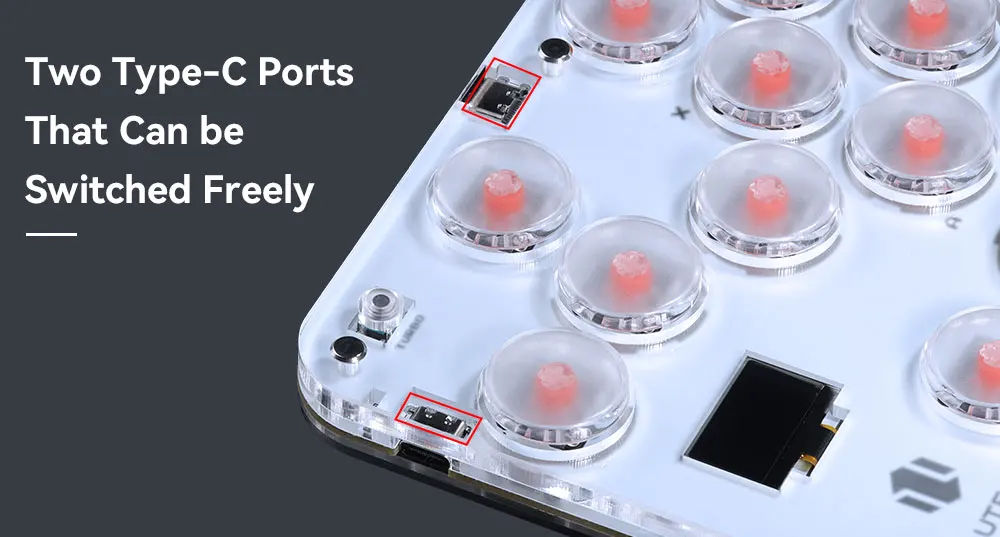

Link method: USB Type-C

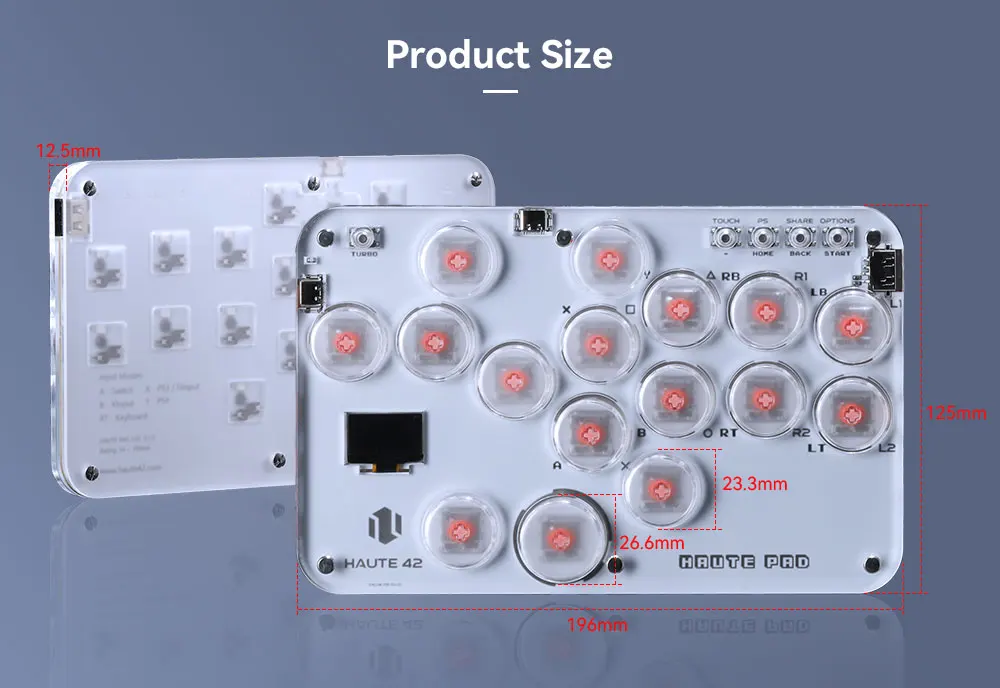

Product size: 196mm * 125mm * 12.5mm

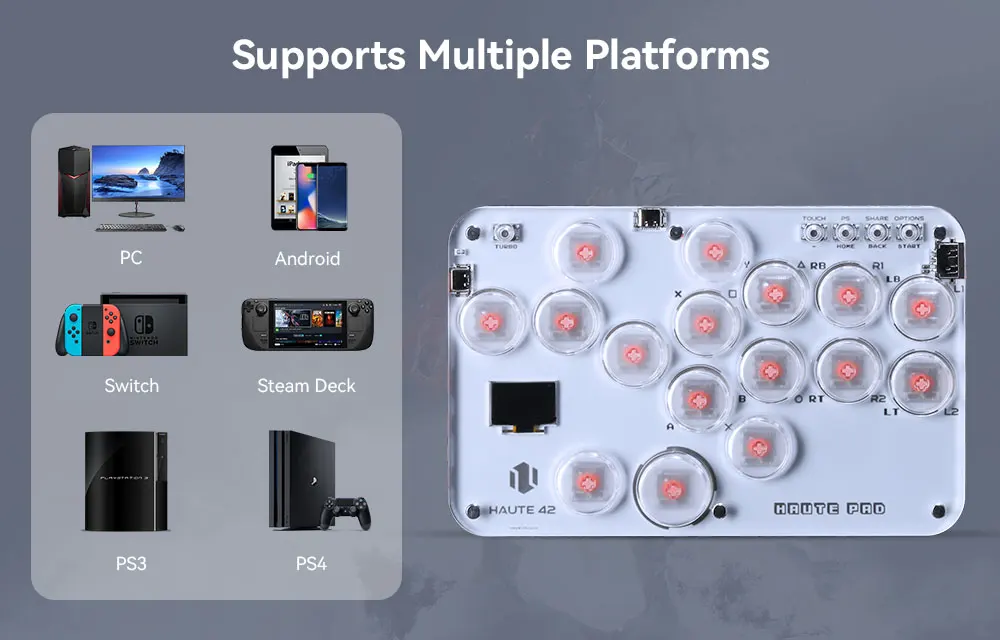

Supported Platforms : pc /ps3/ps4/switch/ Android/Steam
Product Specifications:1Mini Keyboard,1Data Cable Type-C,1Keycap Puller,6 anti slip pads

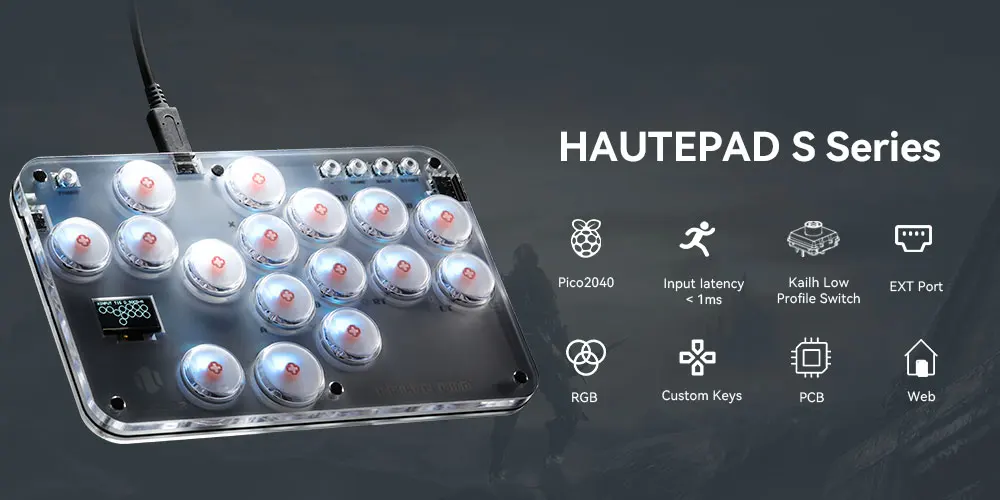

HautePad S Series
Ten years of gaming peripheral experience
Carefully crafted portable Hitbox
Take you back to the arcade er
The heart of combat never stops!

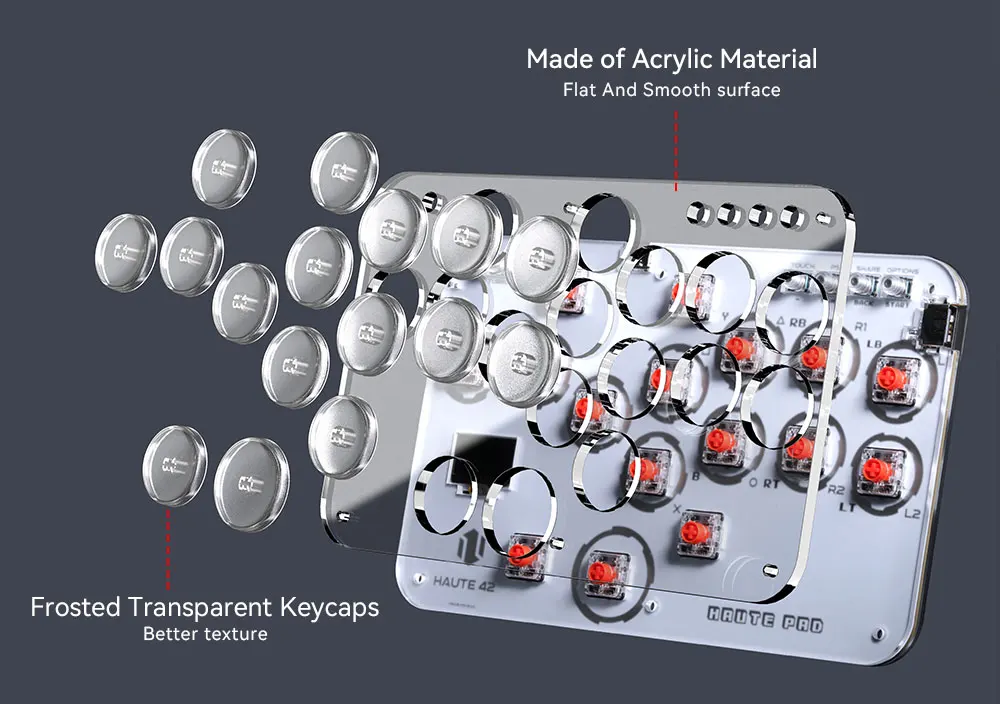

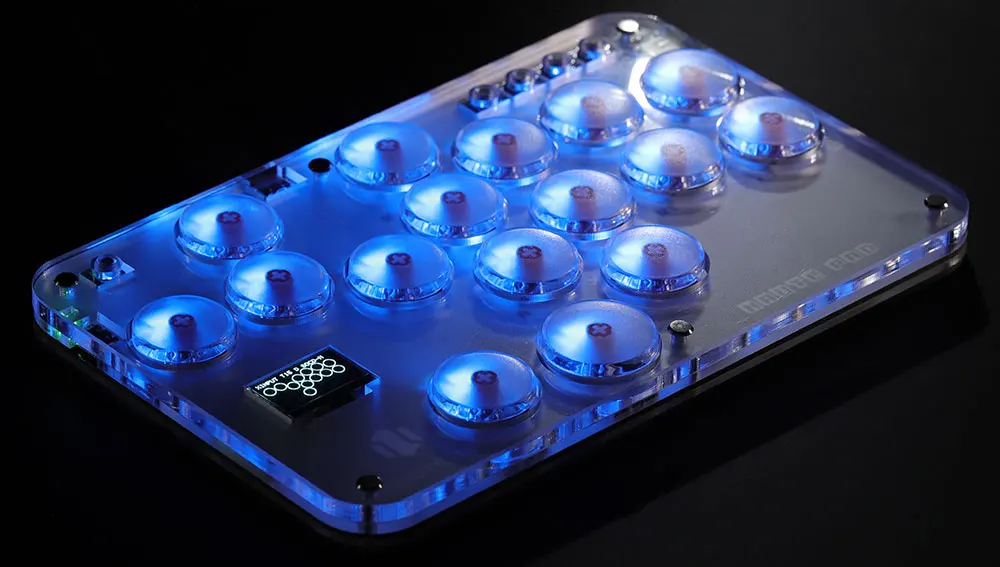

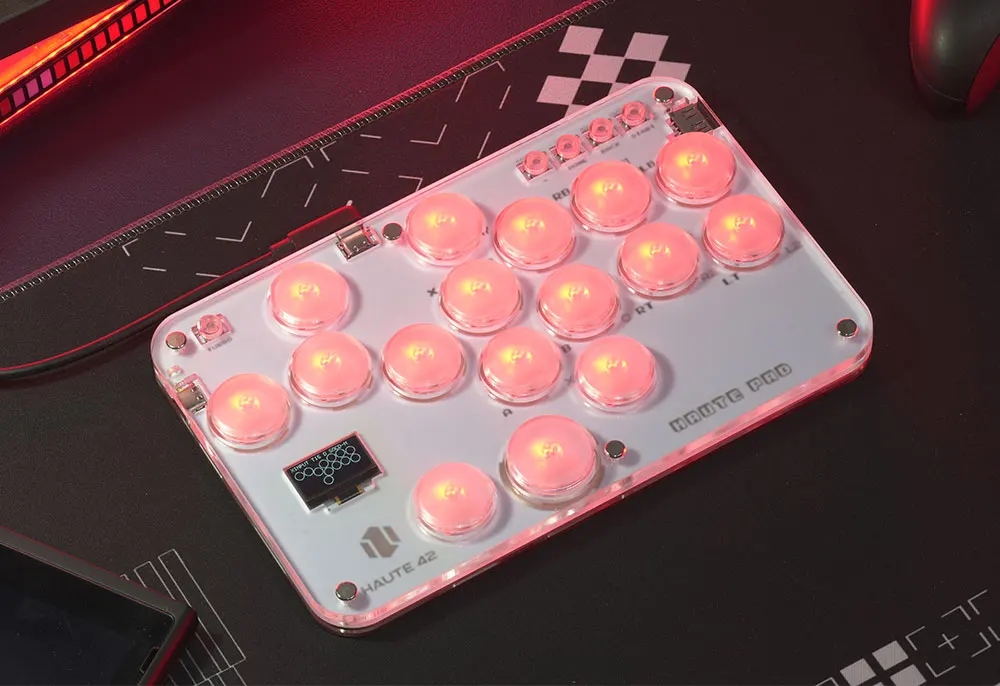

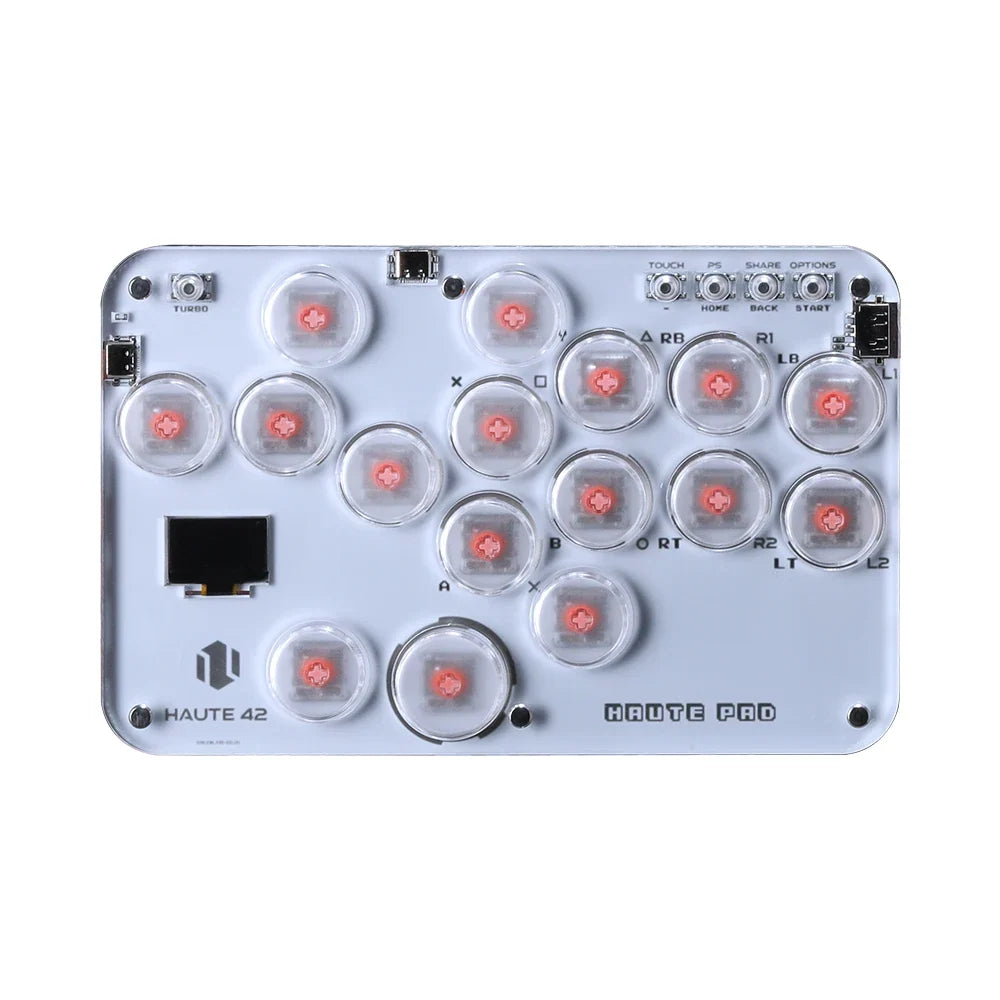

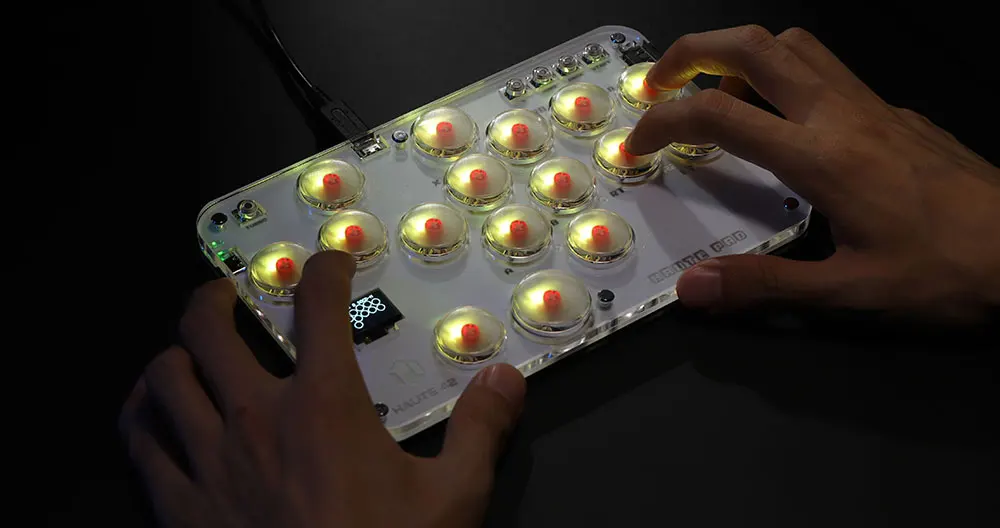

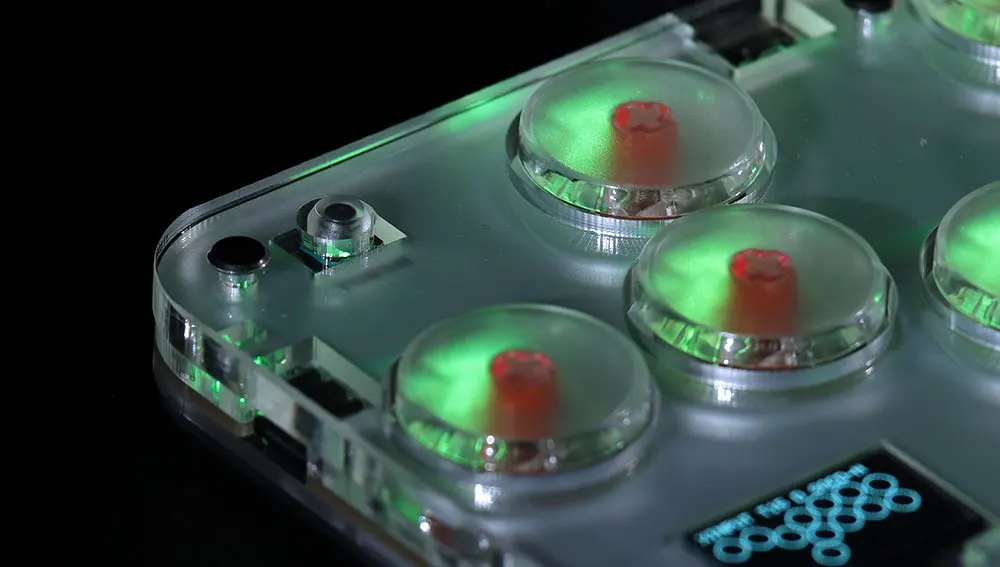

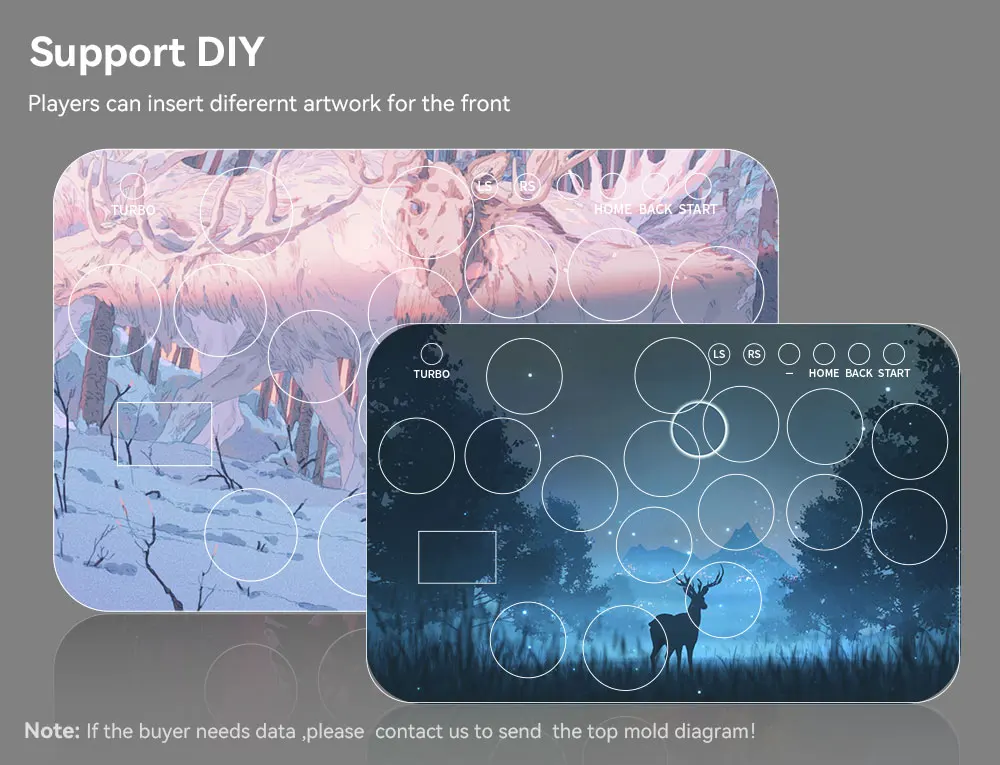

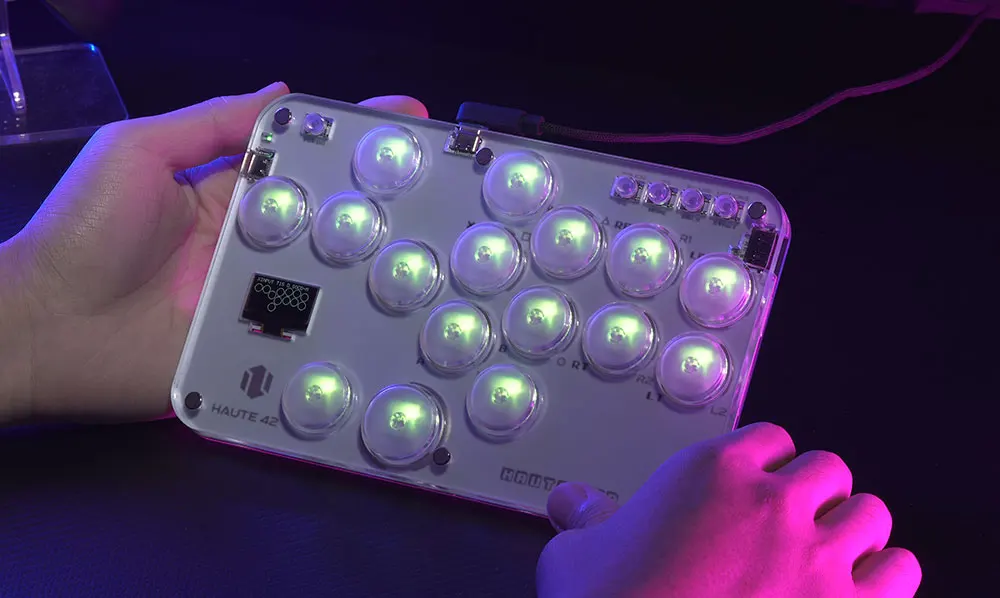

This is a transparent acrylic material with RGB lighting effect, an mini hitbox style arcade keyboard with 16 buttons, providing a comfortable feeling and allowing you to enjoy fighting games. Buyers can create their own hitbox skins to make the controller look cooler and more personalized

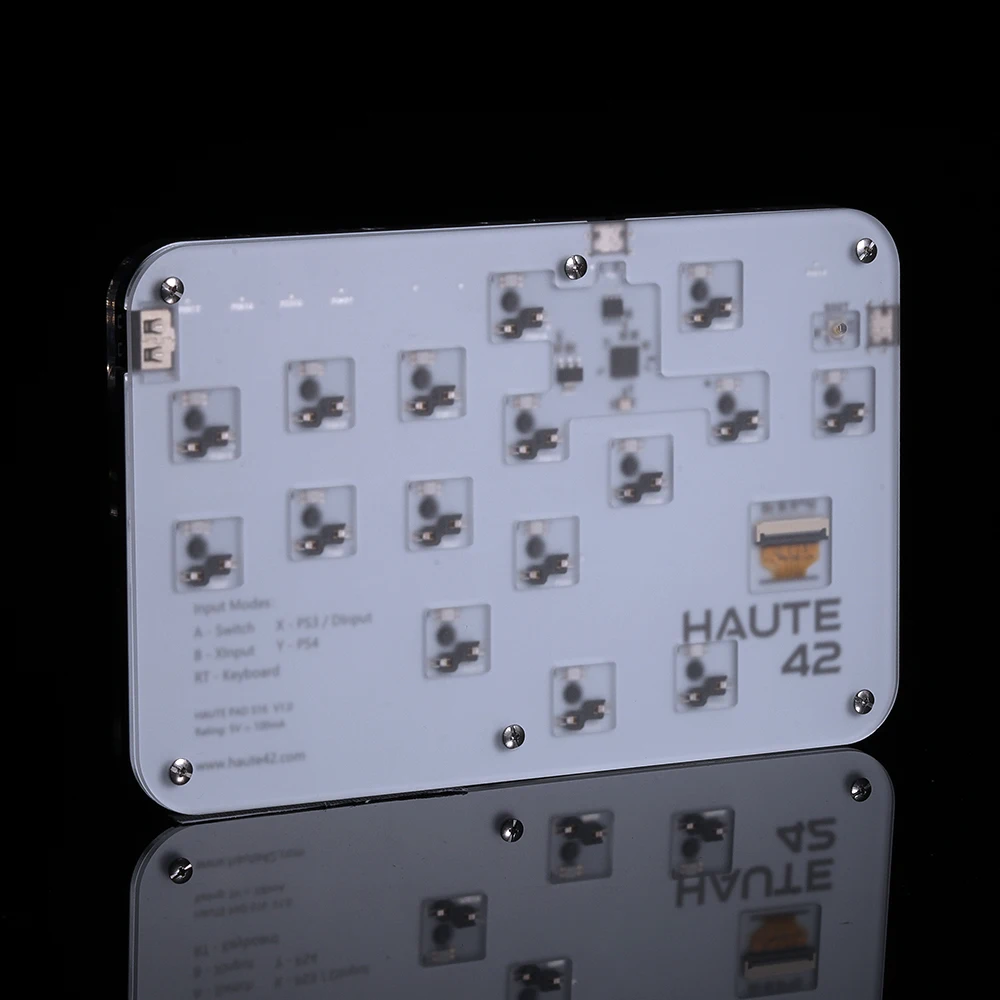

Adopting a cost-effective combat chip, the Raspberry Pi RP2024 main control chip
Dual core ARM Cortex-M0+@ 133MHZ
Supported by dedicated QSPI bus, up to 16MB off chip flash memory
Fully connected AHB crossover switch
Integrated 264kB on-chip SRAM in six independent groups
40nm process node manufacturing, low dynamic power consumption, and low leakage
1ms delay, no frame leakage rate above 95%
Supports firmware updates
more functions and compatibility coming soon

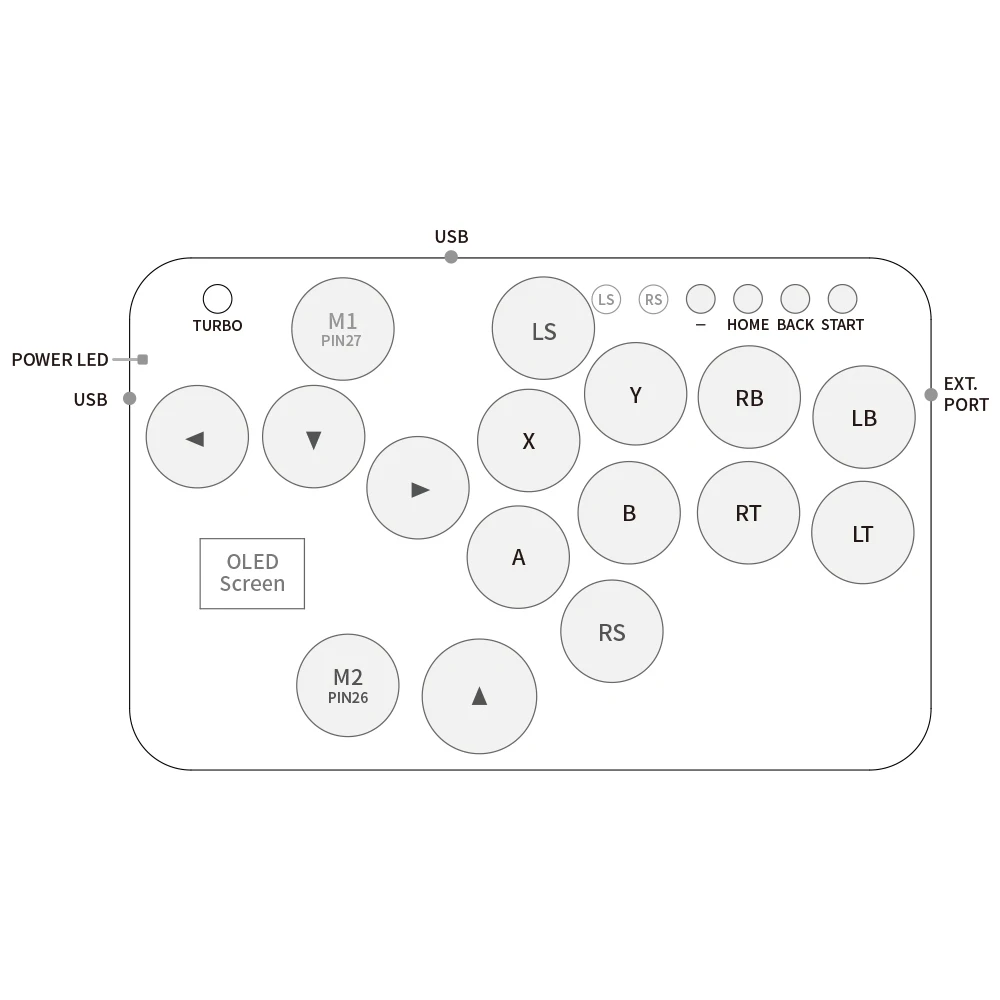

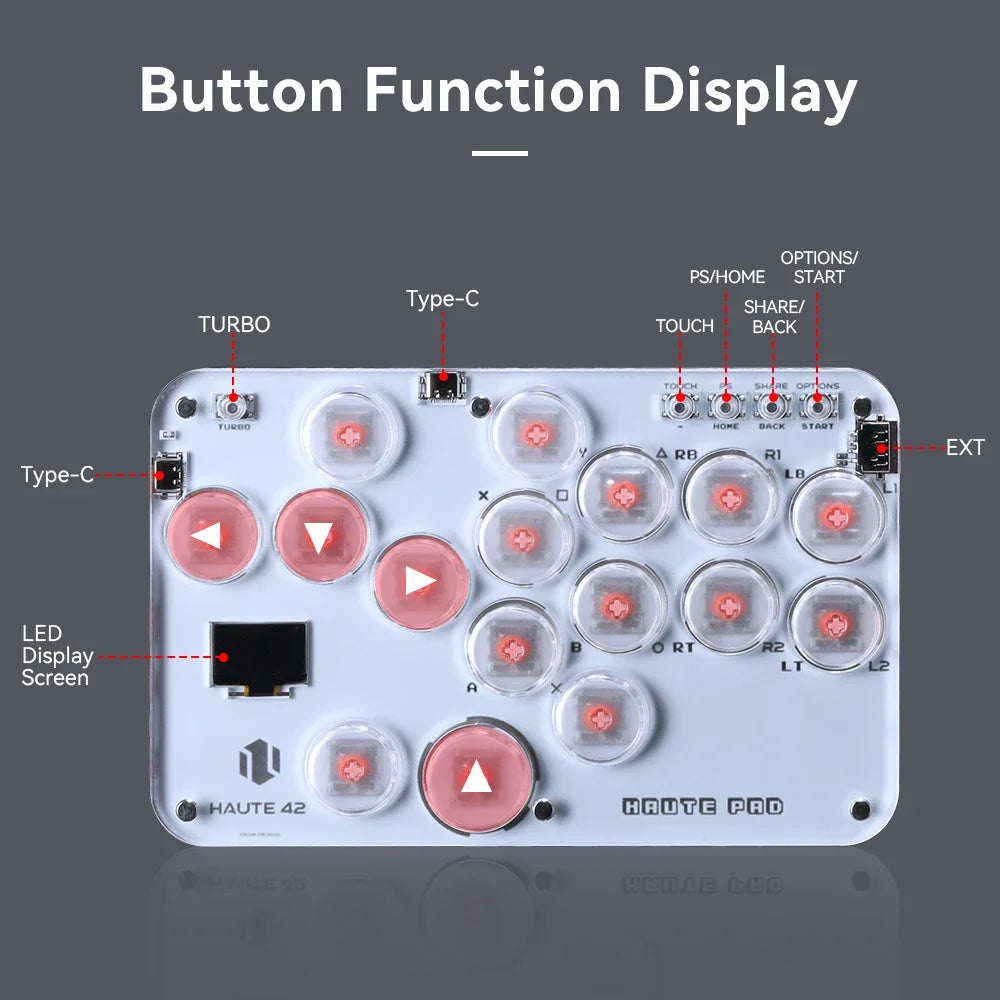

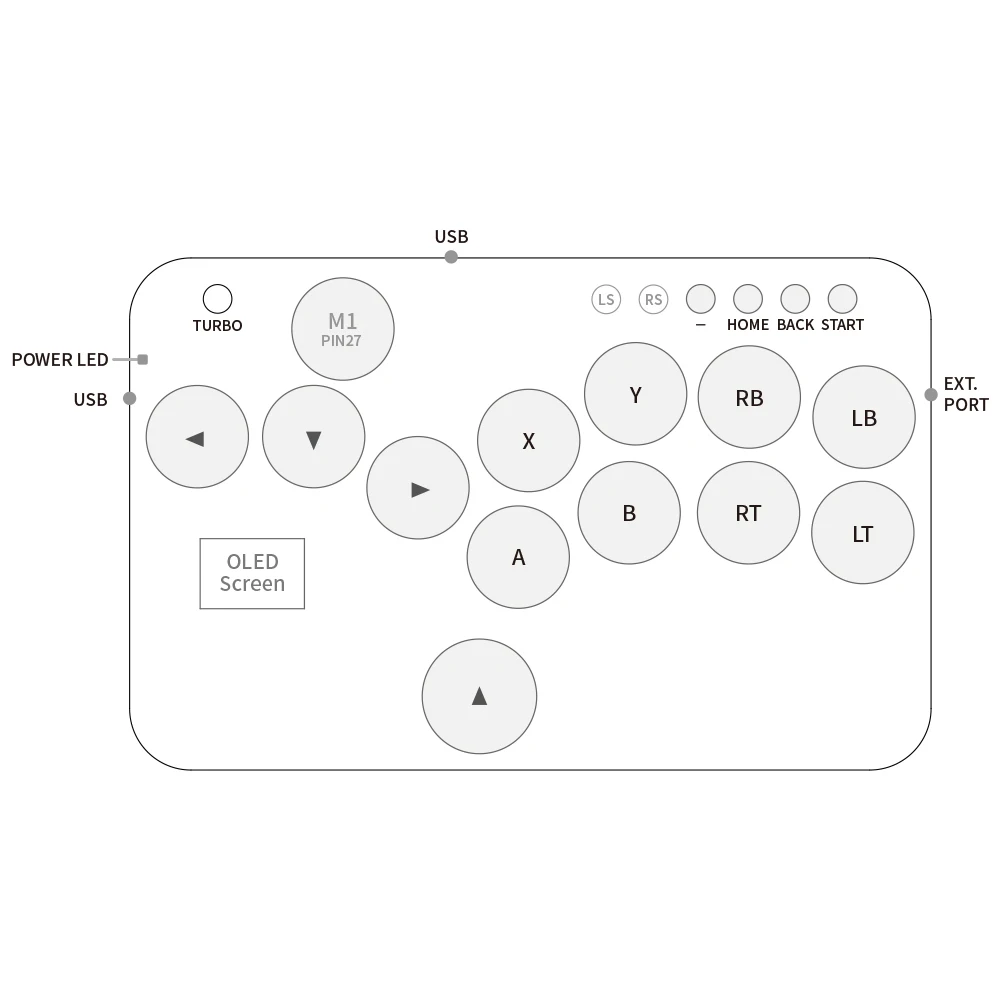

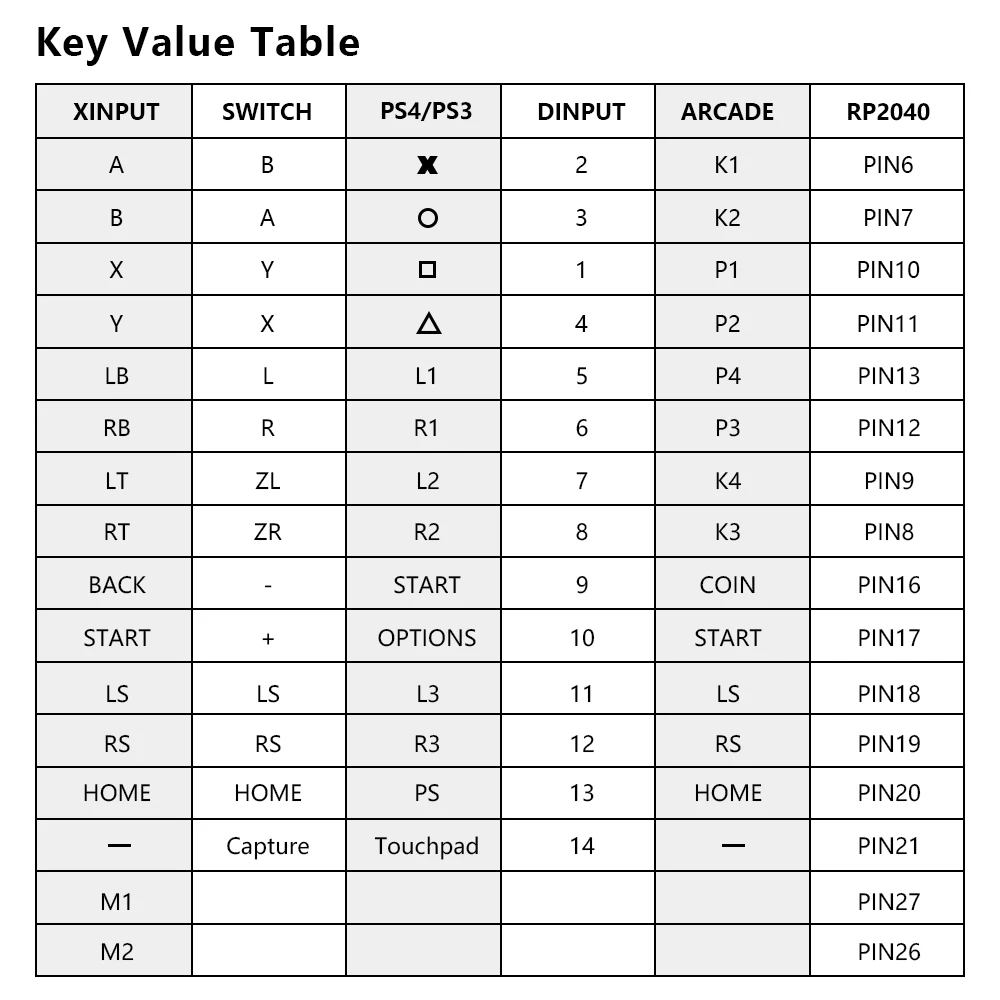

01 Compatibility
B — Xinput mode (Windows/Steam)
A — SWITCH mode
X — PS3 / Dinput mode (Raspberry Pi / Android)
Y — PS4 mode (Compatible with PS4 games on PS5 console）
RT — KEYBOARD mode
Input Mode
To change the input mode, hold one of the buttons(as shown above) as the controller is plugged in.
Tips：
This product defaults to Xinput mode，Input mode is saved across power cycles.
If there are games that do not compatible the above input modes , you can enter the Web Configurator to modify them for normal use.
PS4 Mode
This product will be disconnected at 8 minutes after connecting to the PS4/PS5 console.
You can avoid this 8-Minute Timeout by uploading the verification files which required for PS4 mode. More details, please check on the official website：www.haute42.com
Web Configurator
This product contains a built-in web-based configuration application which can be started up by holding START when plugging your controller into a PC. Then access http://192.168.7.1 in a web browser to begin configuration.
TURBO
Hold TURBO，then press the button which you need to be set for turbo function，then this button will be continuous sending while you press it,to cancel this turbo key，just repeat the privious step.
The turbo key that set will be cleard when power off.
These keys can be set as a Turbo key: A / B / X / Y / LB / RB / LT / RT

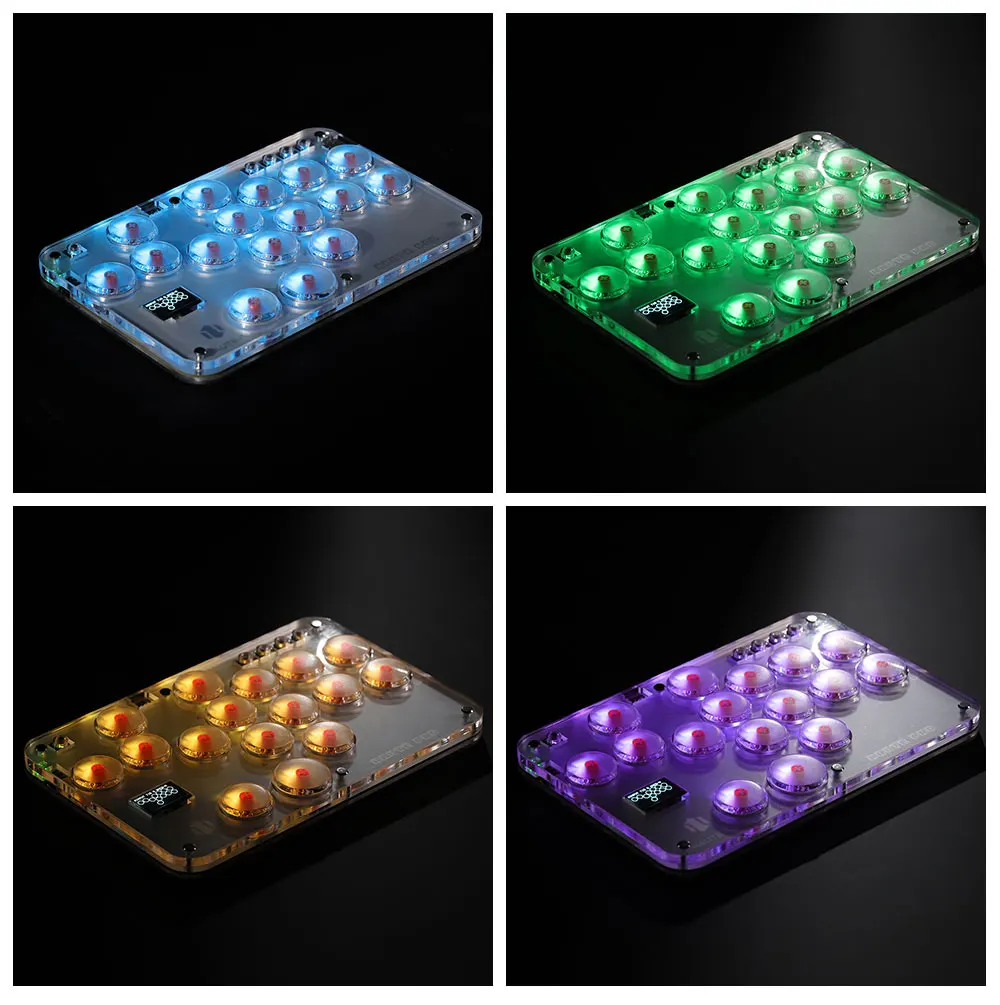

04 RGB LED Setting
●BACK + START + X Next Animation
●BACK + START + A Previous Animation
●BACK + START + Y Brightness Up
●BACK + START + B Brightness Down
●BACK + START + RB LED Parameter Up
●BACK + START + RT LED Parameter Down
●BACK + START + LB Pressed Parameter Up
●BACK + START + LT Pressed Parameter Down
