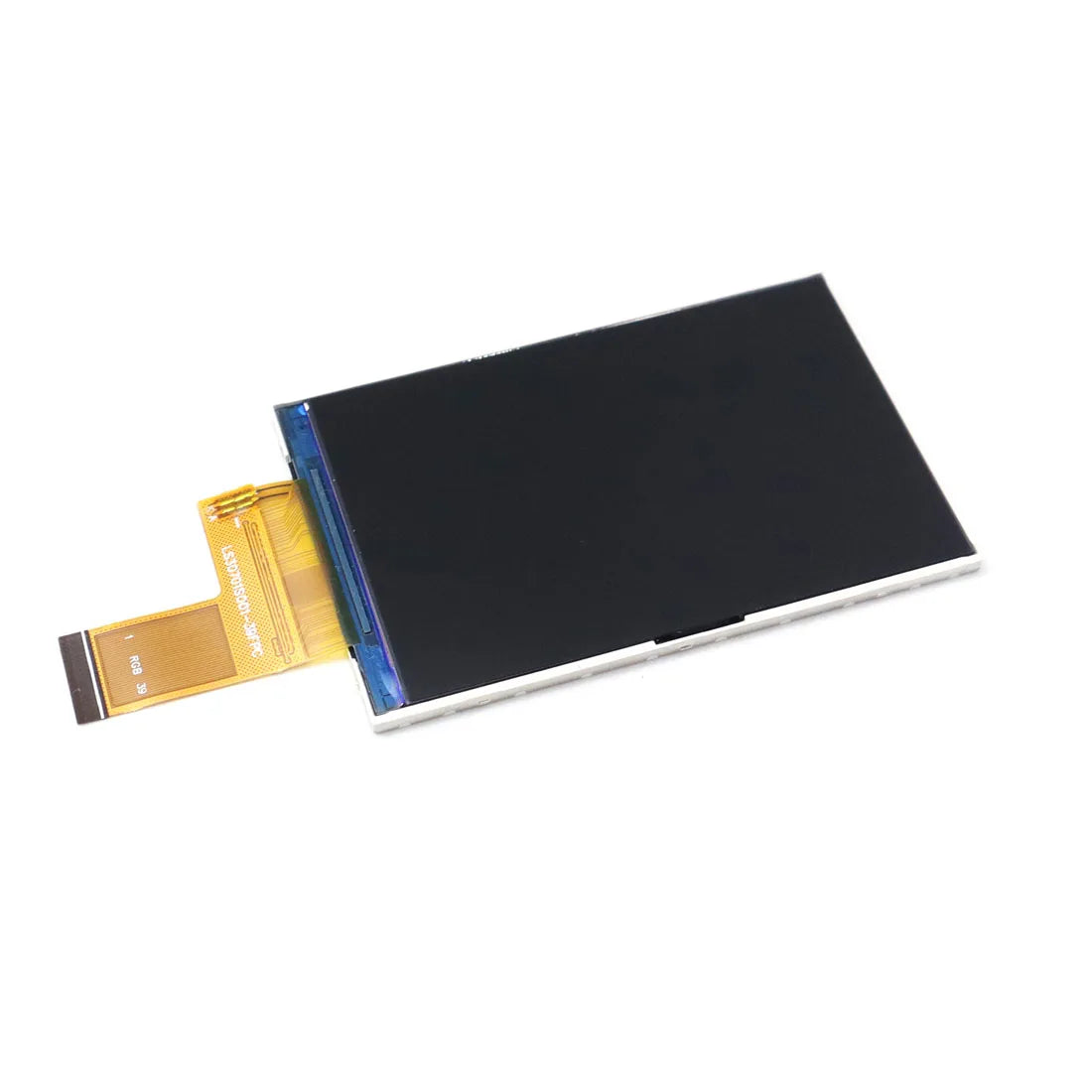

HISPEEDIDO 3.0'' Desaturation IPS LCD V5 Screen For GBA Cut-free Shell High Brightness Kit Support Pixel Menu For Gameboy Advanc
HISPEEDIDO 3.0'' Desaturation IPS LCD V5 Screen For GBA Cut-free Shell High Brightness Kit Support Pixel Menu For Gameboy Advanc
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 4 – Nov 13
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications
SPECIFICATIONS
Accessories Type: Replacement Shell
Bluetooth range: no
Cable features: Retractable
Compatible Brand/Model: Nintendo
Compatible Nintendo Model: GameBoy Advance
Control Method: Push button
Controls Type: Push button
Electric: No
Enclosure material: Plastic
Fastening type: Screw
Harness Feature: Others
High-concerned chemical: none
Occasion: Others
Origin: Mainland China
Platform: Other
Portable: Yes
Reusability: Reusable
Sensor Technology: Others
With USB: No
It can fit original housing directly. No need trimming
Only LCD kit, No console.
Description:
1. 720x480 display resolution. HD LCD. 9 pixels to 1 pixel. Integer scaling. No any distortions.
2. Wide View angle up to 178 degree.
3. Pre Laminated Glass Screen.
4. The PCB has been embedded in the LCD metal shell.
5. Built-in OSD Menu!
6. Retro pixel Effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1 and Scanline 2.
7. 15 brightness levels.
8. 8 color modes.
9. FRM On/OFF function(Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM isOFF.
10. Touch Screen to change the brightness and the color modes.
11. Compatible 32pin and 40pin motherboard.
12. Desaturation function
13. Touch Shourtcut ON/OFF function
*You need to welding 3 wires to control the OSD Menu*
You don't need to do any welding if you don't want the OSD menu!

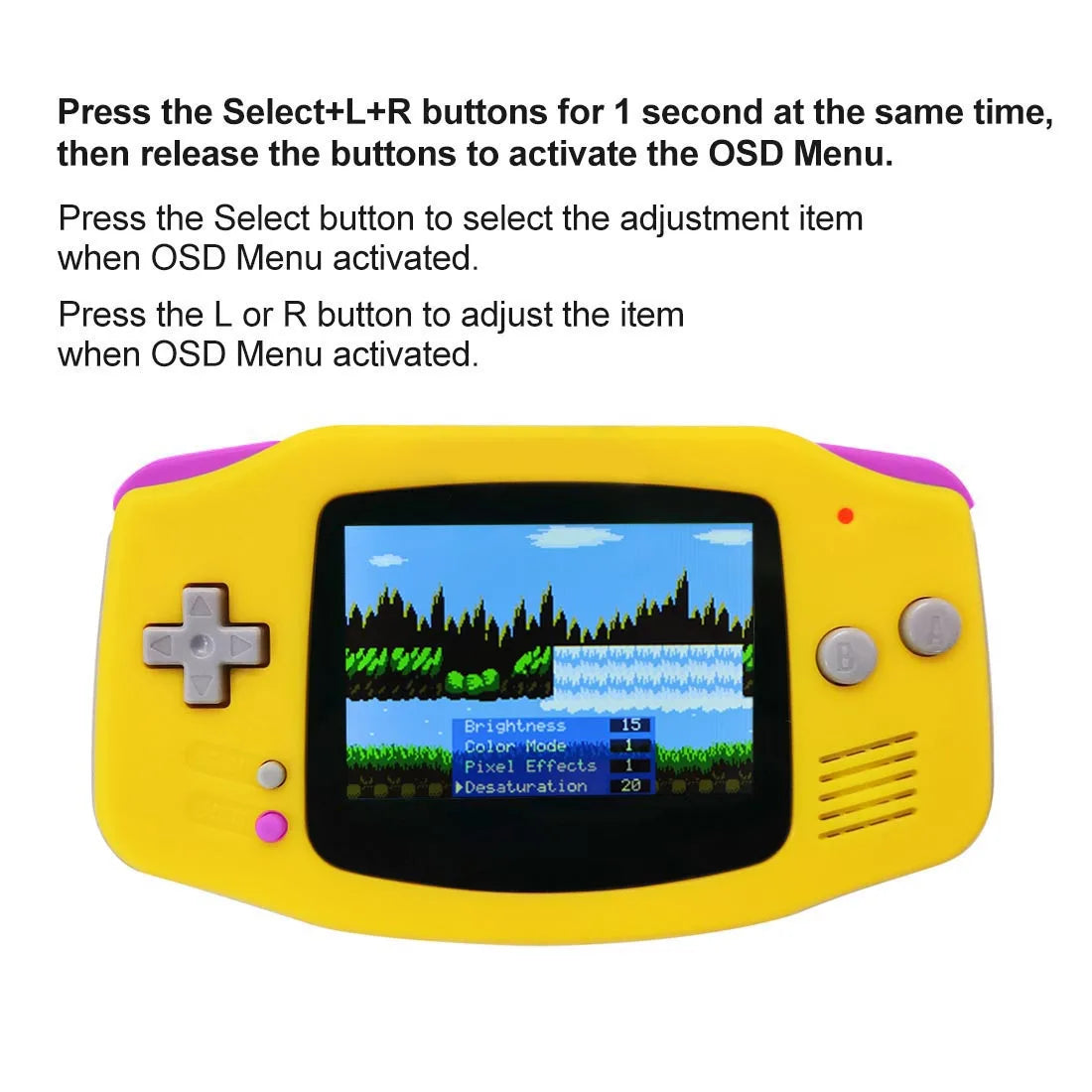

OSD Menu Operation:
-Press the Select+L+R buttons for 1 second at the same time, then release the buttons to activate the OSD Menu.
-Press the Select button to select the adjustment item when OSD Menu activated.
-Press the L or R button to adjust the item when OSD Menu activated.

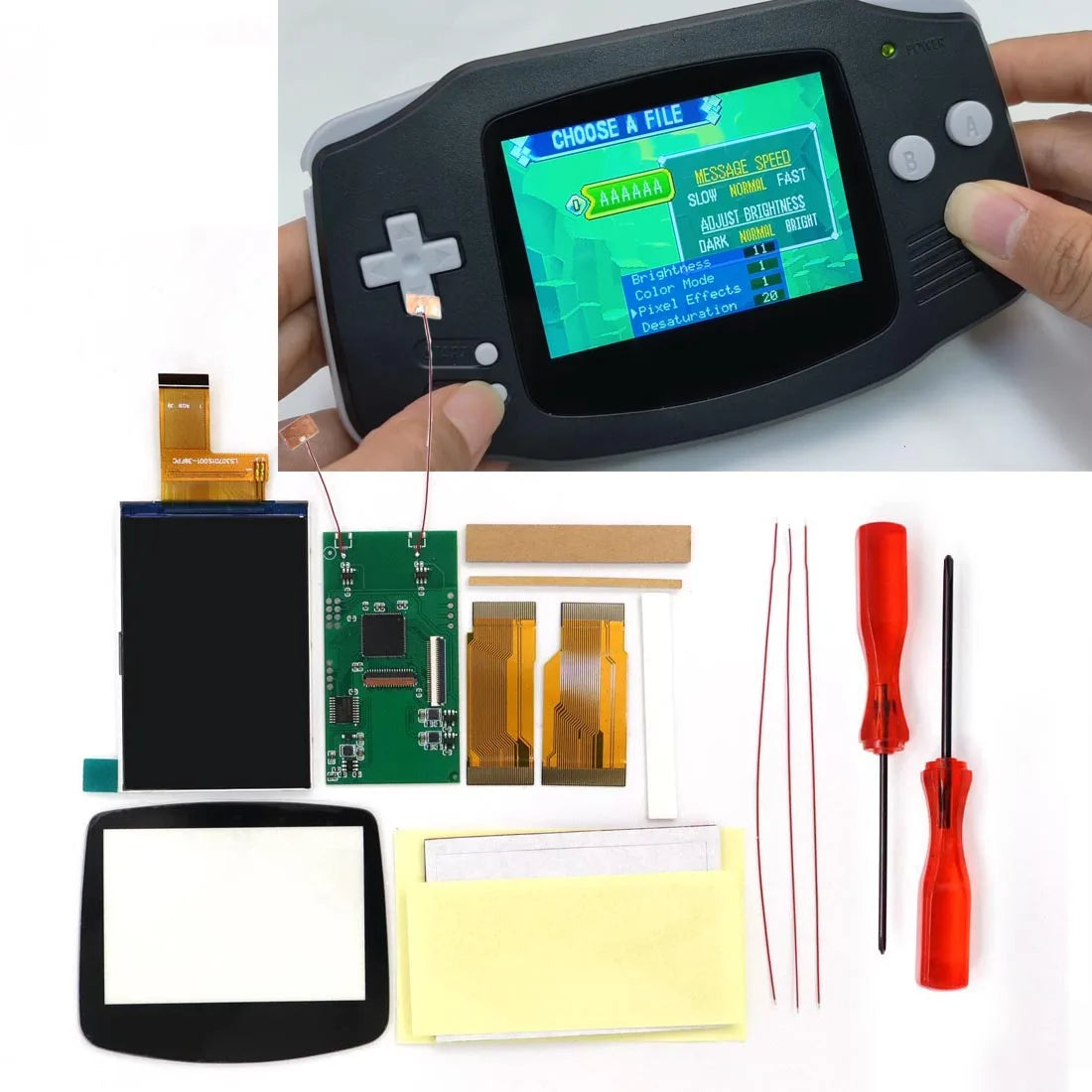

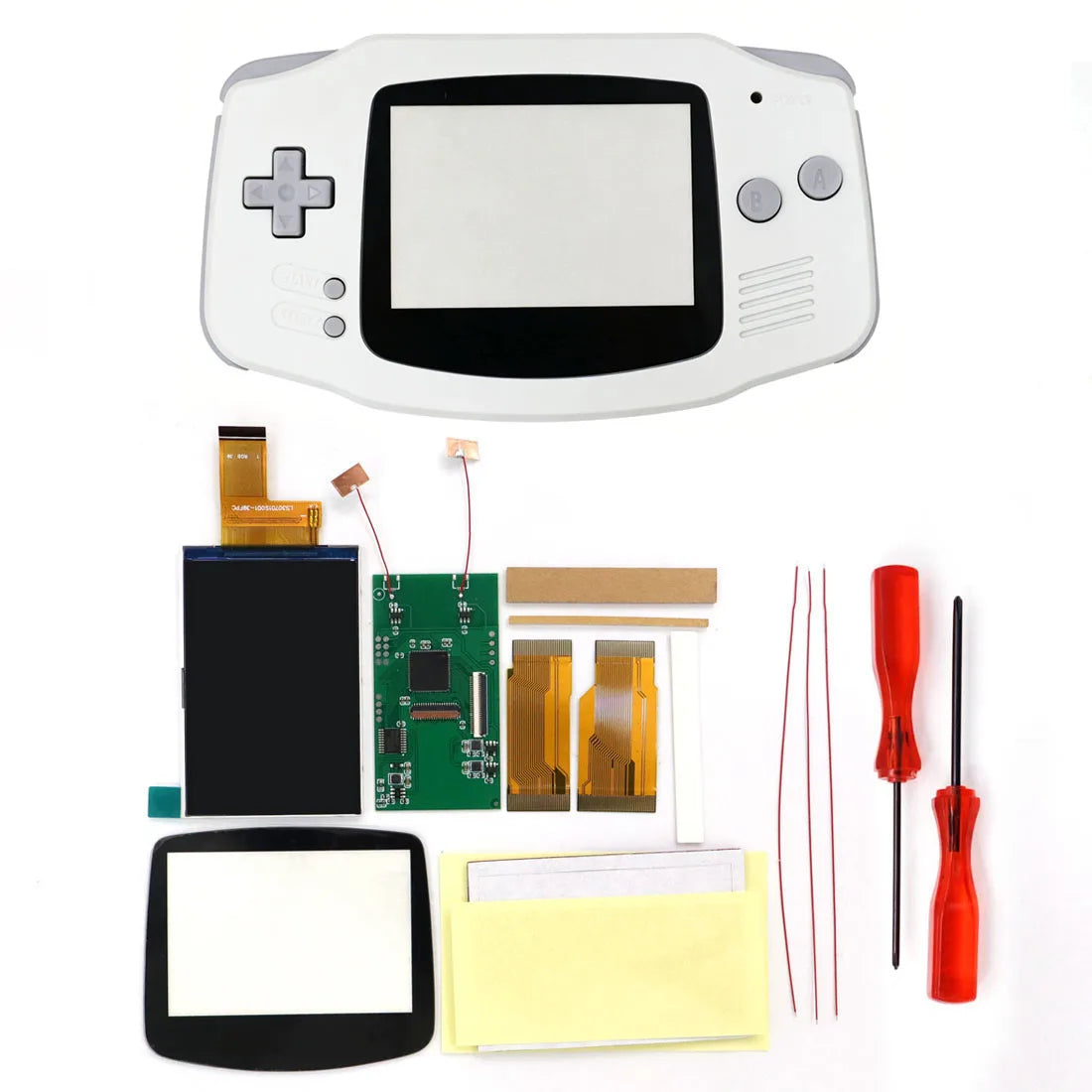

Packing including :
1x LCD, 1x glass screen lens, 2x Screwdrivers, 3x red wires, 2x ribbon cable.
