Multi Color Screen V5 Laminated IPS LCD 720X480 Backlight Backlit Retro Pixel KIT For Game Boy Advance GBA Console
Multi Color Screen V5 Laminated IPS LCD 720X480 Backlight Backlit Retro Pixel KIT For Game Boy Advance GBA Console
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 4 – Nov 13
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications
SPECIFICATIONS
Accessories Type: Motherboard
Author: None
Battery Charge Time: None
Bluetooth range: None
Cable features: Without cable
Compatible Brand/Model: Nintendo
Compatible Nintendo Model: GameBoy Advance
Control Method: Touch
Controls Type: Push button
Electric: No
Enclosure material: Plastic
Fastening type: Others
Harness Feature: Others
High-concerned chemical: none
Mfr part number: None
Model Number: BA-1
Number of Compartments: None
Number of Pins: None
Occasion: Others
Origin: Mainland China
Platform: Other
Portable: Yes
Reusability: Reusable
Sensor Technology: Others
With USB: No
is_customized: None
For GBA IPS LCD V5 Laminated Drop In 720X480 Backlight Backlit Retro Pixel KIT For Game Boy Advance
Note: Doesn't include the motherboard
Description:
1. 720x480 display resolution. HD LCD. 9 pixels to 1 pixel. Integer Scaling. No any distortions.
2. Wide View angle up to 178 degree.
3. Pre Laminated Glass Screen.
4. The PCB has been embedded in the LCD metal shell.
5. Built-in OSD Menu!

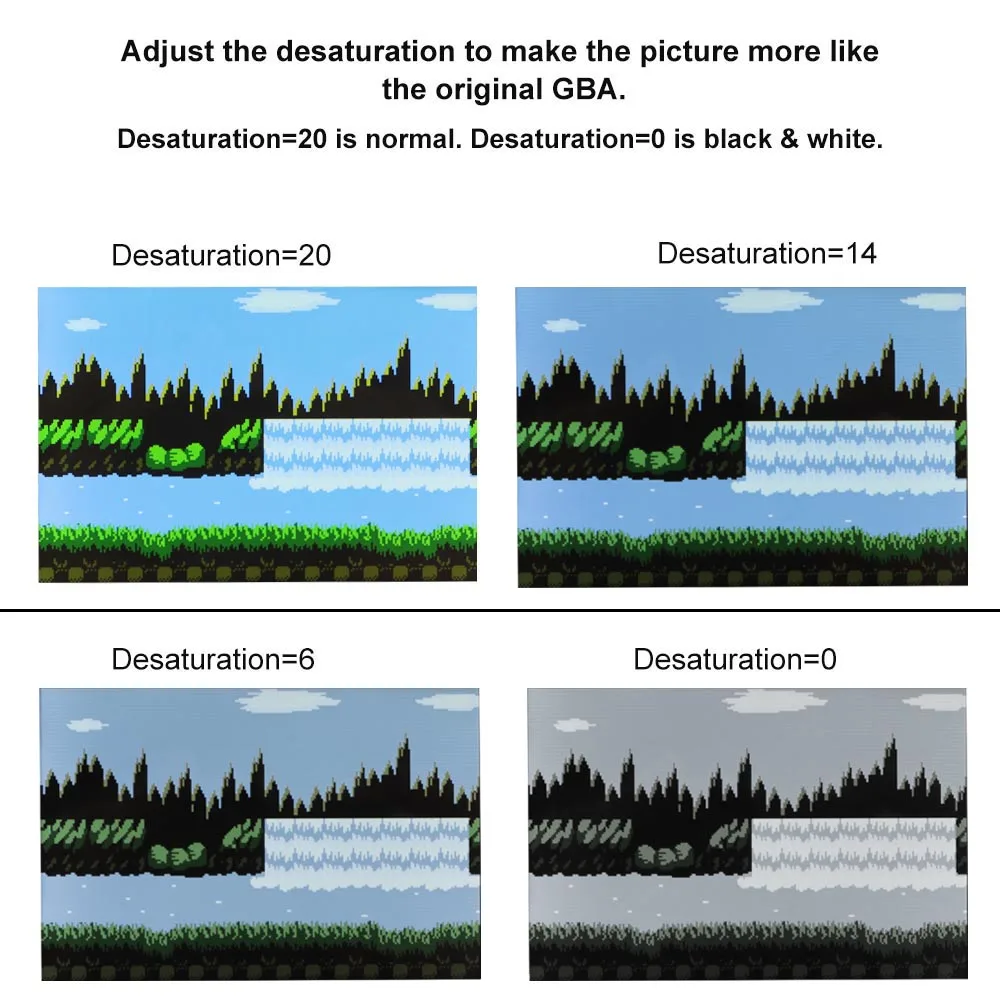

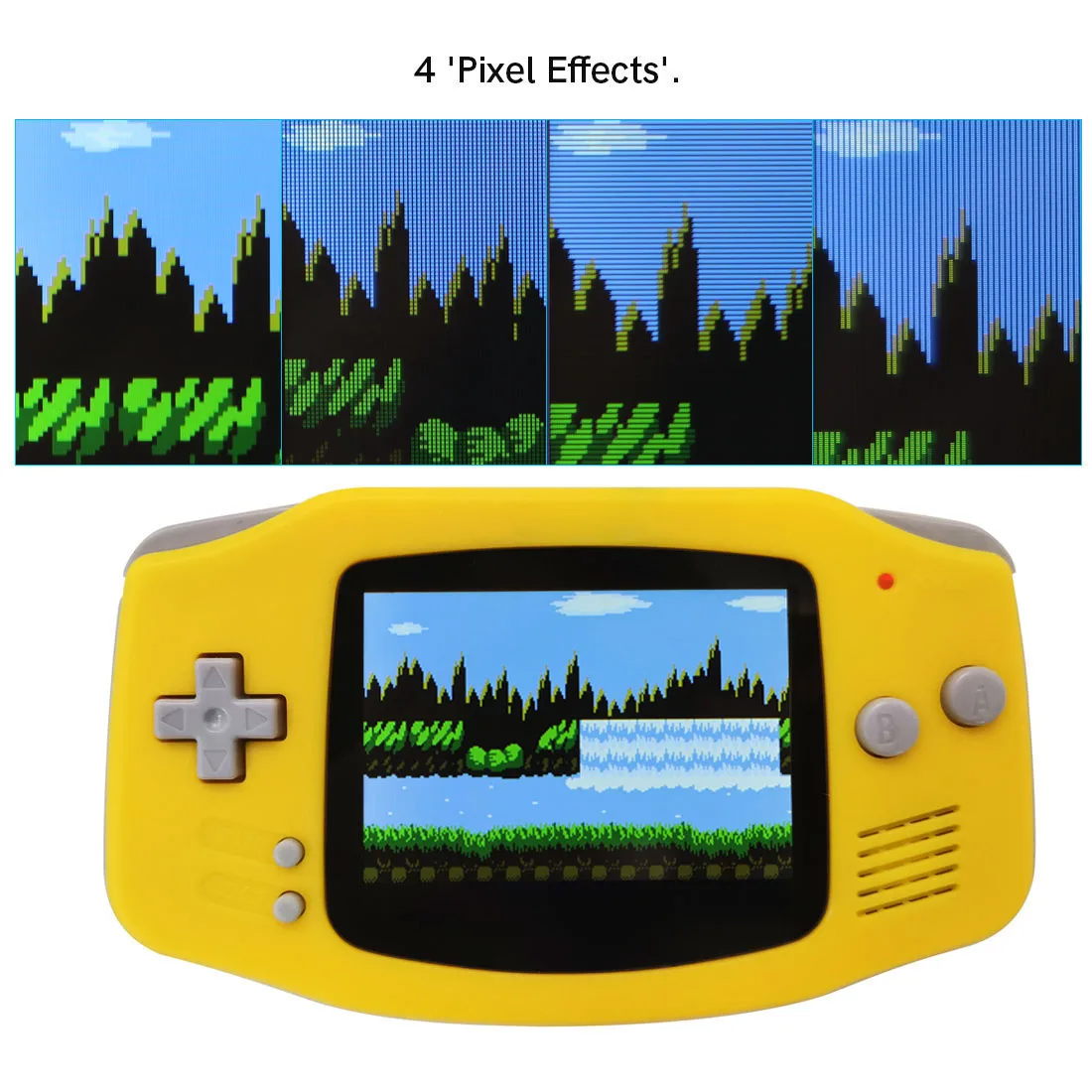

6. Retro pixel Effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1, Scanline 2.
7. 15 brightness levels.

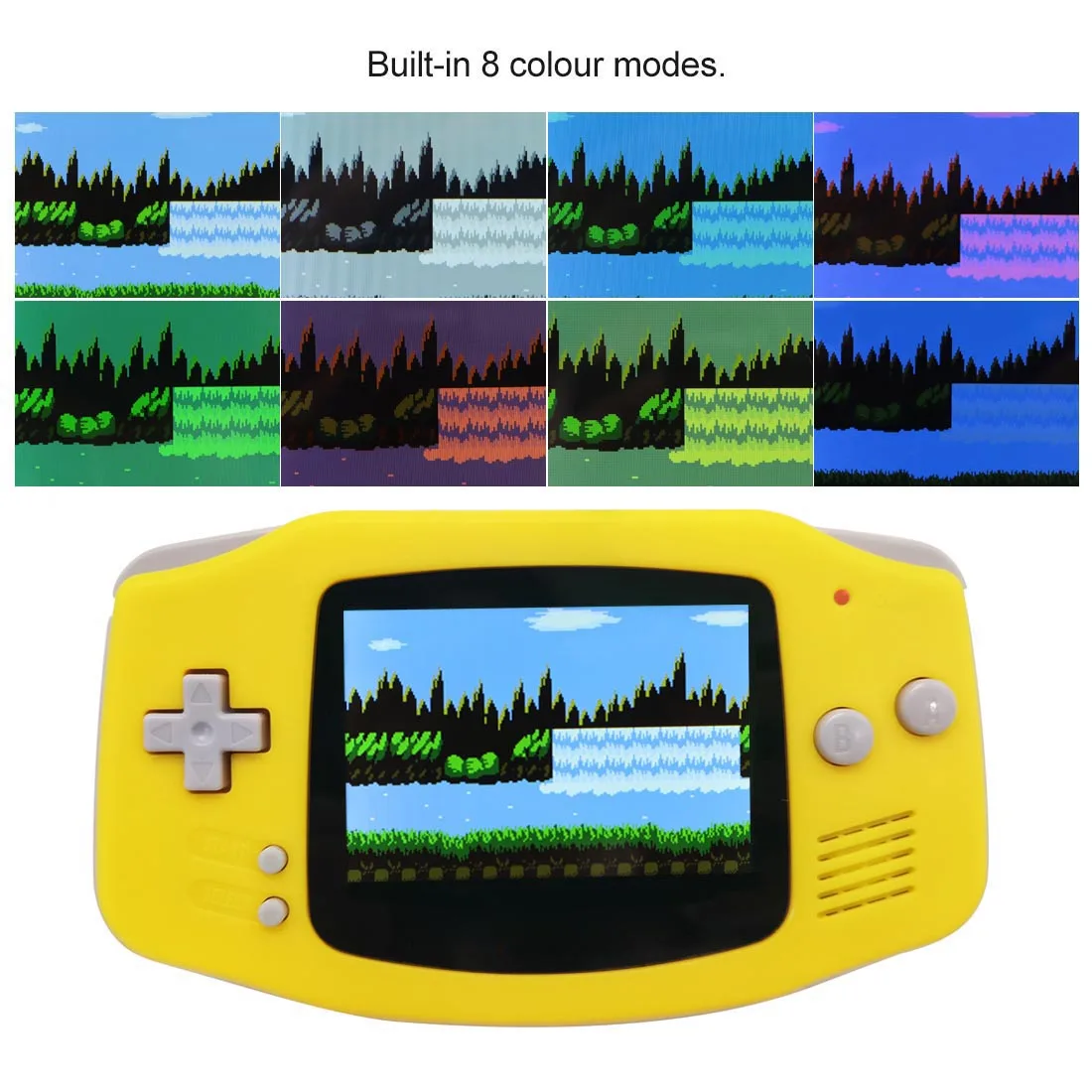

8. 8 color modes.
9. FRM On/OFF function(Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.

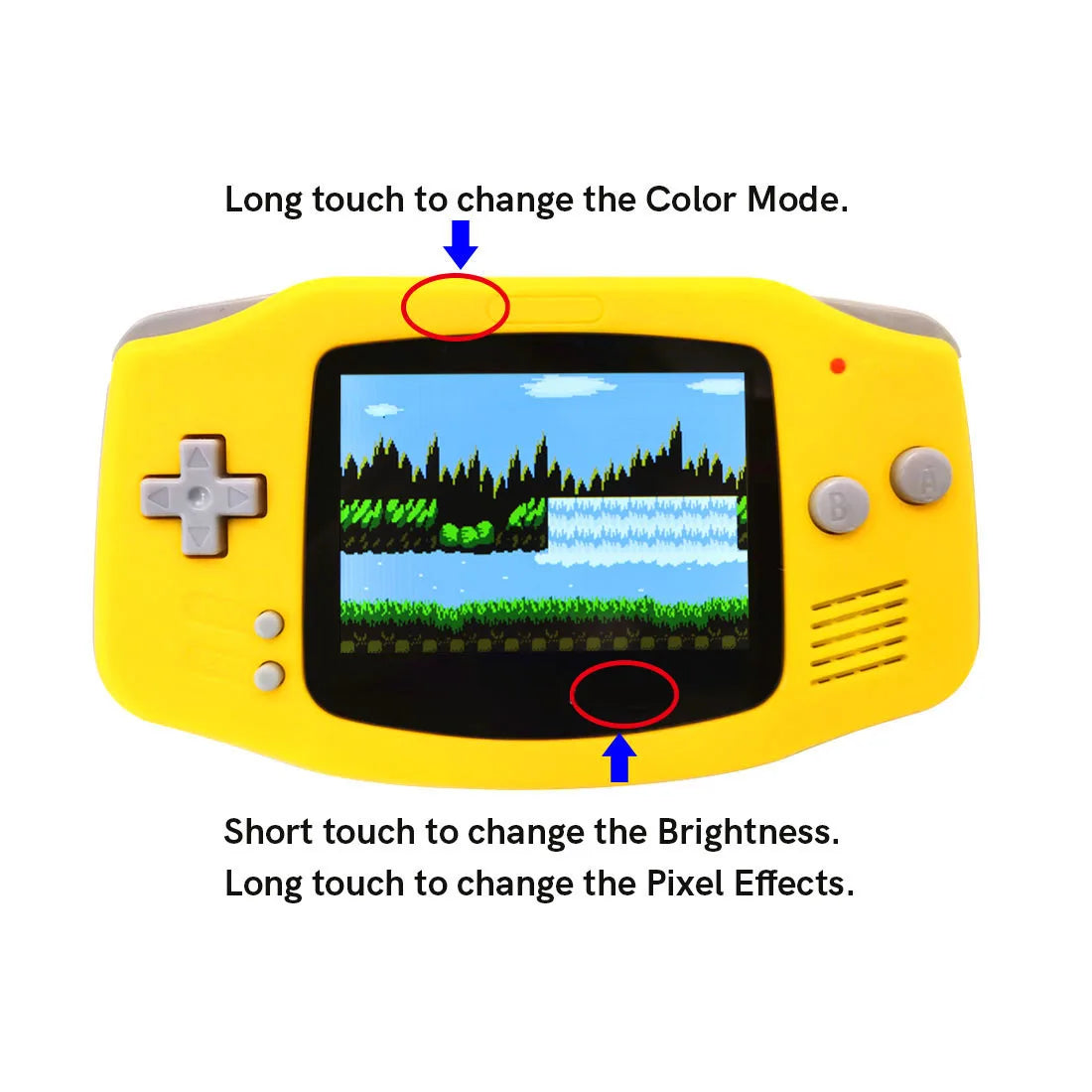

10. Touch Screen to change the brightness and the color modes.
11. Compatible with 32-pin and 40-pin GBA Console.
*You need to welding 3 wires to control the OSD Menu*

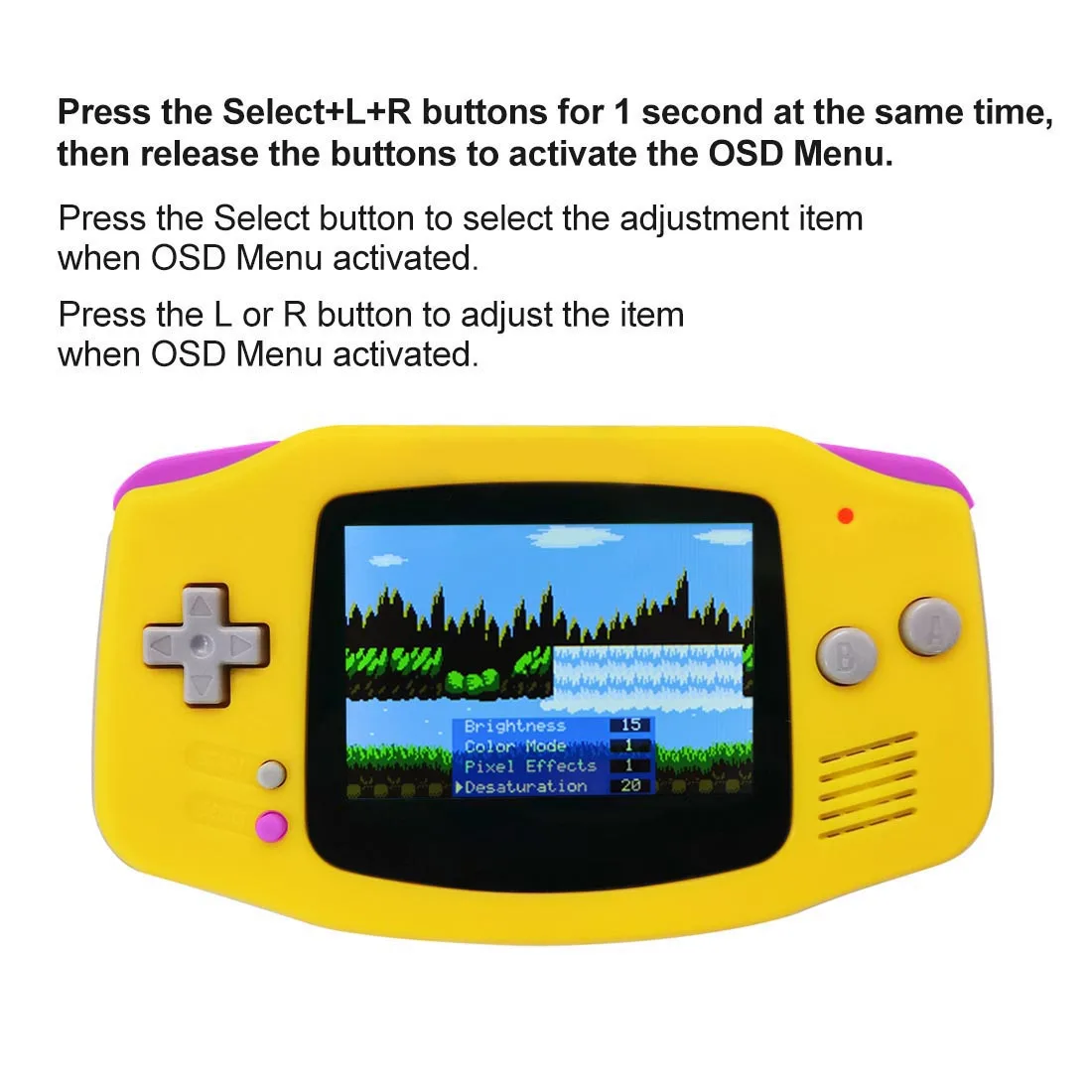

OSD Menu Operation:
Press the Select+L+R buttons for 1 second at the same time, then release the buttons to activate the OSD Menu.
Press the Select button to select the adjustment item when OSD Menu activated.
Press the L or R button to adjust the item when OSD Menu activated.
You don't need to do any welding if you don't want the OSD menu!

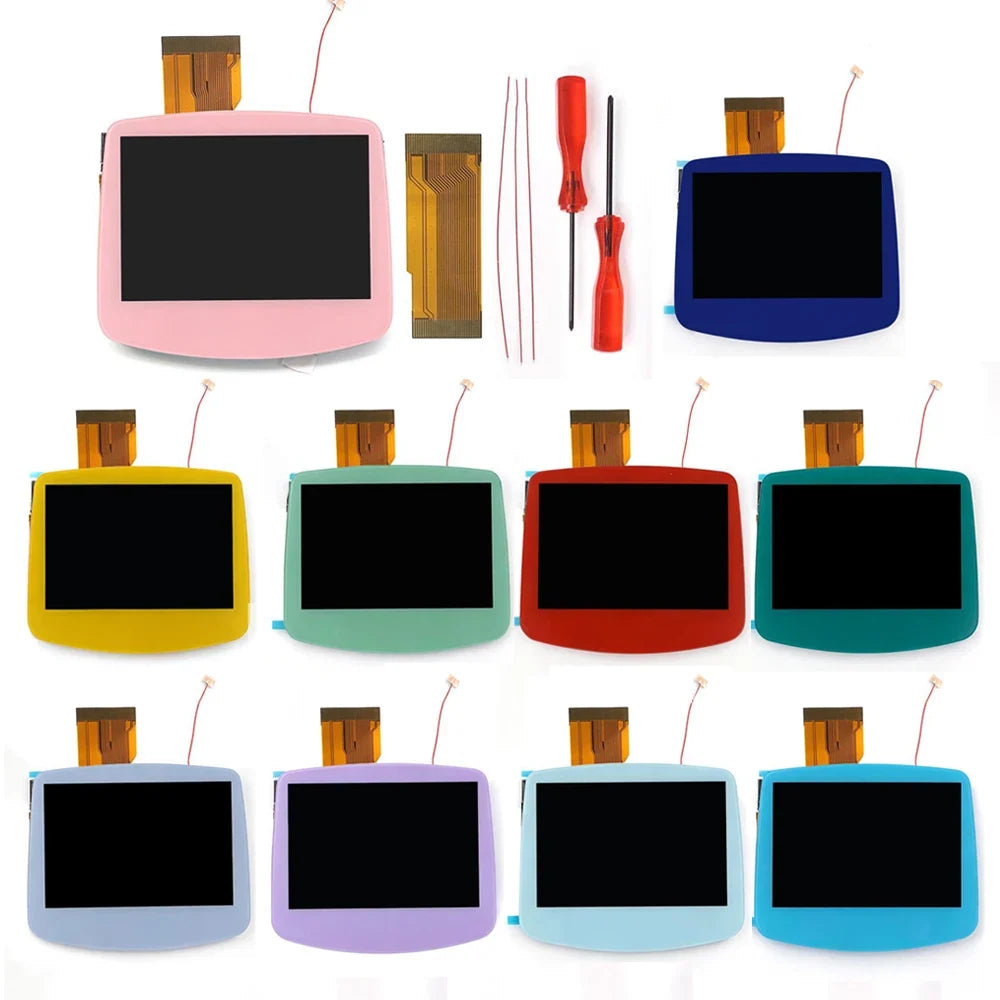

Packing including :
1x Pre Laminated IPS LCD, 2x Screwdrivers, 3x red wires, 2x ribbon cable.
