A bright 3.2-inch laminated IPS screen upgrade for the Game Boy Advance SP.
- 3.2-inch IPS MAX laminated screen, 960x640 resolution
- OSD menu with 11 brightness levels
- HD and dot-to-dot display modes, 5 built-in color modes
- Stores up to 10 custom boot logos
- LCD kit only: no console, buttons or rubber pads; shell colors vary by option
SPECIFICATIONS
Accessories Type: Chip/Modchip
Author: FunnyPlaying
Battery Charge Time: None
Bluetooth range: None
Cable features: Retractable
Compatible Brand/Model: Nintendo
Compatible Nintendo Model: GameBoy Advance
Control Method: Touch
Controls Type: Touch control
Electric: No
Enclosure material: Others
Fastening type: Others
Feature 1: 3.2-inch, 960x640 ultra-high resolution
Feature 2: Support 11 levels Brightness Adjustment
Feature 3: HD display mode and Dot-to-Dot display mode
Feature 4: With 5 built-in color modes
Feature 5: Supports switching between uploaded logos, storing up to 10
Feature 6: Support 2.93-inch GBC mode, 720x800 resolution, 25-in-1 IPS
Harness Feature: Others
High-concerned chemical: none
Material: 9-in-1 Pixel, IPS Laminated LCD Screen
Model Number: 3.2-inch IPS Max Laminated LCD Kits For GBASP
Number of Compartments: None
Number of Pins: None
Occasion: Others
Origin: Mainland China
Platform: Other
Portable: Yes
Reusability: Reusable
Sensor Technology: Others
With USB: None
for nintend accessories: for gbasp
is_customized: No
3.2" IPS MAX Laminated LCD Screen For GBASP Game Boy Advance SP, 960×640 Display, OSD Menu, 16-in-1 Pixel Mode, Custom Logo Kits
Notes: Without the Buttons and Rubber Pads. Also without the original Nameplate logo on the shell, hope you will know it.
IPS MAX Laminated Highlight Brightness LCD Screen Kits For GBASP
Screen Features:

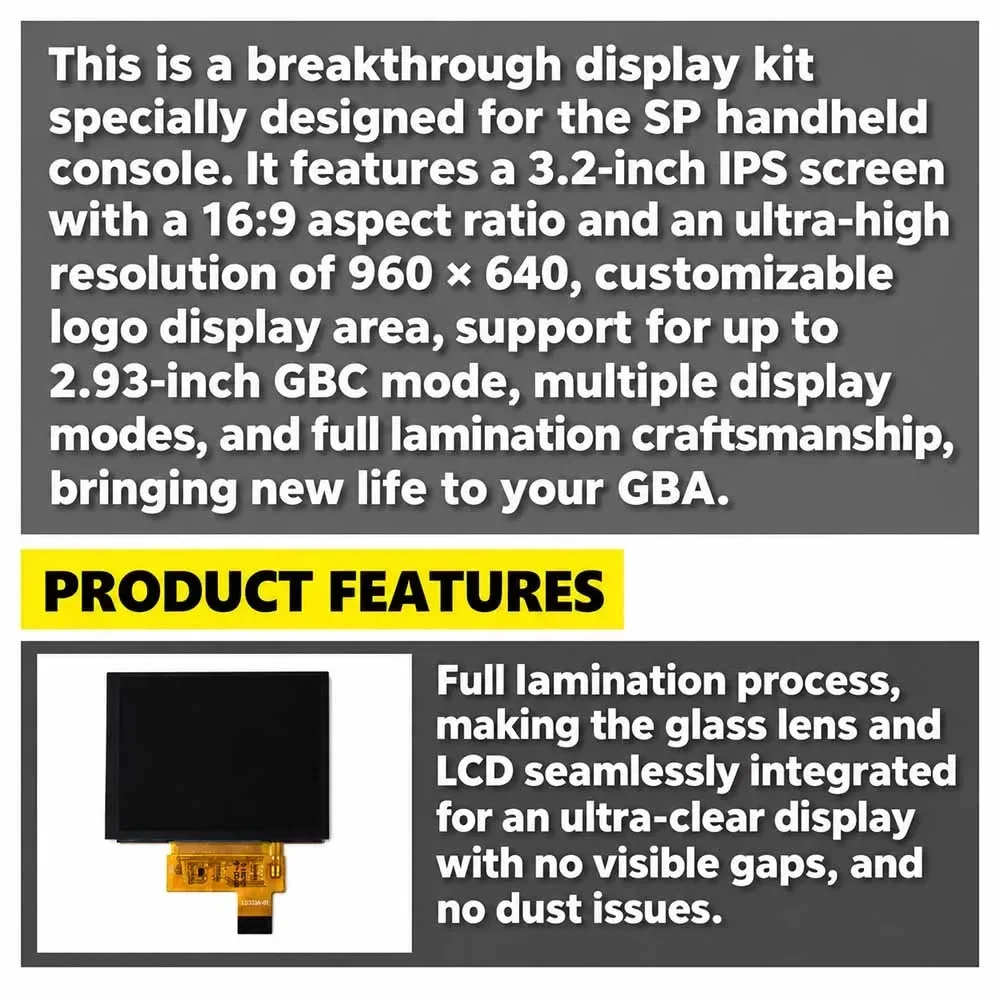

1. This is a breakthrough display kit designed specifically for the Nintendo GBASP. It features a 3.2-inch IPS screen, 16-in-1 pixel ,960×640 ultra-high resolution, customizable logo area, 2.93-inch GBC mode, multiple display modes and full lamination technology, revitalizing your GBASP.

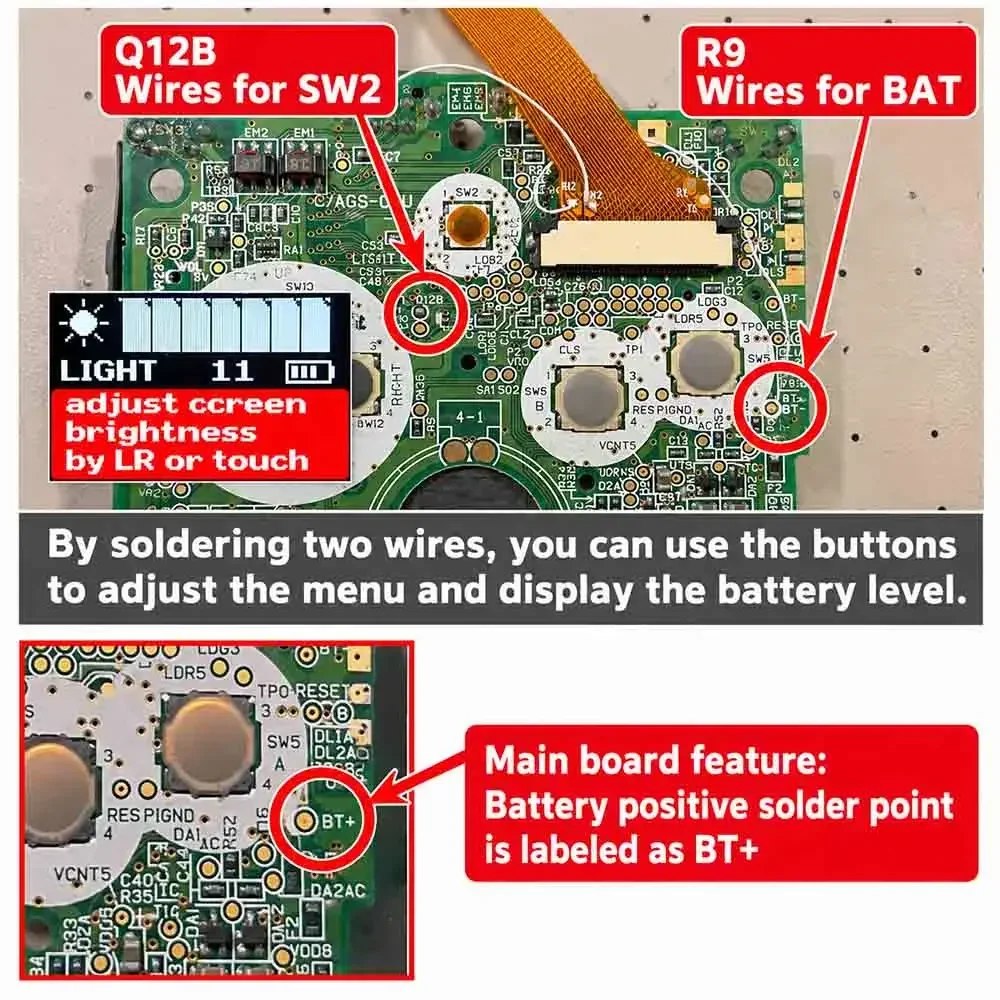

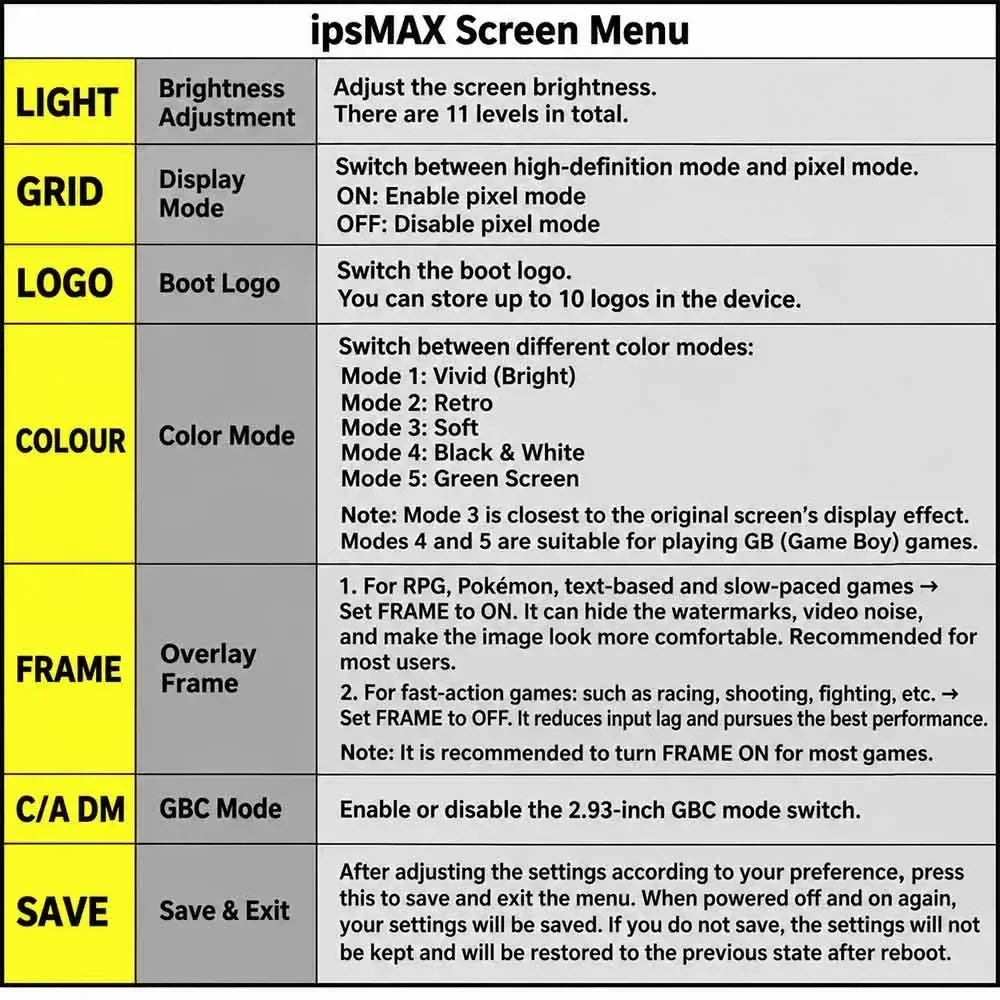

2. The screen features a visual menu, activated by long-pressing the touch panel or long-pressing SELECT (soldering required).
3. Brightness: Support 11-level adjustable screenbrightness.
4. Display Mode: Switch between HD modeand Dot-to-Dot pixel mode.

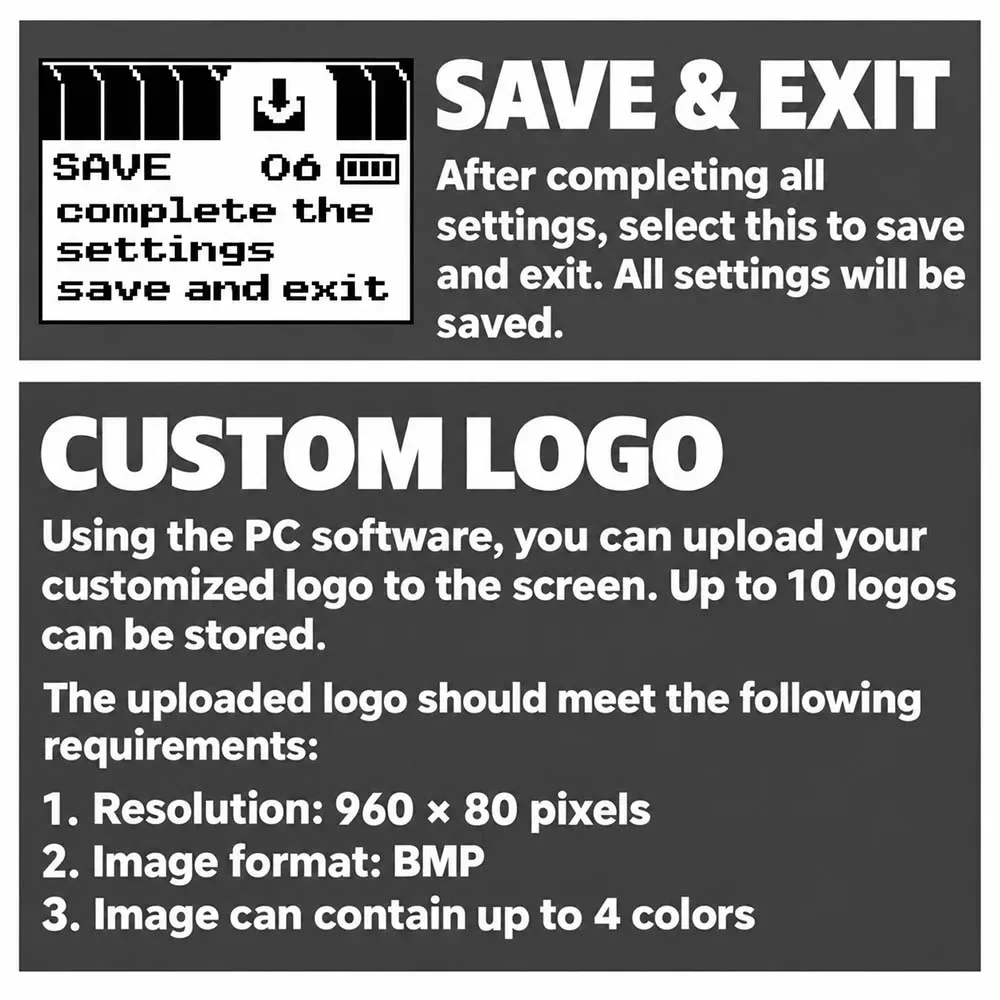

5. LOGO: Supports switching between uploaded logos, storing up to 10.

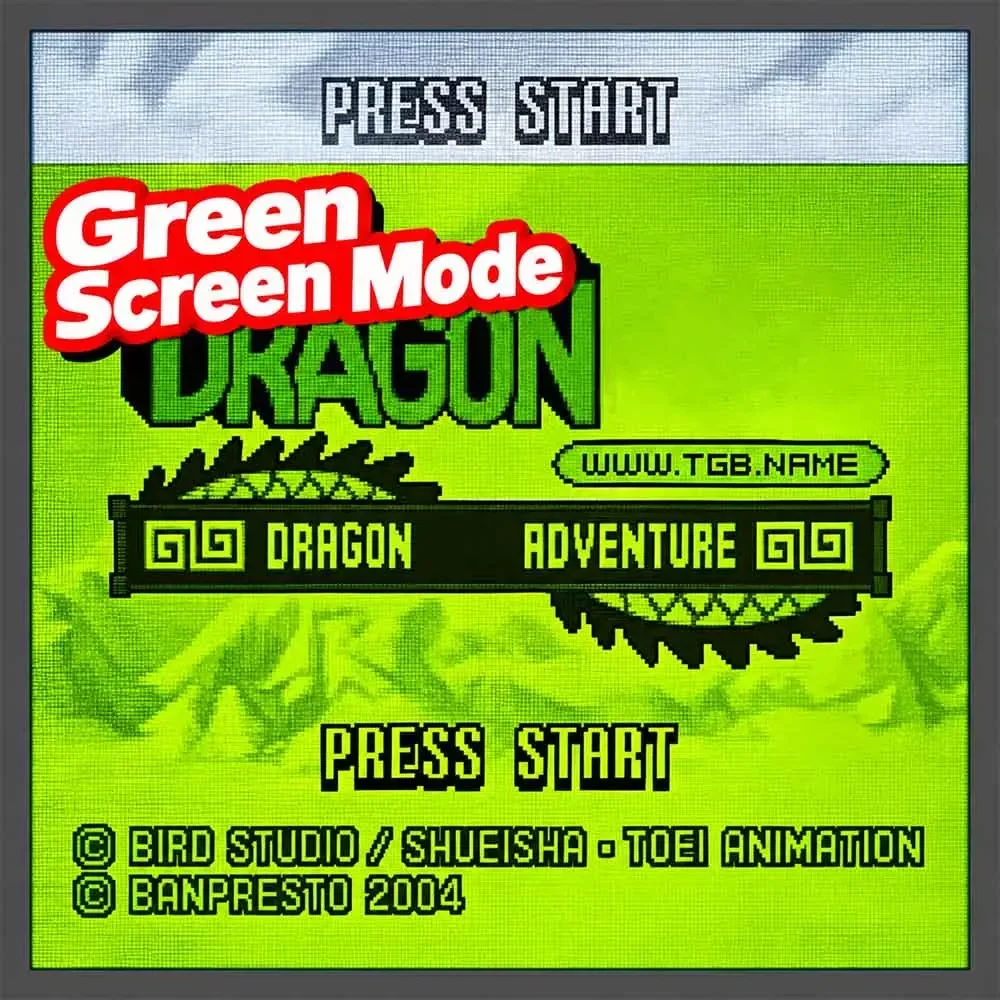

6. Color Mode: Switch between 5 built-in color modes.
7. Frame Compensation: Toggle on/off if some games display abnormally.
8. GBC Mode: Enable full-screen GBC mode via this option.
9. Save & Exit: Save all settings and exit when configuration is complete.
LOGO Programmer Installation Guide:
Prodcut List:Logo Programmer + Screen Driver Board + Data Cable
1. Align the golden contact side up for the data cable, then snap both connectors firmly into place from top to bottom.
2. Be sure to remove the AA batteries before connecting to a computer after assembly.
3. Launch the "LogoUpdater.exe" application icon after connecting to the computer properly.
4. Click "load from file" on the right, then select the file you want to program.
5. Next, click the drop-down arrow on the left side of the software to see options 1-10, which represent the 10 LOGO storage slots in the device. Select the assigned slot (e.g., Slot 5), then click Program to complete the process.
Notes:
1. If programming fails, the cause of the failure will be displayed below. Programming will not succeed if the image contains more than 4 colors. Some images may appear to have only 4 colors, but zooming in reveals numerous gradient shades—these are not acceptable, as shown in the image below.
2. When using the lithium battery kit paired with IPS Max, the programmer and data cable are no longer required — Data can be transmitted directly via the Type-C port on the lithium battery kit.

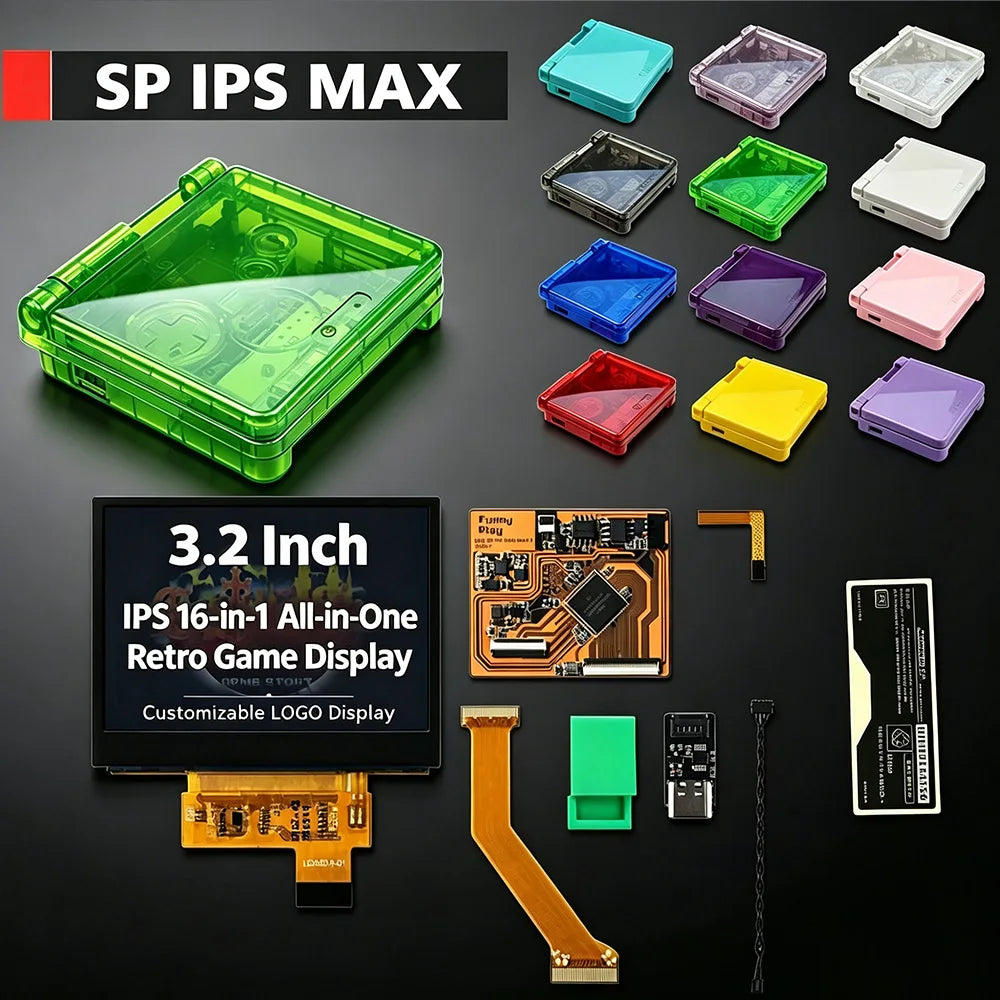

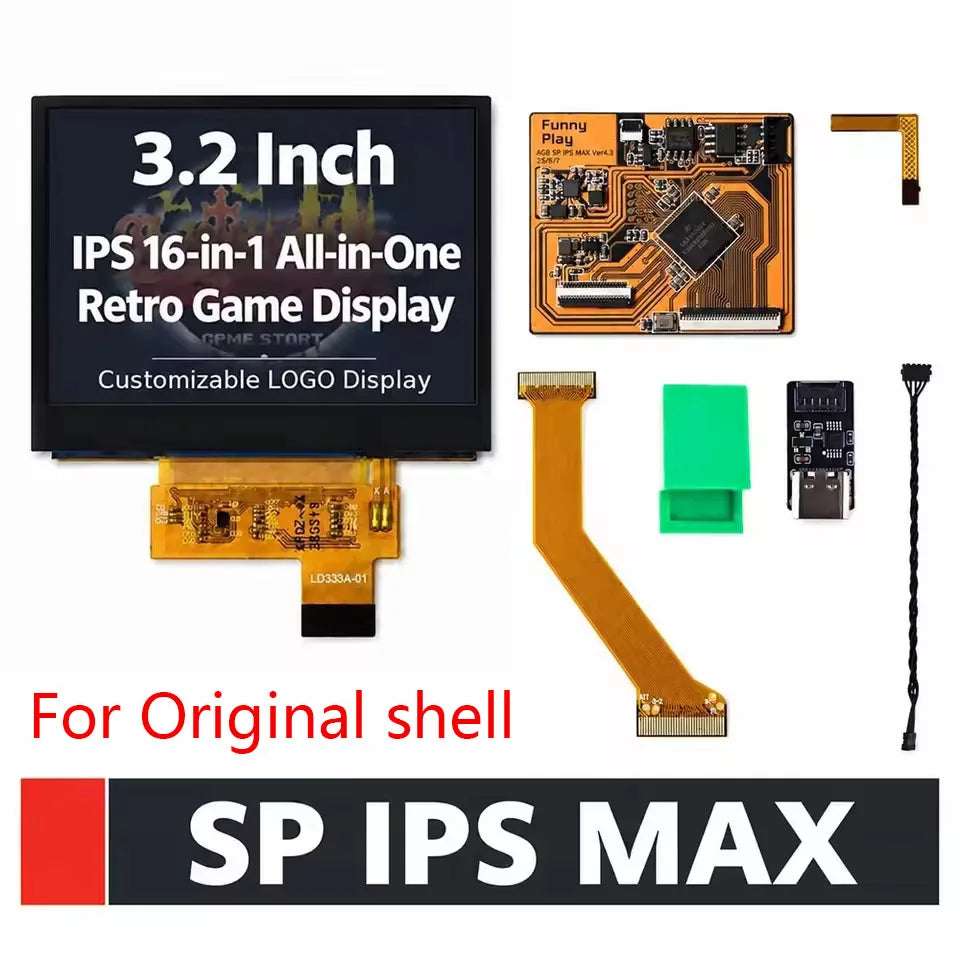

Package included:
1 Set of IPS MAX Laminated LCD Kits
1 Set of Logo Programmer Kits (Options)
1 Set of Dedicated Shell (Without the Buttons and Rubber Pads) (Options)
---------------------------------------------------------------------------------
Product Description of Shell:
* High Quality Crystal Shell For GBASP. It is bright surface, and high transparency.
* Replace your damaged or defective GBA SP original shell.
* Compatible with Nintendo Gameboy Advance SP / GBA SP, can support for all SP screens on the market.
* Fully protect your Game Boy Advance SP, keep your SP looks new all the time.
* Produced by high quality material and meticulously crafted.
* Remove and Install the shell without any difficulty.
* For Nintendo Game Boy Advance SP only.
Package included:
1 x Console shell
1 x Top cover of hinge
5 x Screw plug
2 x Side cover of hinge
1 x Logo nameplate (Without)
1 x Power light
1 x Nut
10 x Short Screw
7 x Long Screw
1 x Slot board
2 x LR button pillar
2 x Spring
