Punk Workshop PWS R14 Leverless Controller EVO Japan 2026 Model
Punk Workshop PWS R14 Leverless Controller EVO Japan 2026 Model
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 4 – Nov 13
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications
SPECIFICATIONS
Age: >8 Years
Brand Name: Sinoarcade
High-concerned chemical: none
Origin: Mainland China
Type: Coin Pusher
Product brief

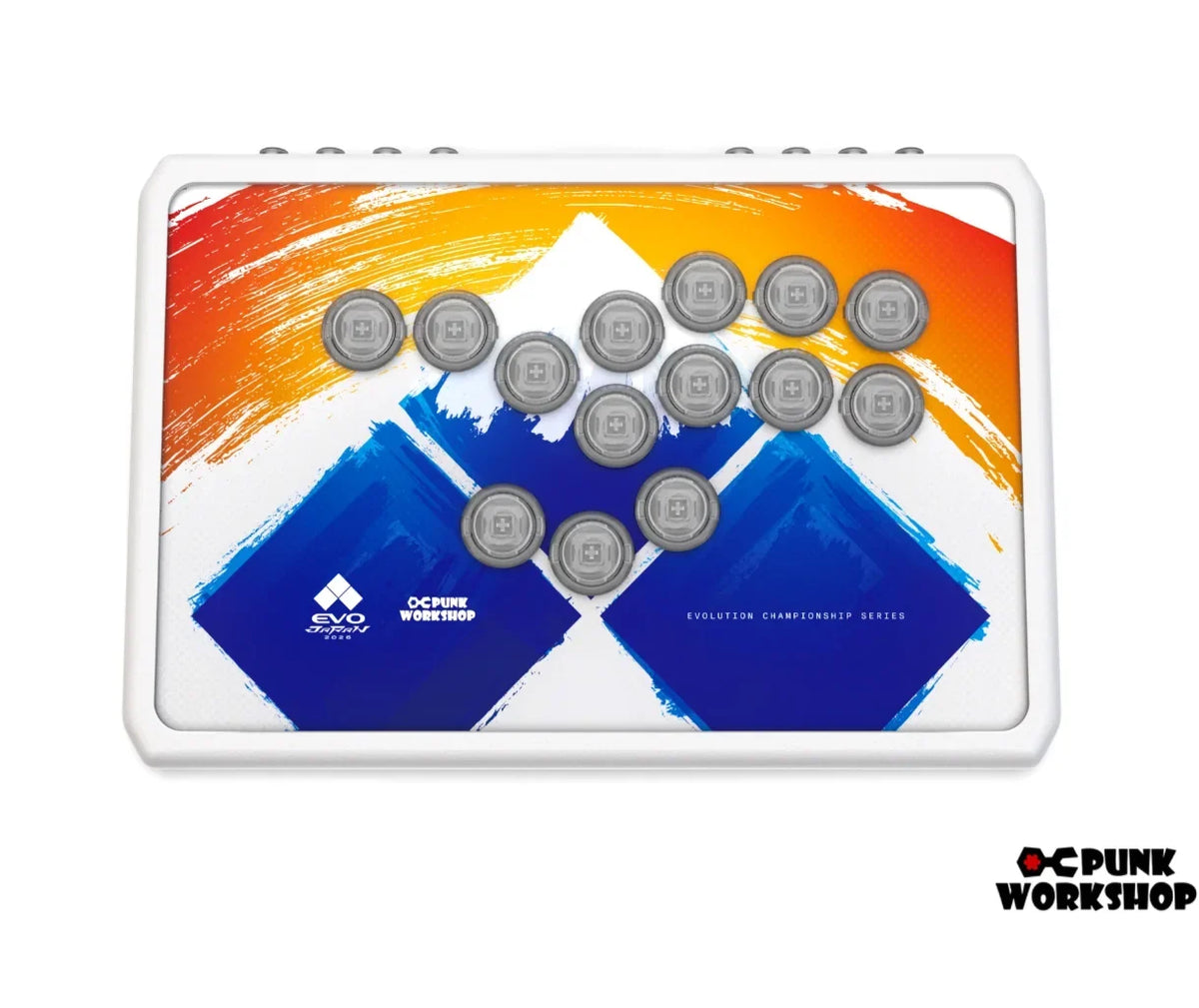

In commemoration of the 2026 evo japan, a limited design model with the competition logo and mount fuji, which symbolizes japan.
The white-based top plate is boldly arranged with a strong brushwork extending from red to orange, and a deep and vivid blue contrast.the snow-clad mount fuji and the enthusiasm of players aiming for the top of the competition are expressed.
"pws r14" is a fully re-designed model, while inheriting the design know-how cultivated by previous mini box and ultra box, it has been completely redesigned from the enclosure structure.
It has been thoroughly re-examined the balance between internal space optimization and portability, and is designed to provide consistent performance in all competitive scenarios, including tournaments.
The input section is equipped with the high-performance pws blaze spark buttons as standard, which feature a clicky, solid press feedback and a fast operating response.it achieves both delicate input and reliable response, and realizes the high-precision operation feel required in the competitive scene.
In addition, the bottom adopts the magnetic closure structure that is familiar to punk workshop products, which can be accessed internally without tools, so that cleaning, button replacement and maintenance are smooth.
Mounted board
Two kinds of boards can be selected according to the playing environment.socdcleaner settings that comply with various regulations can also be selected for any board.
Pkb model

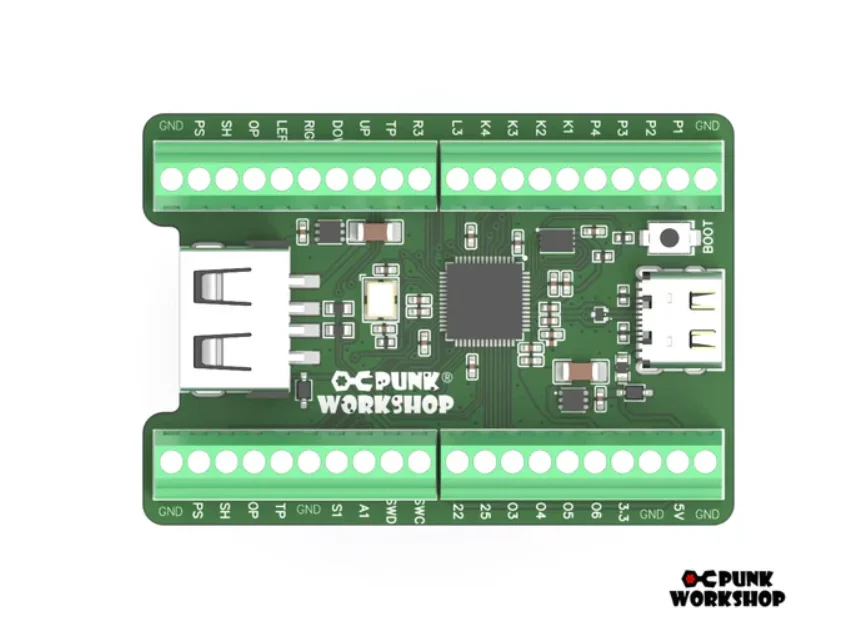

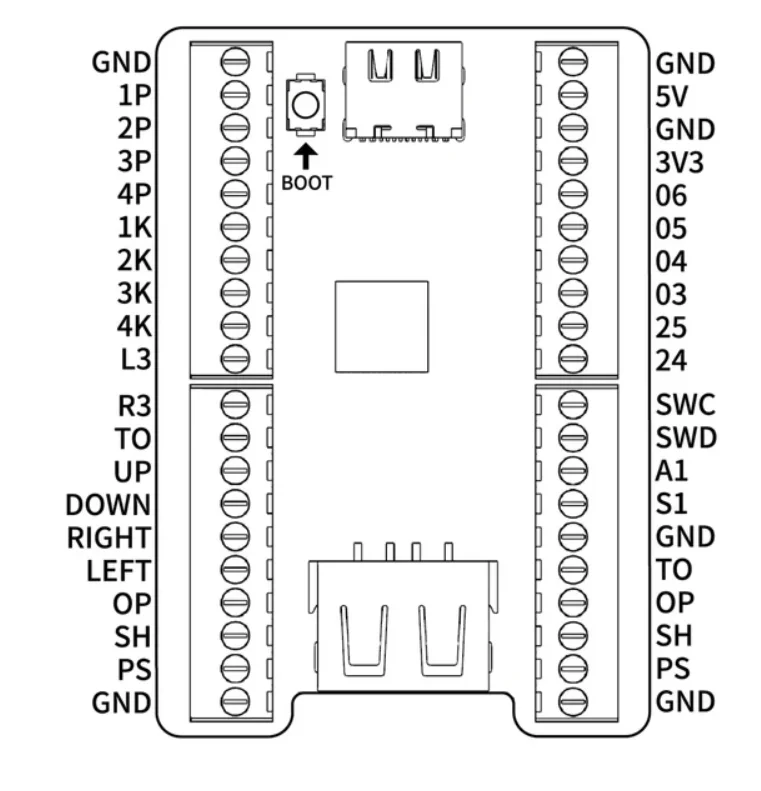

The pkb model is equipped with an original board (pkb 2040), optimized for pc games.
Since last year, punk workshop has been using the original chip 'pkb 32u4' based on arduino.this time, we officially announced that we have developed a new 'pkb 2040' based on raspberry pi pico gp2040-ce and will be used in pc devices to be released from now on.
In pkb 2040, the design is made specifically for fighting game play on the pc, as in conventional boards.stability is preferred and shipped with unnecessary functions turned off.
Note that pkb 2040 is designed for pc use, and use on other platforms is not supported.however, by using conversion devices such as brook wingman fgc, it can be used on other game console platforms, such as ps5.
Devices with pkb boards ordered after november 15, 2024, will be shipped with 'pkb 2040' as standard.
About socd settings in pkb 2040
Note:The “socd setting” will be the function to control the behavior when inputs from the opposite direction are made simultaneously.
Starting with the socd settings, other functions supported by the gp2040-ce require additional settings by the customer themselves.
Please refer to the page below for the socd setting in “pkb 2040”.
Product spec
External dimensions:(approx.)300mm w × 200mm d × 32~22mm h
Connect way:Usb connect
Connect way:Usb connect
Cable length: about 1.8m
The button: pws blaze spark
Product package
Mini box body
2 x anti-slip stickers
Usb-a to usb-c cable
Pws original controller case
Due to the shipment time, the spare parts included in the above may change without notice.
