NESPi Retro Case for Raspberry Pi 2/3/B+ with Fan Heat Sink
NESPi Retro Case for Raspberry Pi 2/3/B+ with Fan Heat Sink
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 4 – Nov 13
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications

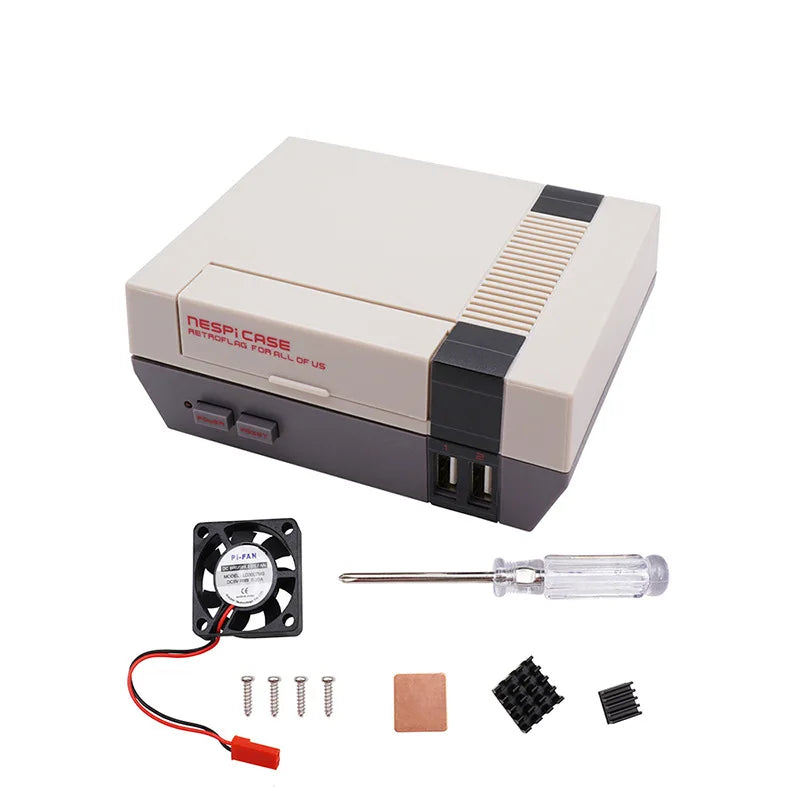

A retro NESPi-style shell kit for Raspberry Pi 2/3/B+ with a fan and heat sinks to help keep your board cool.
- Fits: Raspberry Pi 2/3/B+ series (Retrolag NESPi case)
- Material: ABS plastic; color: gray
- Shell kit only: the Raspberry Pi board is not included
- Installation steps are included in the description below
- Packaging size: 15 x 13 x 6 cm; weight: 245 g
SPECIFICATIONS
Choice: yes
Compatible Brand/Model: None
High-concerned chemical: none
Model Number: 1
Origin: Mainland China
semi_Choice: yes
Raspberry Pi 2/3/B+shell Retrolag NESPi Case Retro shell box Fan heat sink
Product materials; ABS plastic+PCB board
Packaging size; 15*13*6CM
Packaging weight; 245 g
This shell material is suitable for Raspberry Pi 2/3/B+series
This price does not include Raspberry PCB (not available in our store), only a set of shell materials is sold.
Installation steps
1. Attach the heat sinks to the corresponding chips on the Raspberry Pi PCB board

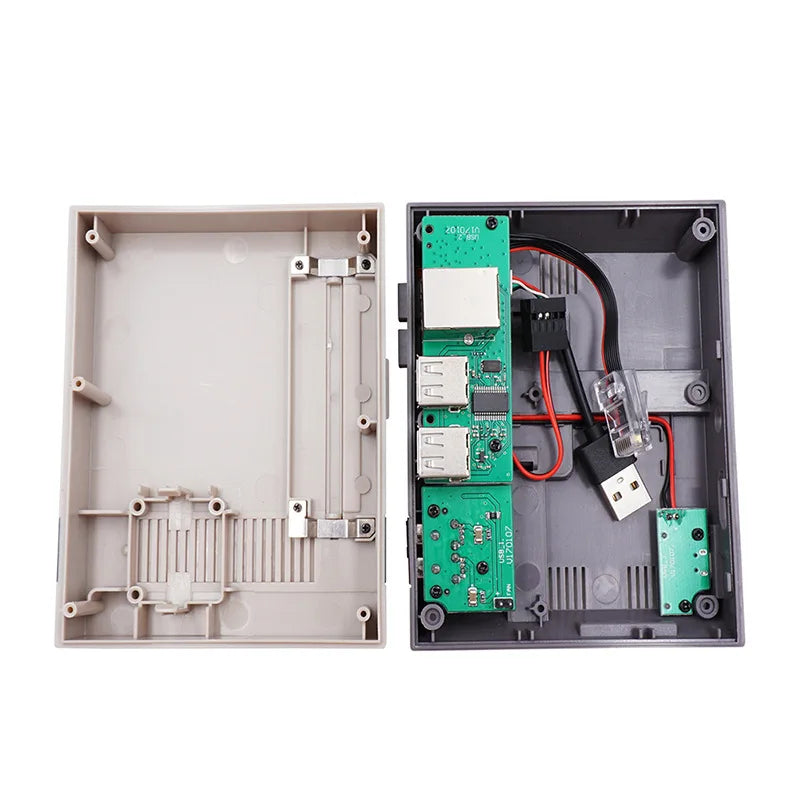

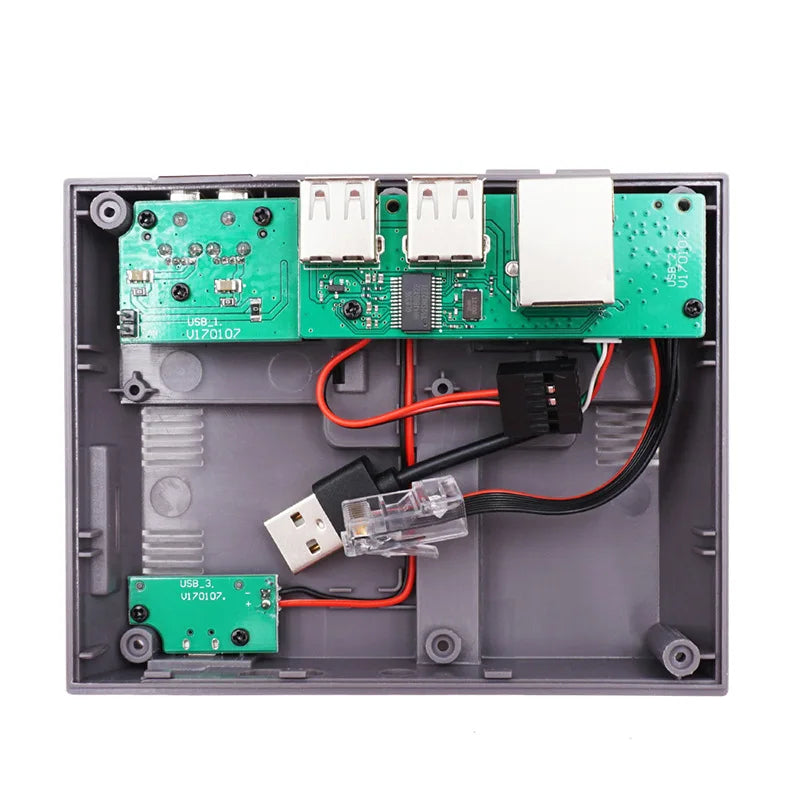

2. Connect the PCB board to the USB plug, Ethernet cable plug, and Raspberry Pi power plug at the bottom of the housing. Align the HDMI interface and audio interface with the opened holes, secure the PCB board, and screw the two black short screws on both sides of the Raspberry Pi power plug to fix the PCB board
3. Insert the fan into the slot on the upper part of the casing and tighten the round headed screw
Then plug the fan power cord into the plug on the PCB board next to the Raspberry Pi power plug
Attention: Red line corresponds to+pole

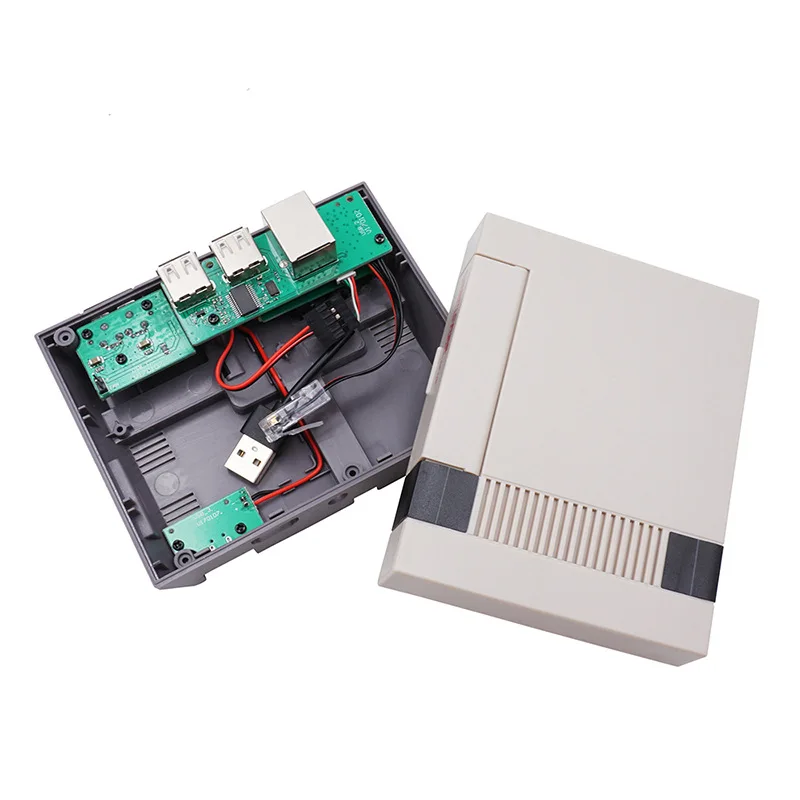

4. Close the shell, invert it, insert six long screws into the six holes at the bottom, tighten them, and secure the shell in place
