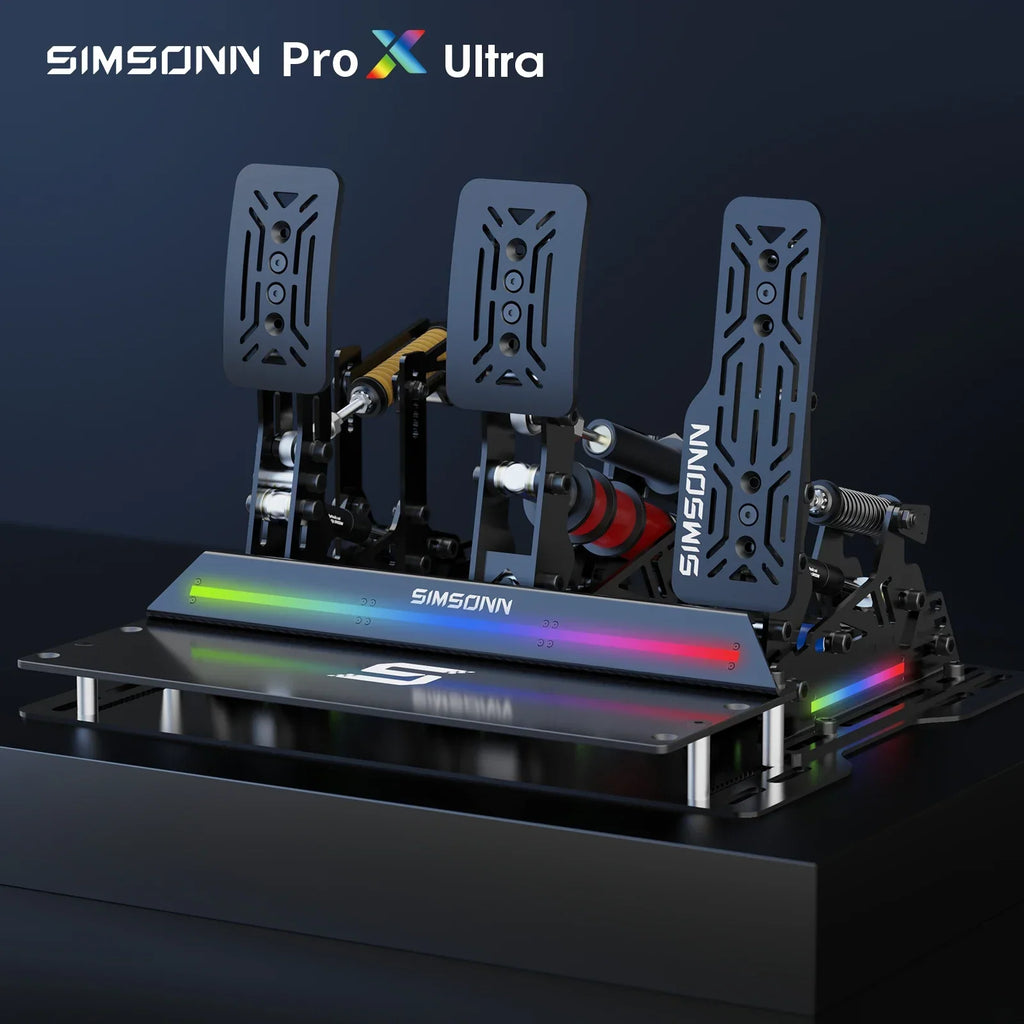

SIMSONN PRO X Ultra sim racing pedals with a load cell pressure sensor.
- Throttle, clutch and brake pedals, stainless steel, net weight 5.78kg
- PC only; not for PS4, PS5, Xbox or Mac
- USB plug in, no driver needed, Windows 11 and below
- 3 vibration module ports for SIMSONN VAM and VAM RPO
- Base plate lights up only with the PRO X Ultra pedal
SPECIFICATIONS
Brand Name: SIMSONN
Certification: CE,FCC
Features 1: Light feedback
Features 2: Racing Game Simulation
High-concerned chemical: None
Origin: Mainland China
Support: VAM/VAM RPO Vibration Motor
Specification:
--Brand:SIMSONN
--Model: Pro X Ultra
--Net Weight: 5.78kg (throttle&clutch&brake)
--Color:Black
--Material: Stainless Steel
--Compatibility:It is only used for PC and does not work on PS4/5 XBOX or MAC. Computer use, plug directly into USB, no driver installation required. Compatible with Windows 11 and below. Upgraded Control Box equipped with 3 vibration module ports, support SIMSONN VAM, VAM RPO Vibration Motor..
Features:

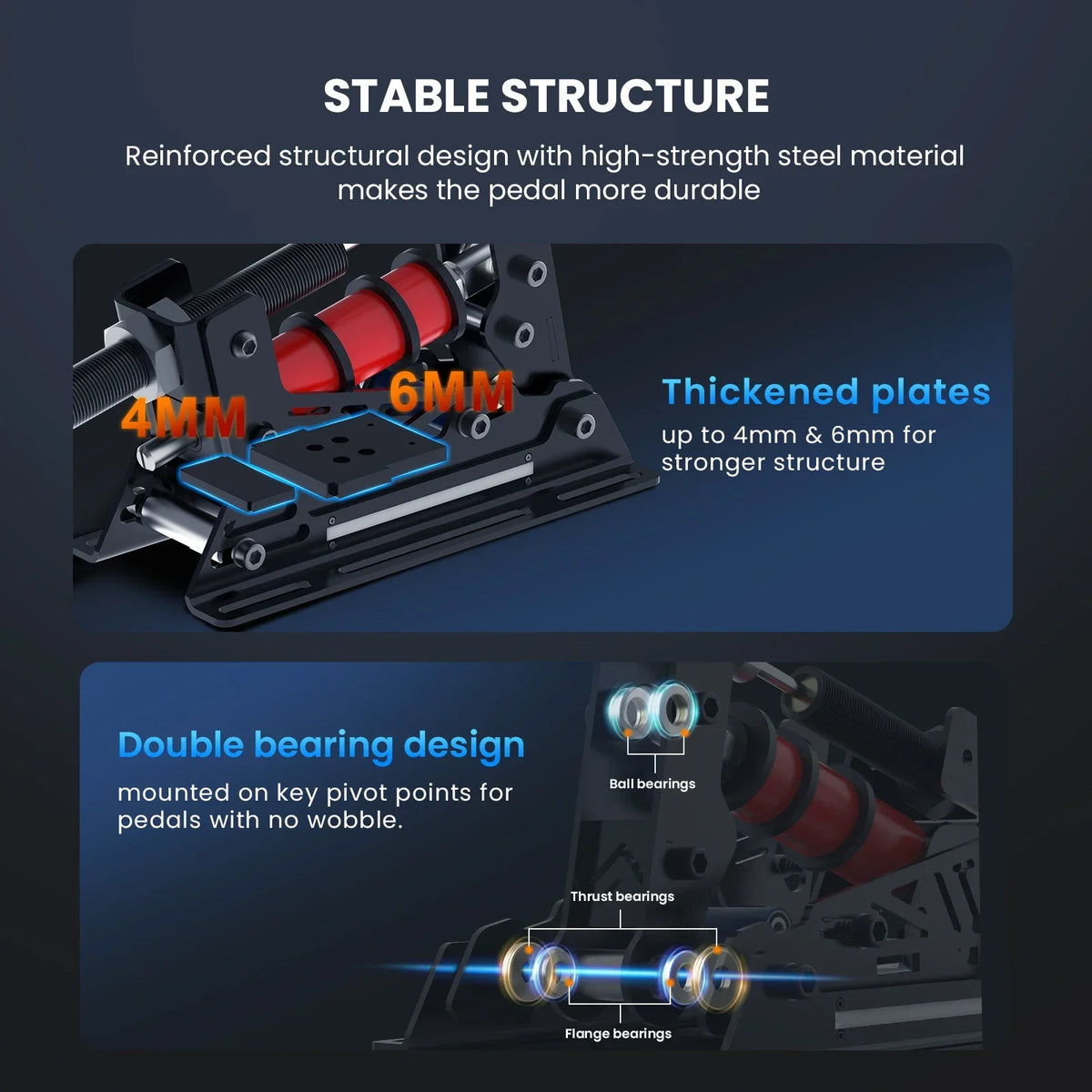

--The pedals are crafted from 3MM thick CNC precision laser cut high-strength steel, the brake load-bearing part is thickened to 6mm and the pedals panels are thickened to 4mm. The pedals have undergone laser cutting, polishing, and other processes.
--Dual Bearing Design:The pedals use a dual-bearing design with flange bearings and plane bearings. This ensures precise and smooth pedal movement, providing a more realistic feel and feedback.

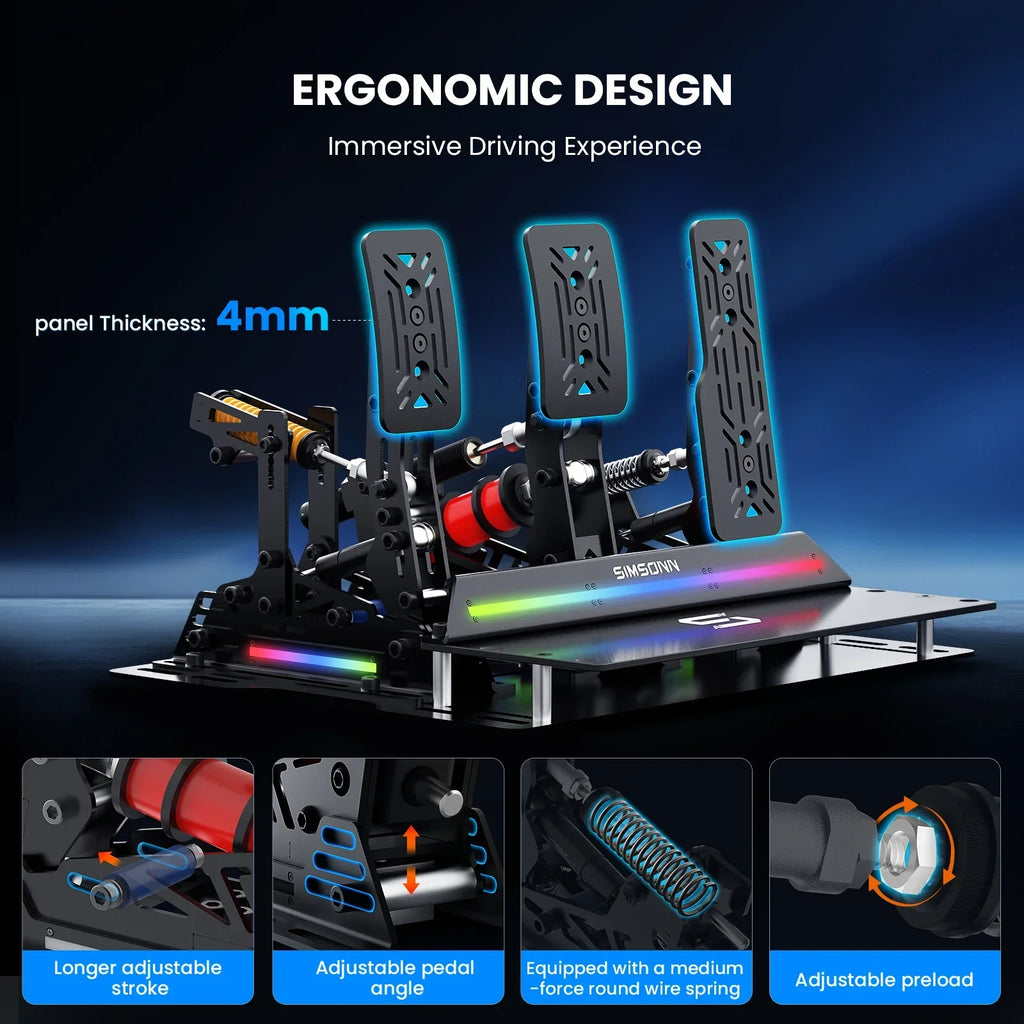

--Ergonomic Design:With a curved pedal design, the extended and widened throttle pedal and heel plate provide enhanced comfort during driving, reducing fatigue during long sessions.
--Multi-Dimensional Adjustability:The position of the pedal on the base can be adjusted forward, backward, left and right, the height of the pedal panel, the angle of the pedal, travel distance, and force curve are also adjustable.

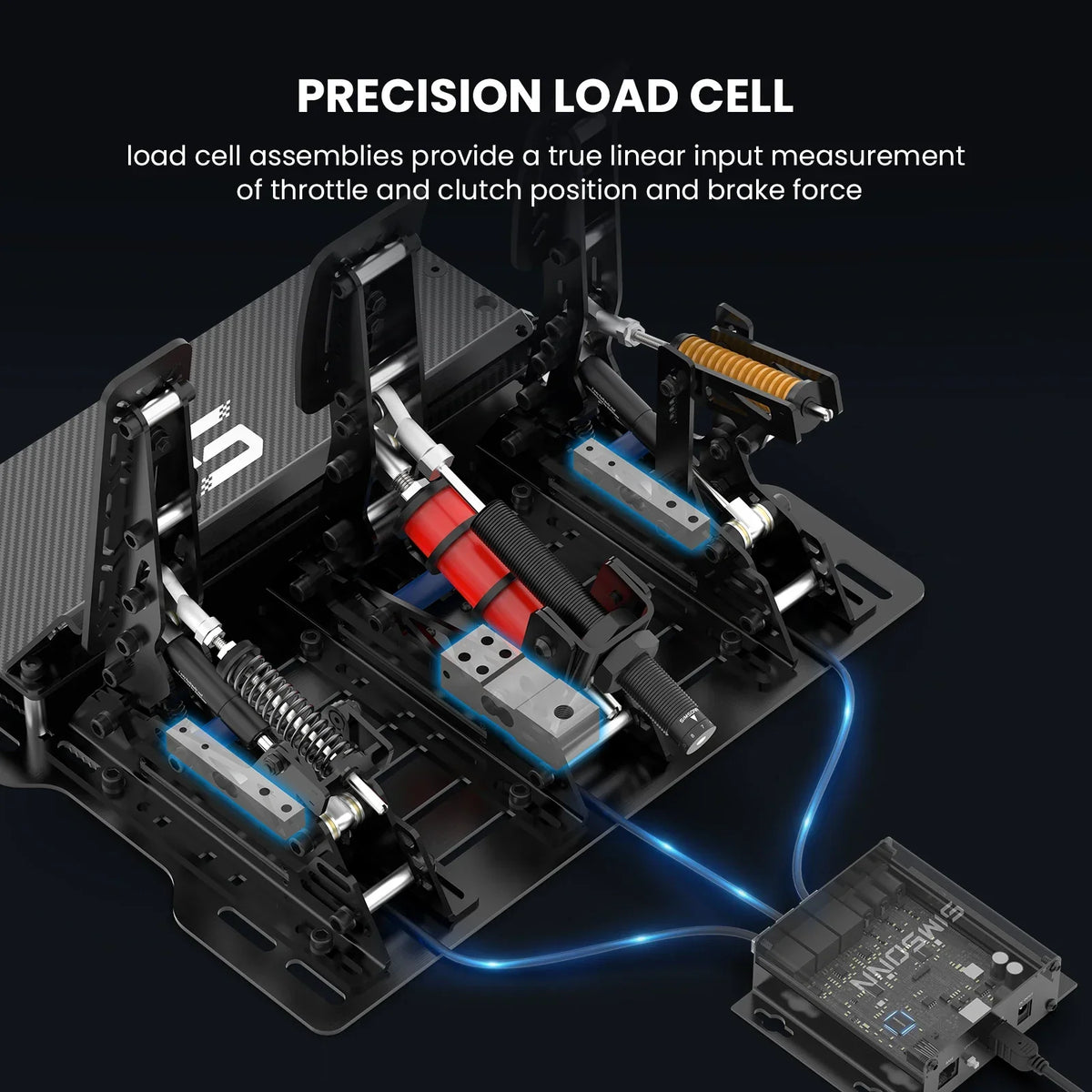

--High-Precision load cell:Clutch / Throttle: 20kg load cell; Brake: 200kg load cell. providing true linear input measurement for throttle, clutch, and braking force, ensuring precise responses
--The controller integrates a total of six chips: two independent 32-bit processors, one dedicated 16-bit high-resolution ADC for synchronous signal acquisition, and three fully differential signal amplification chips for noise immunity. This ensures stable, low-latency, and high-precision signal processing for the entire pedal system.
--RGB Light Effects:All models come equipped with customizable RGB light strips, offering a variety of lighting modes for a visually appealing experience.The RGB lighting supports dynamic display of pedal pressure.
--SIMSONN MANAGER Software Support:The new SIMSONN Manager software allows users to configure (non-linear) pedal output curves, set pedal dead zones, and adjust brake curves. These settings can be saved as profiles and applied across any simulator software without the need for additional adjustments, remapping, or recalibration.
--Adjustable Resistance Hydraulic Rod and Stronger Damping:The brake pedal comes standard with an adjustable hydraulic resistance rod with 1-8 levels of adjustment. Hydraulic rods for other pedals are optional, enhancing the realism of brake operations. Brake damping adopts 60HA red rubber damping with an extra 70HA and 80HA for you to replace.
--Compatible with Logitech G27 G29, Compatible with Thrustmaster T300RS/GT T500, etc. Design for DiRT Rally 2/4, LFS, Design for Project CARS 2/3, Design for Assetto Corsa, Design for WRC 7/8/9, Design for Forza Horizon 4/5, etc.
