Sinoarcade Hitbox Clear Plexi Cover and Metal Plate Conversion Kit with Cable For QANBA Obsidian 2 Q7 Fight Stick DIY to Hitbox
Sinoarcade Hitbox Clear Plexi Cover and Metal Plate Conversion Kit with Cable For QANBA Obsidian 2 Q7 Fight Stick DIY to Hitbox
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 4 – Nov 13
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications
SPECIFICATIONS
Age: >8 Years
Brand Name: Sinoarcade
High-concerned chemical: none
Model Number: Qanba
Origin: Mainland China
Type: Coin Pusher
is_customized: Yes
item: Qanba Obsidian Hitbox Conversion Kit

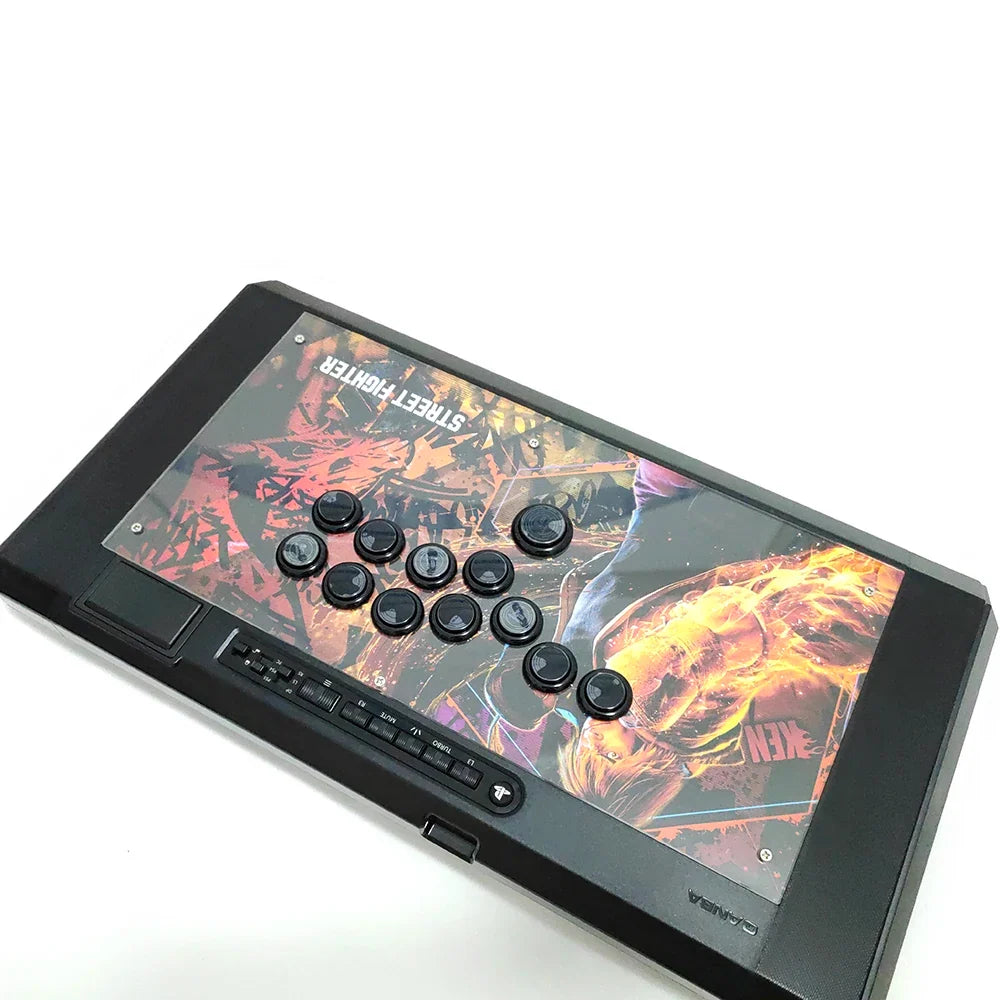

Sinoarcade Hitbox Clear Plexi Cover and Metal Plate Conversion Kit with Cable For QANBA Obsidian 2 Qanba Q7 Fight Stick DIY to Hitbox
Fighter Kit Qanba Q7 (or Obsidian 2), one of the most colorful boards in the world is undoubtedly the Qanba Obsidian which has been used by several tops in the world to mention Tokido and Daigo.
Feature:

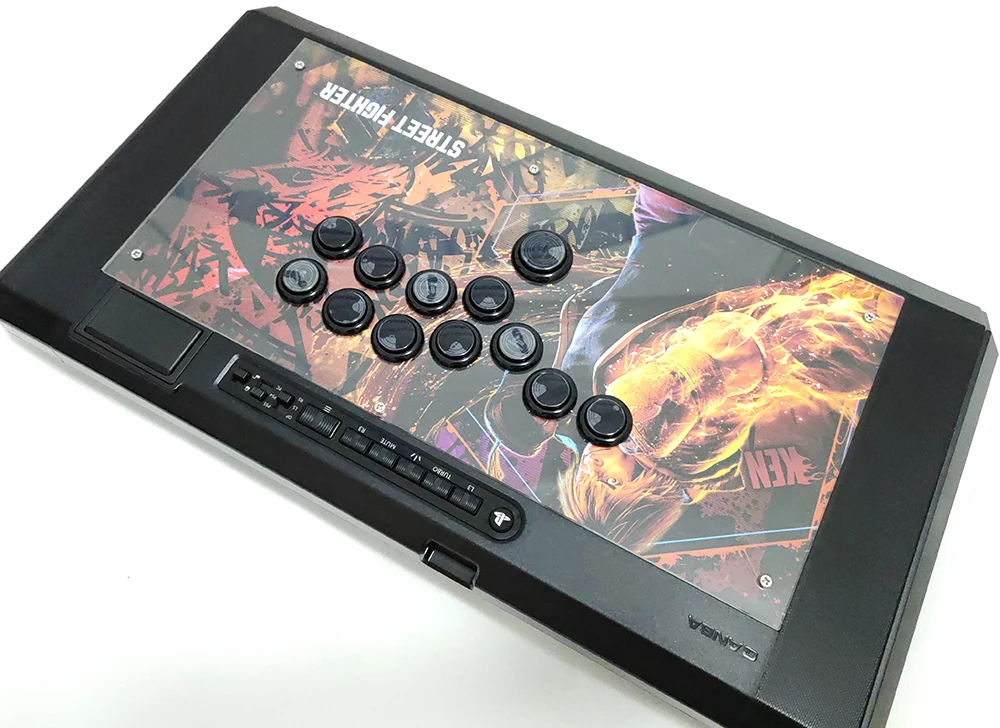

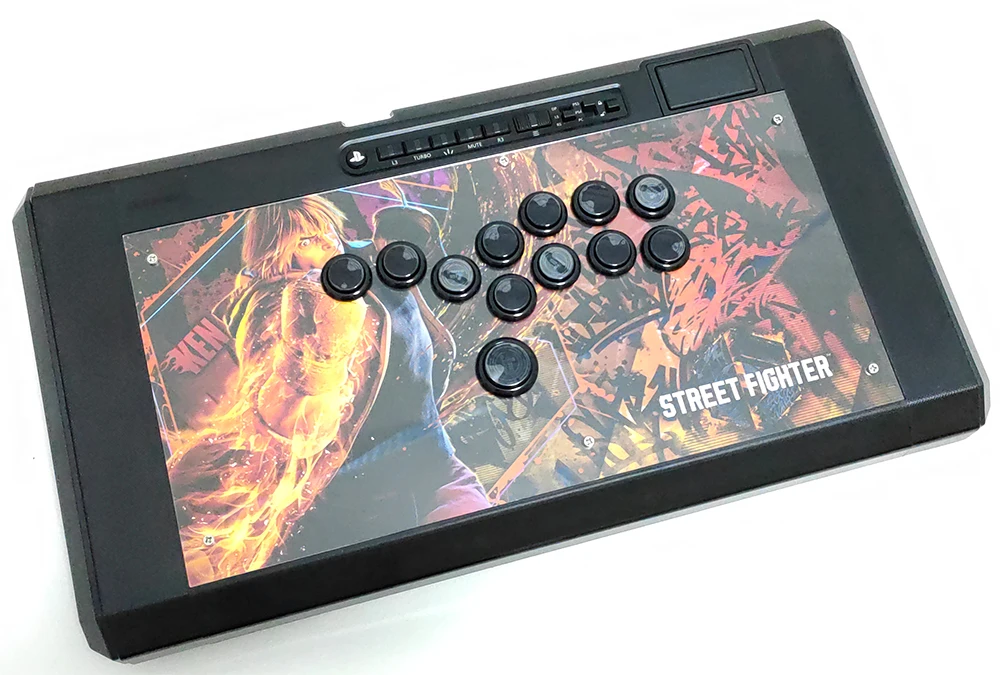

The Hitbox conversion set for QANBA Obsidian 2 and Qanba Q7l is ideal for those customers who want to convert their QANBA Obsidian 2or Q7 fight stick into a Hitbox.
Each conversion kit includes a pre-drilled plexi sheet and a pre-drilled metal plate.
These feature 11 x 24mm diameter button holes and 1 x 30mm button hole.
The version of Obsidian 2 in Hitbox became popular since tokido began to use it.
Installation Guide

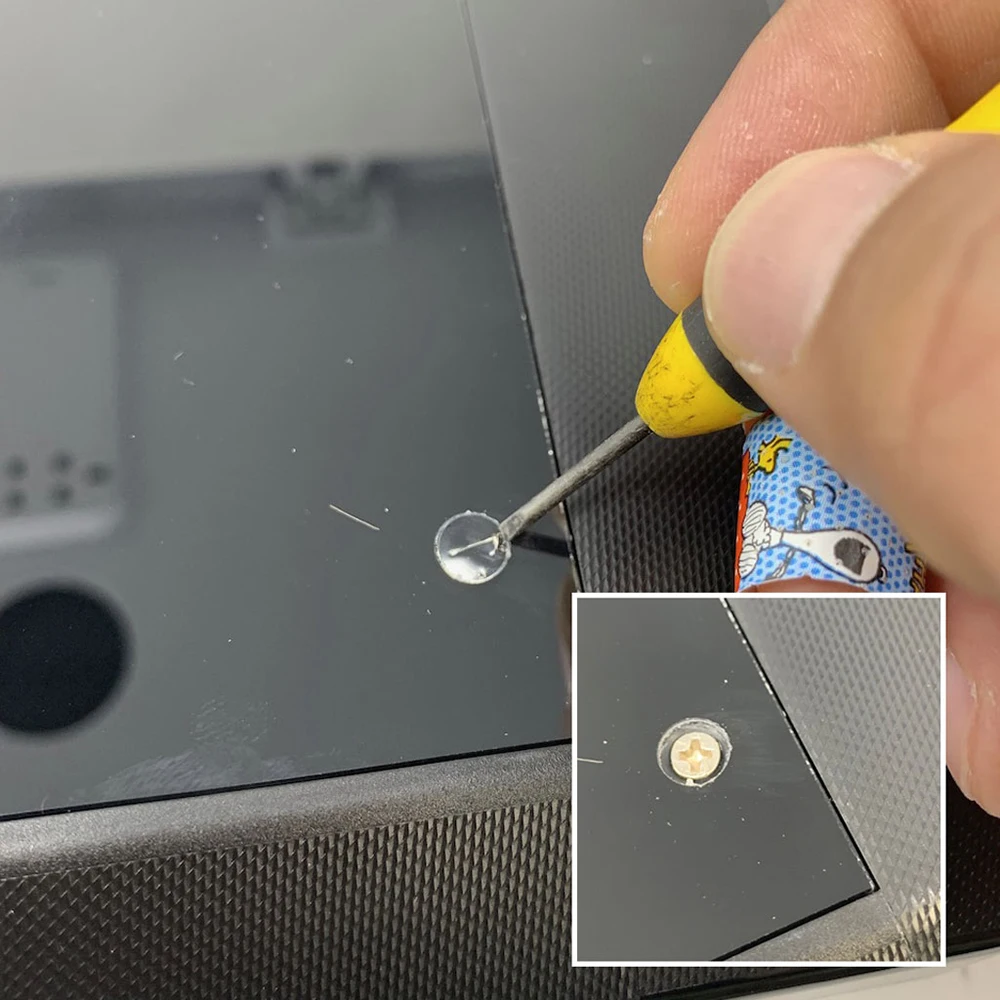

Step 1. Remove 6 black stickers on top panel and epoxy glue below those stickers across the top and bottom area of the panel.

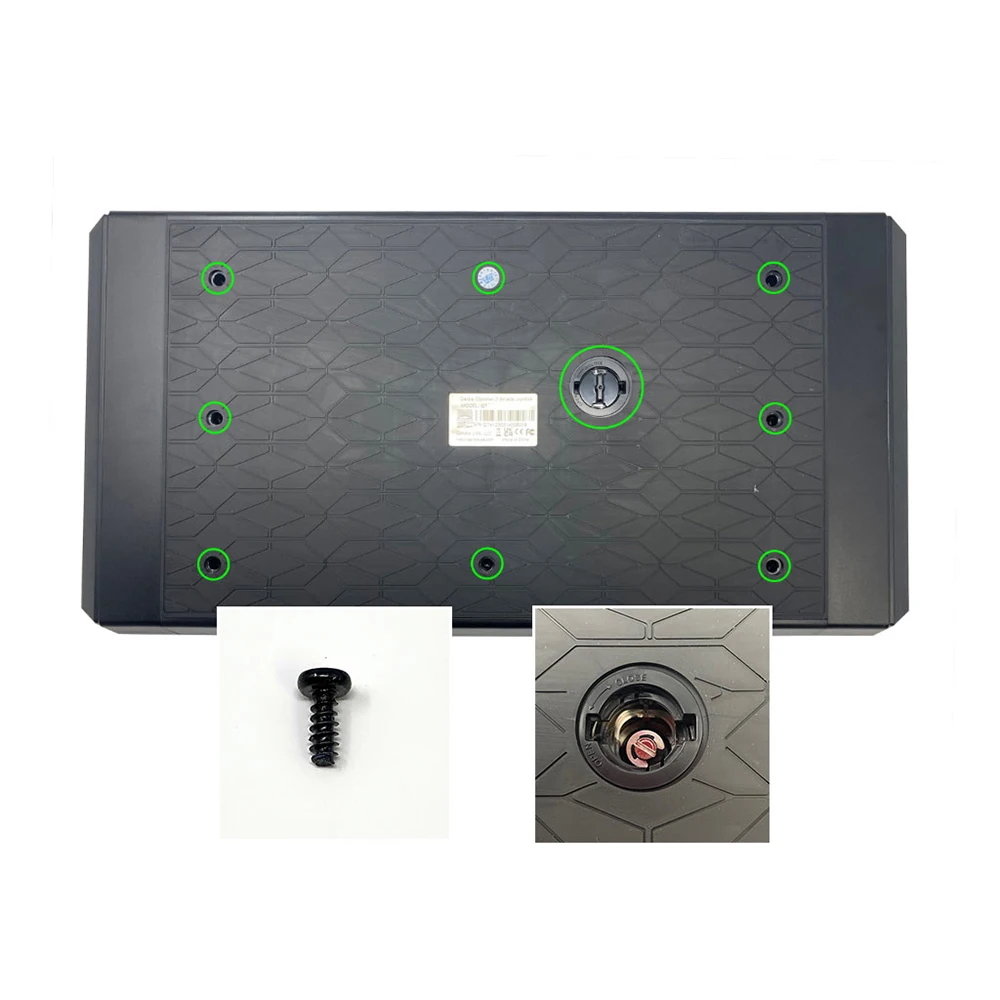

Step 2. To access the internal wiring, use a Phillips head-screwdriver to unscrew the 6 screws on the bottom panel. The Obsidian 2 features a cover for the joystick shaft. Using a flathead screwdriver, place it between the shaft groove and then begin turning the balltop. This will allow you to unscrew a balltop or battop.

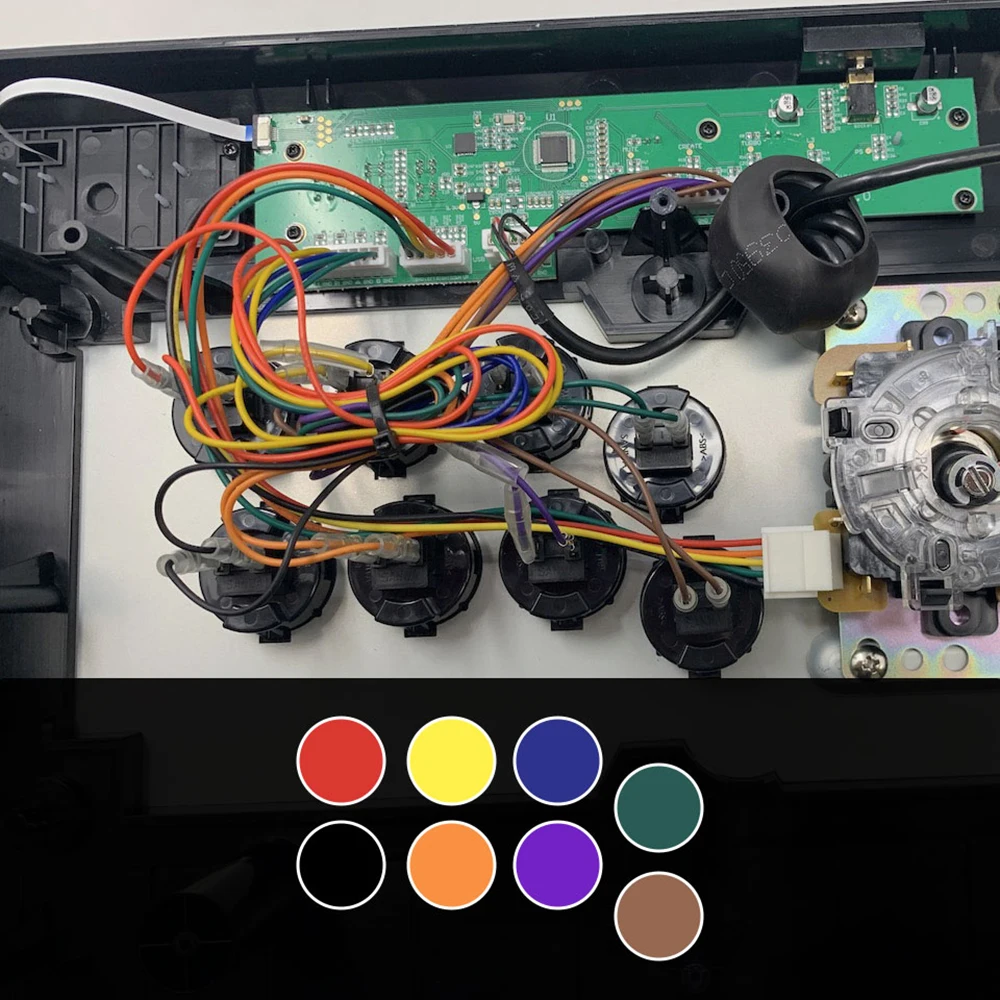

Step 3. Once the bottom panel is removed, make note of the button wiring. The guide shows the wire colors for each button when the panel is upside down, the orientation you are likely to have when installing new buttons.

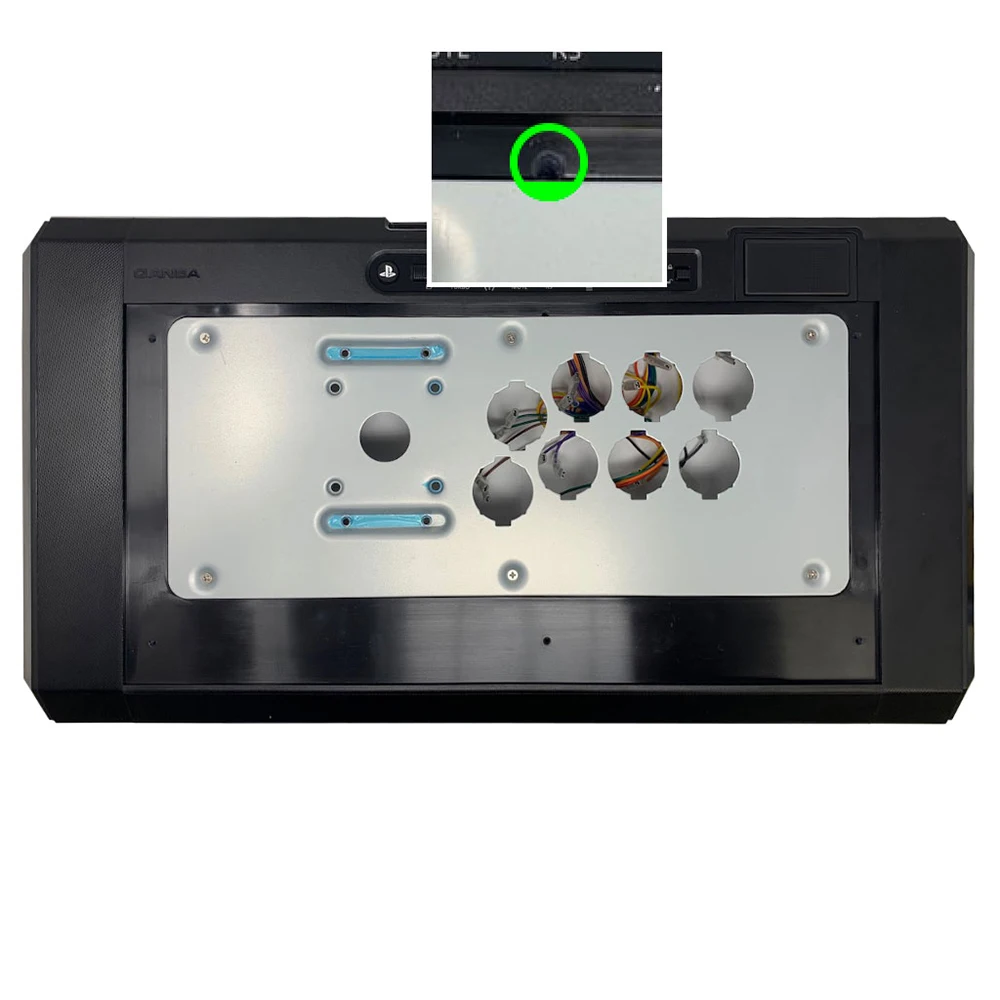

Step 4. Shown here is the original top plexi panel removed. Note that you need to remove the joystick mount plate.
Step 5. Install the Metal Plate converter
Step 6. Take the Plexi Cover and remove the protective film from both sides and proceed to install
Step 7. Install the buttons
Step 8. Connect the hitbox Conversion Harness in the lever section
Compatible Buttons:
You will require 11 x 24mm buttons and 1 x 30mm button for the Hitbox conversion

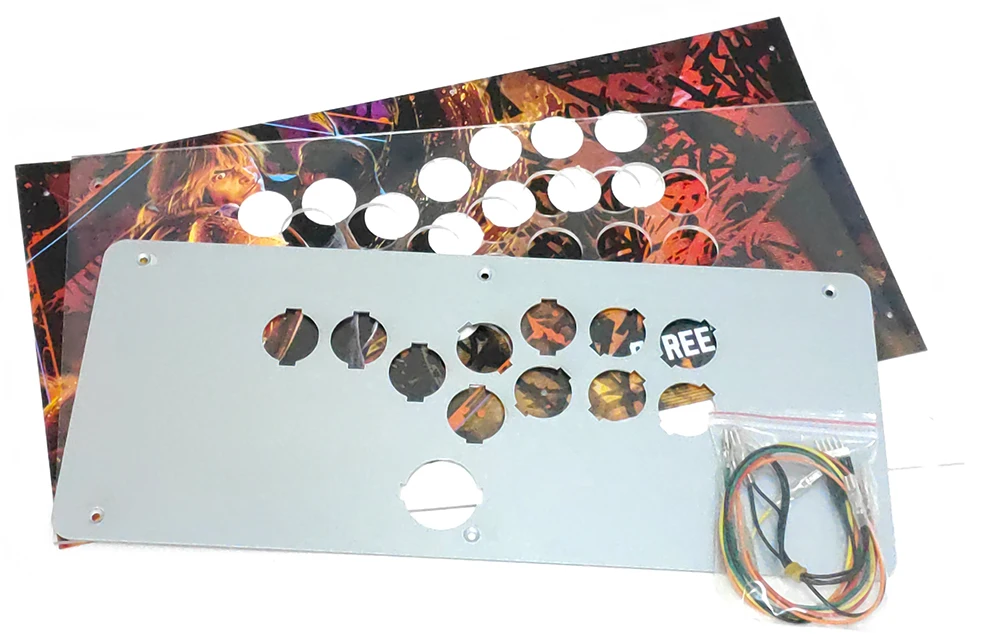

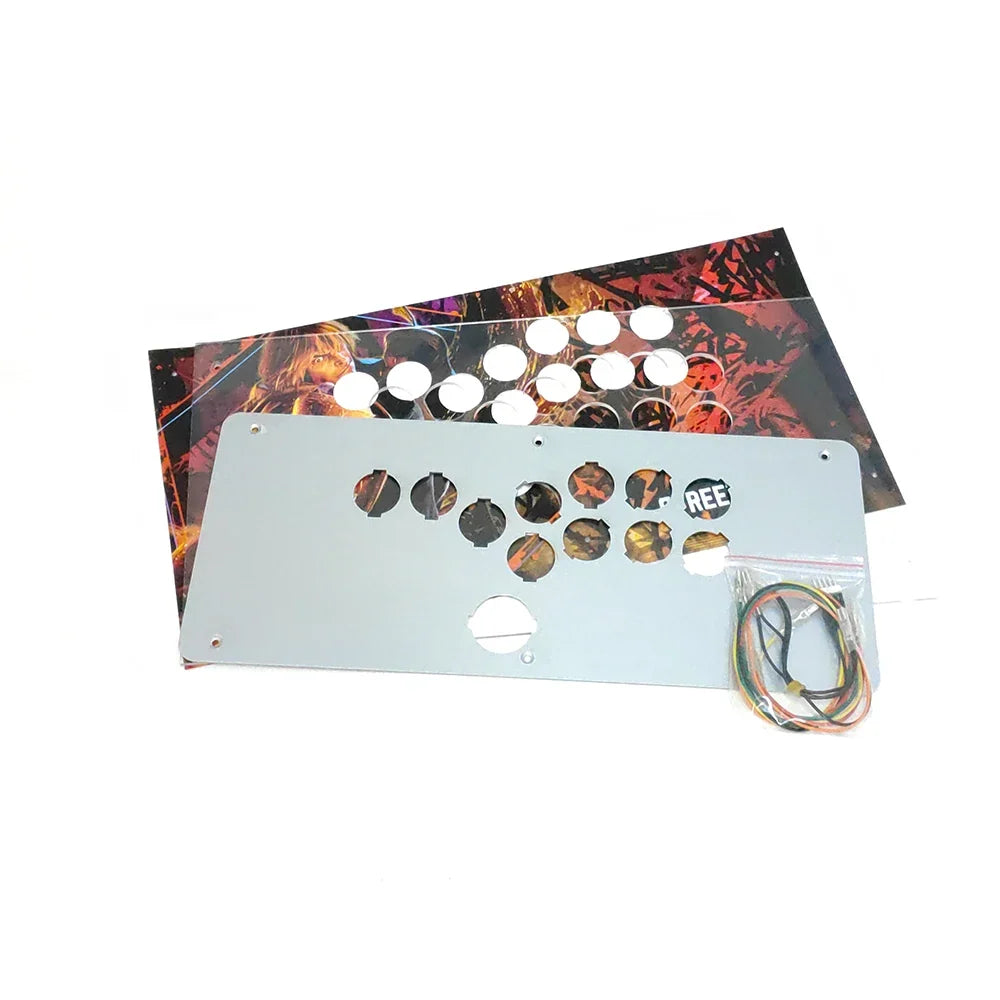

What's Included:
1 x Plexi sheet (pre-drilled with 11 x 24mm holes and 1 x 30mm hole)
1 x Metal plate (pre-drilled with 11 x 24mm holes and 1 x 30mm hole)

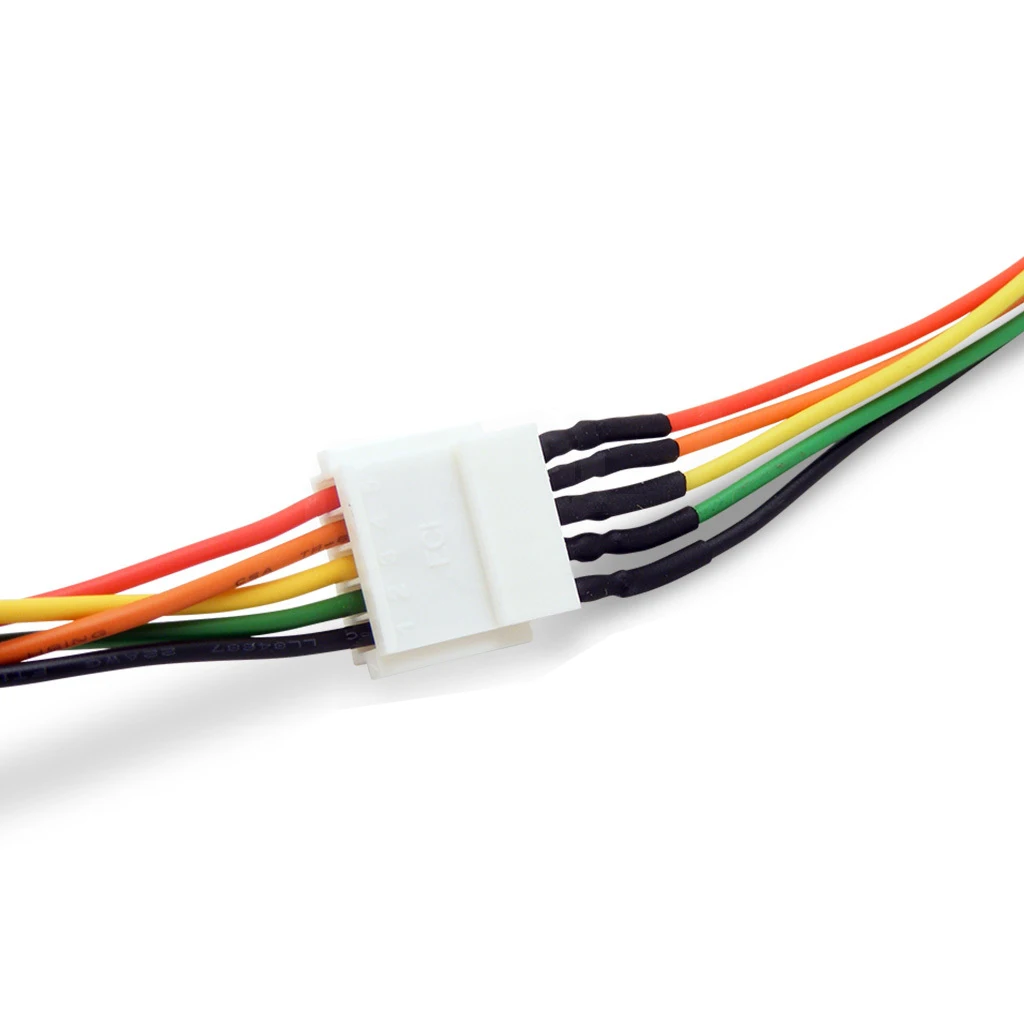

1 x Hitbox Conversion Harness
1 x Artwork paper （You also can use your own artwork design, we can offer the template for you)
*Each plexiglass has a anti-scratch film to covered. Please remove the film before using. Thanks!
* Qanba Obsidian 2 or Q7 Fightstick NOT INCLUDE for this listing

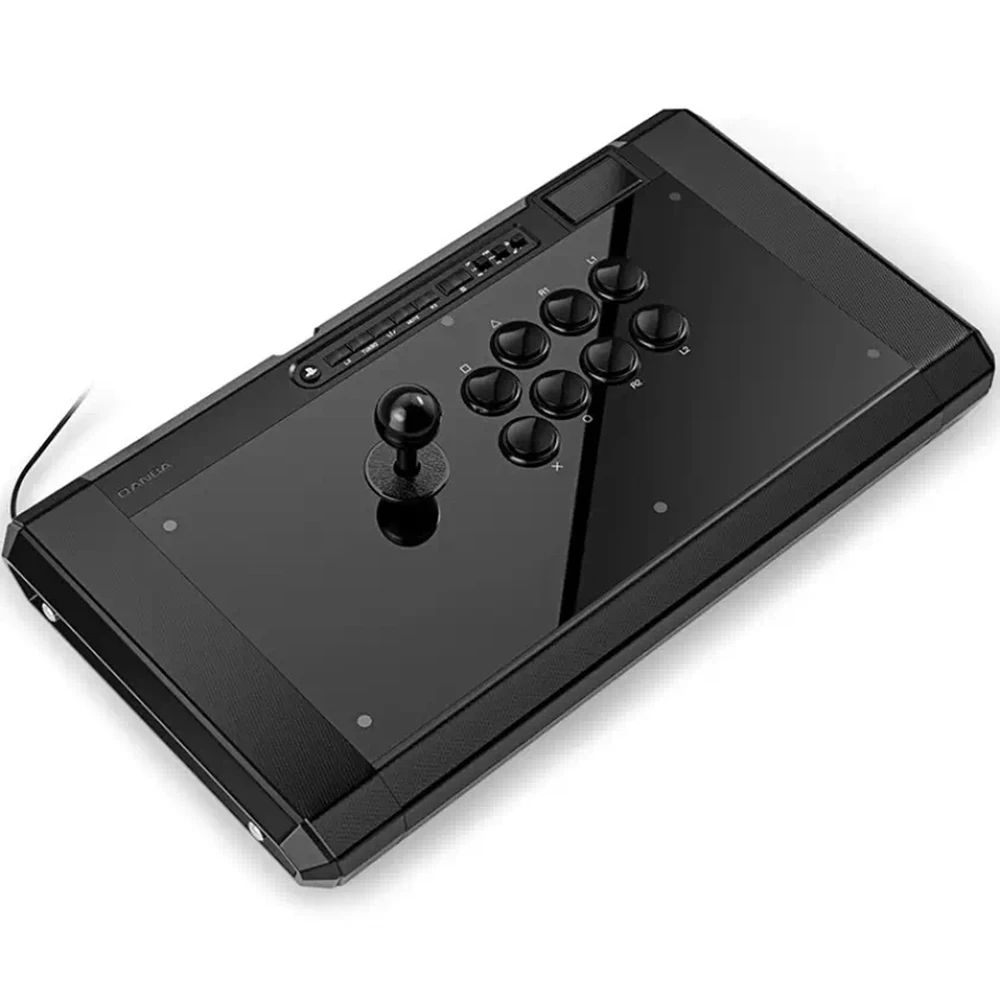

Qanba Obsidian2
