Zero Delay Arcade USB Encoder, PC PS3 Switch Android Pi
4.8mm and 2.8mm
$56.09
Skip to product information
Zero Delay Arcade USB Encoder, PC PS3 Switch Android Pi
$56.09
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 4 – Nov 13
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications

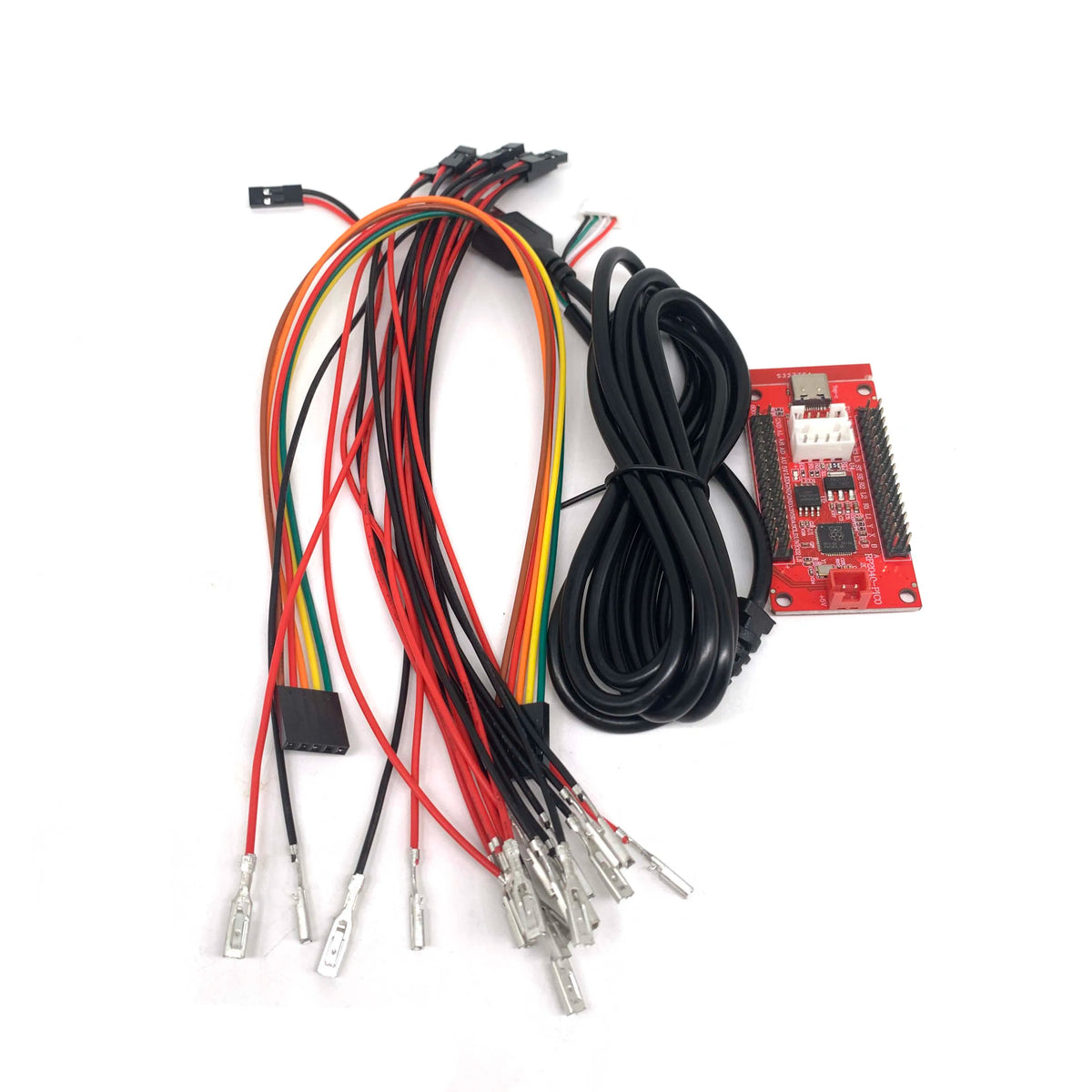

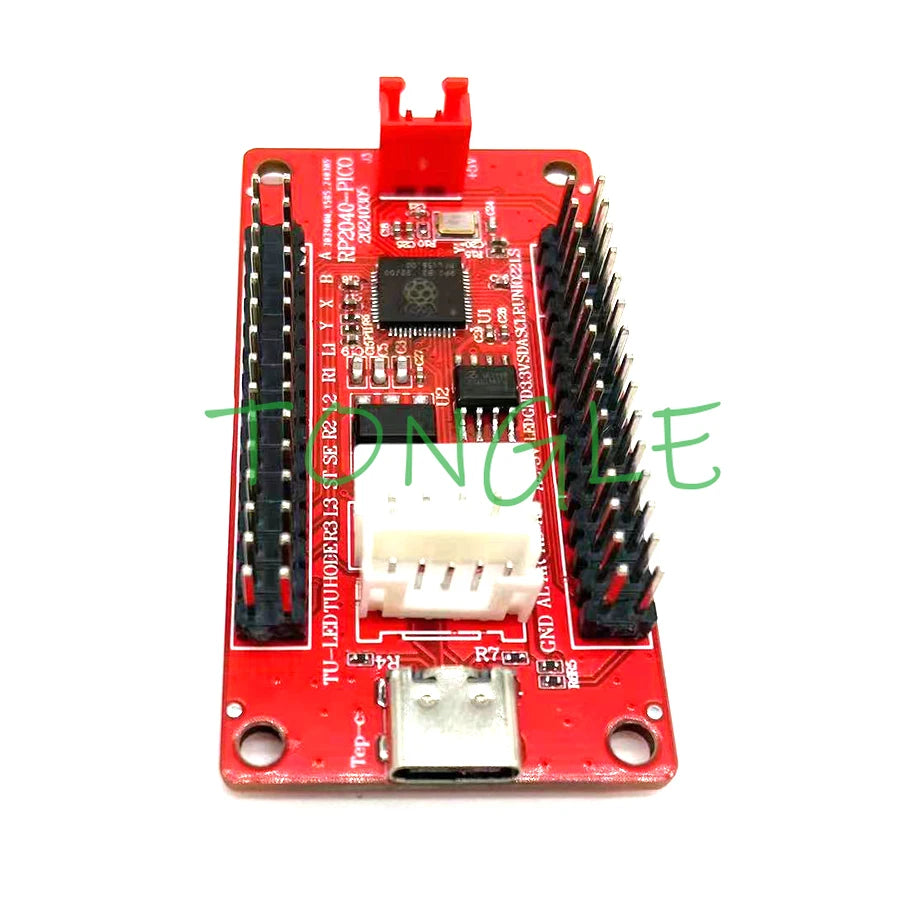

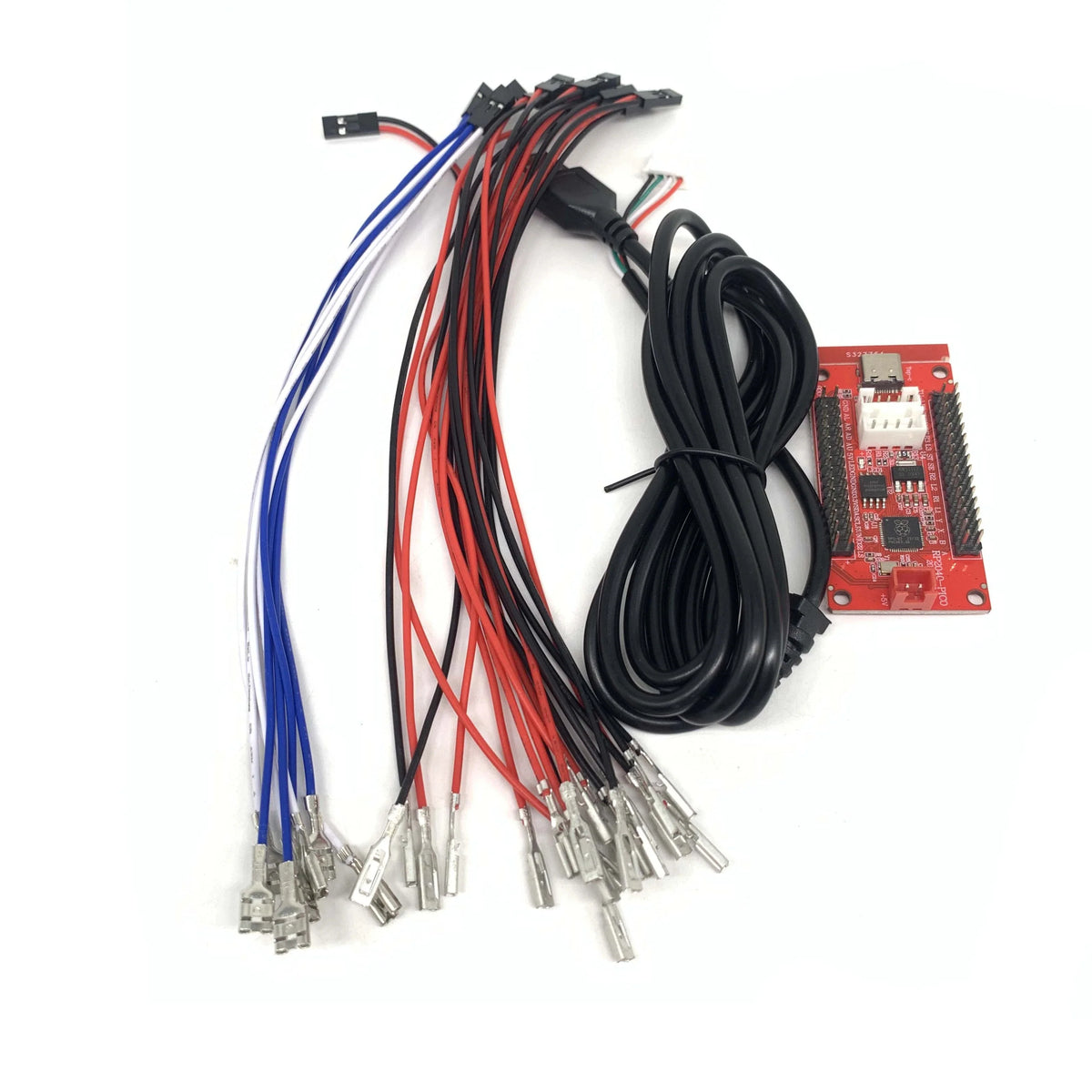

A DIY arcade encoder board for building your own fight stick.
- Compatible with PS4, PS3, Switch, PC and Android phones
- Supports 5-pin and 2.8mm / 4.8mm button connectors
- RP2040 version available
- PS4 program key added, SOCD overwrite mode
- Turbo combo key
SPECIFICATIONS
Age: >8 Years
High-concerned chemical: none
Model Number: RP2040-PICO
Origin: Mainland China
Type: Street Basketball & Boxing
is_customized: Yes
Compatible with PS4/PS3/Switch/PC computers/Android phones
PS4 program key has been added, bootless, with SOCD post overwrite mode
PS4 program key has been added, bootless, with SOCD post overwrite mode
Key Introduction
1) HOME key * 1: Turn on the controller or execute commands from the host.
2) Direction keys * 1 group: up, down, left, and right.
3) Function control keys * 4: A, B, Y, X.
4) 4 function keys: R1/L1/R2/L2/SELECT/START/L3/R3
6) 1 combo key: TUBRO key (combo), press TUBRO once, Click one more tiem to CLEAR (Clear)
Mode switching
Pressing and holding the following buttons while inserting the joystick will switch to your mode when turning on the device,
A-Nintendo Switch: Suitable for Nintendo Switch
B-Pc/xinput suitable for PC/PC360
X-PS3/Dinput is suitable for PS3/PC hosts
Y-PS4: Applicable to PS4 host
RT-HID KB: HID computer keyboard mode
C-PAD mode
SELECT+START+DOWN - Normal D-Pad mode
SELECT+START+Left - Left analog joystick mode
SELECT+START+LIGHT - Right analog joystick mode
SOCD mode
Switching SOCD mode allows for special operations such as thick coverage. Press the following buttons when turning on the device:
HOME+START+DOWN - Return to center (U+D=N, L+R=N)
HOME+START+UP - Priority in direction (U+D-U, L+R=N)
HOME+START+Left - Last input priority
TURBO function:
Turbo function setting: First press and hold the function key to be accelerated, such as A key, and then press and hold the Turbo key. At this time, A key has the acceleration combo function; Turbo function cancellation: First press and hold the function key that has already been set for acceleration, such as the A key, and then press and hold the Turbo key. At this point, the acceleration combo function of the A key is cancelled.
1) HOME key * 1: Turn on the controller or execute commands from the host.
2) Direction keys * 1 group: up, down, left, and right.
3) Function control keys * 4: A, B, Y, X.
4) 4 function keys: R1/L1/R2/L2/SELECT/START/L3/R3
6) 1 combo key: TUBRO key (combo), press TUBRO once, Click one more tiem to CLEAR (Clear)
Mode switching
Pressing and holding the following buttons while inserting the joystick will switch to your mode when turning on the device,
A-Nintendo Switch: Suitable for Nintendo Switch
B-Pc/xinput suitable for PC/PC360
X-PS3/Dinput is suitable for PS3/PC hosts
Y-PS4: Applicable to PS4 host
RT-HID KB: HID computer keyboard mode
C-PAD mode
SELECT+START+DOWN - Normal D-Pad mode
SELECT+START+Left - Left analog joystick mode
SELECT+START+LIGHT - Right analog joystick mode
SOCD mode
Switching SOCD mode allows for special operations such as thick coverage. Press the following buttons when turning on the device:
HOME+START+DOWN - Return to center (U+D=N, L+R=N)
HOME+START+UP - Priority in direction (U+D-U, L+R=N)
HOME+START+Left - Last input priority
TURBO function:
Turbo function setting: First press and hold the function key to be accelerated, such as A key, and then press and hold the Turbo key. At this time, A key has the acceleration combo function; Turbo function cancellation: First press and hold the function key that has already been set for acceleration, such as the A key, and then press and hold the Turbo key. At this point, the acceleration combo function of the A key is cancelled.
