N64 S-Video and AV to HDMI Converter with Upscaler
N64 S-Video and AV to HDMI Converter with Upscaler
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 9 – Nov 18
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications
Convert compatible AV or S-Video video signals to HDMI output.
- Supports listed N64, PS2, and Wii gaming consoles
- Converts 480i NTSC or 576i PAL signals to HDMI output
- DC 5V/1A power supply listed
- Dimensions: 110 × 84 × 28mm; weight: 155g
- Plug variants include UK, EU, AU, and US adapters
SPECIFICATIONS
Amplifier: No
Brand Name: wiistar
Certification: CE
Connector A: AV
Connector B: HDMI-Compatible
External Power Source: No
Gender: Female
High-concerned chemical: none
Origin: Mainland China
Package: No
Plug Type: EU Plug
Size: 110*84*28mm
Type: converter
Weight: 155g
Product Overview
The AV+S-VIDEO to HDMI Converter is a versatile video signal conversion device that supports converting 480I (NTSC) / 576I (PAL) standard definition signals into high-definition HDMI output. Utilizing advanced video processing technology, it seamlessly connects traditional devices (such as DVD players, gaming consoles, etc.) to modern high-definition display equipment, enabling picture quality enhancement and convenient transmission.
Specifications
Product Dimensions: 110mm × 84mm × 28mm
Product Weight: 155g
Power Supply: DC 5V/1A
S-VIDEO Input Parameters: Y signal: 1.0Vpp, C signal: 0.3Vpp
Audio Output: Digital coaxial audio, analog stereo audio
Product OverviewThe AV+S-VIDEO to HDMI Converter is a versatile video signal conversion device that supports converting 480I (NTSC) / 576I (PAL) standard definition signals into high-definition HDMI output. Utilizing advanced video processing technology, it seamlessly connects traditional devices (such as DVD players, gaming consoles, etc.) to modern high-definition display equipment, enabling picture quality enhancement and convenient transmission.
Features
1.High-Definition Upscaling Output:
Adopts Scaler video processing technology to upscale CVBS (composite video) signals to 1080P/720P@50/60Hz high-definition output.
Supports converting standard definition formats like 480I/576I to 1080P high definition, improving image clarity.
2.Multi-Format Audio Processing:
Integrates left/right channel analog audio signals into the HDMI interface via I2S technology, simplifying cabling and reducing analog transmission interference.
Supports HDMI digital audio decoding, outputting independent SPDIF coaxial digital audio and 3.5mm analog audio.

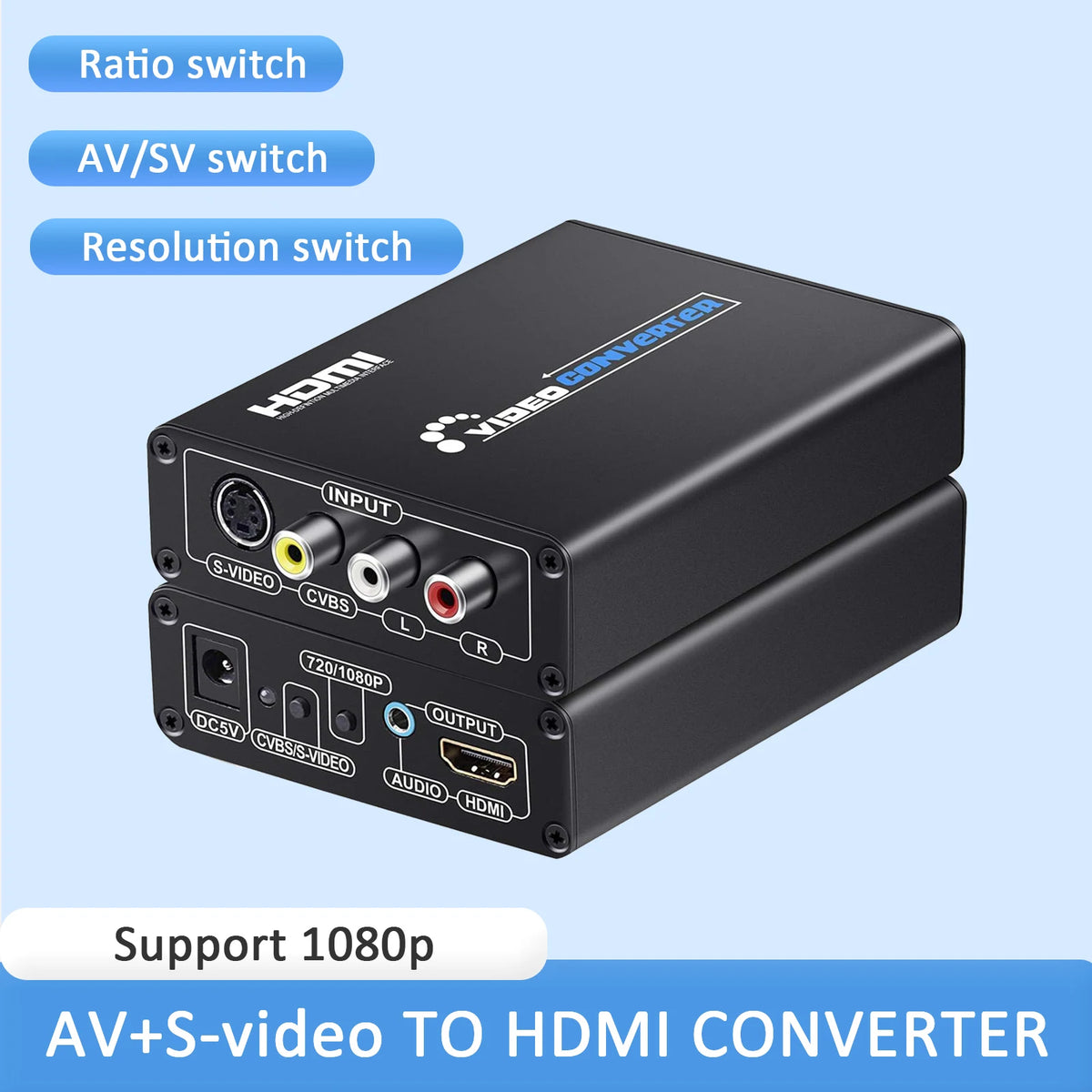

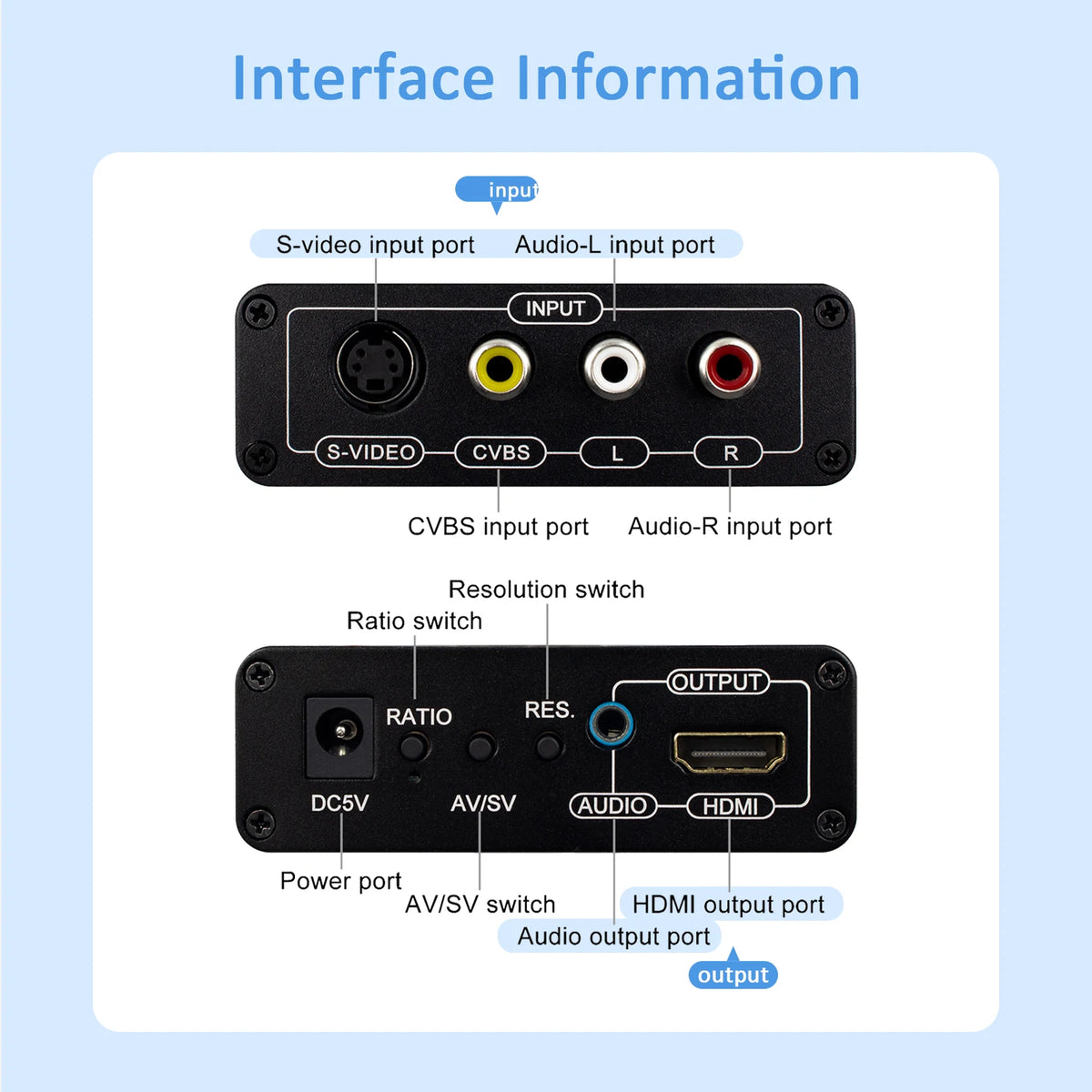

3.Flexible Input & Output:

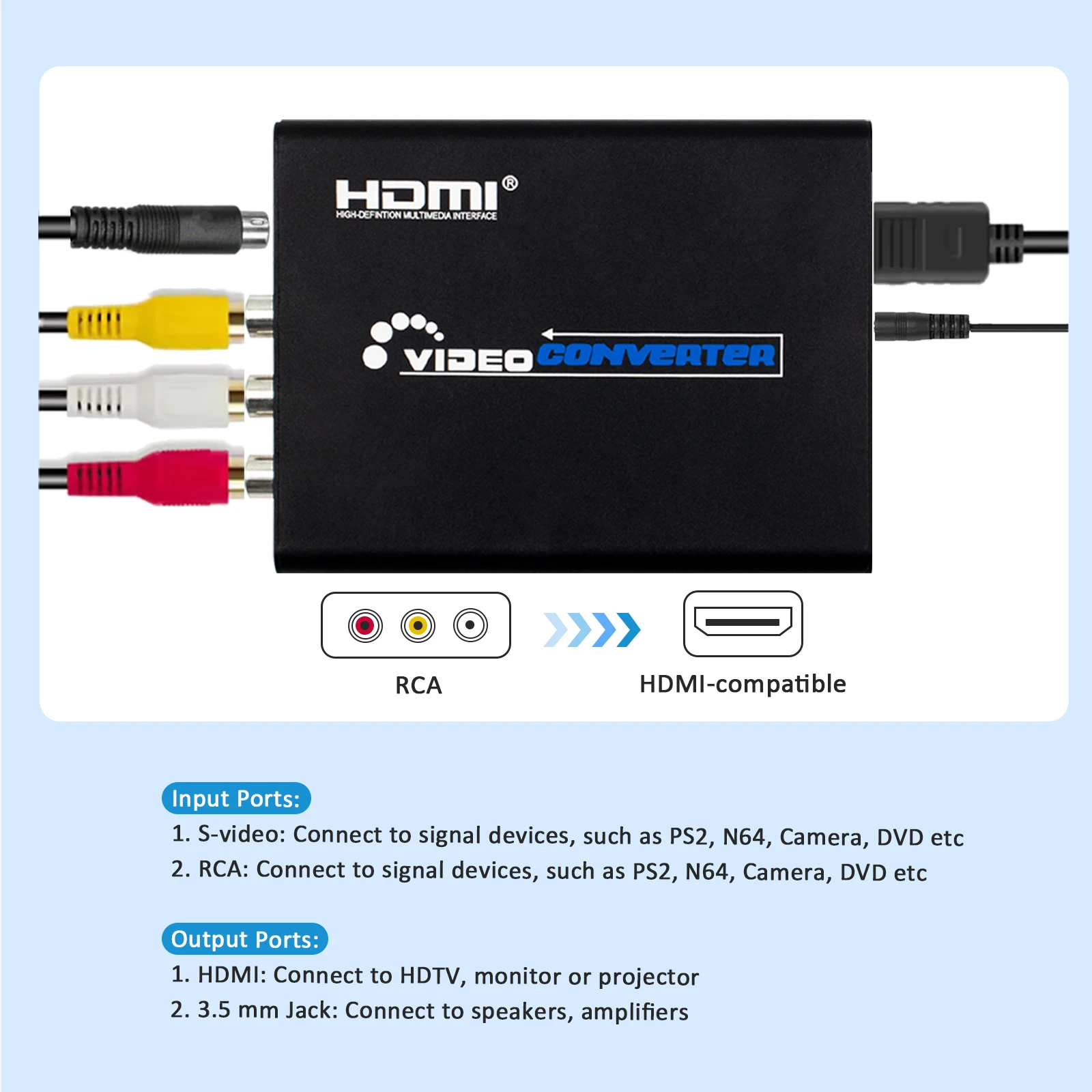

Input Ports: 1 × RCA (AV composite video), 1 × S-VIDEO
Output Ports: 1 × HDMI, 1 × 3.5mm audio port
Resolution Switch: Supports 480P, 576P, 720P, and 1080P output
Aspect Ratio Switch:Supports 4:3, 16:9, 16:10, and FULL screen modes

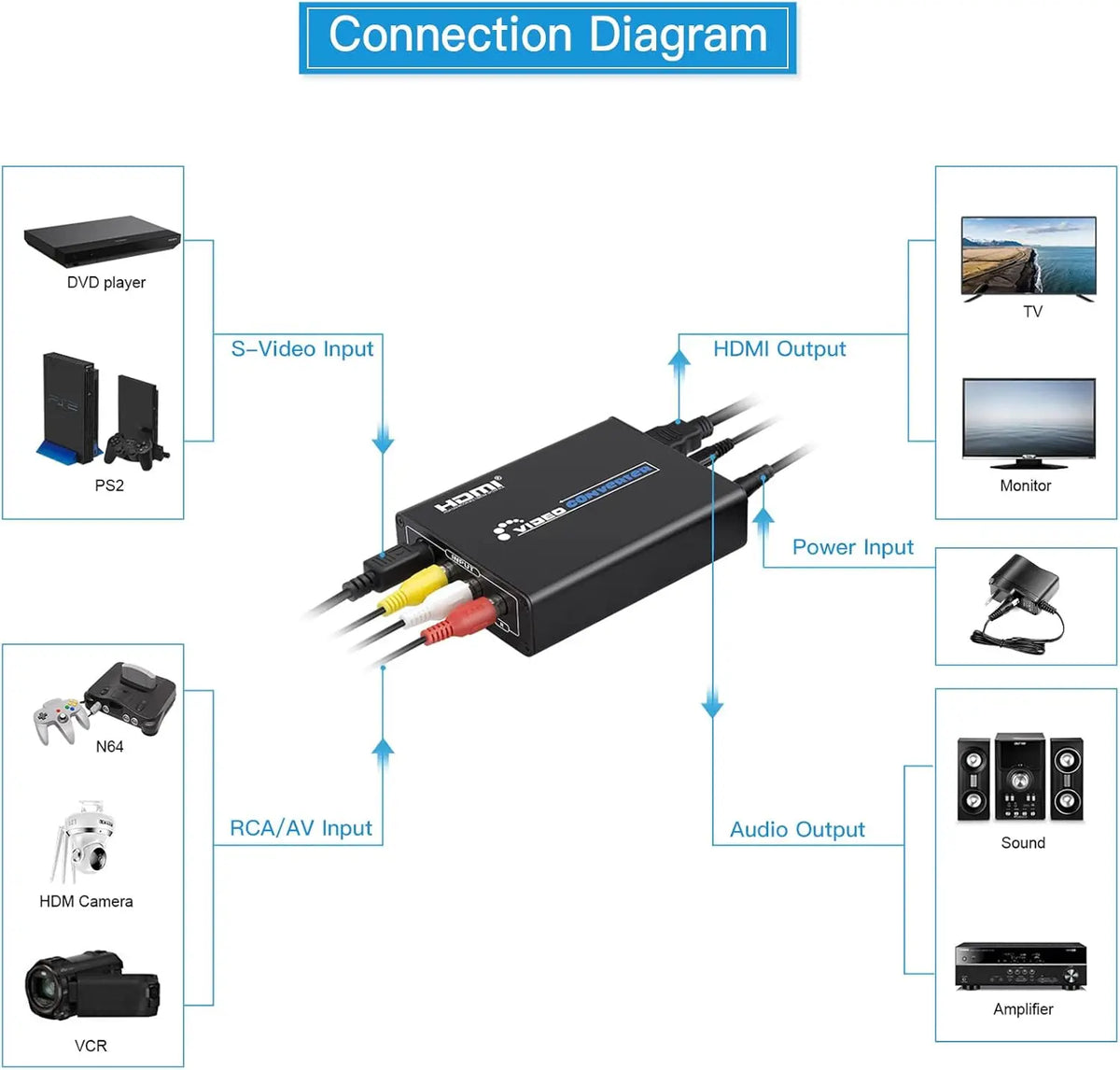

Wide Compatibility:
Compatible with DVDs, set-top boxes, HD players, and popular gaming consoles (e.g., PS2/PS3/PSP, Wii, Xbox 360, etc.).
Input format support: PAL, NTSC_M, NTSC4.43, PAL-M, PAL-N.
Specifications
-
Input Interfaces: CVBS (composite video), S-VIDEO, L/R audio
-
Output Interfaces: HDMI, 3.5mm audio
-
Supported Formats: PAL/NTSC_M/NTSC4.43/PAL-M/PAL-N
-
Output Resolutions: 480P/576P/720P/1080P
-
Product Dimensions: 110mm × 84mm × 28mm
-
Product Weight: 155g
-
Power Supply: DC 5V/1A
Application Scenarios:
Connecting traditional gaming consoles/players to modern HDTVs or monitors.
Upgrading home theater systems for SD-to-HD signal conversion.
Business presentations, educational displays, and other scenarios requiring compatibility with legacy devices.

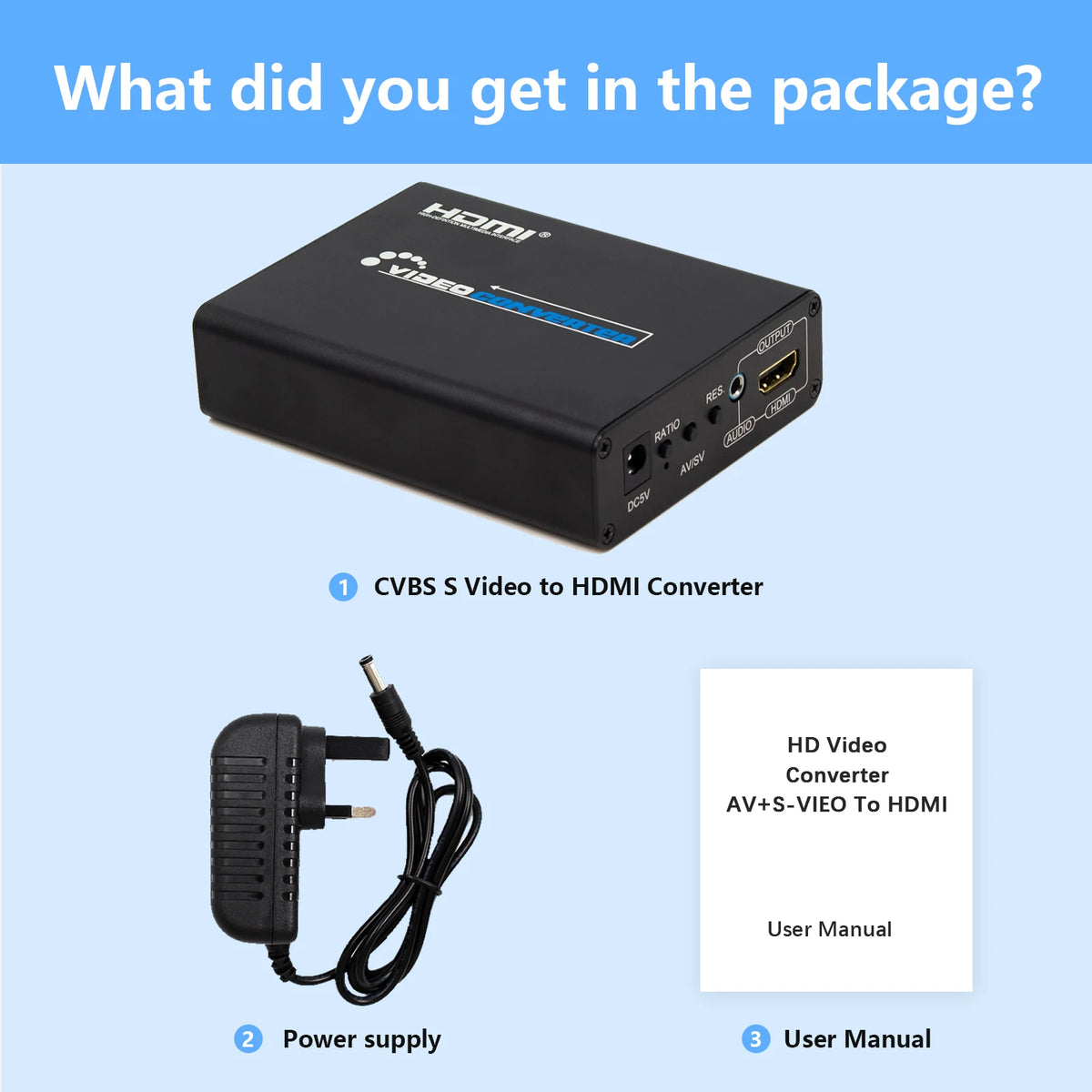

Package Includes:
AV+S-VIDEO to HDMI Converter ×1
Power Adapter ×1
User Manual ×1
