BitFunx RGB MOD Kit For Nintendo 64 THS7374 Amp Mod For N64 NTSC Game Consoles
BitFunx RGB MOD Kit For Nintendo 64 THS7374 Amp Mod For N64 NTSC Game Consoles
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 10 – Nov 19
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications
SPECIFICATIONS
Accessories Type: Motherboard
Bluetooth range: no
Brand Name: BitFunx
Cable features: Without cable
Choice: yes
Compatible Brand/Model: Nintendo
Compatible Nintendo Model: Nintendo64
Control Method: Push button
Controls Type: Others
Electric: No
Enclosure material: Others
Fastening type: Others
Harness Feature: Others
High-concerned chemical: none
Item: RGB MOD CHIP
Model Number: XLL-N64-RGB MOD
Occasion: Others
Origin: Mainland China
Platform: Other
Portable: No
Reusability: Disposable
Sensor Technology: Others
Supports: For N64 Game Console NTSC
With USB: no
is_customized: yes
semi_Choice: yes

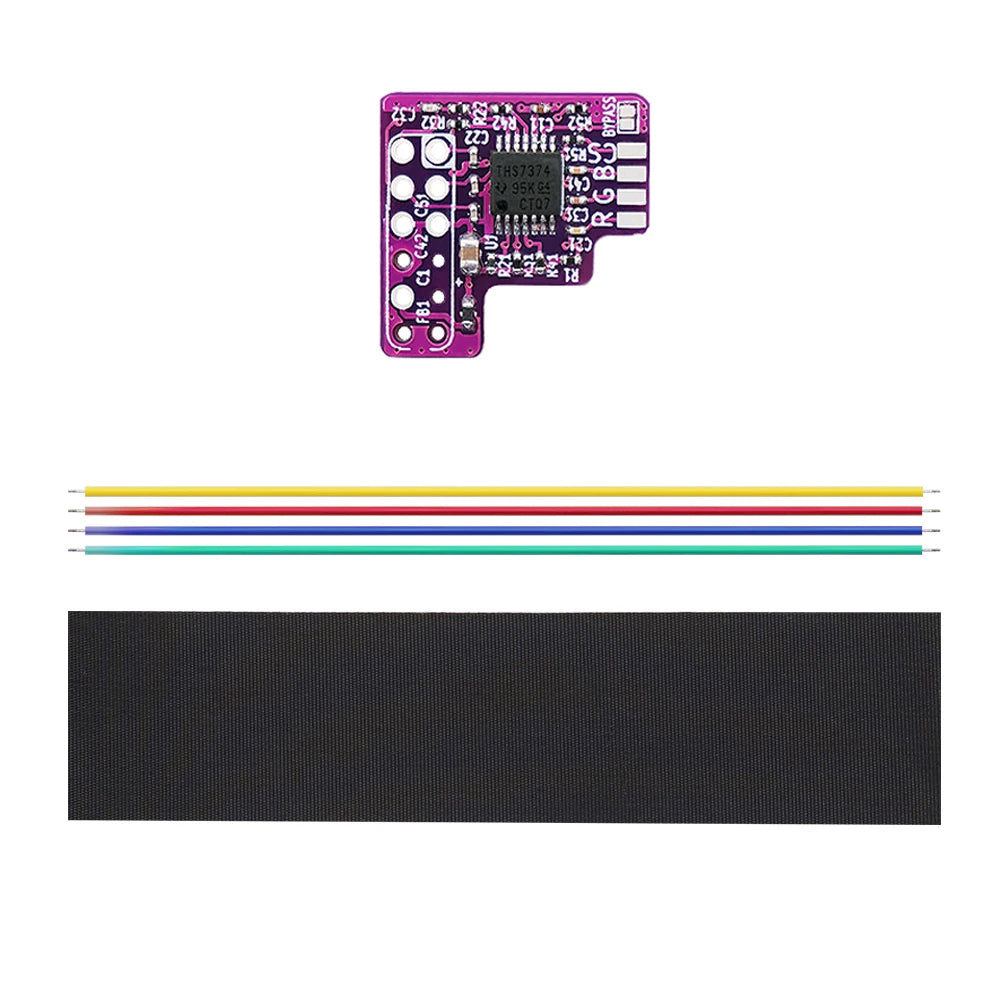

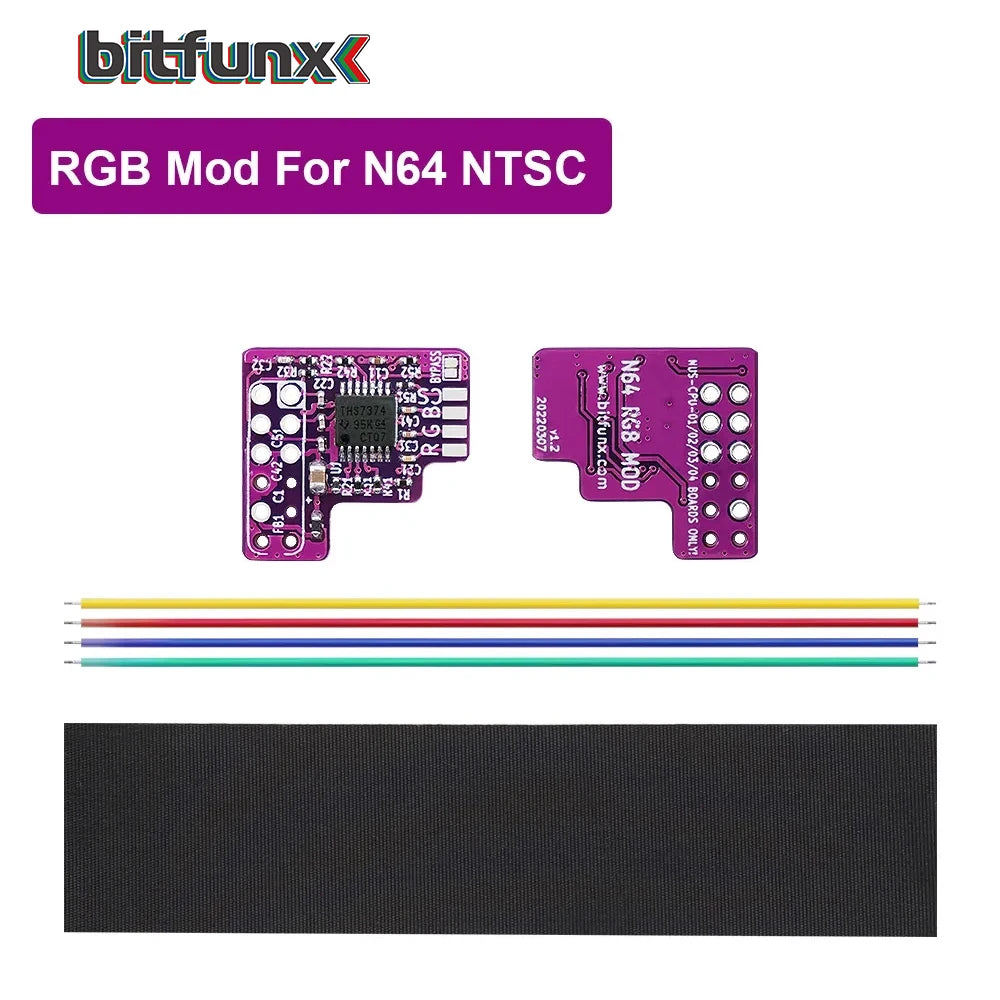

RGB MOD THS7374 Amp Mod Kit
Compatible Nintendo64 N64 Game Console NTSC

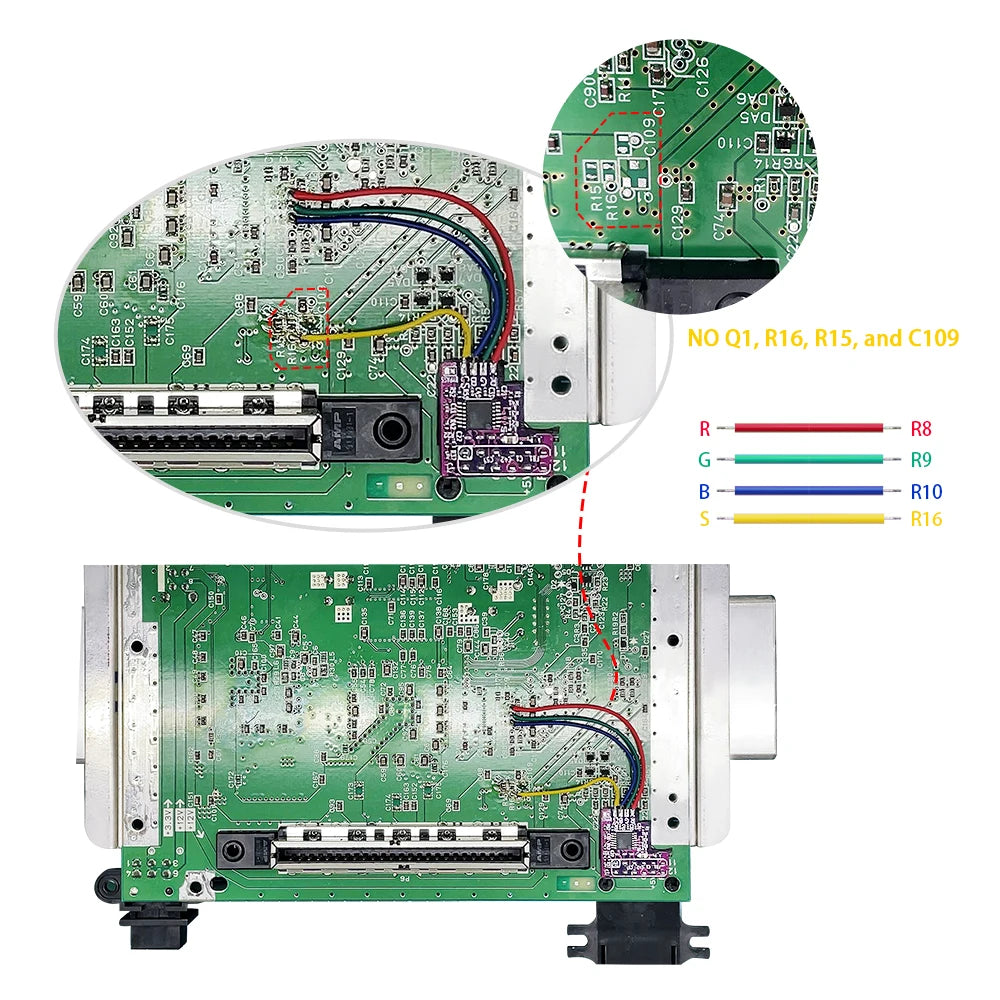

*****This modification only works with NUS-CPU-01/02/03/04 main board revisions!
Also, verify that your main board has a 'VDC-NUS'/'VDC-NUS A' chip (U4).
If that's not the case - stop here! Your console is not compatible with this modding board!
What is this?

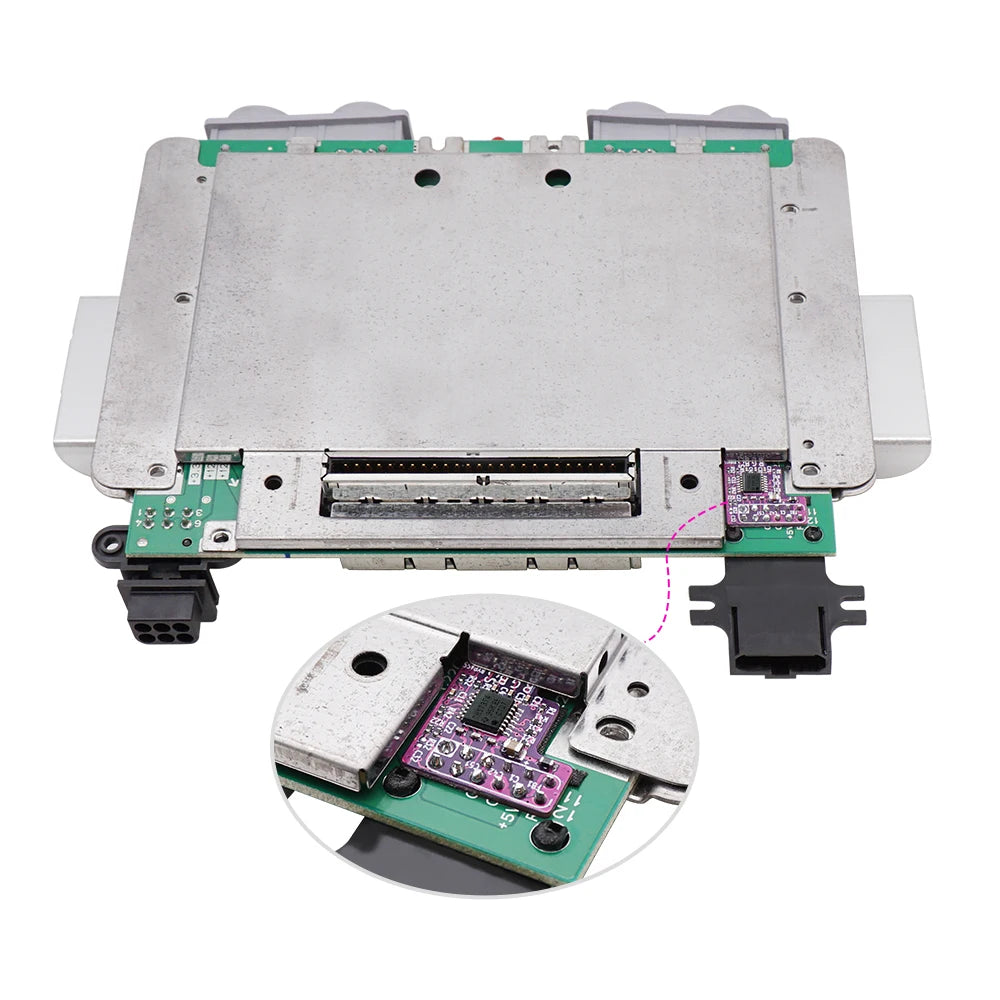

This is the RGB modchip for Nintendo 64 NTSC consoles.

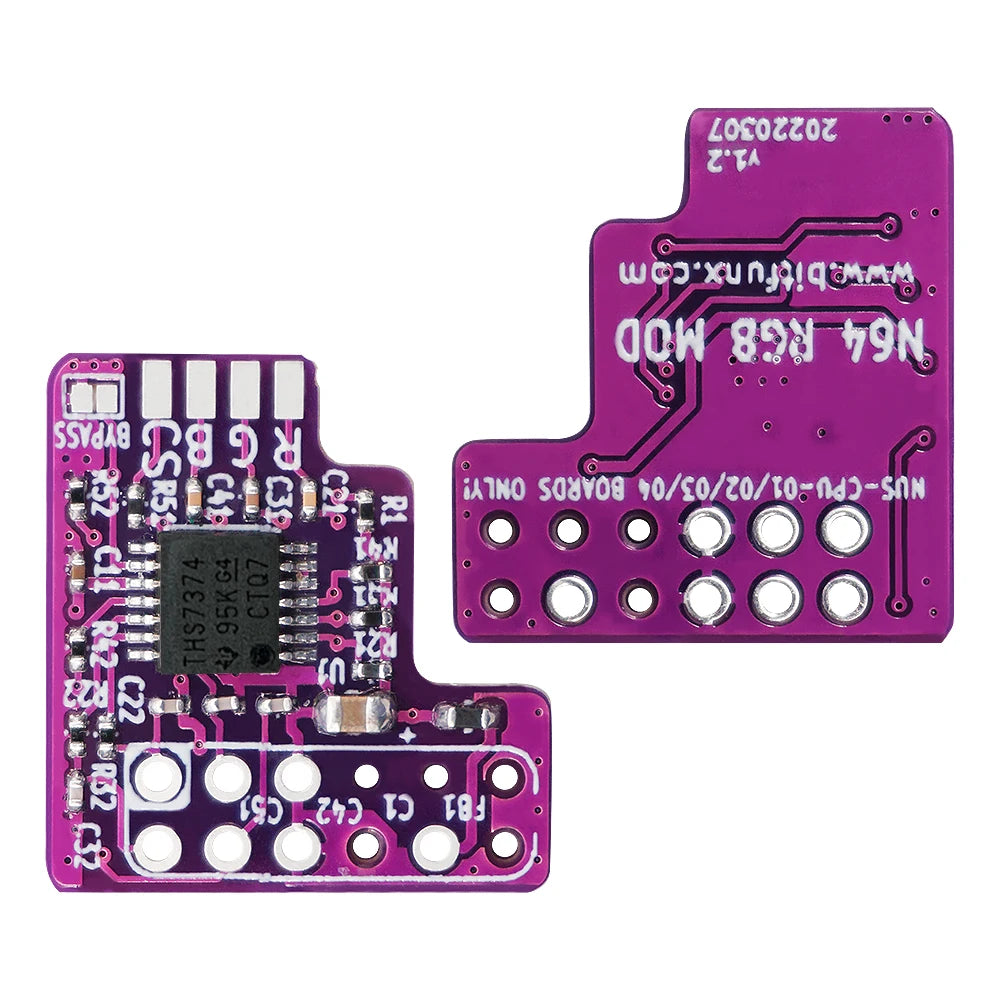

******Jumper 'Jbypass'
The THS7374 has a low pass filter on each of the four channels which can be turned on by shorting jumper 'bypass' on the modding board. This is mostly needed if you wire the console directly to a flat-screen TV. There's no need for the low pass filter on analogue devices.
If you use an OSSC or a Framemeister, it's better to use their filter options.
FEATURES
1）RGB mod uses THS7374 amp to display clearer and smoother images.

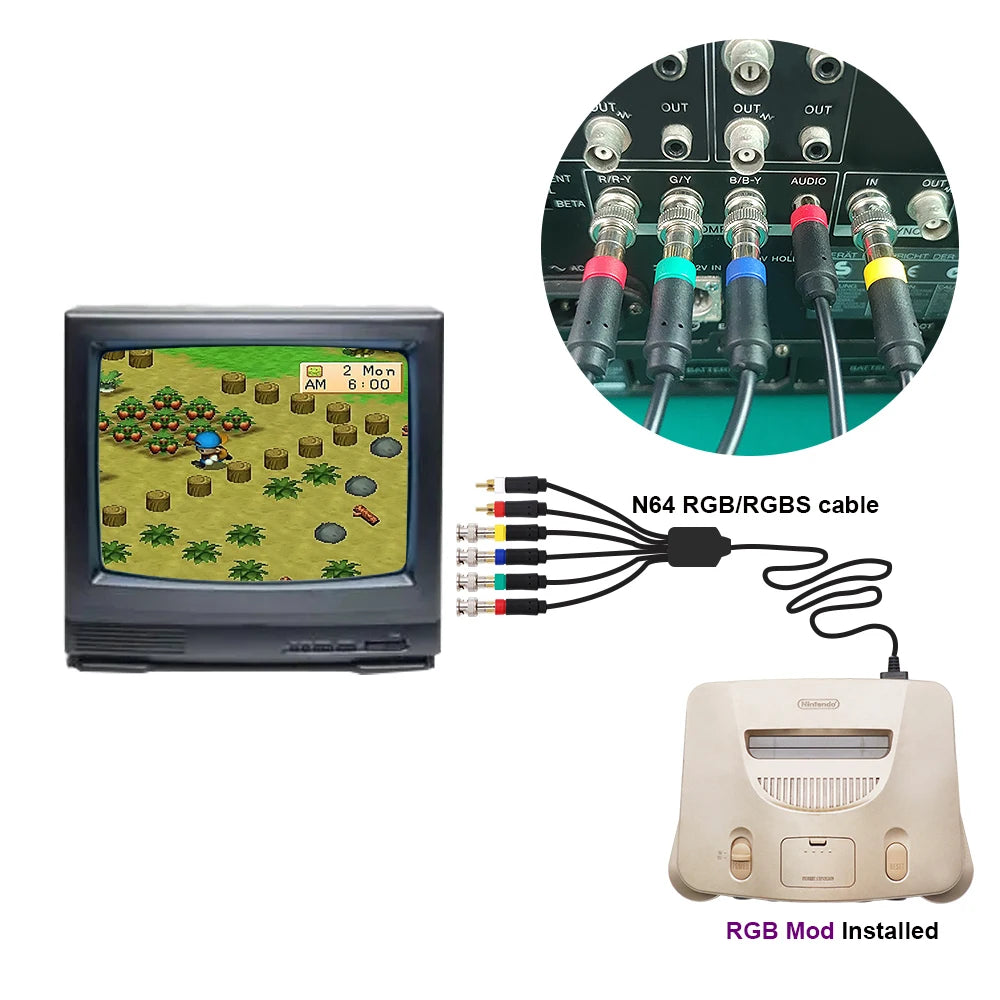

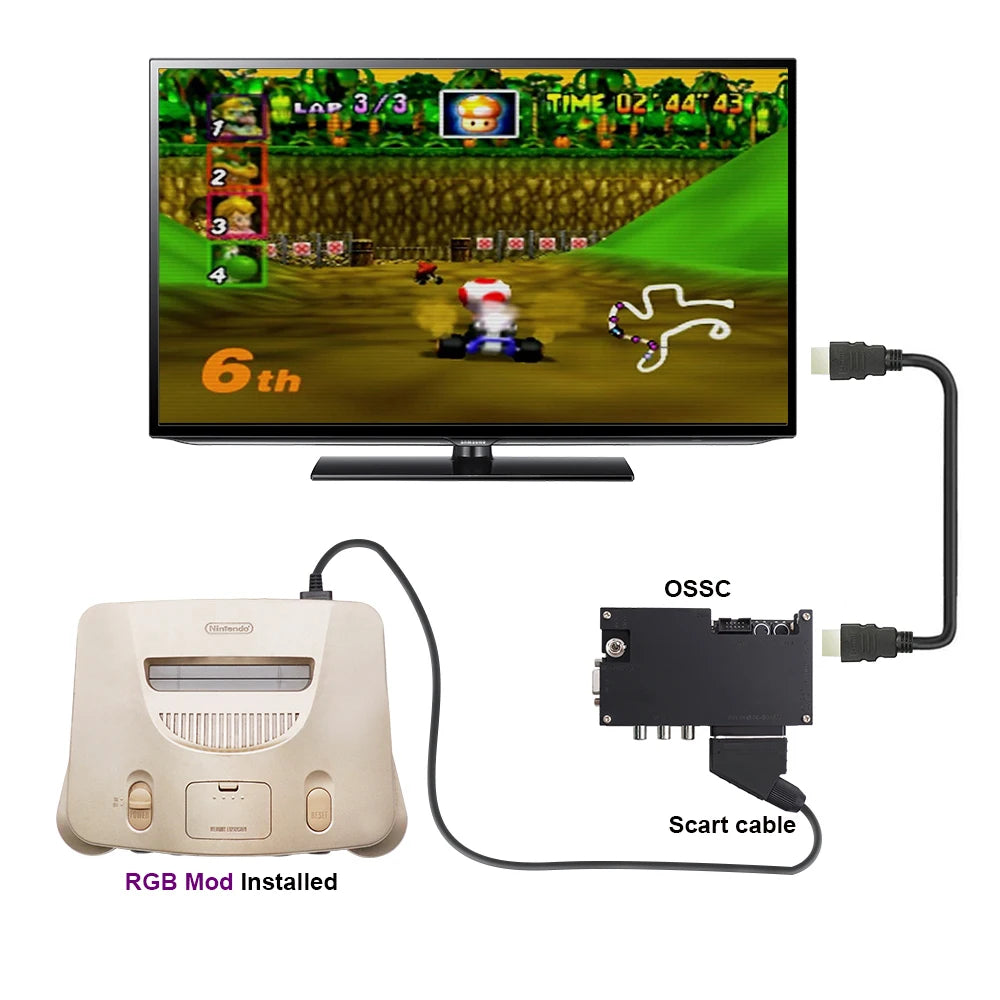

2）Can be directly connected to RGB Monitor(by N64 RGBS cable) or can be used with OSSC(by N64 SCART RGB cable).
How to find RGB-outputting NTSC N64 Systems:
1. If you have a serial number that starts with “NS1” (USA), “NUJ1” (Japan) or French systems with the model number “NUS-001(FRA)”, then you most likely have an N64 that’s compatible. Supposedly, some early
Canadian N64’s also contain this chip.
2.Many older Brazilian N64’s contain the same chip and can be RGB modded. Even though Brazil used PAL-M, is was still 60Hz and only compatible with NTSC games: http://s9.zetaboards.com/Nintendo_64_Forever/topic/7405289/1/
3. If you have a serial number that starts with anything else, or is a PAL console-Not compatible with this module.
