Internal Digital HDMI TV kit For N64 High Definition Game Video PCB Mod with OSD Menu 8 color models
Internal Digital HDMI TV kit For N64 High Definition Game Video PCB Mod with OSD Menu 8 color models
- Free worldwide shipping
- Pre-ship QC
- Tracked delivery
- Arrives Nov 9 – Nov 18
- Import duties included
Defective, damaged or wrong item? Free replacement or refund — just send us a short video. Details
Product details & specifications
SPECIFICATIONS
Accessories Type: Chip/Modchip
Author: None
Bluetooth range: None
Cable features: Without cable
Compatible Brand/Model: Nintendo
Compatible Nintendo Model: Nintendo64
Control Method: Push button
Controls Type: Others
Electric: No
Enclosure material: Others
Fastening type: Others
Harness Feature: Others
High-concerned chemical: none
Mfr part number: None
Model Number: BB-41
Number of Compartments: None
Number of Pins: None
Occasion: Others
Origin: Mainland China
Platform: Other
Portable: No
Sensor Technology: Others
With USB: No
is_customized: None
Please note that: It requires good soldering skills.
The console is not included.
This N64-HDMI Mod kit is compatible with all N64 models/regions; with the exception of 'Pi_ka_chu' models.
This N64-HDMI kit is a digital to digital HDMI output upgrade for the Nintendo 64.

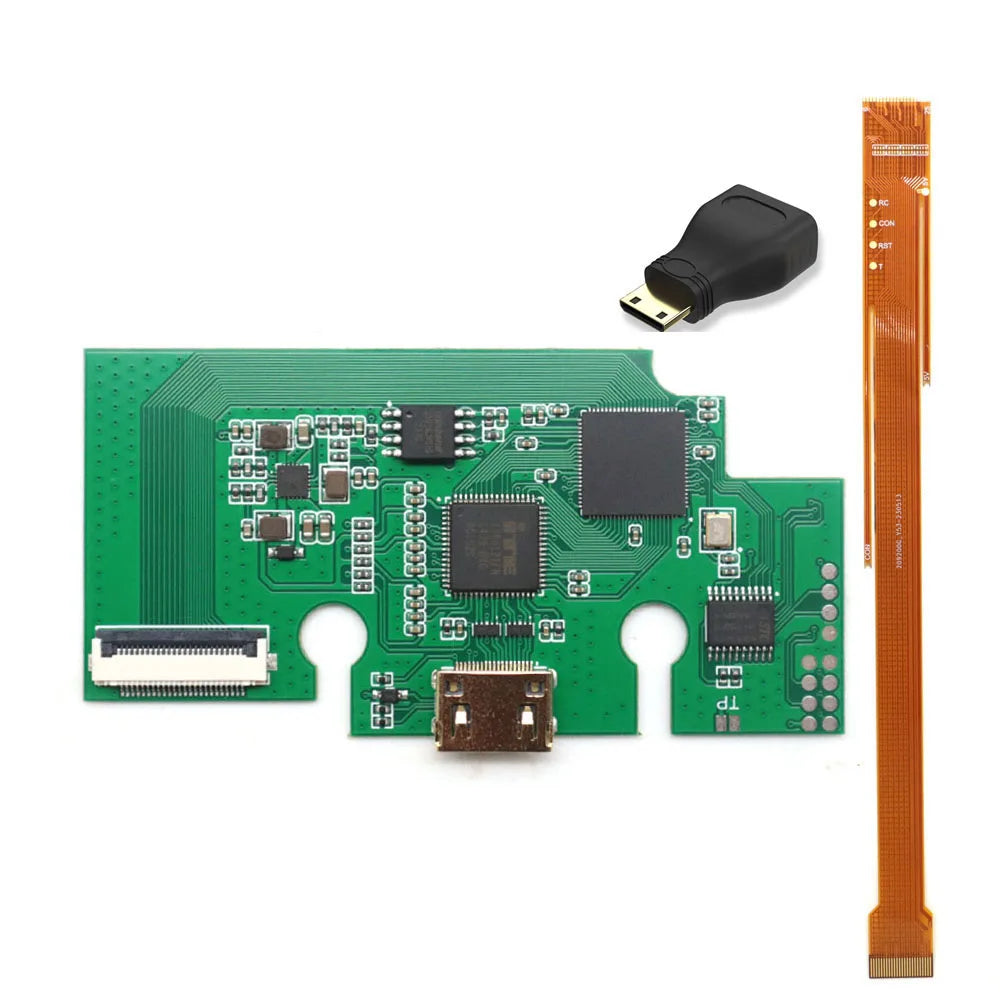

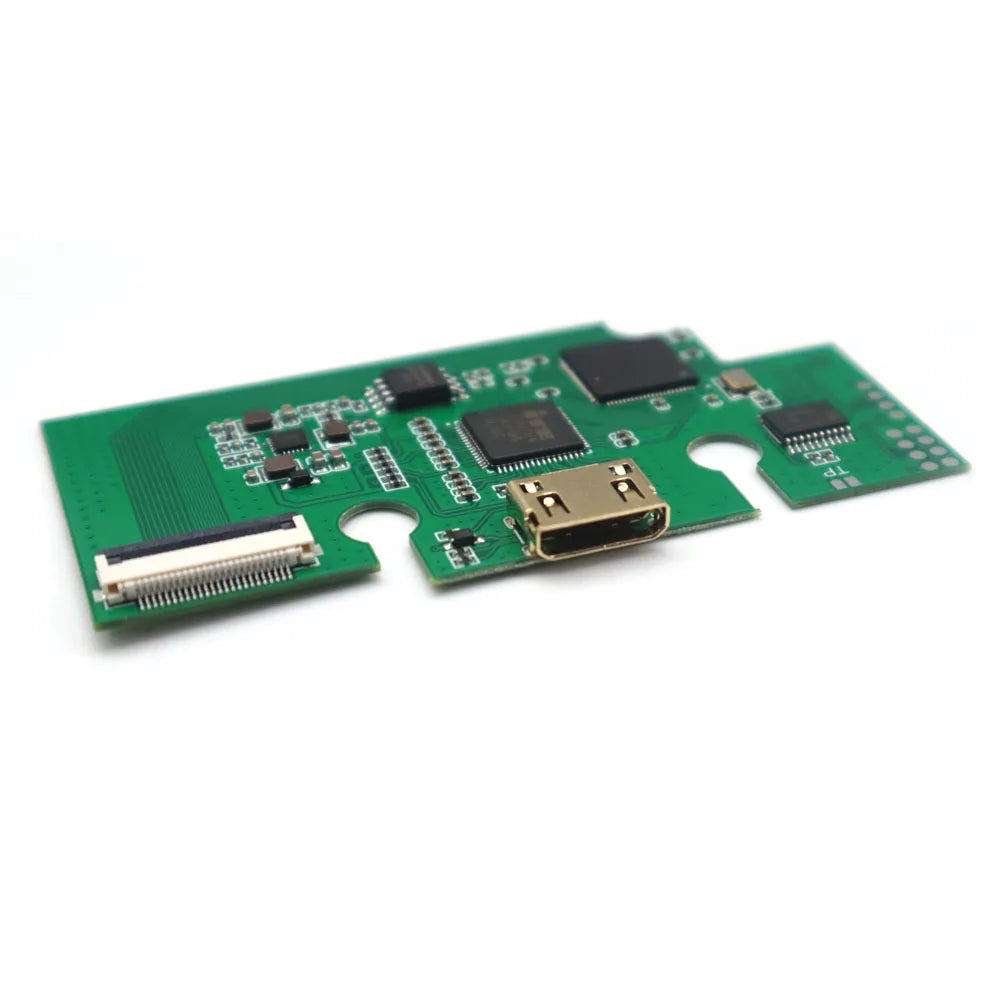

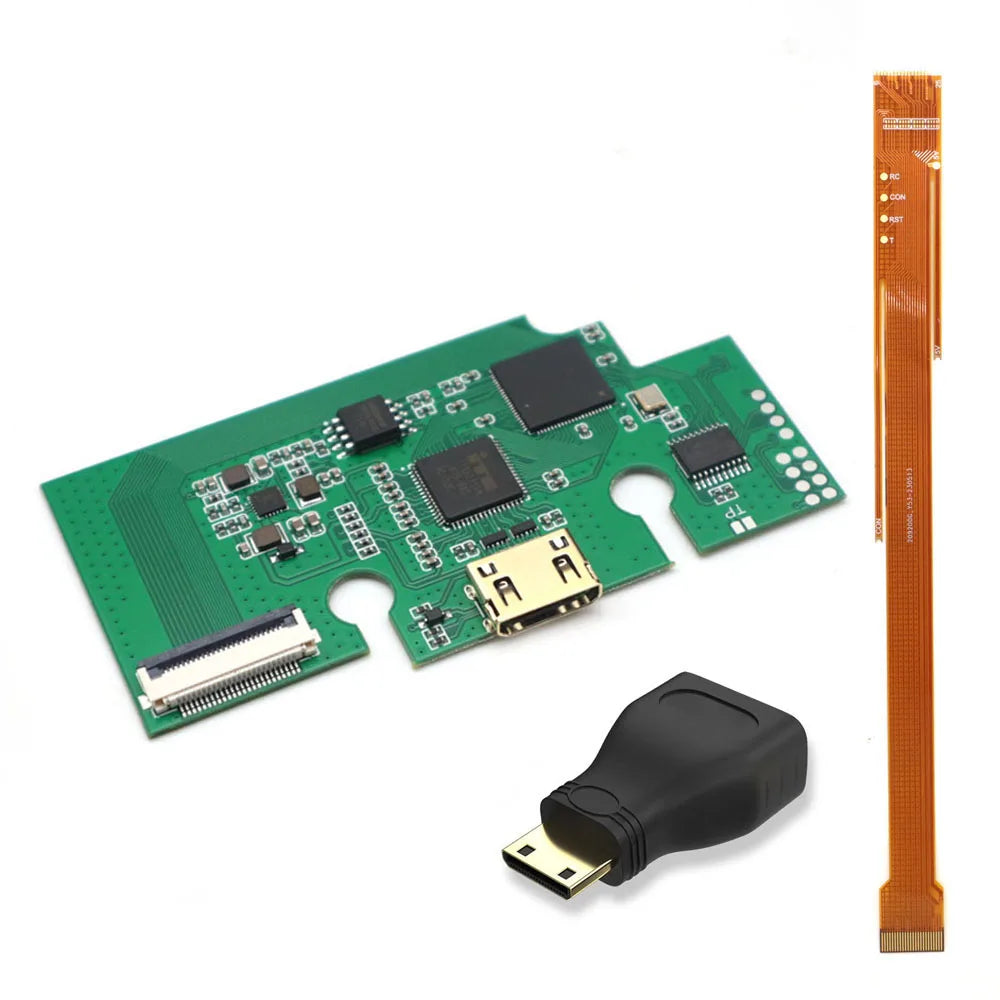

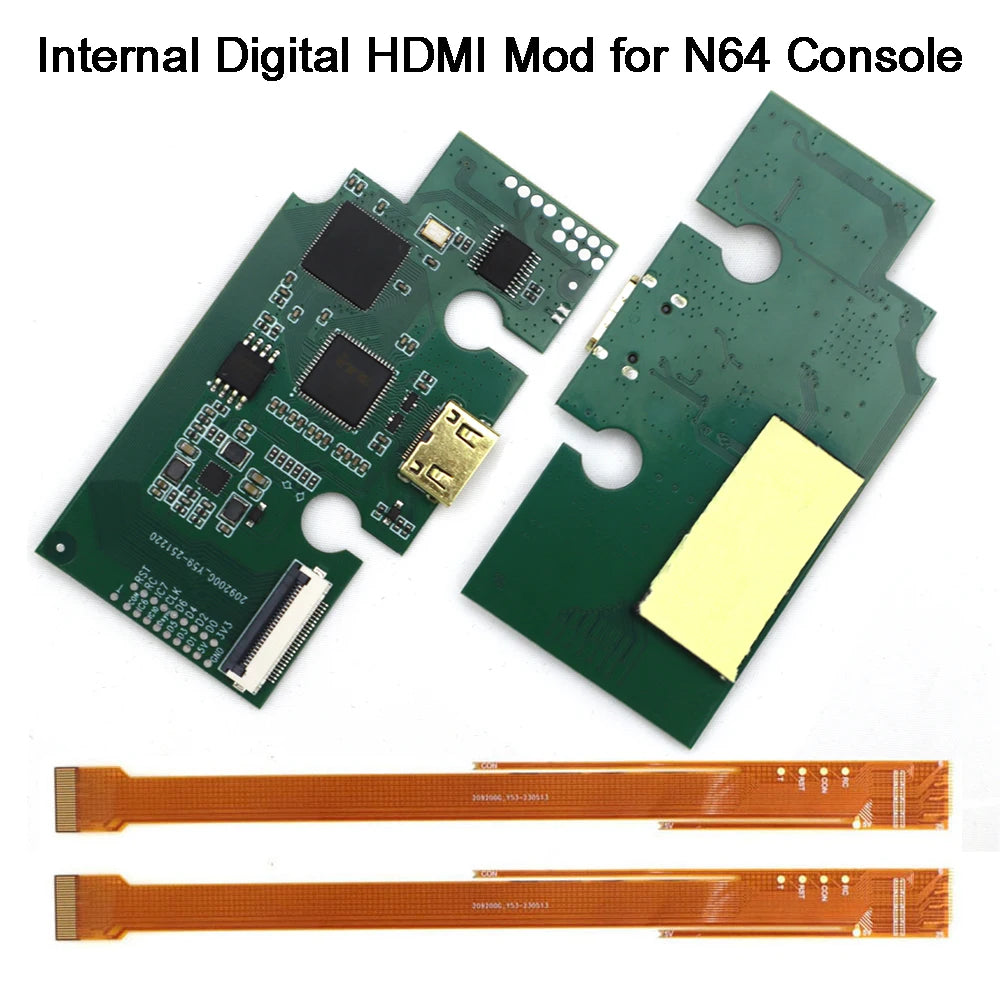

The kit includes a PCB and Flex that must be soldered into the N64.
Make your N64 console output HDMI image.
1.HDMI-Compatible Output.

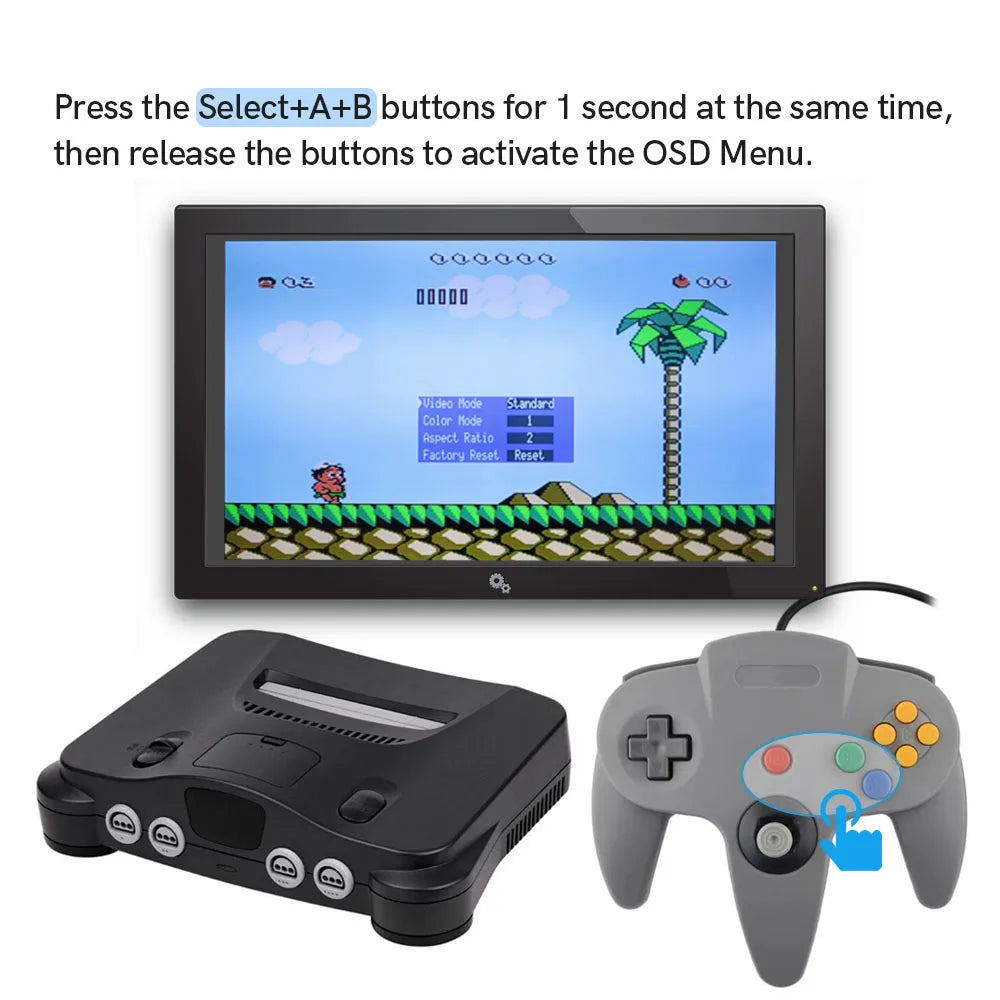

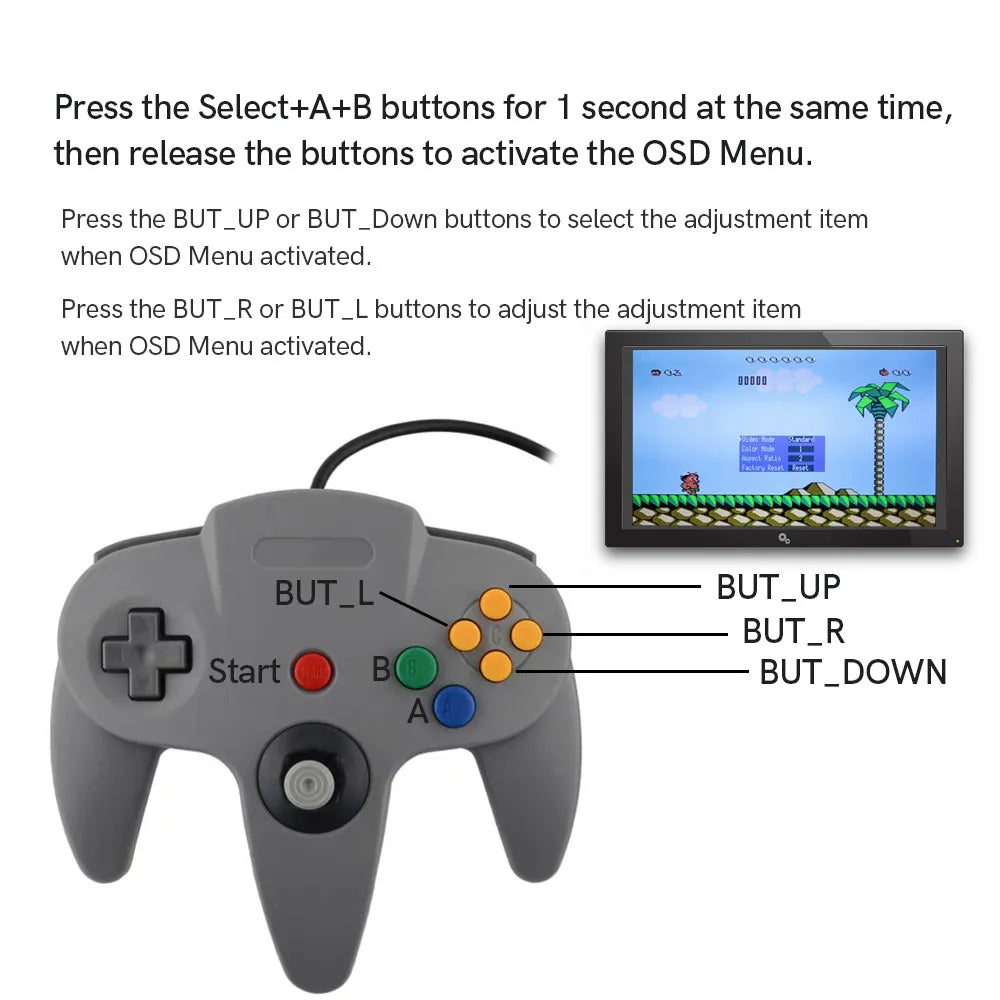

2. Built-in OSD Menu!

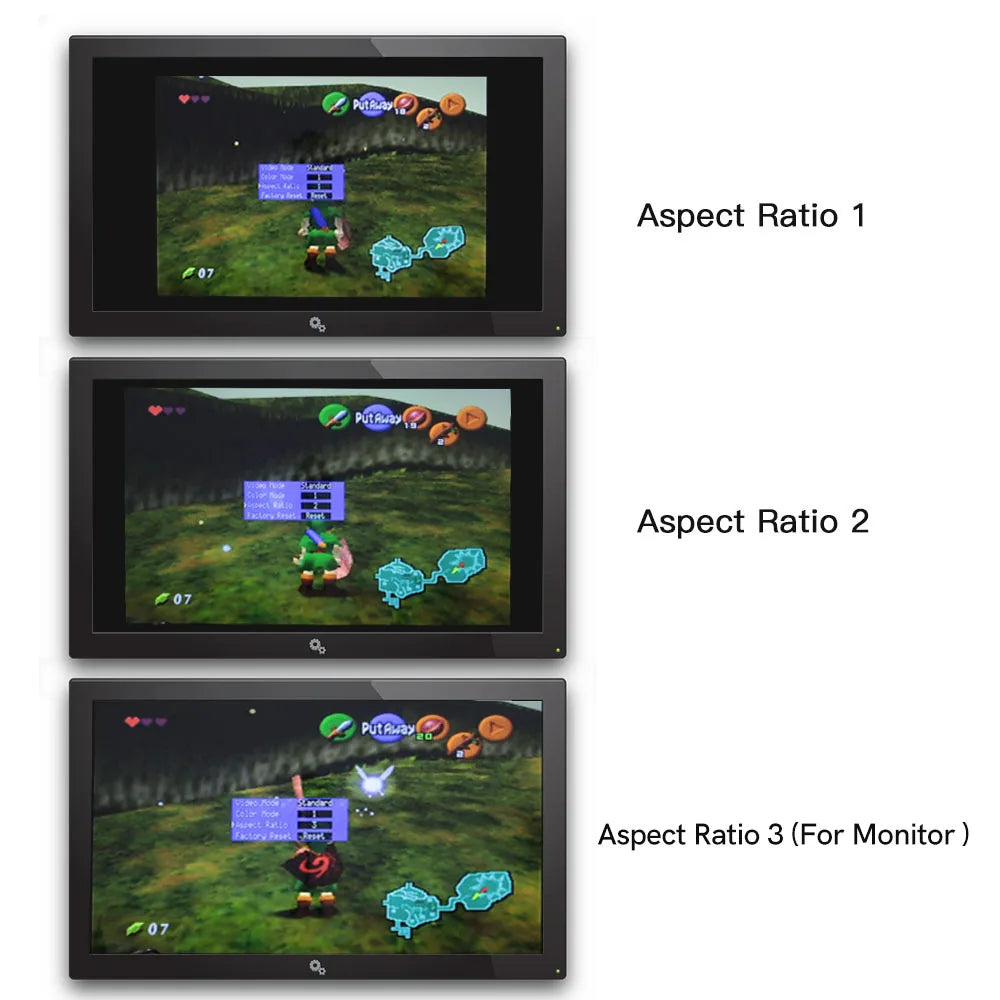

3. Built in 3 TV Aspect Ratio.
4. 8 color modes.
===============
The N64 original image resolution is 256x224 to 640x480. So, 720P HDMI
The 720P resolution is 1280x720.
1080P is 1920X1080
==========================
1.Align the flex on the RCP to pin 6.
2.Solder the flex cable.
3.Use a multimeter to confirm there is no continuity between adjacent pins. If a direct short is found, clear the bridge and check again.
==========================
The resolution of the N64 console is at most 640*480.
Whether the signal output is 720P (1280*720) or 1080P (1920*1080), they are all zoomed in based on the original signal (at most 640*480). The qualities of the output pictures are the same.
The Input signal resoulation limits the output quality.
In one word the qualities for 720P and 1080P are the same for N64 console.
---Instruction manual---
