Choose RGB modification, an RGB cable, or both for a compatible Nintendo 64 NTSC console.
- Not compatible with PAL consoles
- Compatibility listed for NUS-CPU-01/02/03/04 mainboard revisions
- Variants include RGB modification only, RGB cable only, or both
- Check the console serial and mainboard revision before installation
SPECIFICATIONS
Accessories Type: Motherboard
Bluetooth range: no
Brand Name: TICKNOT
Cable features: Without cable
Choice: yes
Compatible Brand/Model: Nintendo
Compatible Nintendo Model: Nintendo64
Control Method: Push button
Controls Type: Others
Electric: No
Enclosure material: Others
Fastening type: Others
Harness Feature: Others
High-concerned chemical: none
Item: RGB MOD FOR N64 NTSC
Model Number: rgb mod
Occasion: Others
Origin: Mainland China
Platform: Other
Portable: No
Reusability: Disposable
Sensor Technology: Others
With USB: NO
is_customized: YES
semi_Choice: yes
RGB Mod Chip For N64 NTSC Game Console RGB Mod Kit For Nintendo 64 Accessory
What is this?
This is the RGB modchip for Nintendo 64 NTSC consoles.
*****
How to find RGB-outputting NTSC N64 Systems:
1. If you have a serial number that starts with “NS1” (USA), “NUJ1” (Japan) or French systems with the model number “NUS-001(FRA)”, then you most likely have an N64 that’s compatible. Supposedly, some early Canadian N64’s also contain this chip.
2. Many older Brazilian N64’s contain the same chip and can be RGB modded. Even though Brazil used PAL-M, is was still 60Hz and only compatible with NTSC games: http://s9.zetaboards.com/Nintendo_64_Forever/topic/7405289/1/
3. If you have a serial number that starts with anything else, or is a PAL console-Not compatible with this module.
4. This modification only works with NUS-CPU-01/02/03/04 main board revisions! Also, verify that your main board has a 'VDC-NUS'/'VDC-NUS A' chip (U4). If that's not the case - stop here! Your console is not compatible with this modding board!
INTRUDUCTION

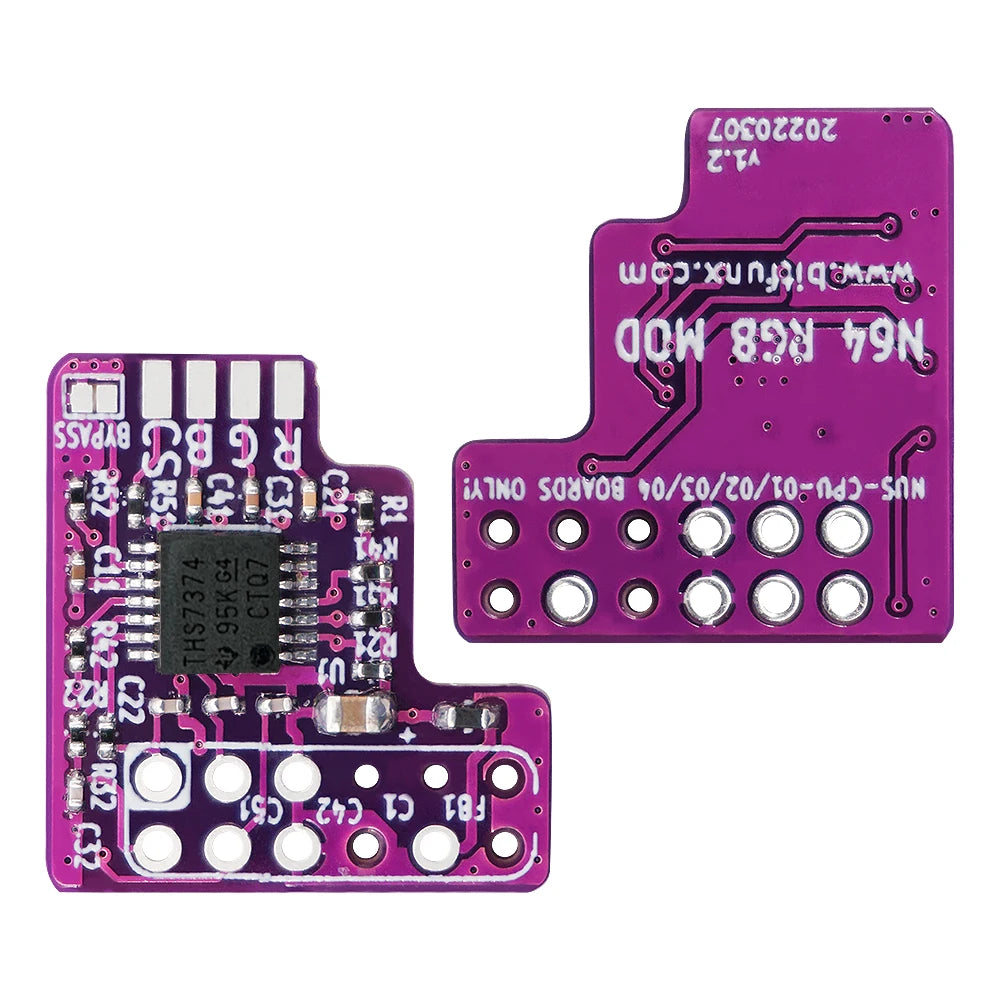

1）RGB Mod uses THS7374 amp to display clearer and softer images.

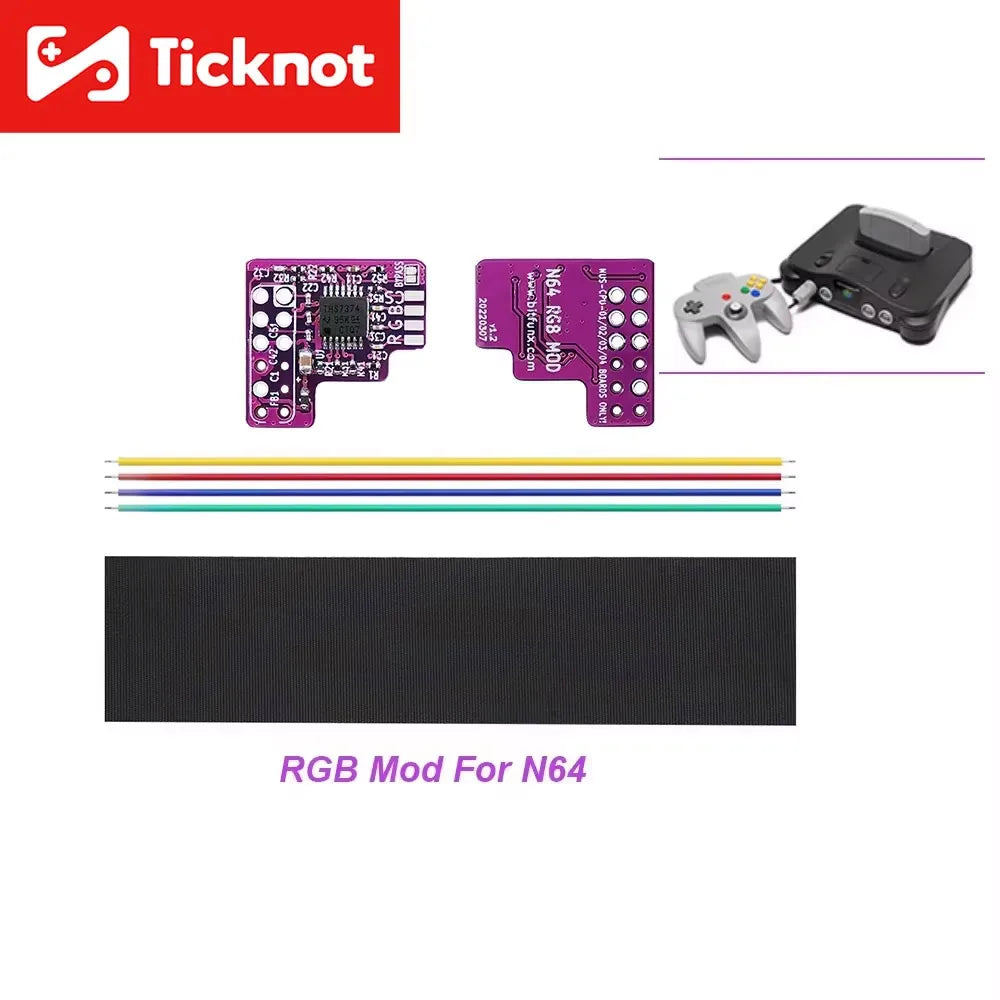

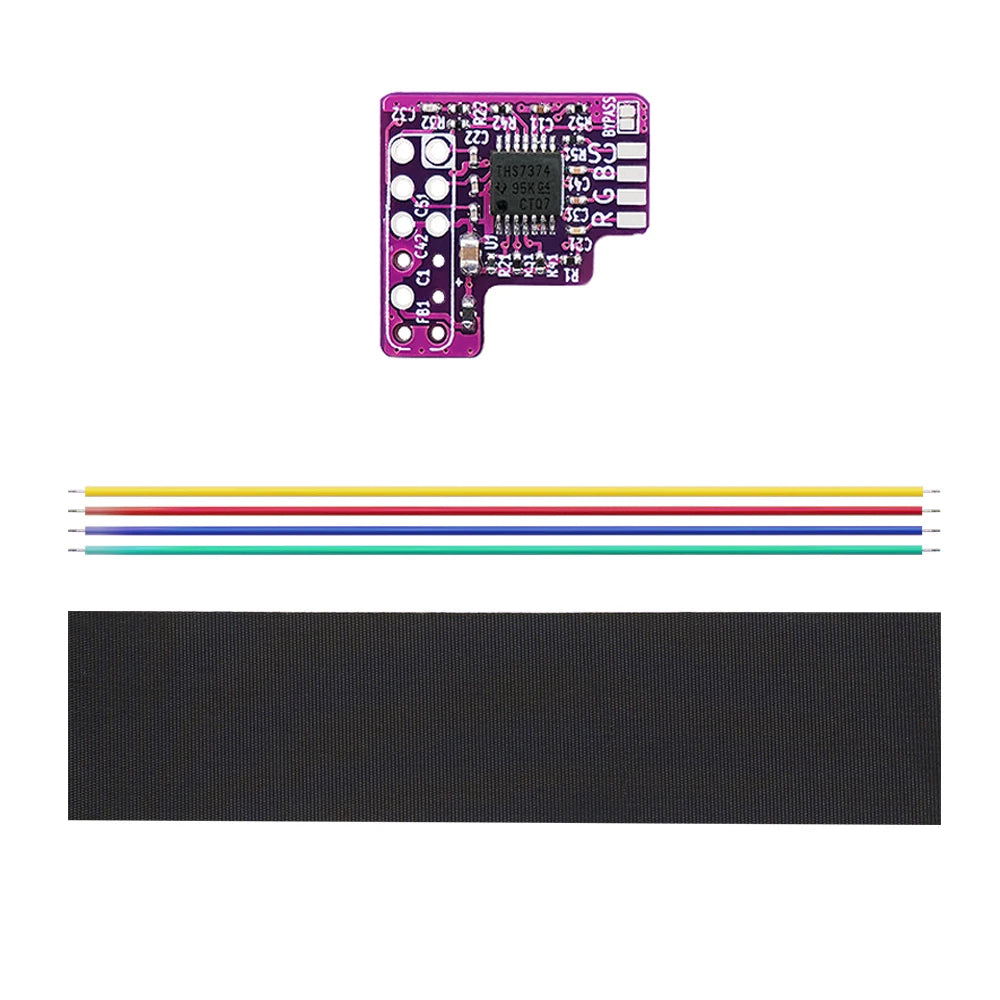

2）Contains four colors of R/G/B /S wire and insulating tape.
3）The product comes with a detailed installation tutorial, which requires a certain amount of hands-on ability.

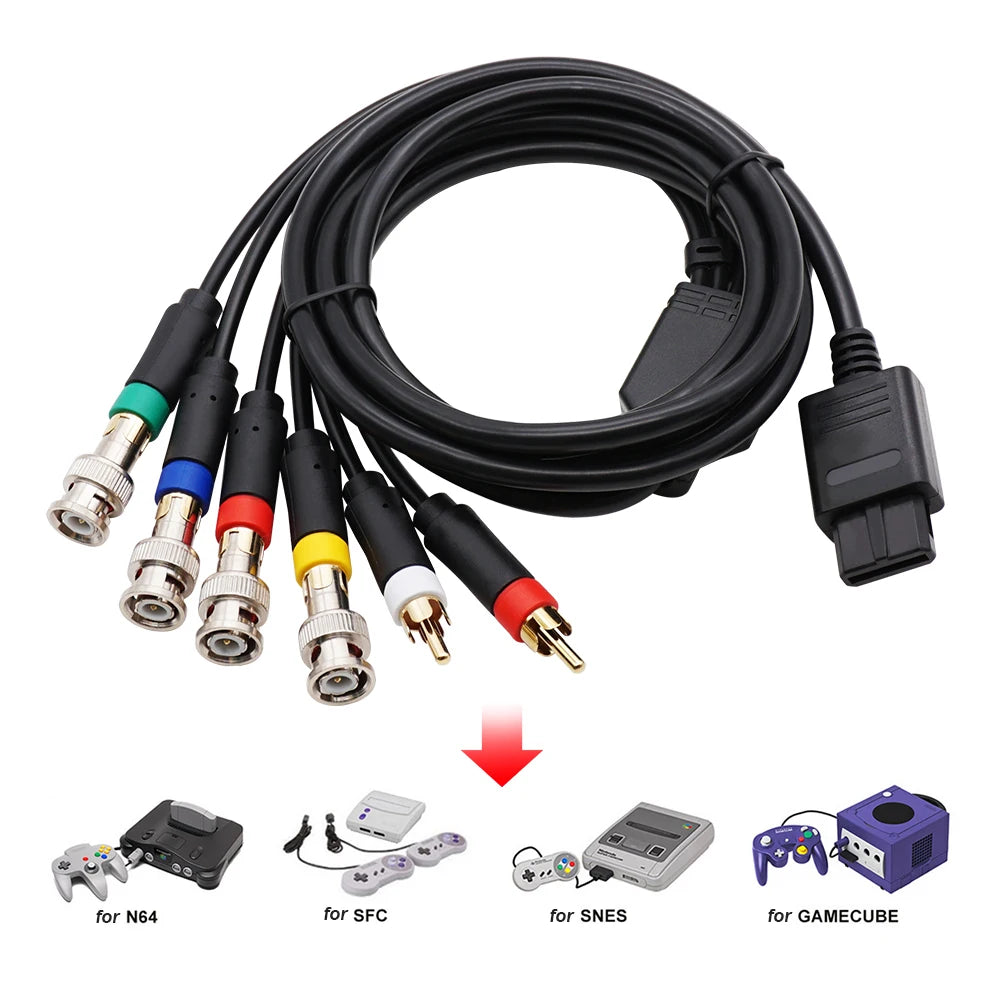

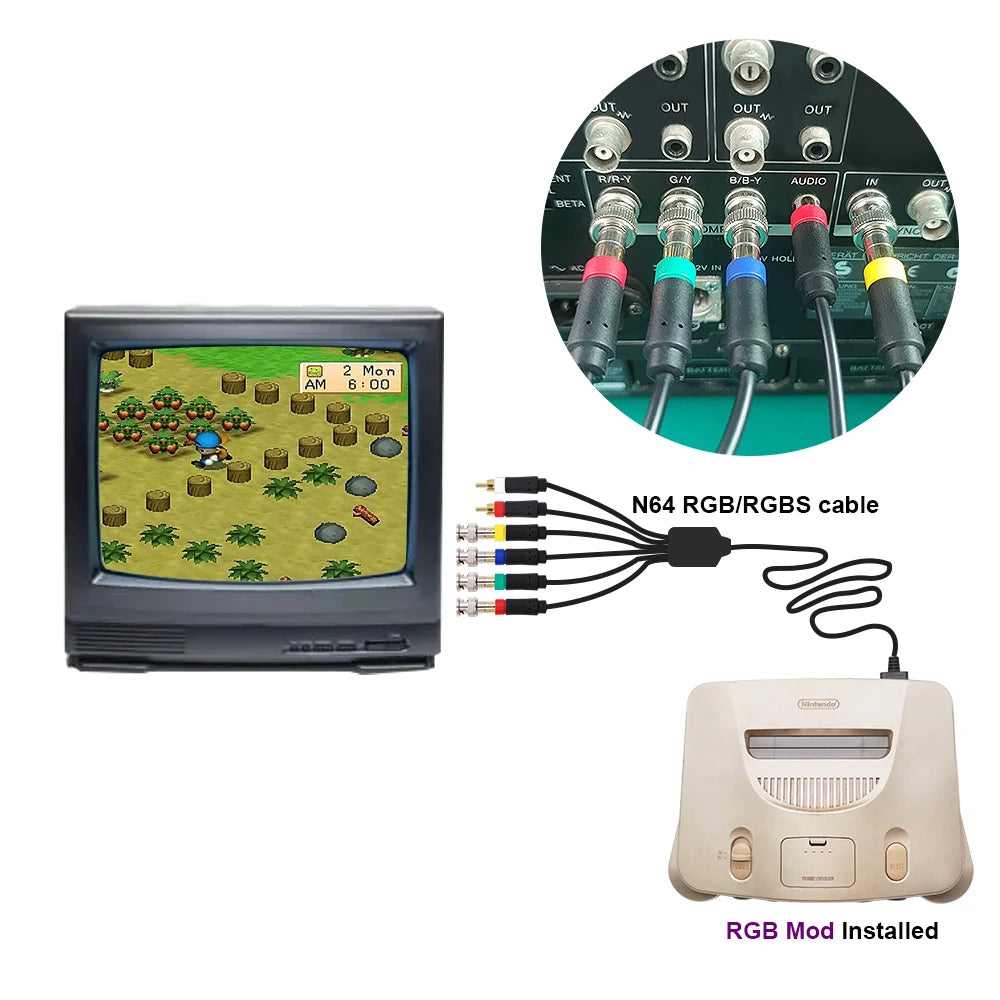

4）Can be directly connected to CRT TV (For N64 color monitoring line) or used with OSSC (For N64 scartrgb cable).
Please Pay Attention:
Jumper 'Jbypass'
The THS7374 has a low pass filter on each of the four channels which can be turned on by shorting jumper 'bypass' on the modding board. This is mostly needed if you wire the console directly to a flat-screen TV. There's no need for the low pass filter on analogue devices.
If you use an OSSC or a Framemeister, it's better to use their filter options.
For N64 RGB Mod Installation Guide
Tools required:
Phillips Screwdriver
4.5mm Game Security Bit
Four electronic wires
A piece of insulating tape
N64 RGB mod
Step 1
Using a 4.5mm game security bit, remove the 6 screws from the bottom of the N64
Step 2
Begin disassembly by removing the jumper/expansion pak from the N64 and remove the top half of the N64 shell.
Step 3
Remove the 14 phillips screws that secure the N64 PCB and remove the PCB.
Step 4

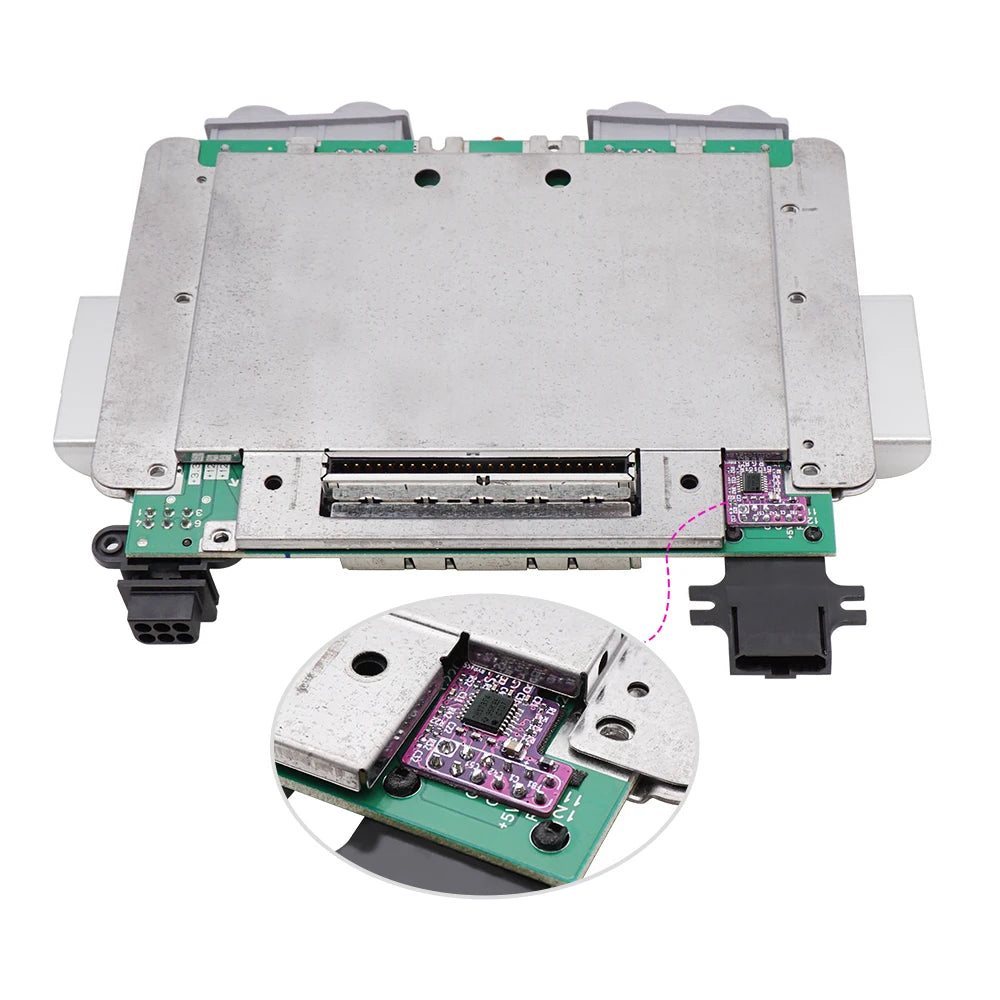

Place the N64 RGB mod over the multi-out pins and solder into position.
Step 5

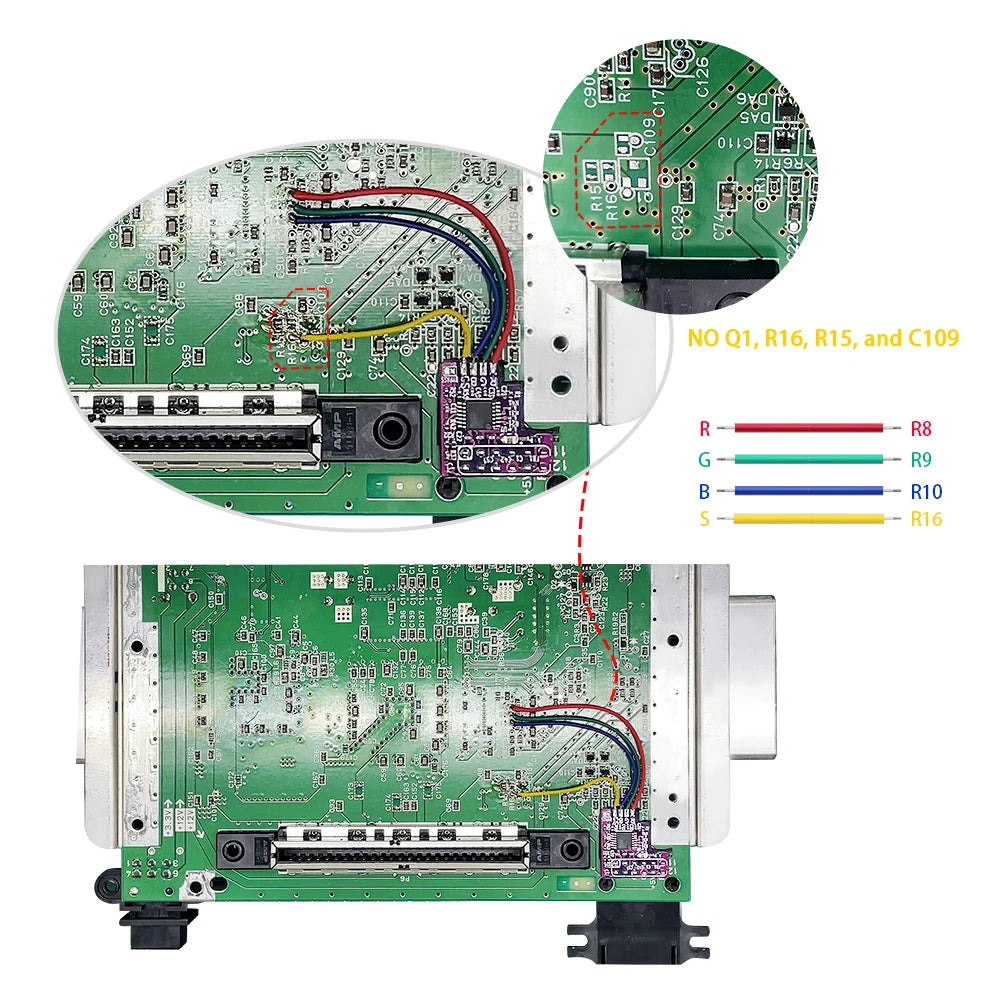

If using supplied ribbon cable. Bend ribbon cable at a 90° angle and remove the excess. Solder into position. R10 = Blue, R9 = Green, and R8 = Red.
Step 6
Early N64’s drive and buffer C-Sync to the multi-out. If Q1, R16, R15, and C109 are present and you have an appropriate C-Sync cable, The installation can be completed directly, skip the following steps.
Step 7
For N64’s with the C-Sync circuitry missing, Solder into position,R16=CS
Step 8
Use insulating tape to cover the soldered part to prevent short circuit.
The installation steps are over, please assemble and test.
